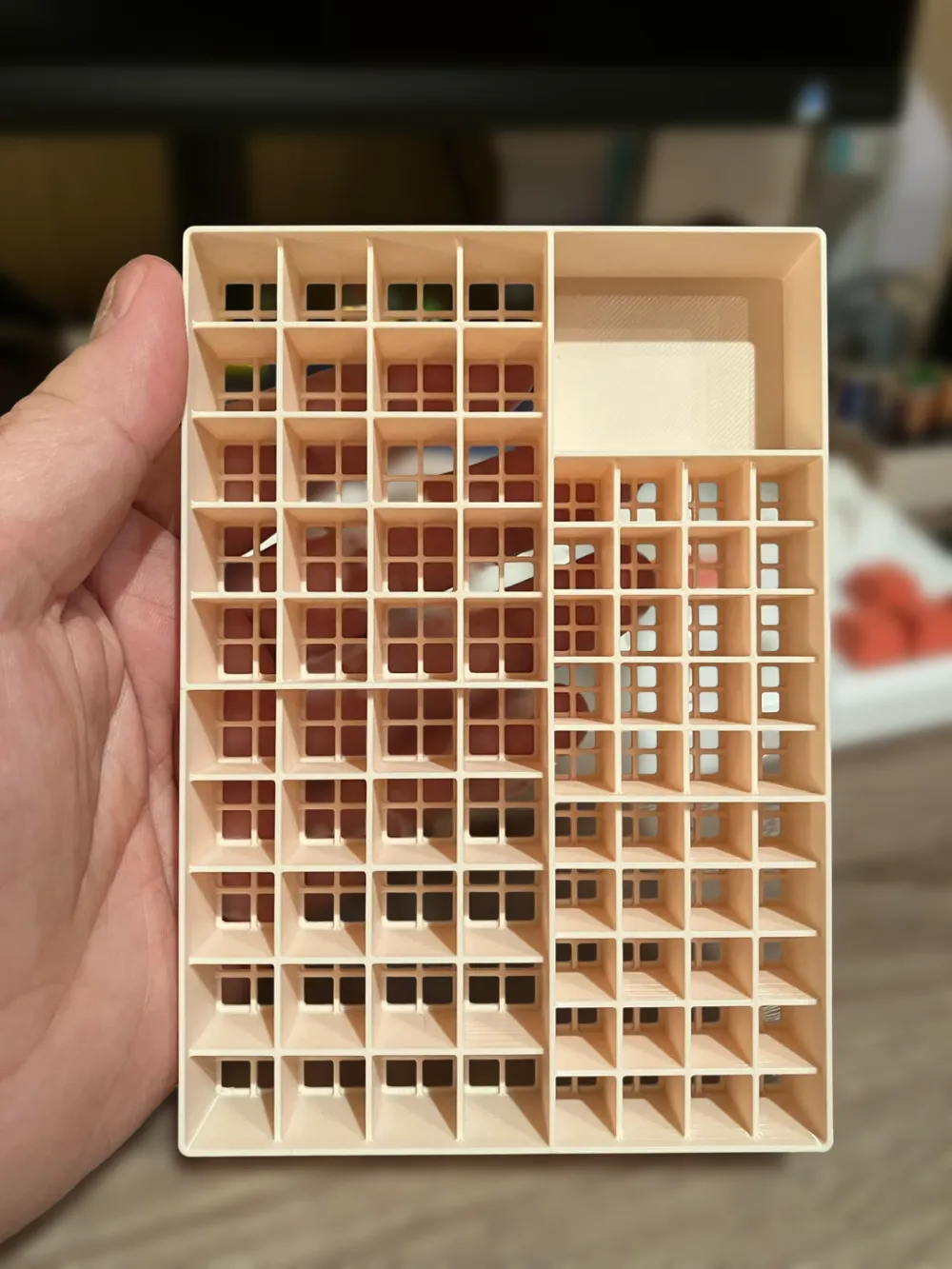

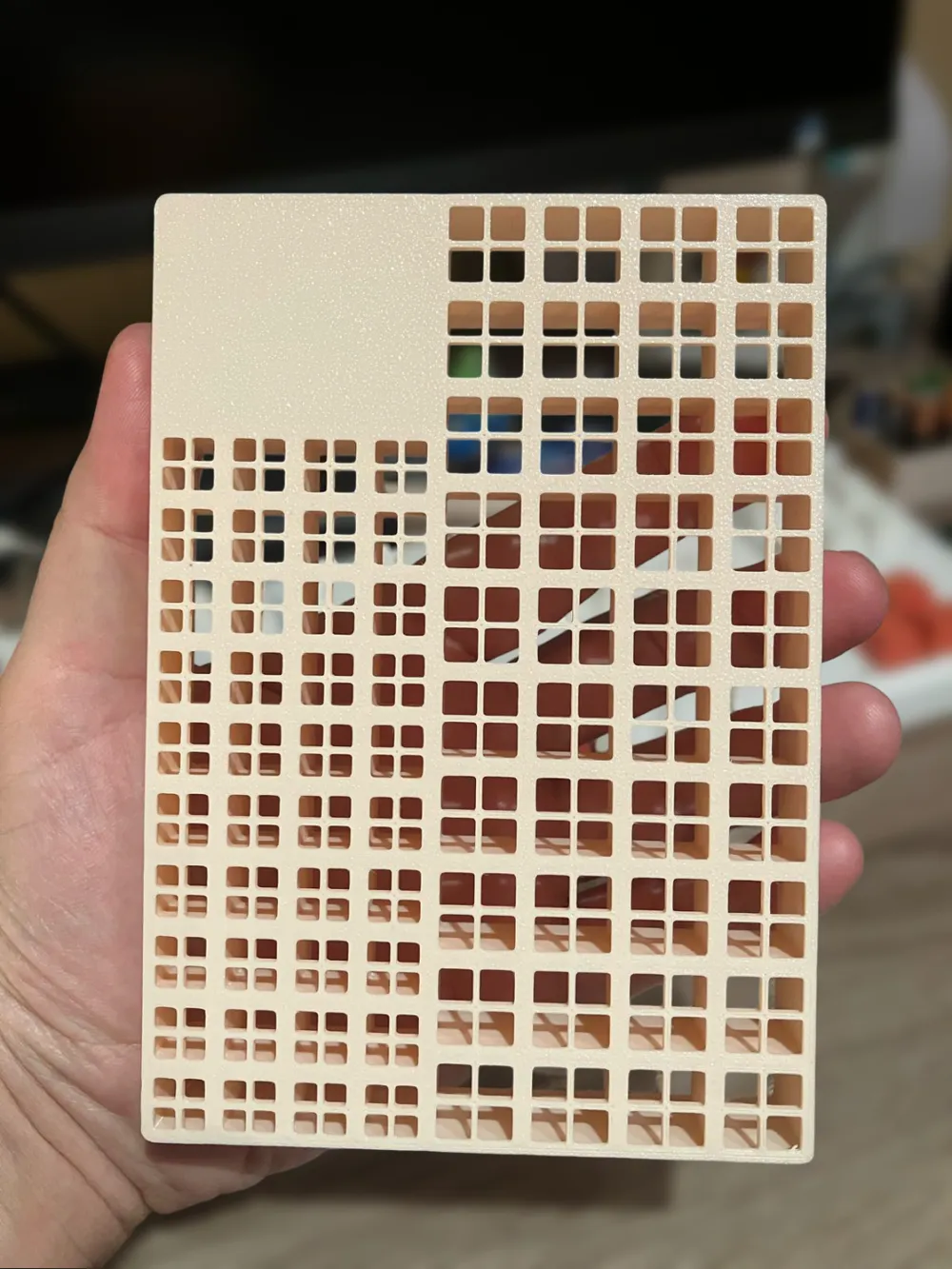

Pretty simple but practical AA/AAA baterry holder.

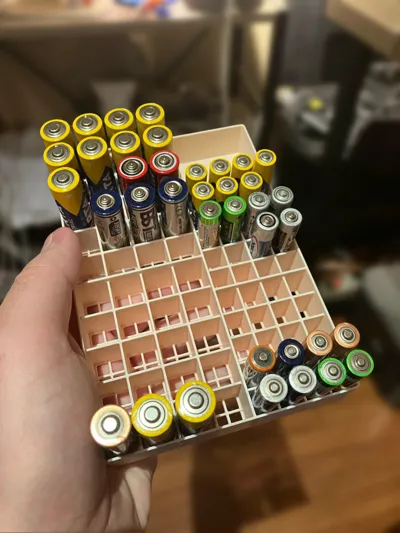

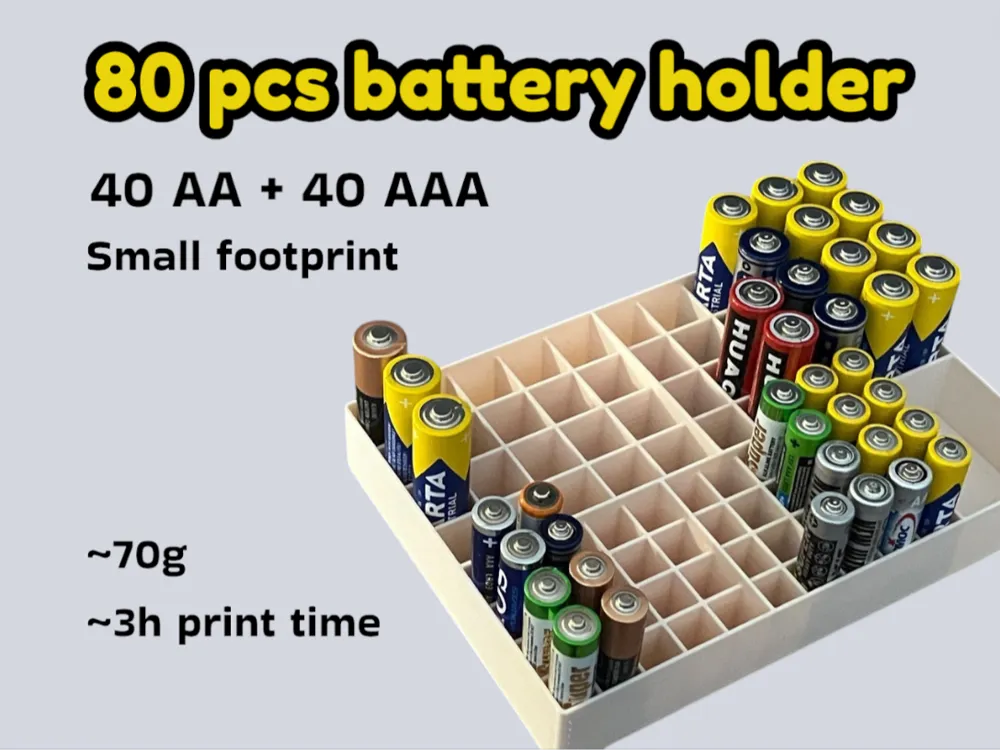

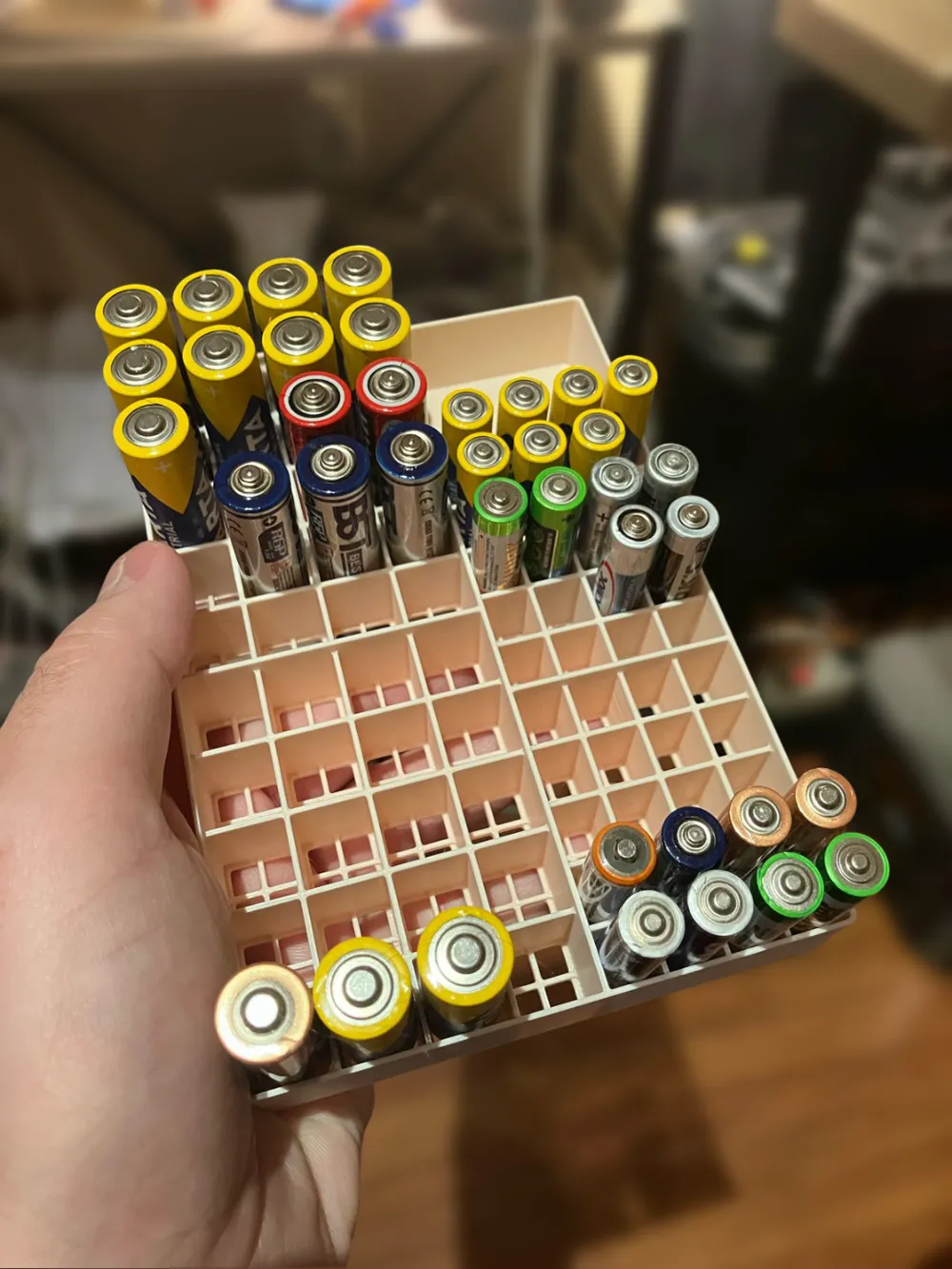

It can hold 40 AA + 40 AAA batteries. There is also a section for some small batteries (like CR2032 or LR44).
My main goal for this project was to create a lightweight and compact, yet roomy battery holder with reasonable print times, and which would be sized to print on an A1 mini.
What to expect:
- 109 x 155 x 23 mm in size
- ~70 g filament usage
- near 3 h of printing time
From Bambu Studio side: 0.2 mm layer height and added brim ears (nothing fancy)
Printing time can be reduced to 2,5 h with 0.28 layer height, but I not tested this case.
This model can be expanded (upon request) to 50 AA + 50 AAA or even 60 AA + 60 AAA.
60 + 60 is the maximum size for printing on A1 mini.
Would be grateful for any feedback or suggestions.
