Customizable Milwaukee Low Profile Handle Label

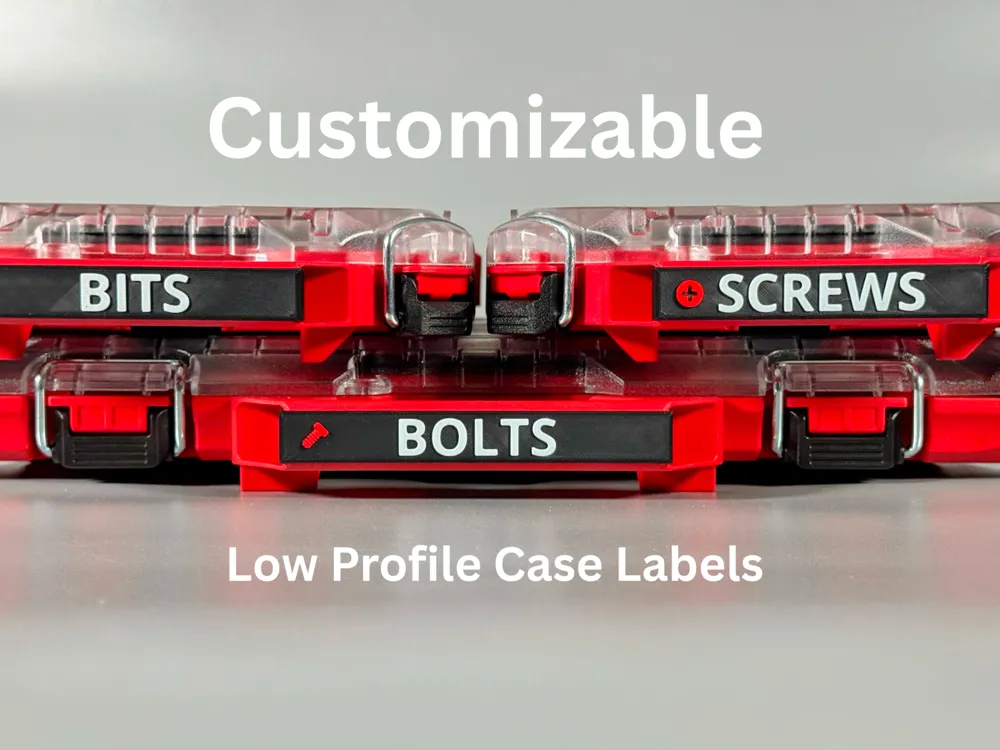

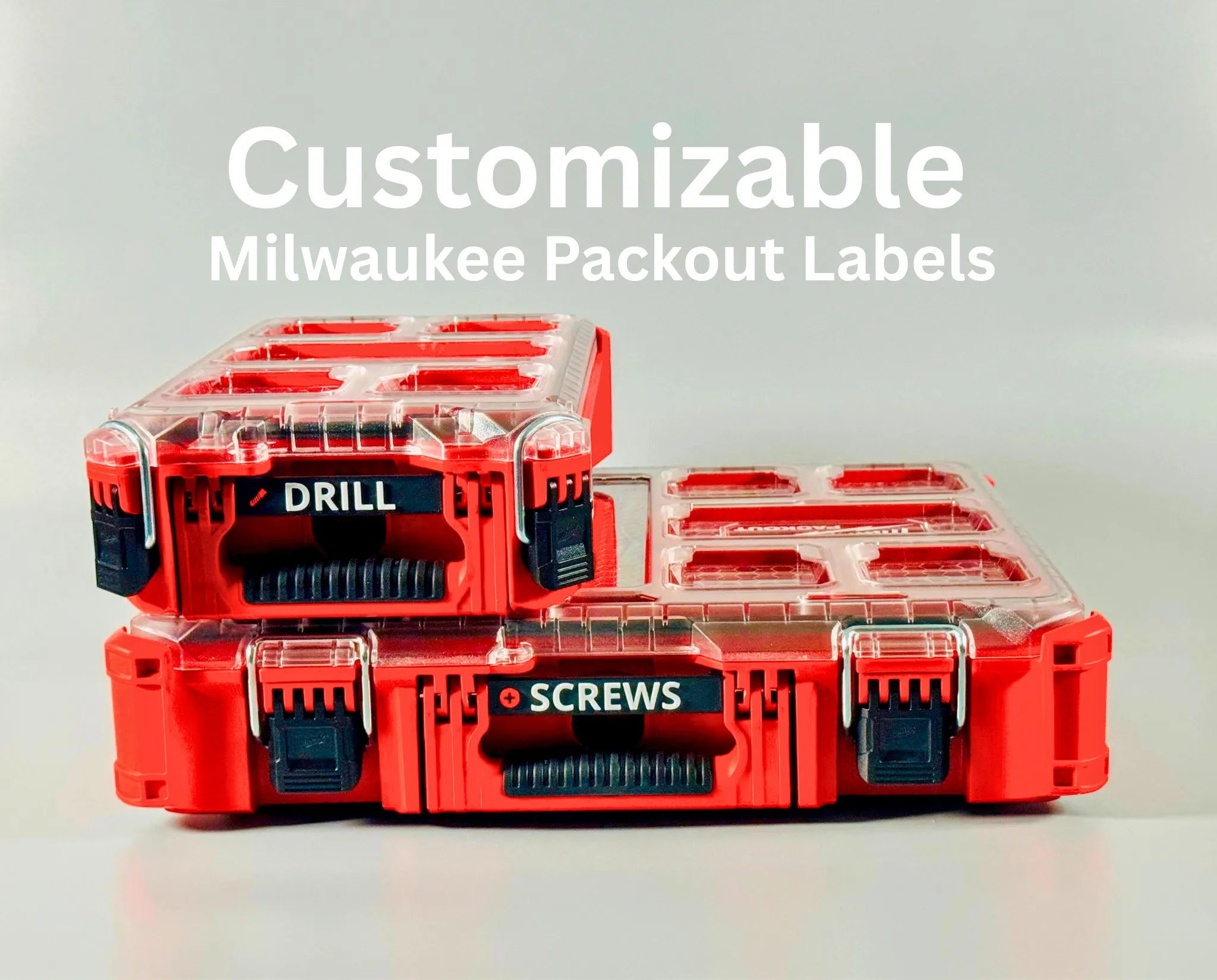

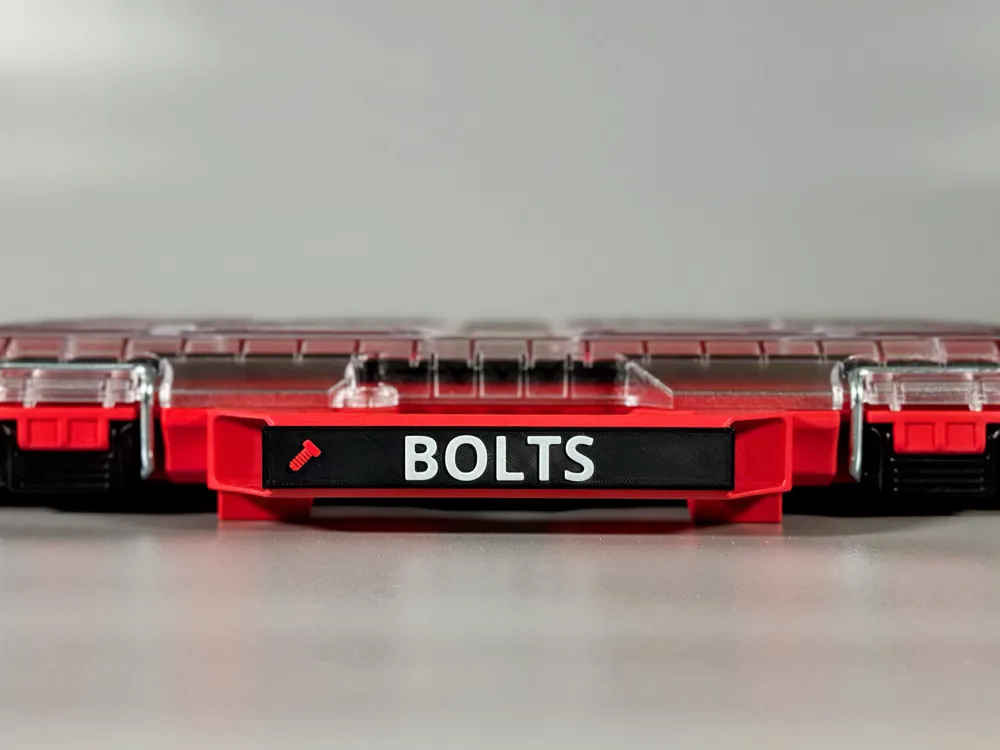

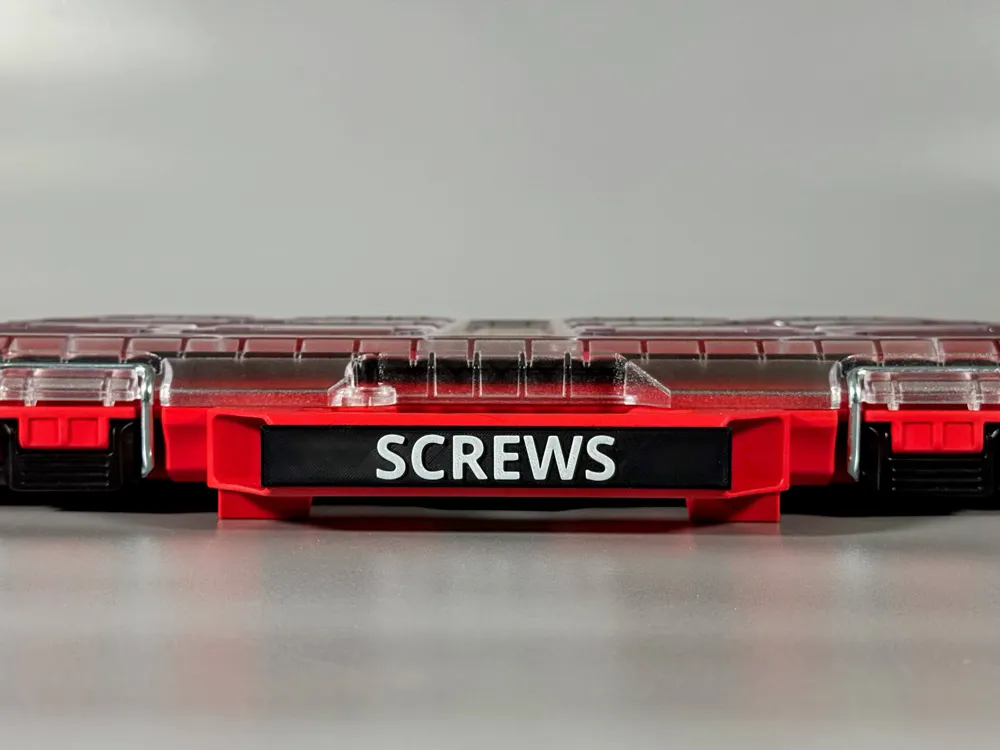

Customizable Milwaukee Packout Low-Profile & Compact Low-Profile Case Labels

⚡ Stop Hunting for Specific Labels — Generate Your Own!

Unlock the full potential of your Milwaukee Low-Profile Packout organizers. Instead of searching for a specific “M3 Screws” label or waiting for someone to upload it, generate exactly what you need in seconds. This OpenSCAD generator creates professional, heavy-duty handle labels for both the Compact Low-Profile and standard Low-Profile organizers.

✨ Features

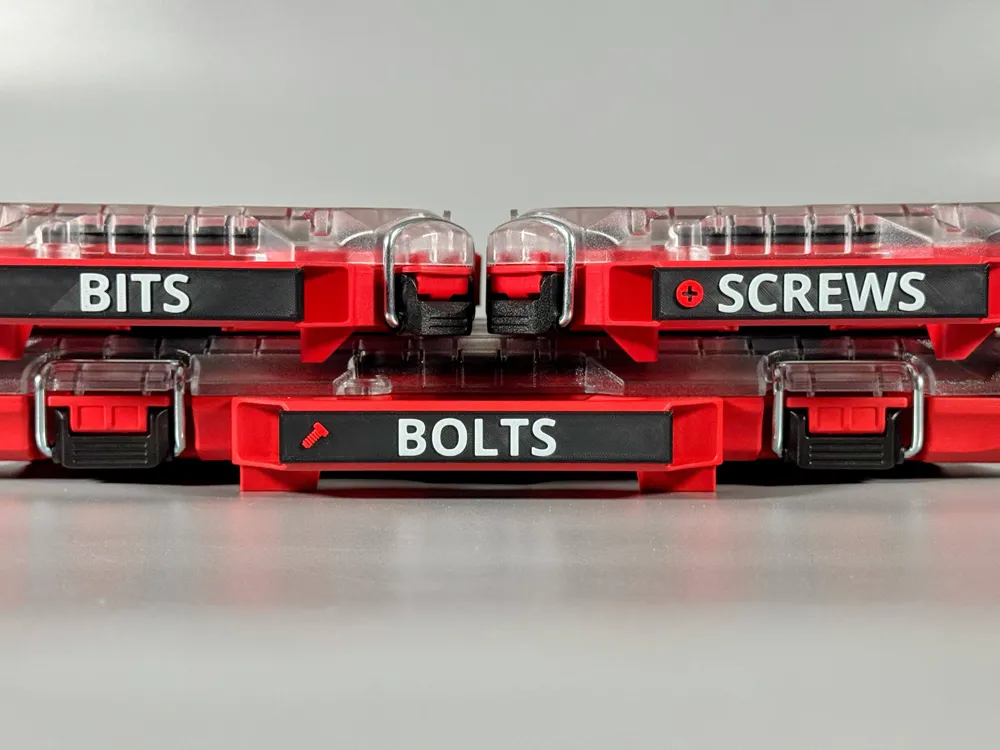

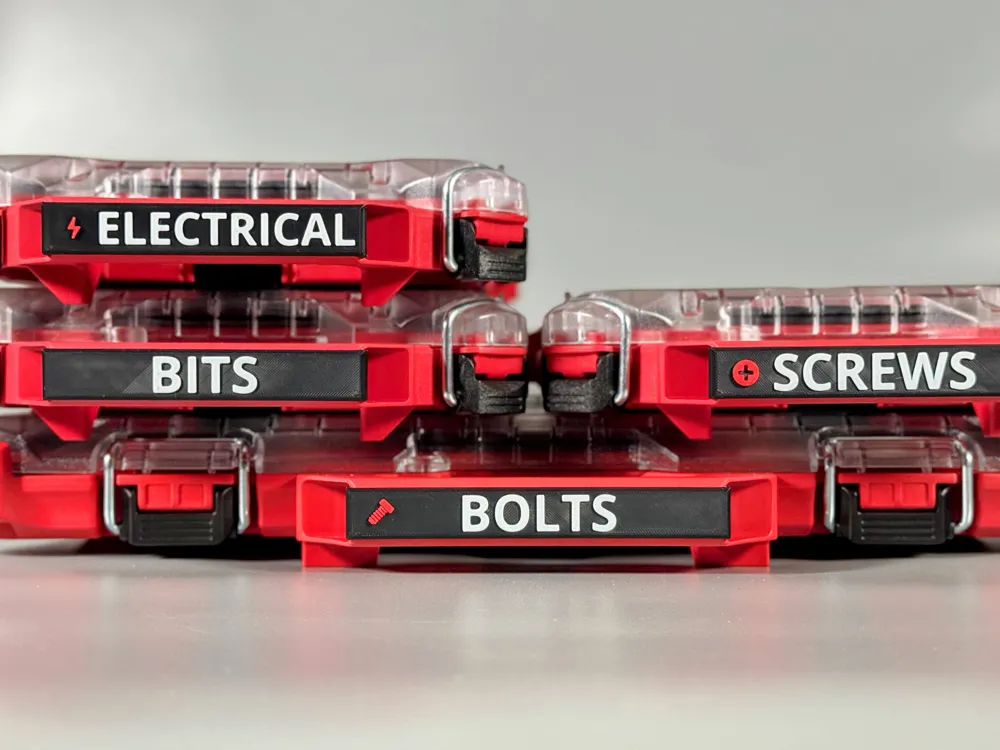

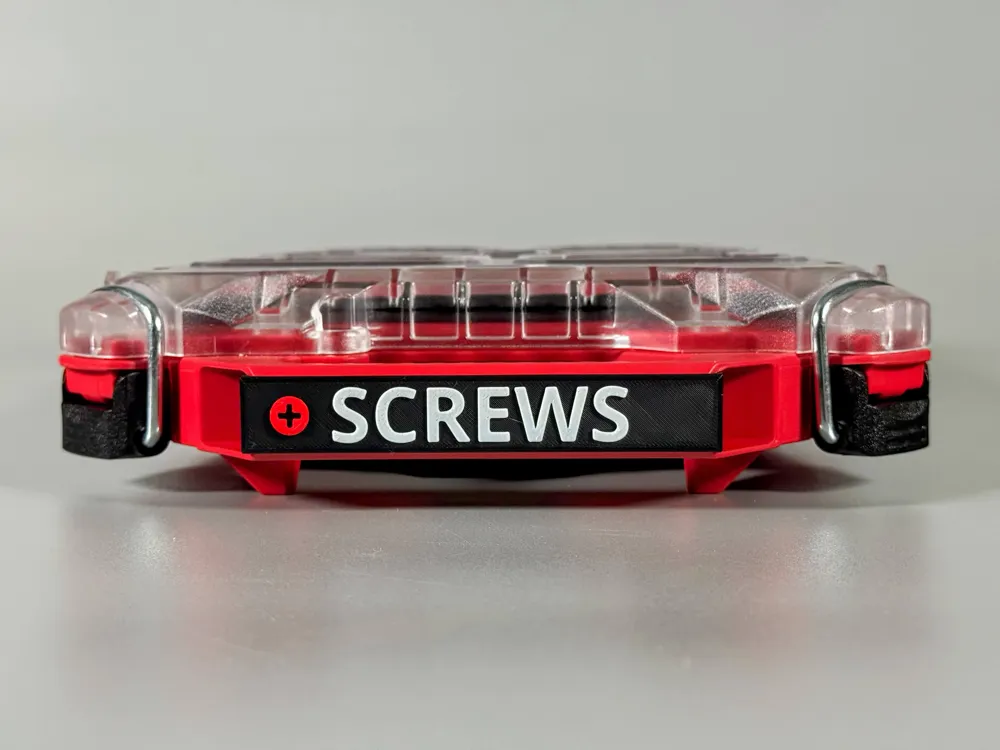

• 📐 Dual-Size Support: One model fits both the Compact (48-22-8436) and Full-Size (48-22-8431) Low-Profile organizers. Just select your case type!
• 🧠 Smart Auto-Scaling: Never worry about your text being too long. The generator “measures” your words and shrinks them to fit the handle perfectly every time.
• 🧱 Heavy-Duty Build: Featuring reinforced walls and custom-engineered stabilizer clips designed to stay secure even when your cases are being tossed around.
• 🌱 Zero-Waste Printing: No AMS? Use Press-Fit Mode to print professional two-color labels with no filament waste (no purge towers or “poop”).
• 🧩 Perfect-Fit Technology: Includes a “Climate Calibration” setting to account for plastic shrinkage, ensuring a satisfying snap-fit whether you print in PLA, PETG, or ASA.
• ♾️ Unlimited Icon Library: Choose from over 50 built-in trade tools, including fasteners, plumbing, electrical, and safety icons.
• ♨️ Ironing Optimized: New Chamfered Edge settings ensure your labels look factory-molded, smooth, and without squashed edges.

🚀 Customize Instantly (Website Only)

This model is MakerWorld Customizer Compatible!

Customization is currently only available through the MakerWorld website. If you are using the Bambu Handy app, please switch to a web browser to access the “Customize” button.

1. Click “Customize” on this page.
2. Select your Case Type (118mm for Compact, 144mm for Full Size).
3. Select your Icon and enter Text.
4. For Press-Fit: Change Layout Mode to Print View (Separated parts) to move pieces side-by-side.
5. Click “Generate” to create your custom handle label.
6. Export as 3MF to retain color information.

📚 Need Help? Read the Guide!

I have included a comprehensive PDF Customization Guide in the additional documentation. It covers every single setting and tips for printing.

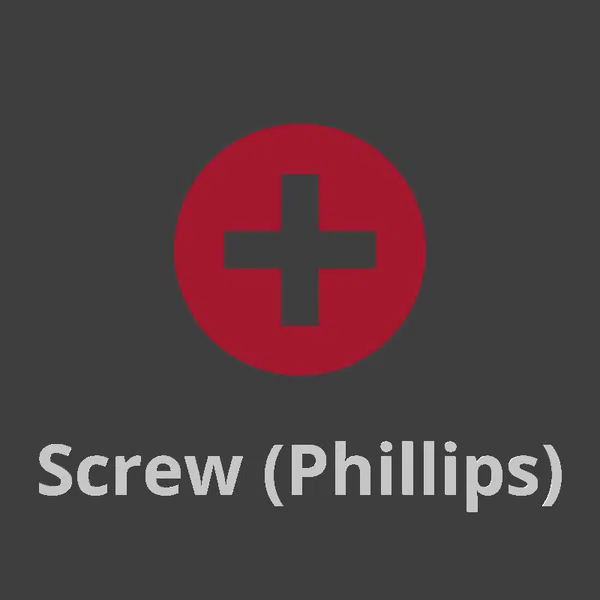

🛠️ The Icon Library

Organize your entire workshop with specialized icons for every trade. The generator includes 50+ built-in icons, plus support for Custom SVGs and Emojis: (note: SVGs will be uploaded as a single color)

📏 Compatibility Table

 🛠️ Need labels for Standard or Deep cases?

If you have the Compact (8435), Standard (8430), Deep (8432), or the Large Tool Boxes (8424/8425/8450), check out the universal wide-handle generator: https://makerworld.com/en/models/2406000-customizable-milwaukee-packout-handle-labels#profileId-2637489

🖨️ Printing Recommendations

• Supports: Required for the handle clips. Use Tree (Slim) supports for the best results.
• Orientation:
• Face Down: Best for Multi-Color (AMS). Yields a textured finish with zero ironing.
• Face Up: Works well for both AMS and Press-Fit. Looks great printed normally!
  • 💡 Optional: If you prefer a glassy-smooth finish, you can enable Ironing. Set Handle Edge Style to Chamfer and Handle Size Compensation to 0.1mm for cleaner edges!
• Walls: Use 4-6 Loops for strength.
• Wall Generator: Arachne is recommended for small text details.
• Brim: Outer Brim Only (5-10mm) helps prevent lifting on the long 144mm labels.

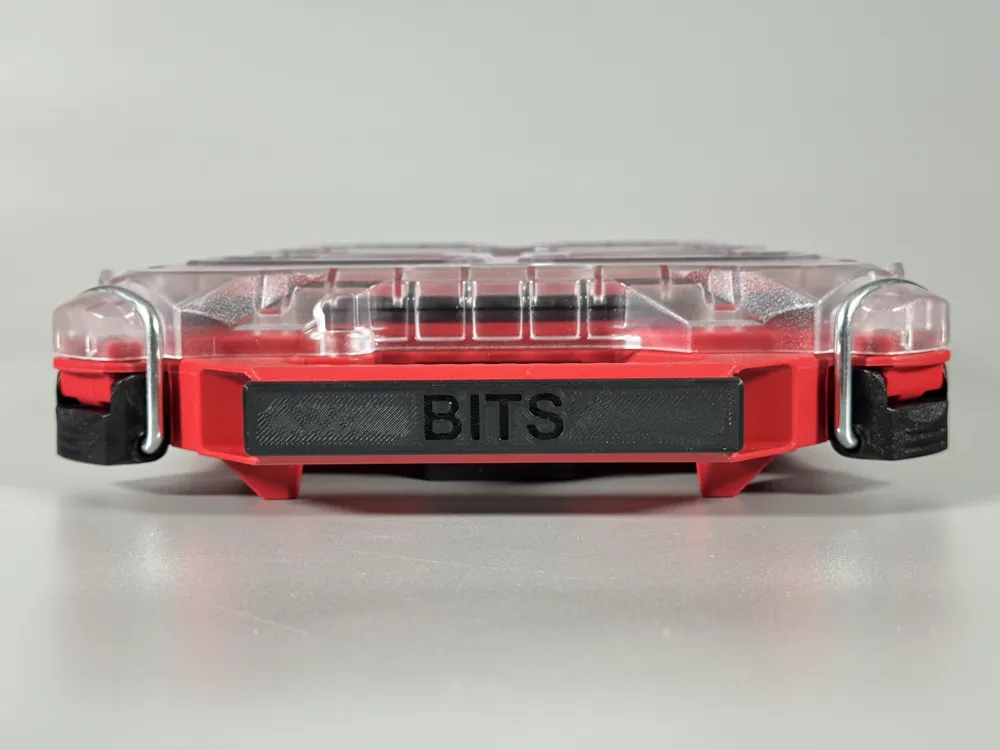

•  Engraved Text Labels – Print face-down on the bed without supports for a clean, precise engraving.
•  Raised Text Labels – Print face-up with tree supports to maintain text clarity.
•  Flush Text Labels - Print face-down on the bed without supports. Arachne wall generator
• ⚠️ Handling Tip – Avoid bending the label when removing the print from the plate.

📝 Release Notes - v2.0.0

• Unified Design: Merged Compact and Full-Size Low-Profile labels into a single parametric model.
• Improved Geometry: Re-engineered clip profile for a tighter, more secure fit on both handle types.
• Press-Fit Support: Added “Blind Key” alignment for two-tone printing without an AMS.
• New Icons: Added 50+ new icons, including trade-specific tools.

⚙️ Engineering Specifications

This generator is built on a custom OpenSCAD framework using the BOSL2 library.

• Dynamic Measurement: Uses textmetrics to manage real-time font scaling.
• Mechanical Optimization: Clips include integrated Stabilizer Profiles calibrated for Milwaukee’s specific handle draft angles.
• Complex Booleans: Correctly handles multi-material separation for AMS and applies precision tolerances (0.15mm) for press-fit components.
