Ford Fiesta parcel shelf clips
Print Profile(2)
Description

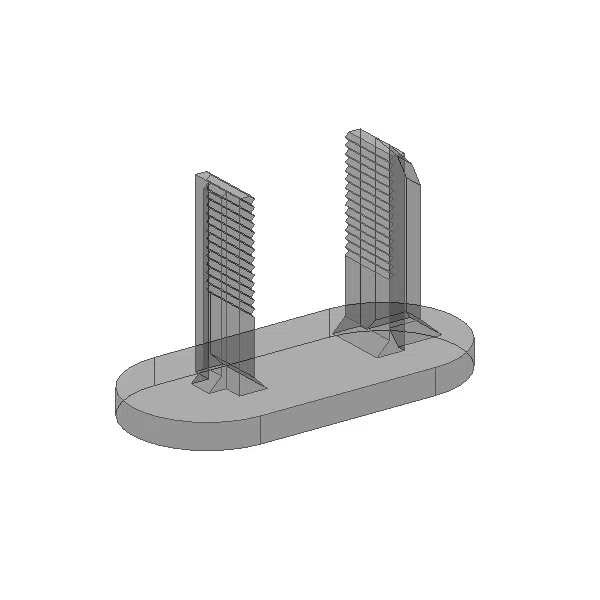

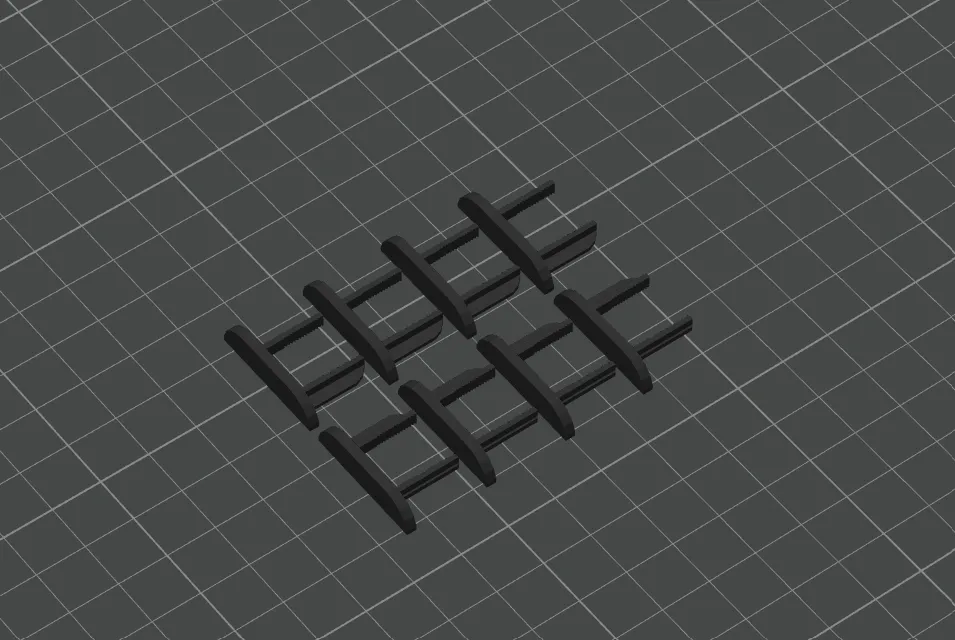

3D model of the clips for the Ford Fiesta parcel shelf.
The original broke and the only ones available to buy were 3D printed so I decided to make my own.
This is the first version - I recommend printing it in PETG, as it lasts longer. PLA works also.
I initially printed the original model with the arms vertical but as the filament was laid in horizontal layers, the clips were so easy to break.

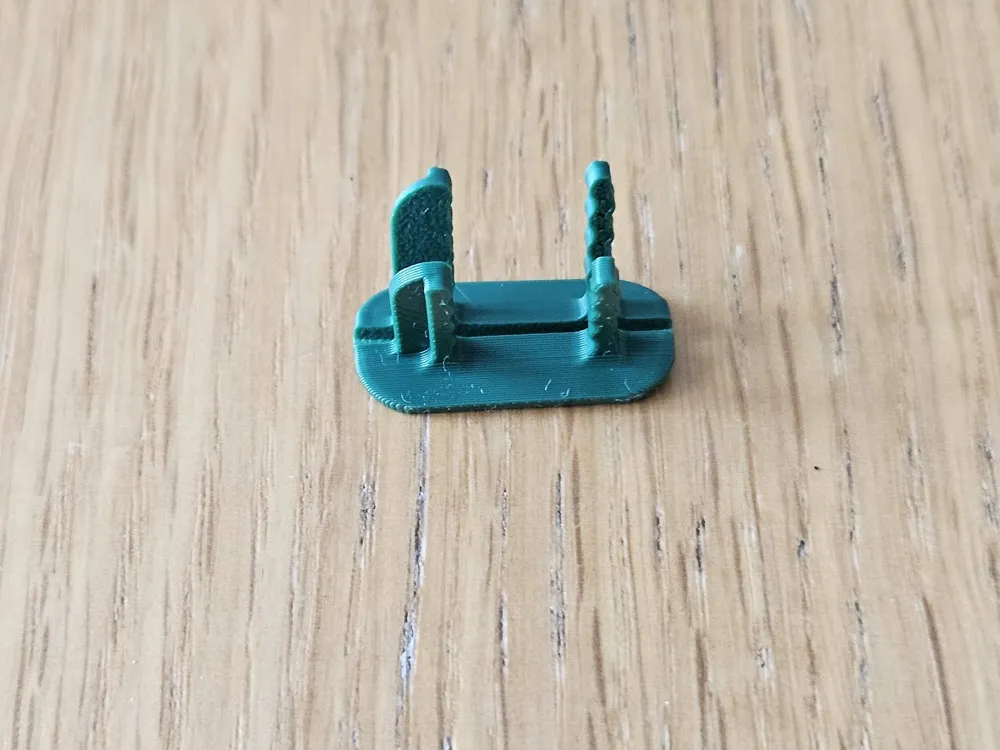

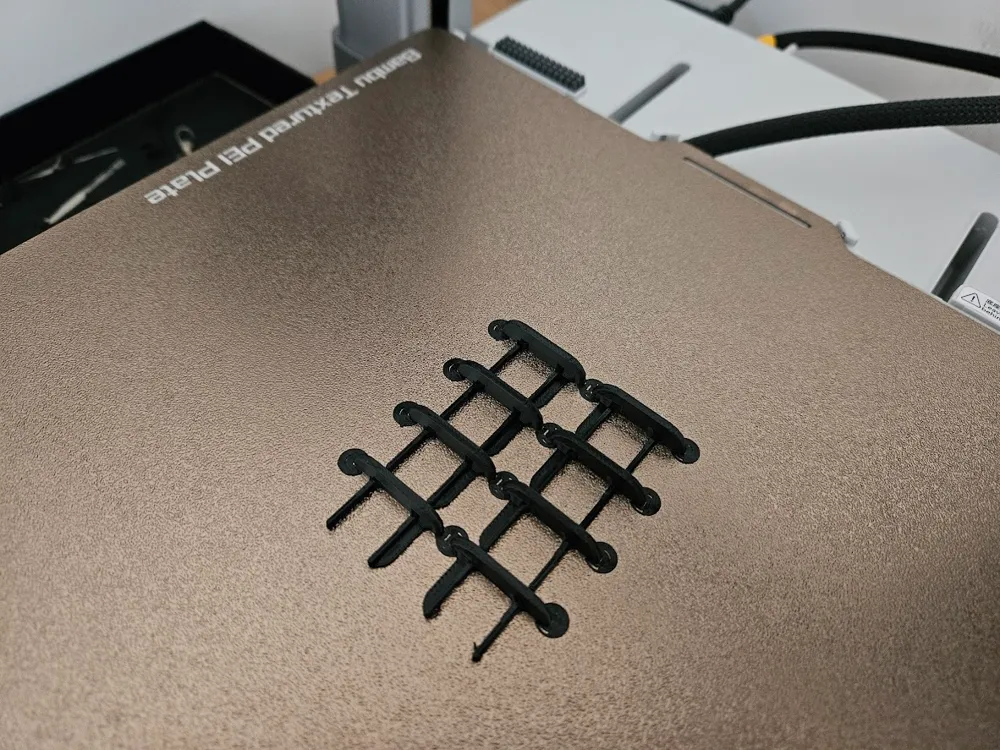

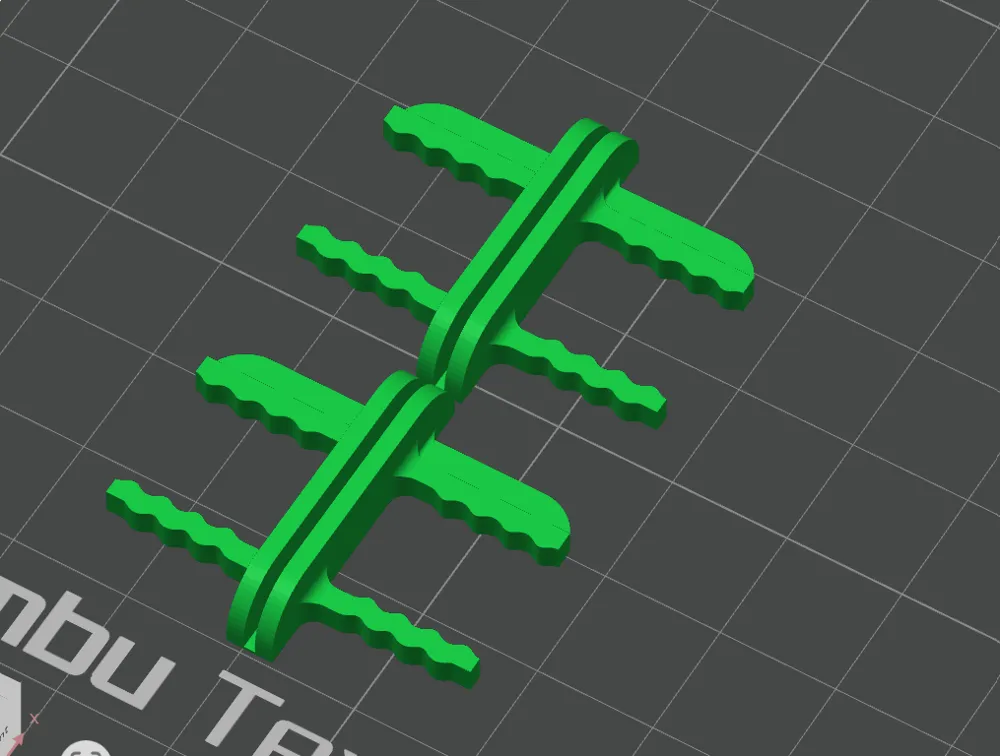

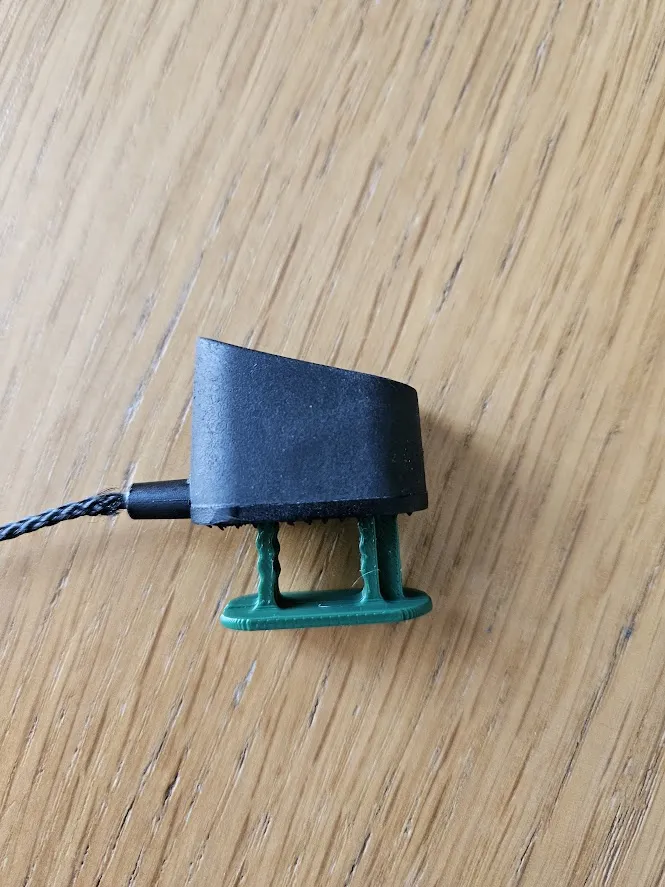

This in now split in two and the filament comes vertical on the final print - so it lasts more. The only downside is that you have two parts of the clip.

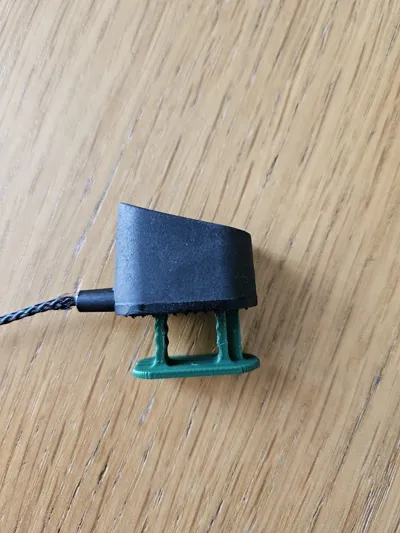

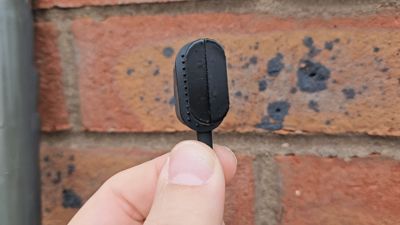

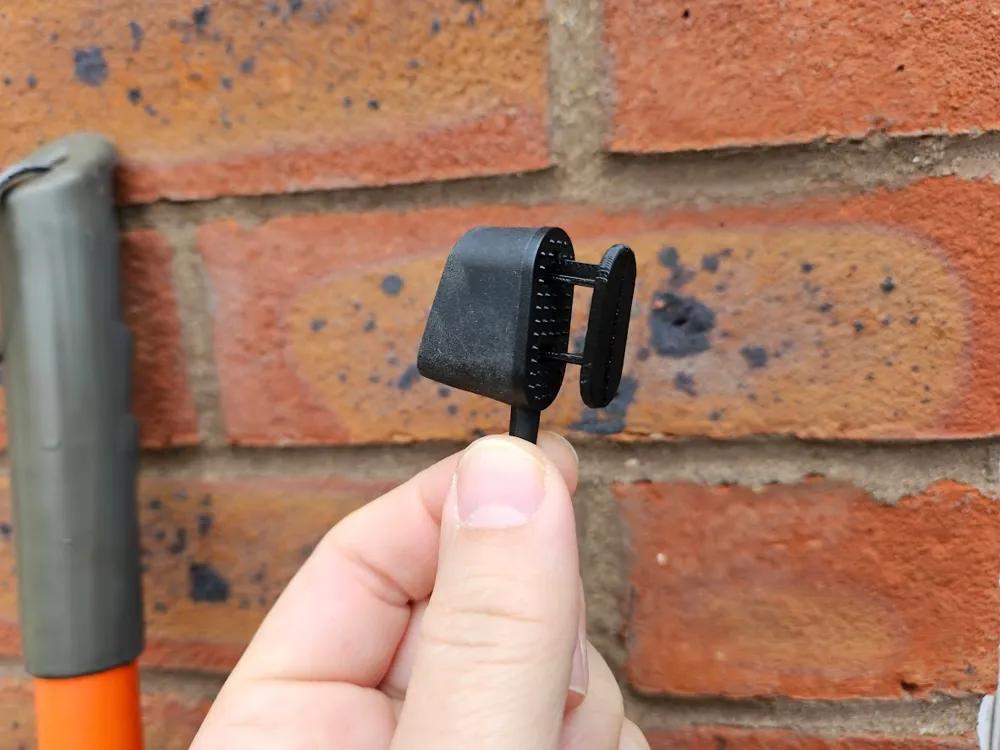

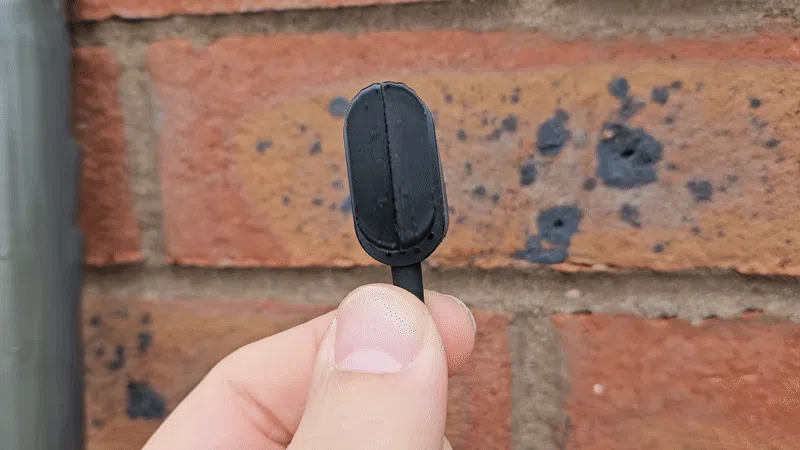

But, as you can see in the gif, they fit and stay all right, at least on my shelf cover.
-------

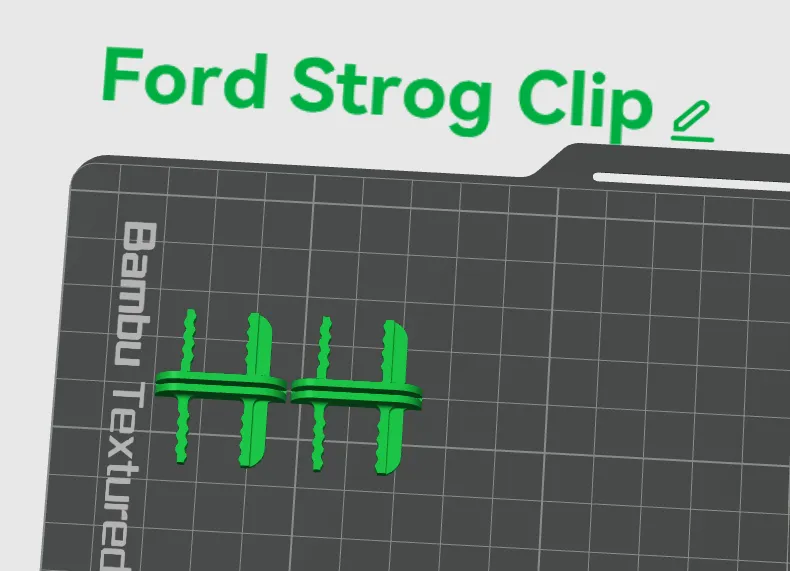

Check version 2 of the model Ford Strong Clip - this works far better for me.
My first published model - be gentle!
