RC Mini Crawl

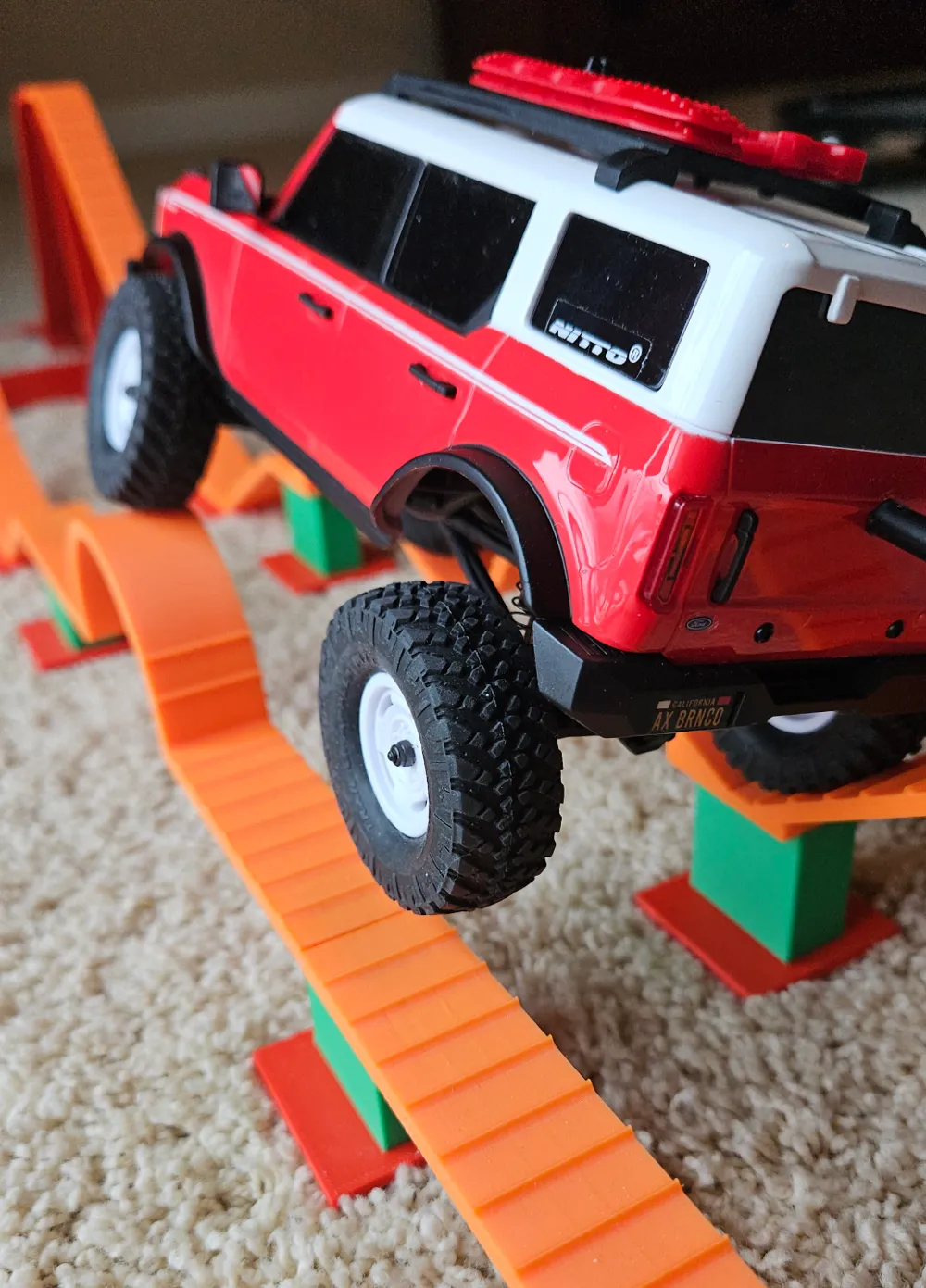

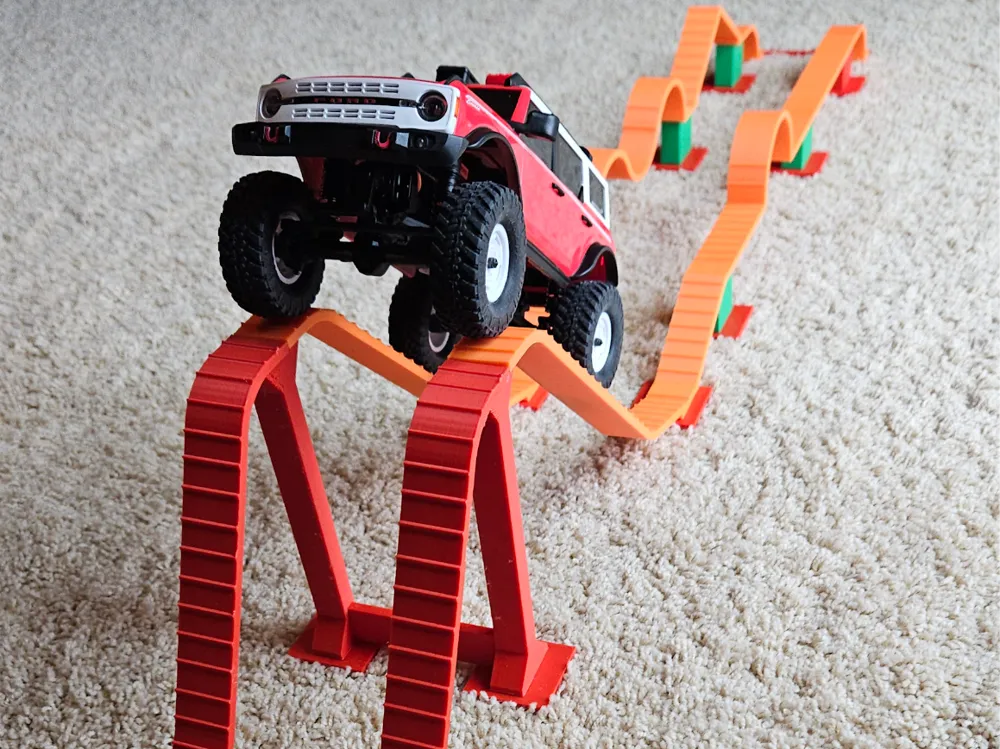

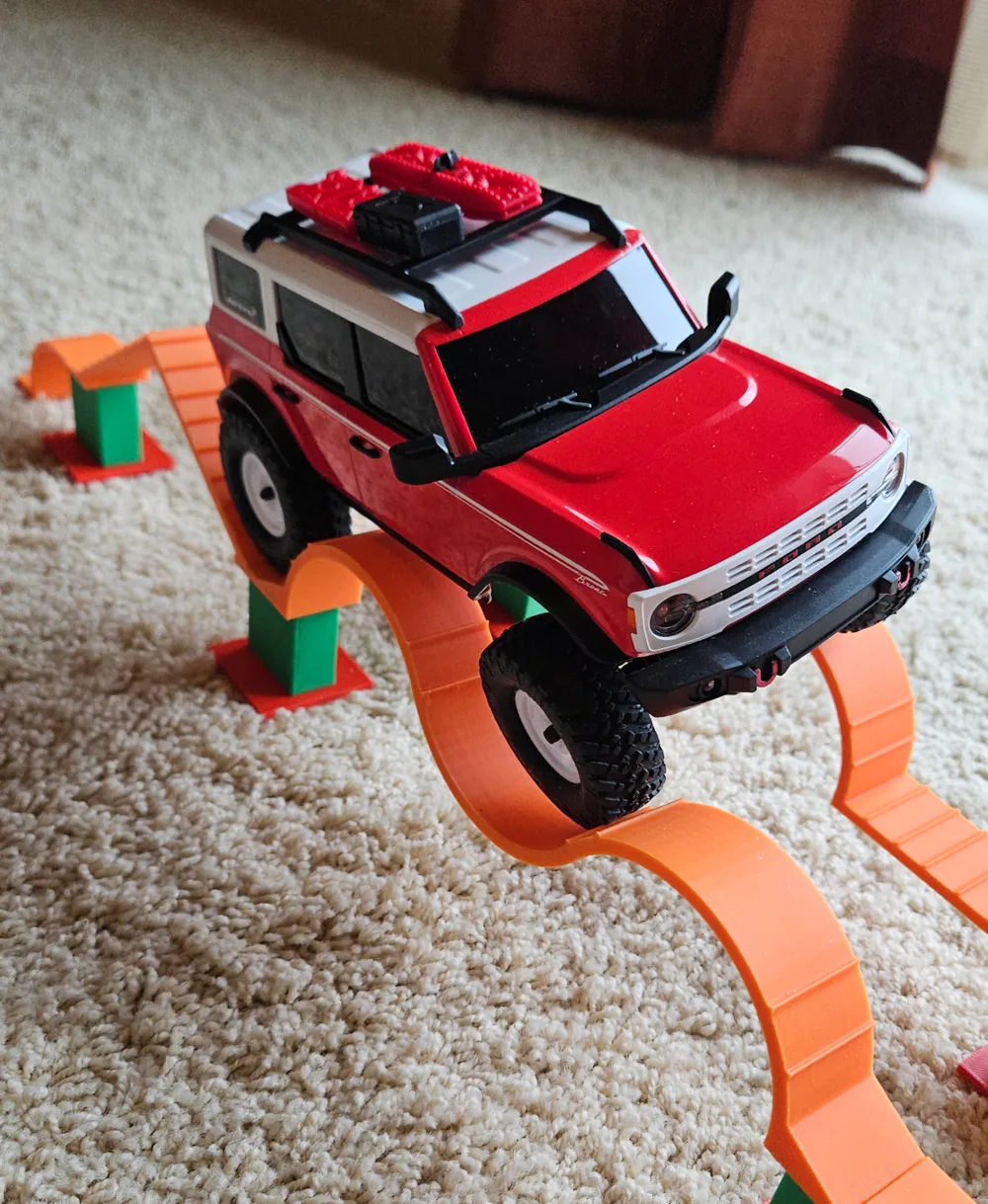

Rock crawler course designed for a stock SCX24.  Modular design connected with bricks.  Please note, only tested with the Bronco chassis/body.  This course will test your driving skills.

Not sure how the longer & shorter chassis will fare.  Note: the course is only 115mm wide, so really wide vehicles won't work.

The course can be made in several different configurations.  From easiest to hardest:

1. Don't use the up and down ramps before stage 1 and after stage 2.  For stage 3 print 2 of the shallow angle ramps, instead of the shallowed followed by the steep.
2. Replace the small curved ramp at the start with the small angled ramp from stage 2.
3. This is default layout
4. Swap the small angled ramp after stage 2 with the small curved ramp from stage 1.  This will be very hard for a stock vehicle to complete.

Build Instructions (default  layout)

Stage 1

1. Start / exit piece (angled piece with bricks on the ends)
2. Attached 2 small curved ramps to the start
3. Attach a small tower with base to the ramps
4. Attach the tip over obstacle to the towers
5. Attach a small tower with base to tip over obstacle

Stage 2

1. Attach frame bender pieces to the towers from stage 1
2. Attach a small tower with base to frame bender pieces
3. Attached 2 small angled ramps to the towers
4. Attach 2 tower bases to the bottom of the ramps

Stage 3

1. Attach the less steep wall to the tower bases
2. Add tower with bases
3. Attach wall exit to the top of the tower
4. Add start / exit piece
