Cover RJ45 Ethernet color code (PATCH Cs Version)
Print Profile(1)
Description

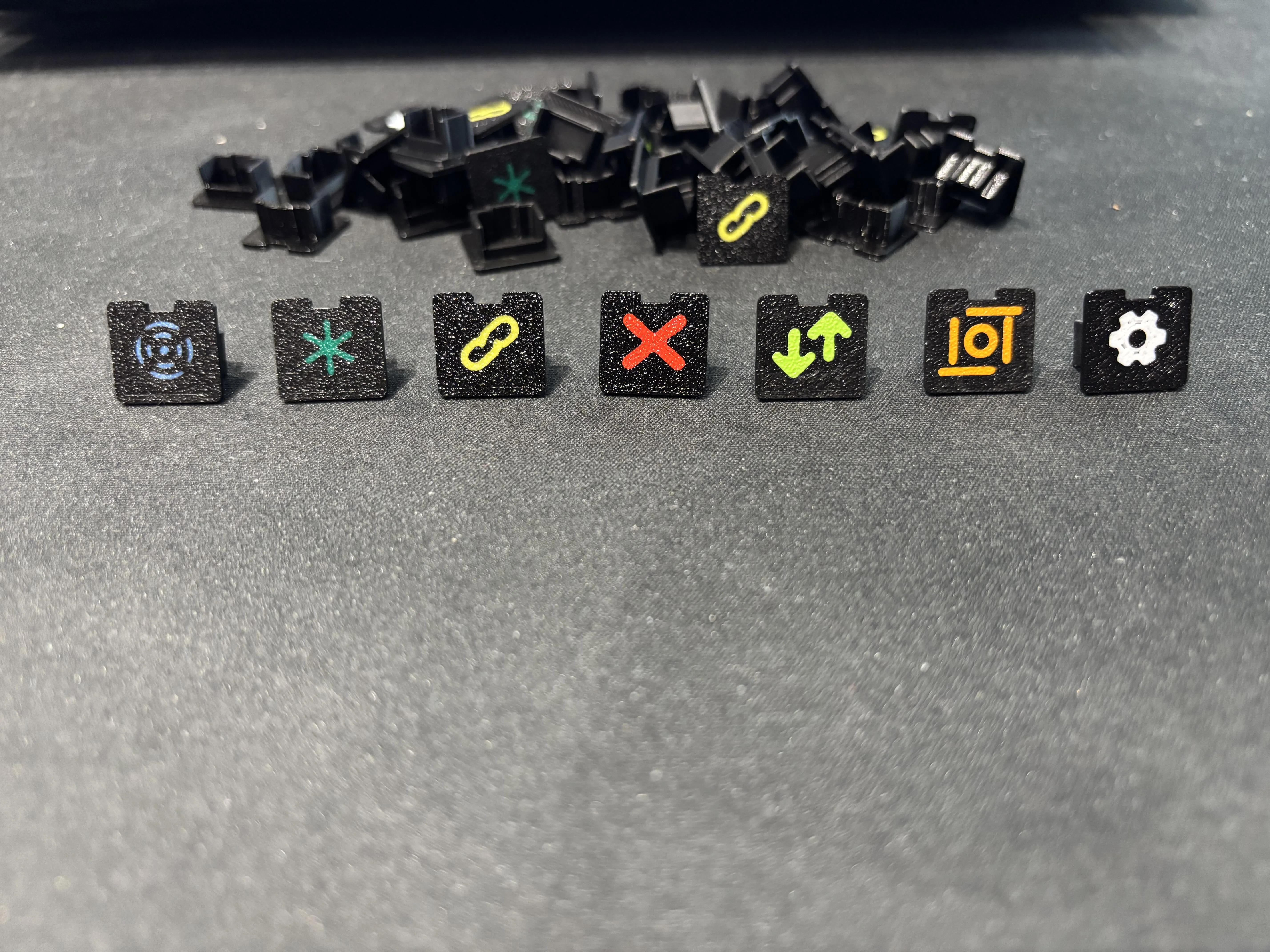

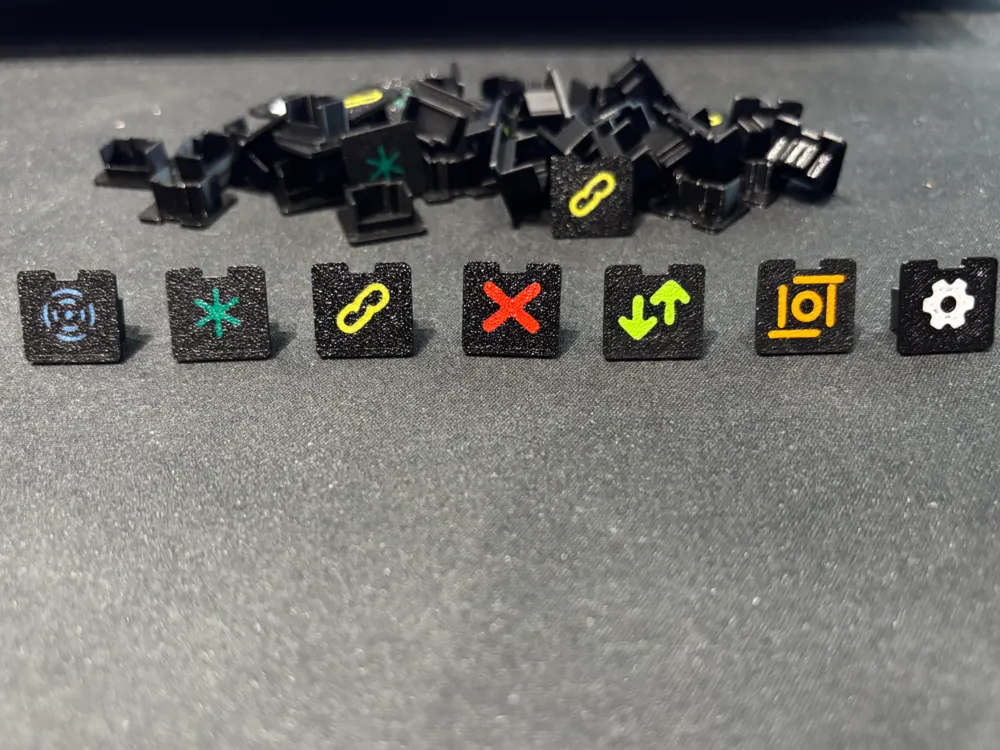

Plastic covers to protect against dust and intrusion.
Its appearance finishes off your patch panel, making it look cleaner and more professional.

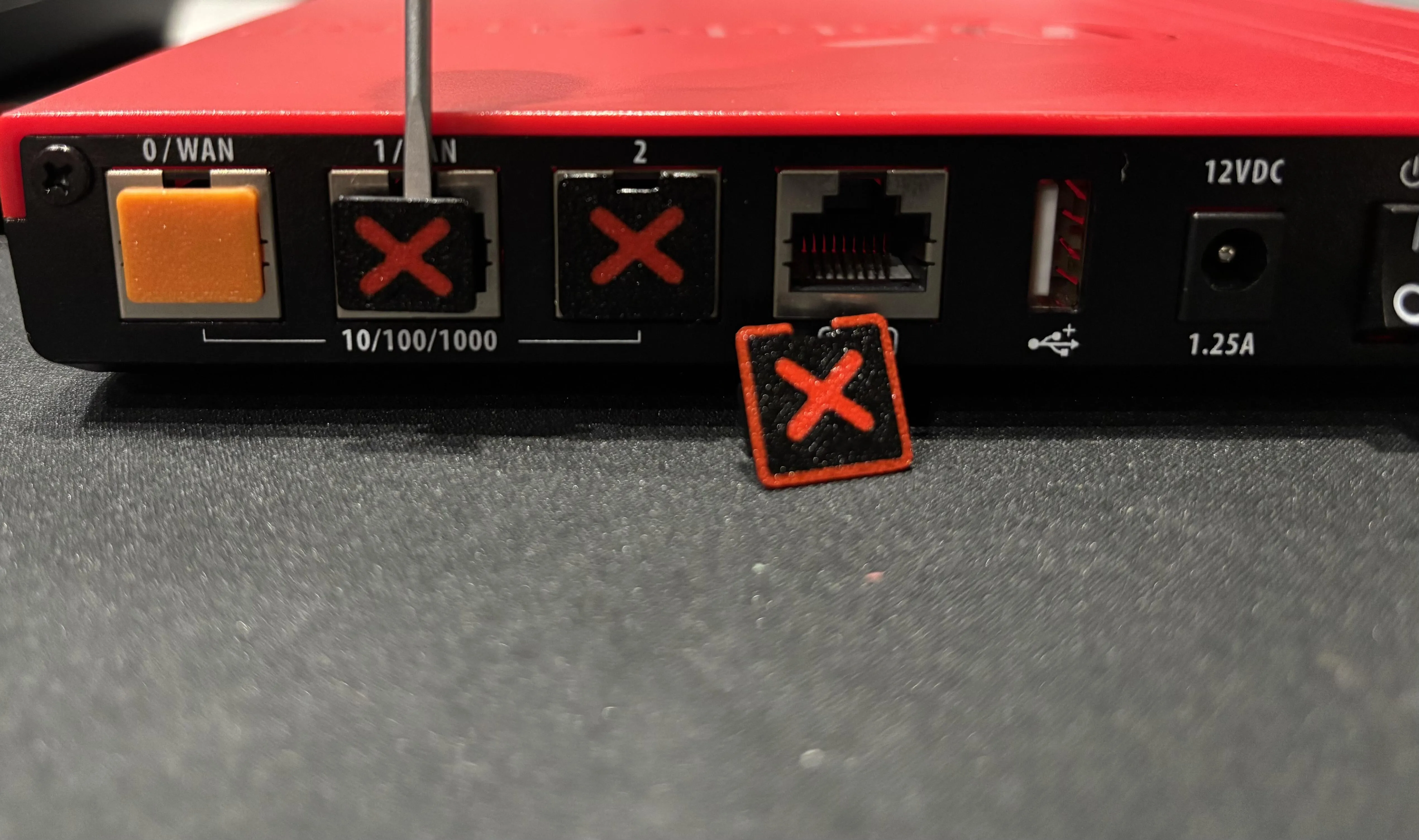

The covers are easy to put on and take off (using a flat tool like a screwdriver). They are reversible, and the logos are ambigrams.

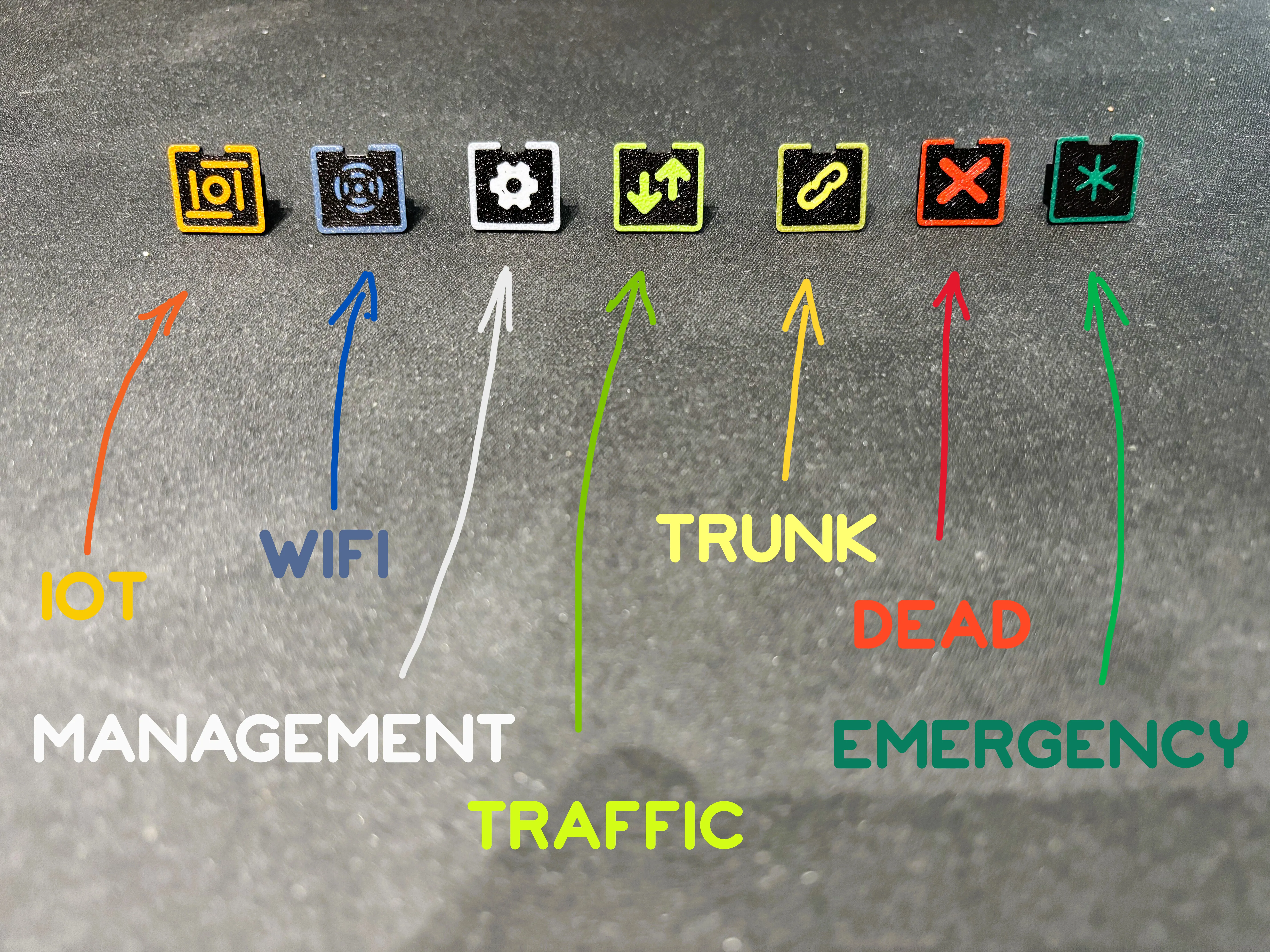

The logos and colors represent logical functions for a modern infrastructure, so you can combine them to suit your needs.
đ ORANGE : IOT â Home automation, cameras
đľ BLUE : WIRELESS â WiFi, AP
⪠WHITE : MGMT â Management, console port
đ˘ LIGHT GREEN : TRAFFIC â Port connectĂŠ, libre
đĄ YELLOW : LINK â Link with a trunk (VLANS)

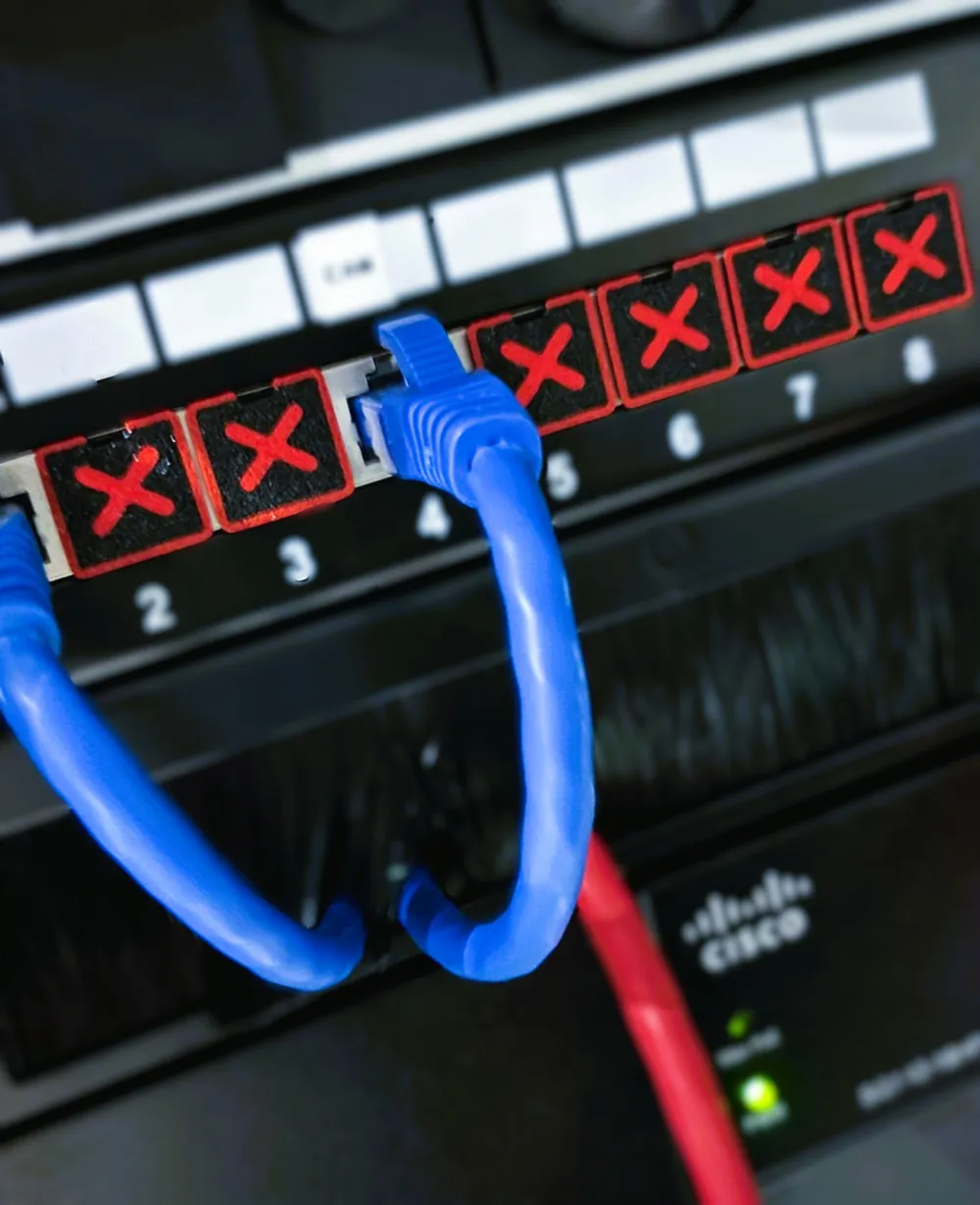

đ´ RED: DEAD â Non-functional or unauthorized port
đŤ DARK GREEN: EMERGENCY â Port for diagnostics, VLAN untagged
Â
Boost Me (for free)
If you like my work, boost me it's free but helpful to me !

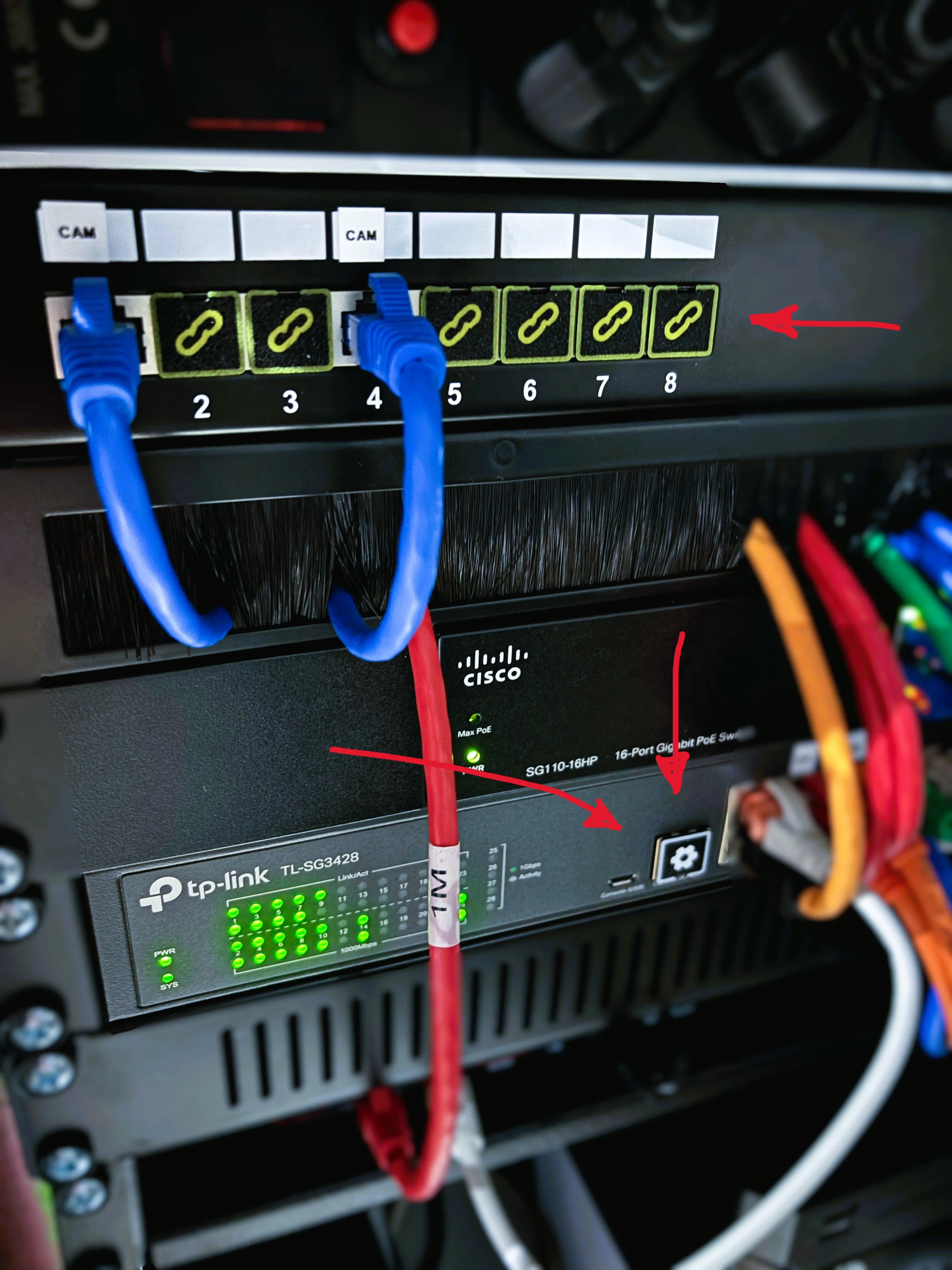

These are dedicated to devices such as patch panels, devices, firewalls etc.
Devices where the ports are close together and in line, such as a switch, may not work because they are too narrow.
We also offer more compact models dedicated to switches. See it there : https://makerworld.com/en/models/1228556-cover-rj45-ethernet-logo-code-switch-version
YOU ARE NOT ALLOWED TO SELL IT !
