Triple G Workshop

cover











Minimal Supports 0.2mm layer, 3 walls, 15% infill

DrOpticsOdense

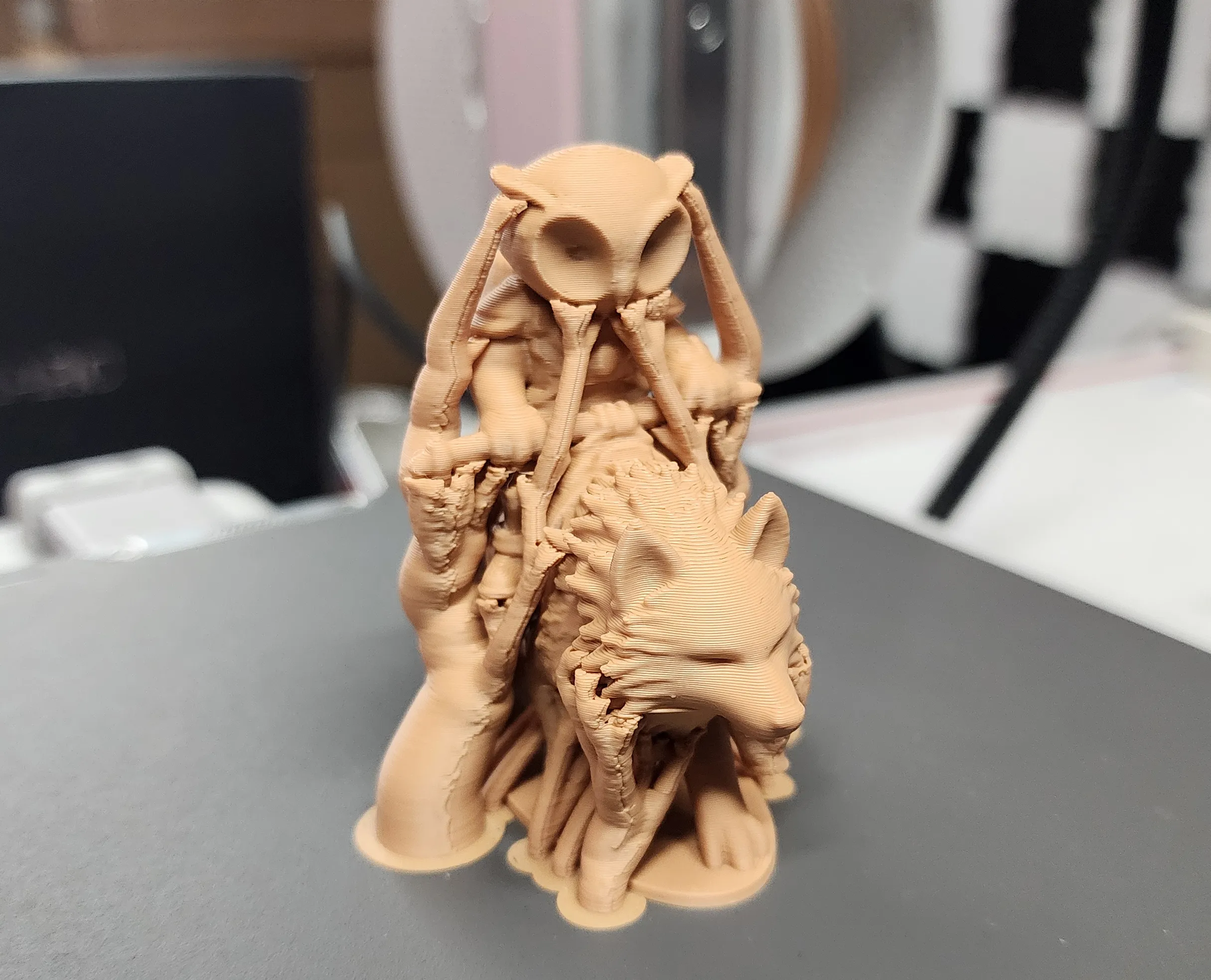

This is printed at 85% size, so that it scales well with the other figures printed at 60%.&nbsp;Unfortunately, after several attempts at printing this with different settings for the 0.2mm nozzle, all resulting in support failures, I went with the 0.4mm nozzle and 0.08mm layer height for this one. I used the high quality settings as a basis, but slowed down and beefed up the supports.&nbsp;I may have overdone it slightly as the supports are very robust. They can be pulled quite easily from the model, but the stems need cutting up first. A little deburring of the base may be necessary.&nbsp;Most of the fine detail is still preserved and changing to the 0.4mm nozzle also had the advantage of cutting the print time in half!&nbsp;Main support settingsType: Tree (auto)Style: DefaultOn build plate only: YesSupport critical regions only: YesRemove small overhangs: YesInitial layer density: 100%Initial layer expansion: 10mmSupport wall loops: 2Support/object first layer gap: 0.05mmSupport speed: 50mm/sSupport interface speed: 50mm/s&nbsp;Other relevant settings:Initial layer height: 0.24mmSeam position: AlignedWall generator: ArachneWall loops: 2Infill: 5%, Gyroid

"60% scale", 0.4mm nozzle, 0.08mm layer, 2 walls, 5% infill

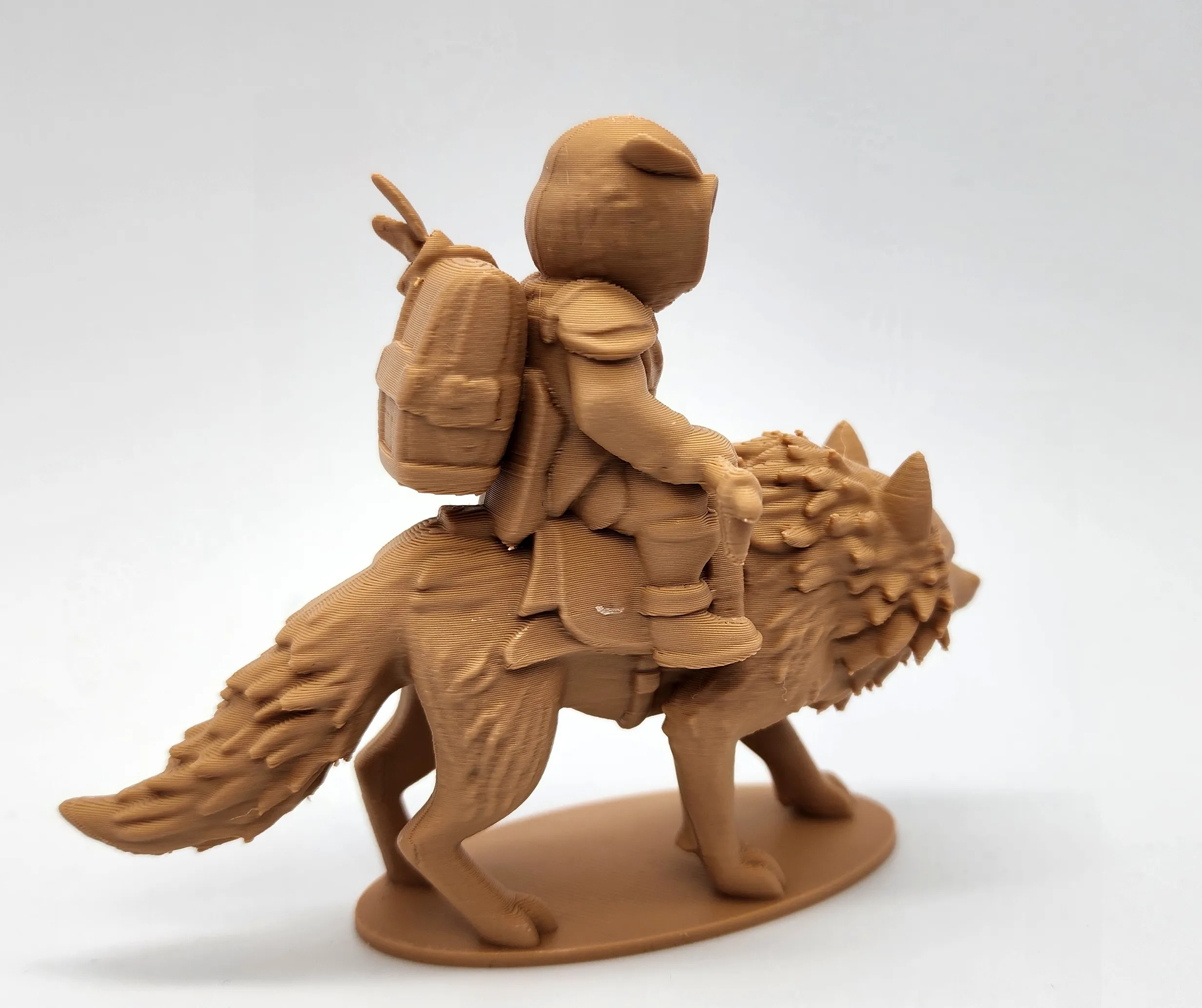

<boostme><boosttitle>Boost Me</boosttitle></boostme>A beastmaster scout that can move as fast on the ground as others that fly. A funny DND idea I had. Collect them all!  <figure class="image image_resized" style="width: 78.26%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001218486/design/2025-03-17_l9q32aalhuaz.jpg"></figure><figure class="image image_resized" style="width: 76.9%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001218486/design/2025-03-17_6o5871103bea.jpg"></figure><h4>Check out the FULL COLLECTION  HERE: <a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/collections/5429990-owls-dragons">https://makerworld.com/en/collections/5429990-owls-dragons</a></h4><figure class="image image_resized" style="width: 76.04%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001218486/design/bf1973a5-8194-48b0-aa5d-1e37ae1073ee.webp"></figure>&nbsp;Designed to print with Tree Supports on build plate only for EZ removal!Powered by image-to-3D from MakerWorld (https://makerworld.com/makerlab/imageTo3d)&nbsp;

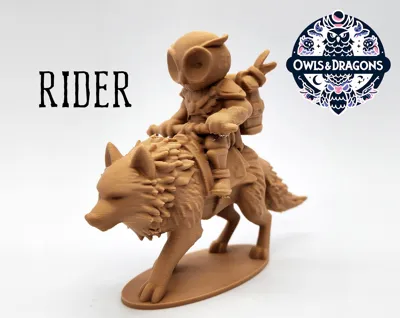

The Wolf Rider - Owls & Dragons

ASIA

Print Profile(2)

Description

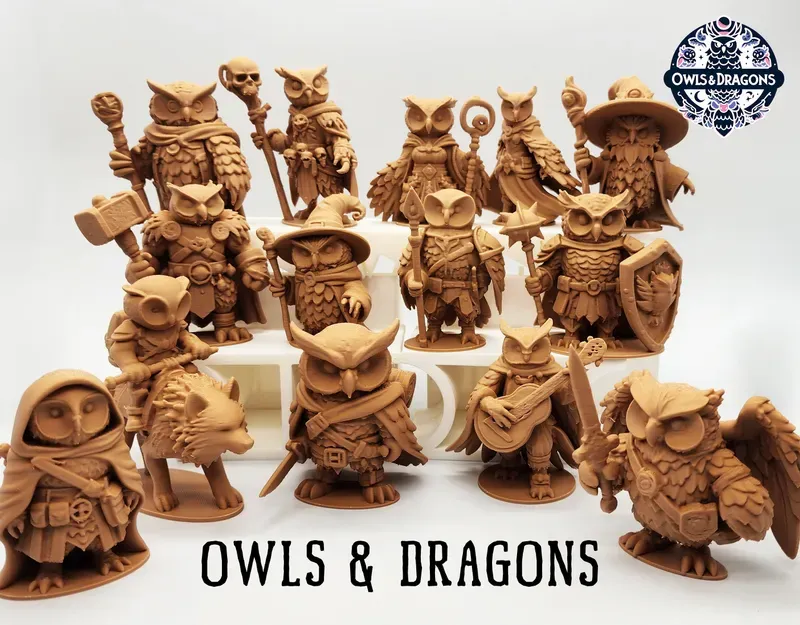

Check out the FULL COLLECTION HERE:
https://makerworld.com/en/collections/5429990-owls-dragons
