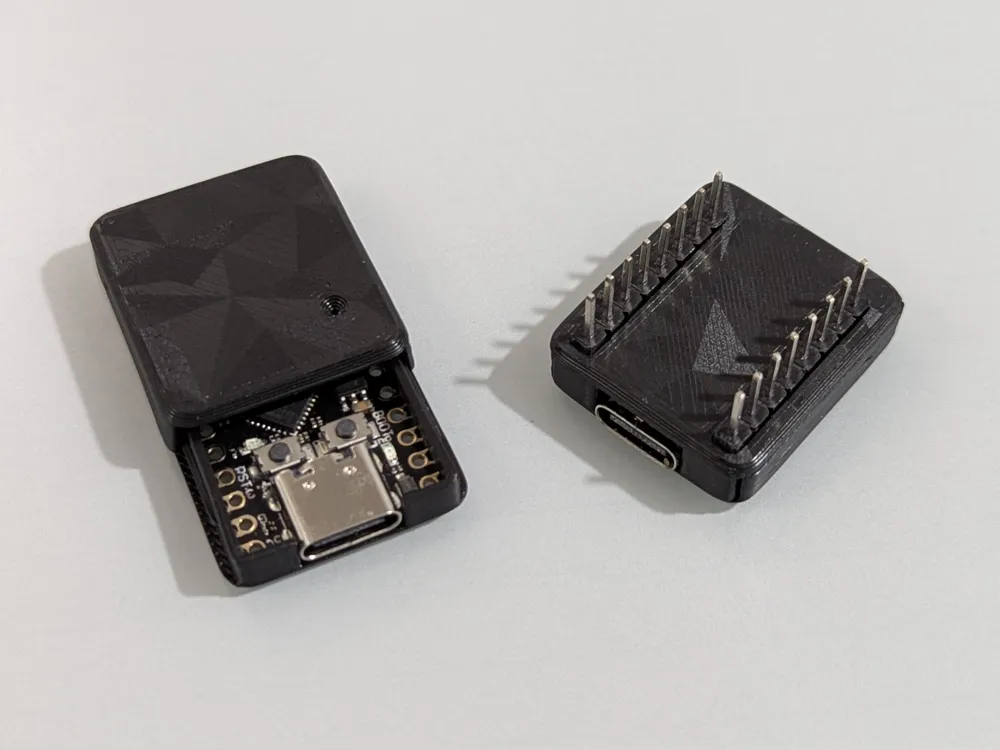

This is a slim case for ESP32-C3 Super Mini Development Board. Ideal for use as an Home Assistant Bluetooth proxy

This is designed specifically to fit these ESP32-C3 Super Mini boards I purchased from AliExpress based on the board measurements, other boards may vary in size.

The Autodesk Fusion model and STEP files are included to allow for modification in addition to the STL and 3MF files.

Two different Base files are included, one with the slots for the Pin legs, and an one that is fully enclosed.

Three Lid variations are included with holes for LEDs on the board.
