OpenSCAD Round Drip Tray Generator 🌿

Simple & Functional, make your very own unique drip trays. I wanted some and I want my 3D prints to work around my needs, not the other way around. Hope this works for you as well 🌱

NEW - v2.0

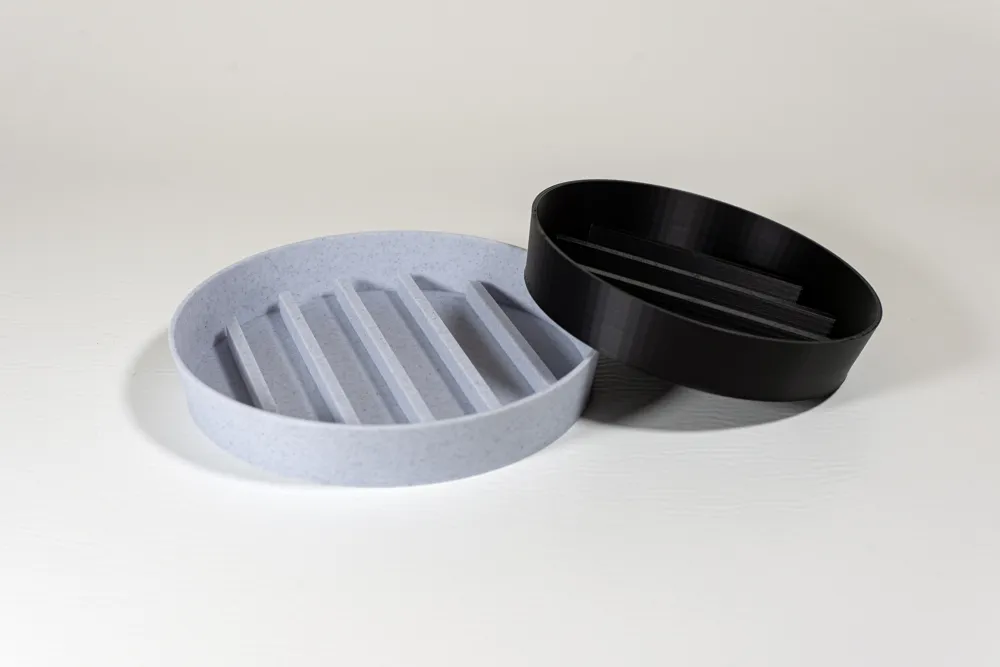

Added functions to generate various riser shapes so your pots are raised from the drip tray if every needed.

Play with the modifiers until you get the perfect pattern for your needs!

Shoutout to @MakerCameron for the suggestion 💡

Click the Customize button to get started 🛠

• Design your Drip tray easily online, click Generate the update the preview
• When done, click the ↓ Download button, select STL or 3MF
• Open that file, set your print settings (recommended settings below) & print
• That's it, enjoy 🌊🌱

Looking for square or rectangle drip trays?

https://makerworld.com/en/models/1536566-square-rectangle-drip-tray-generator-openscad

Get creative 🔥

Made to generate drip trays, you can use this to generate pots, cups, bowl, catch trays etc… get creative with this simple & basic tool and please share your creations 📸✨

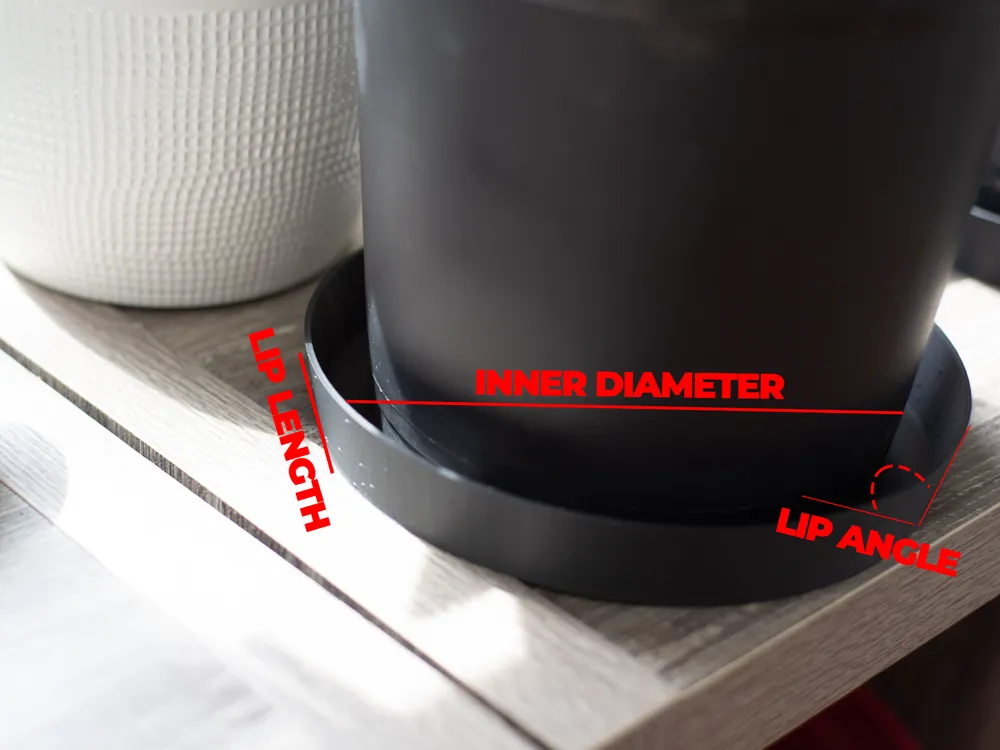

Design & print easily with just 4 settings:

• Inner Diameter: Set this to the diameter of your pot, try to add a little more to be safe. The lip is outside of the inner diameter.
• Lip Length: This is the height of your lip, the taller, the more water retention
• Lip Angle: Avoid anything under 50 degrees to make sure it prints easily
• Thickness: The thickness of the tray & the lip

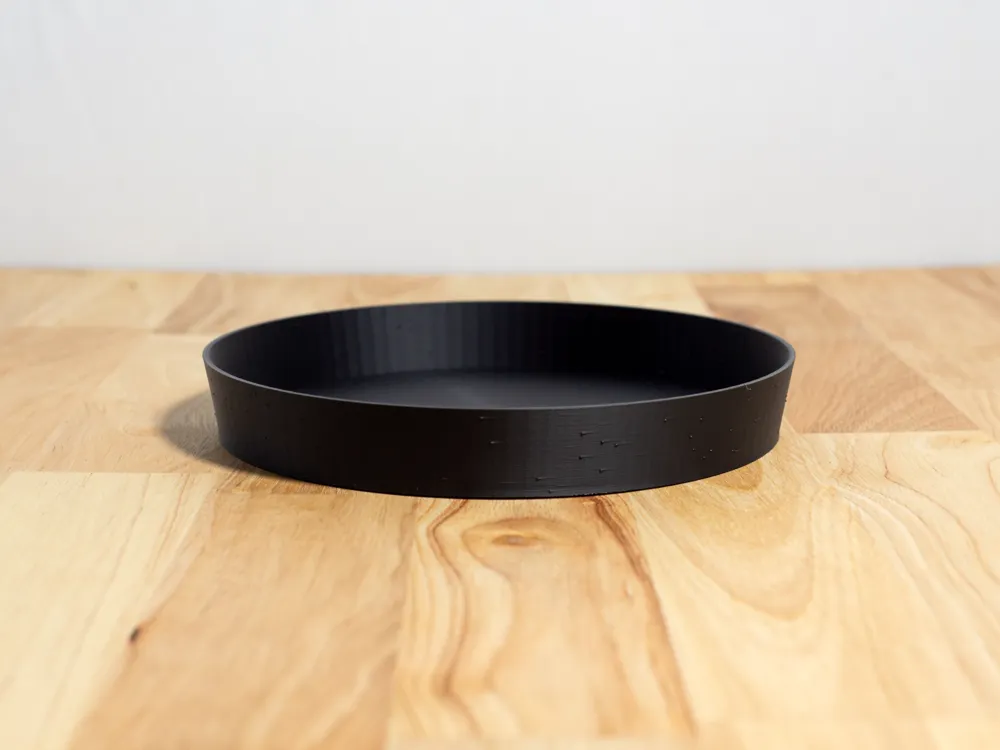

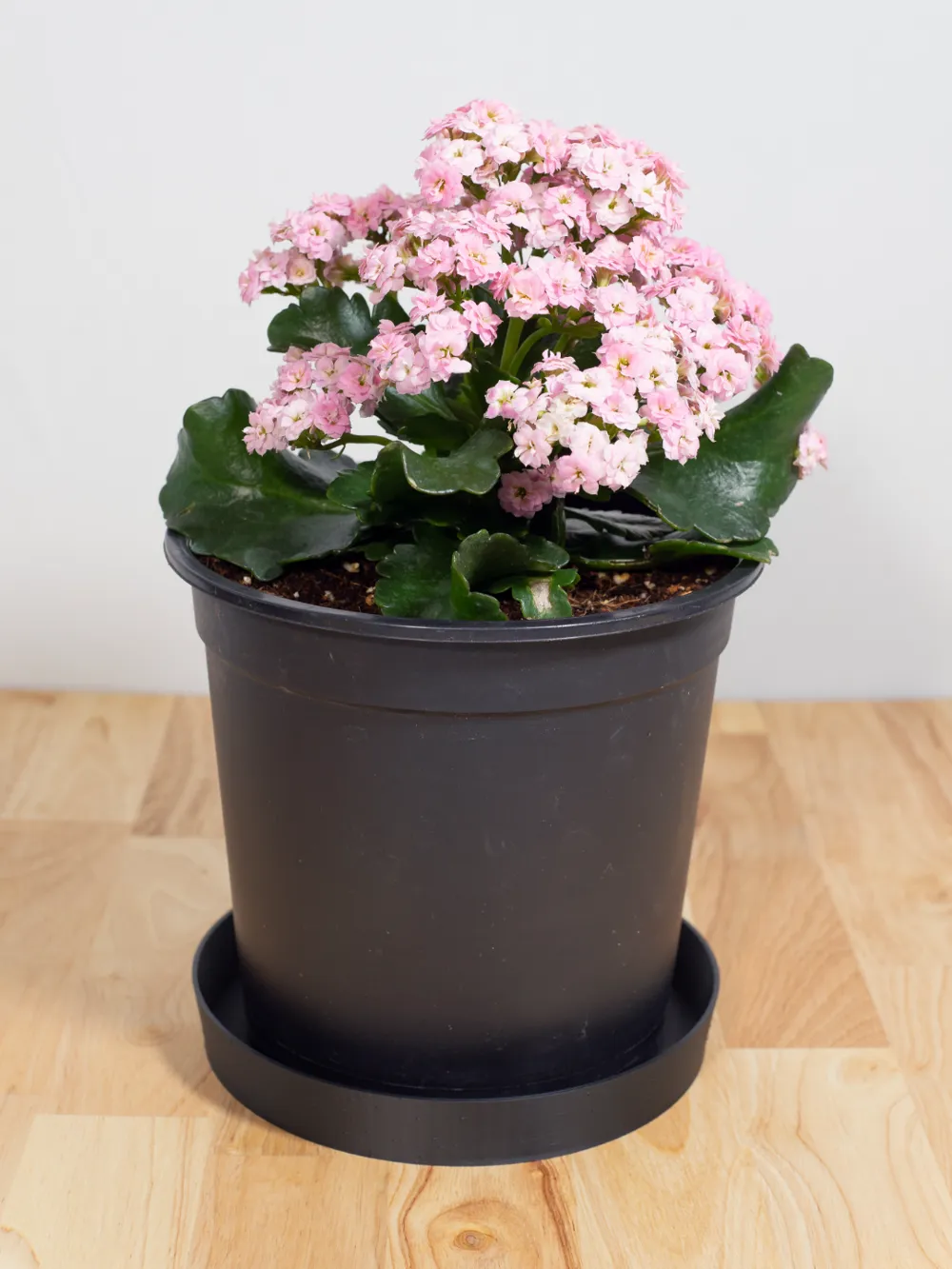

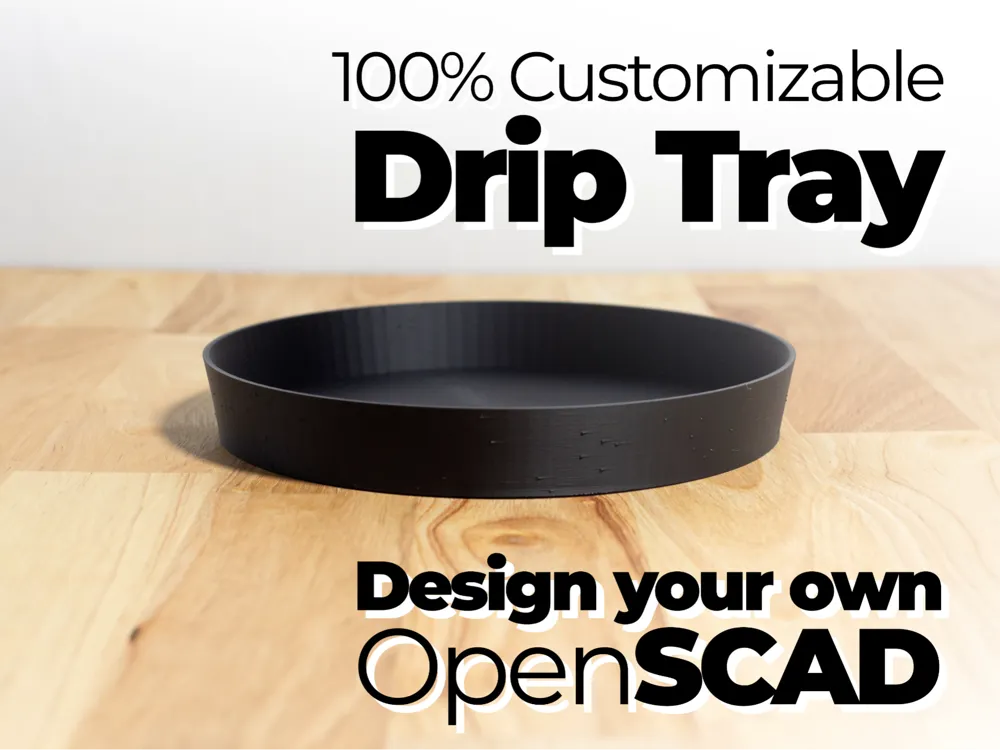

The drip tray In the photo used these values:

• 180mm diameter
• 25mm lip length
• 80 degree lip
• 2mm thickness

Print settings can be found in the Profile example. Download it and replace with your own STL generated with the Customizer.

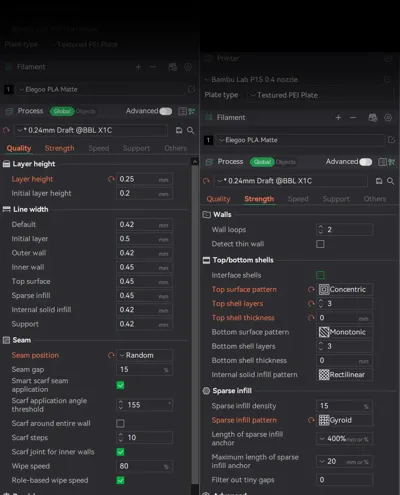

Recommended print settings (screenshot in photos):

• Set to DRAFT 0.24mm preset
• Concentric Top surface Pattern
• 15% Gyroid infill
• No supports or brim needed

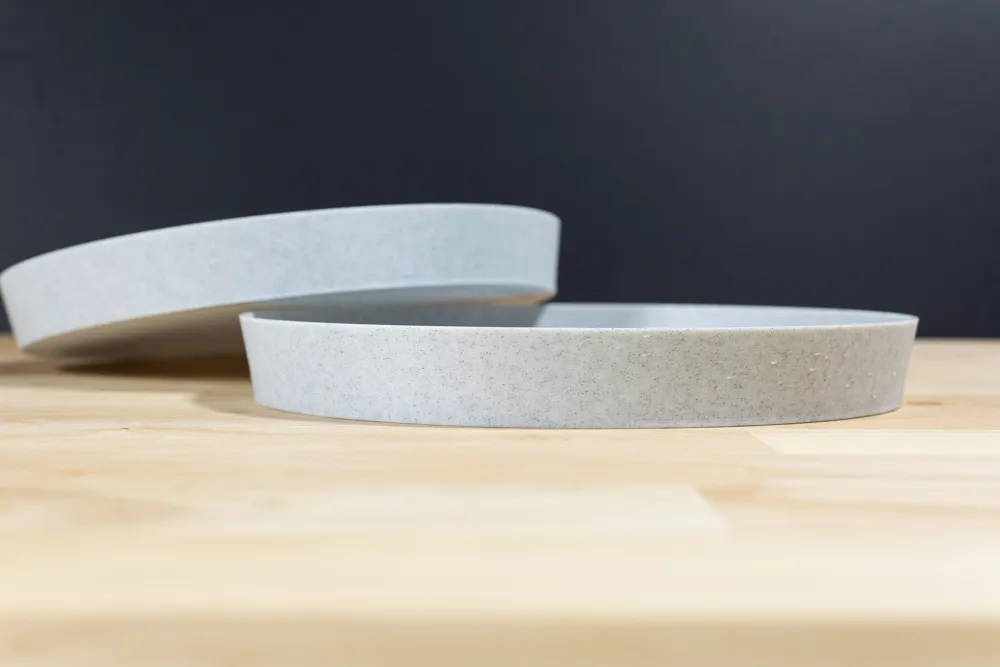

• OPTIONAL: Seam Position: Random (if you want that gritty texture like in the photos)
