Raspberry Pi 4&5 / Rock 4 Compact Server Rack
IP Report
Print Profile(3)
Raspberry Pi 4 0.2mm layer, 2 walls, 20% infill
Designer
6.1 h
1 plate
Radxa Rock 4 0.2mm layer, 2 walls, 20% infill
Designer
6.4 h
1 plate
0.2mm layer, 2 walls, 20% infill
Designer
5.9 h
1 plate
Open in Bambu Studio
Boost
64
207
8
5
213
75
Released
Description

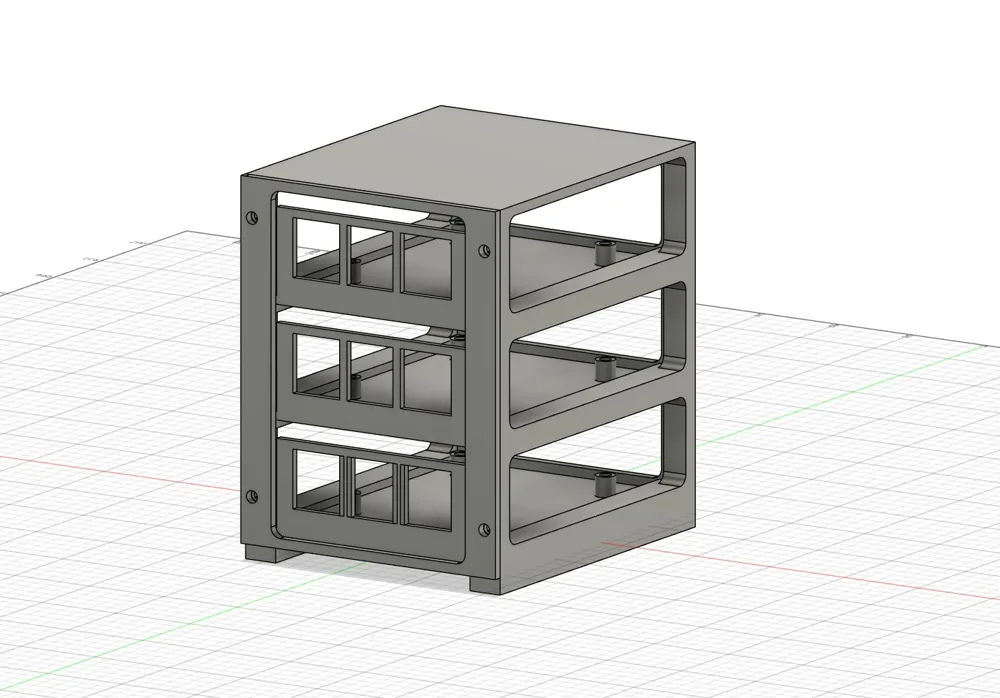

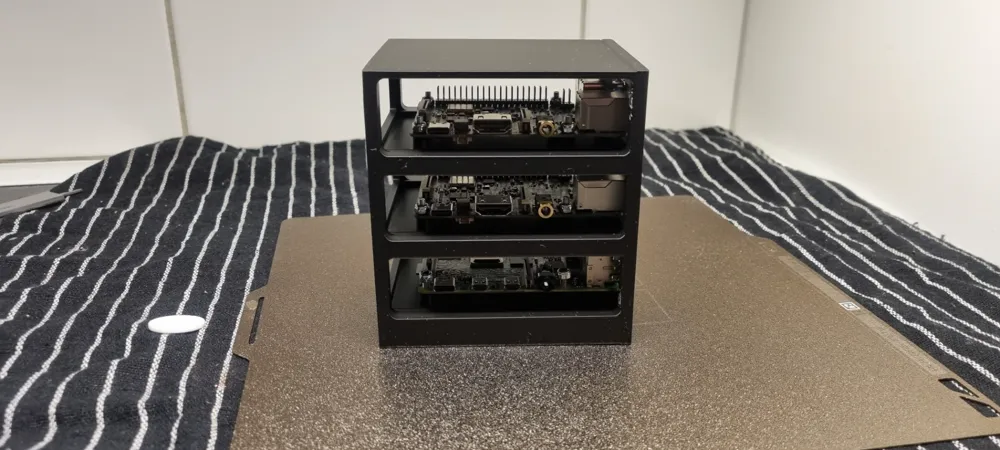

A space-efficient server rack designed to securely hold three Raspberry Pi 4 & 5 or Radxa Rock 4 boards.
BOM and Instructions
- For radxa: 12 M3x12 Screws / For raspberry: 12 M2.5x12
- 4 M3x6 Screws
- For Radxa: 16 M3 Nuts / For raspberry: 12 M2.5 Nuts and 4 M3 Nuts.
- Make sure you choose the right print profile for Radxa Rock / Raspberry Pi.

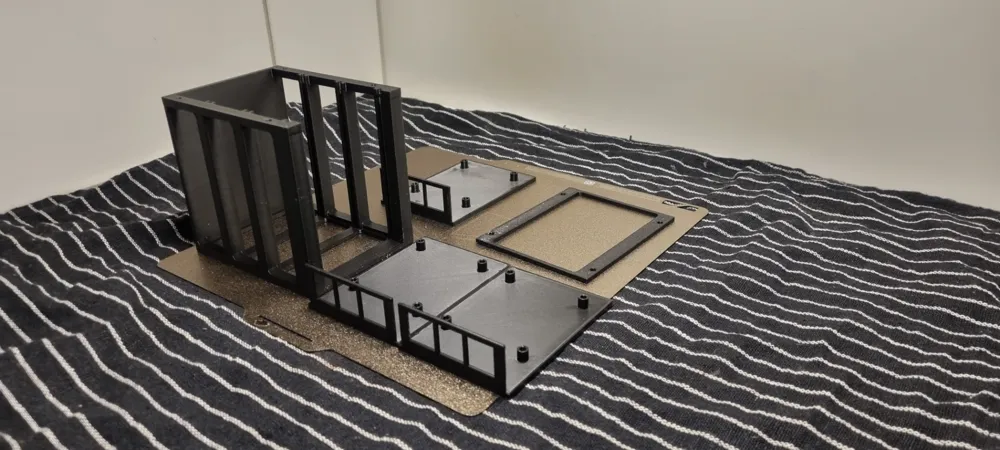

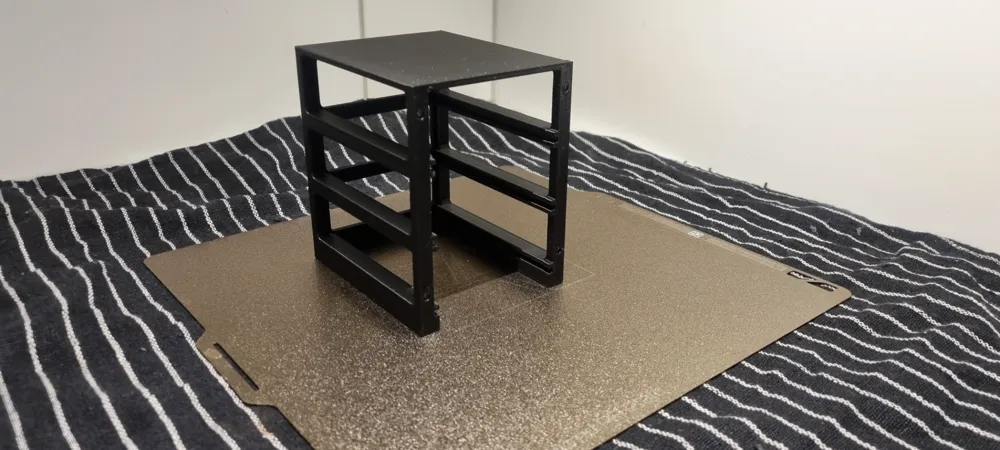

- When printed remove the supports and pop in 4 M3 nuts in the hexagon shaped hole located in the rack, for the faceplate.

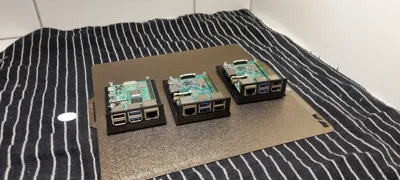

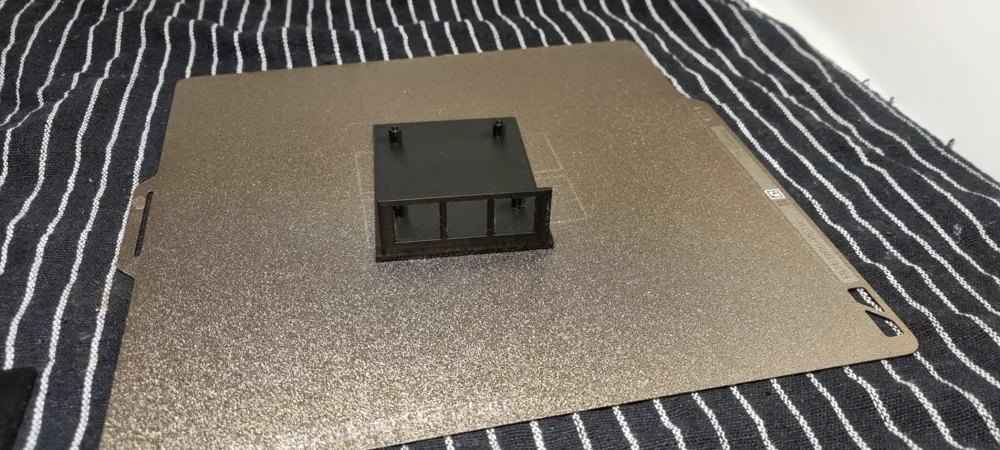

- Put the pi's in the sleds then the screws.

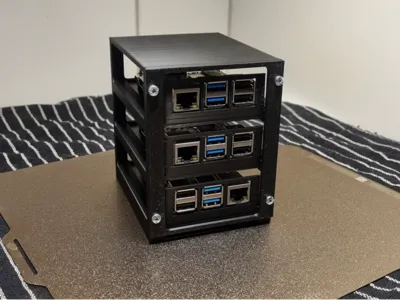

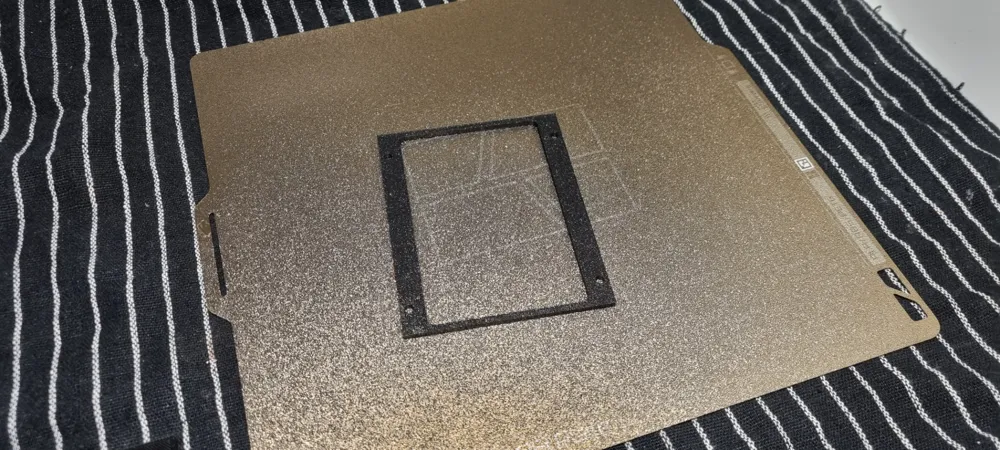

- Slide in the pi's and put the faceplate on.
- Done! Good luck.
