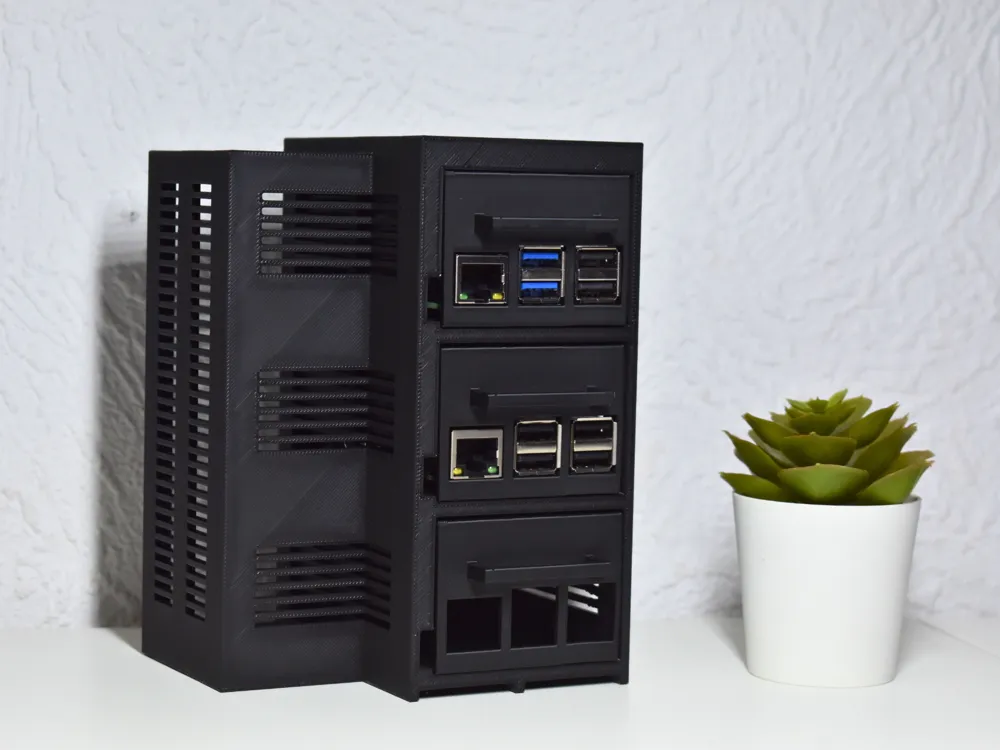

This modular rack system is designed for a completely hardware free assembly.

Every component is 3D printed, utilizing precision friction fits to eliminate the need for screws, glue, or metal inserts.

Key Design Features:

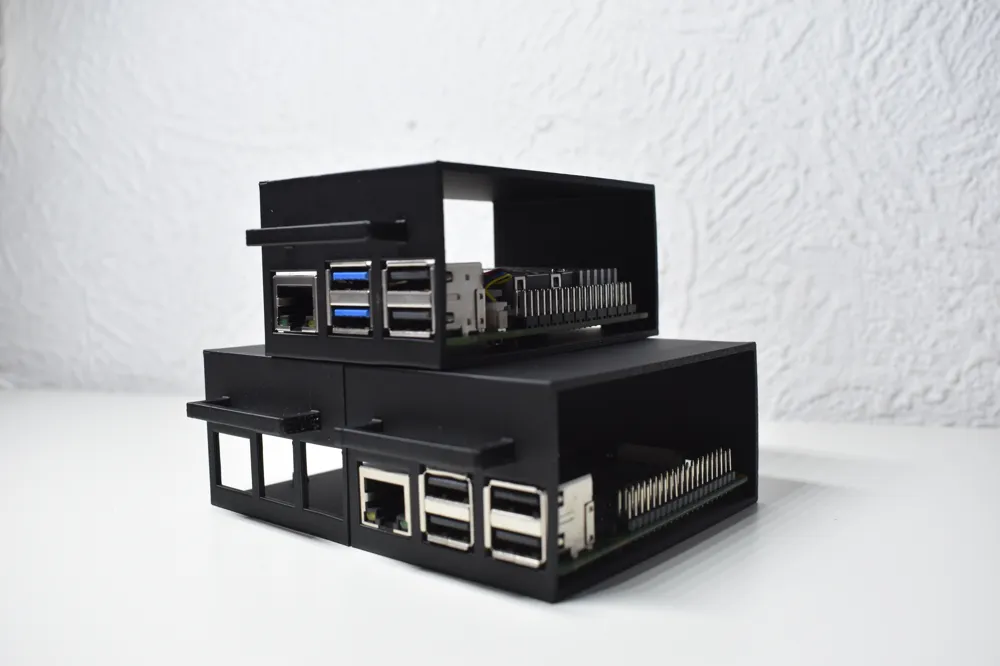

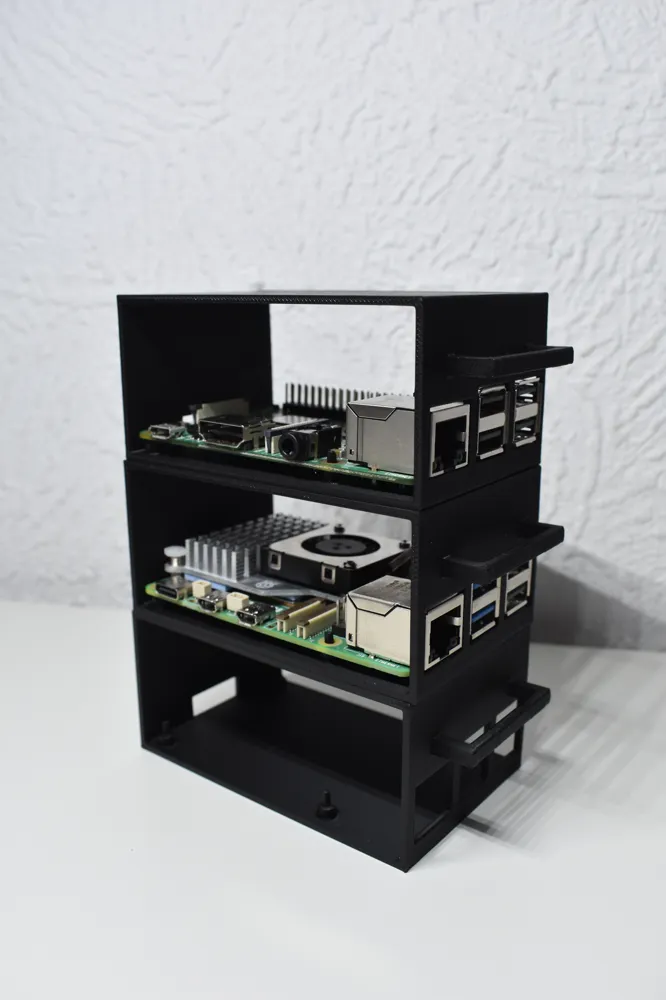

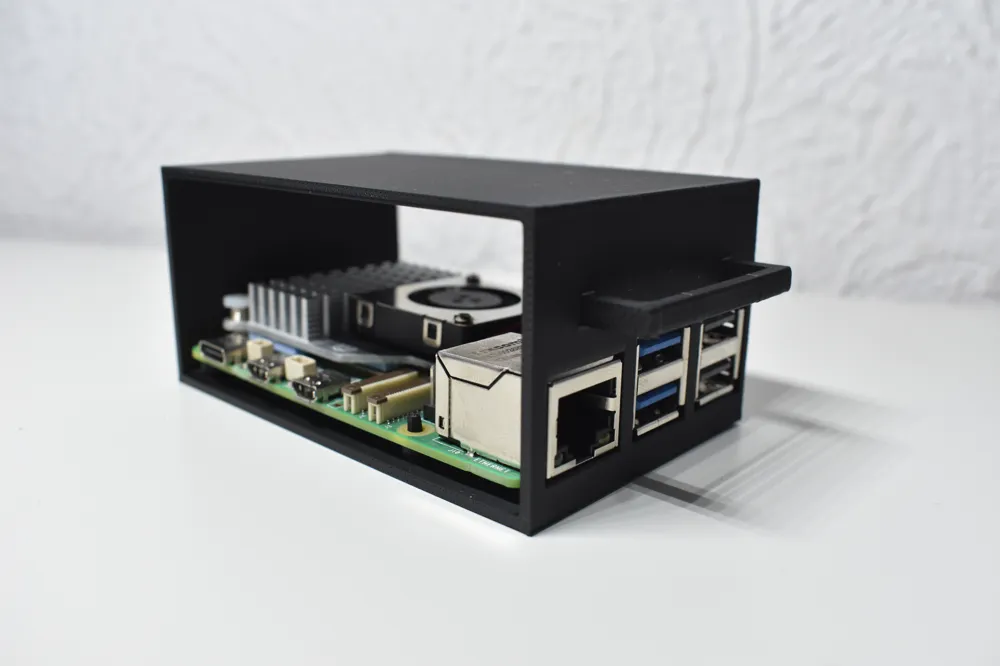

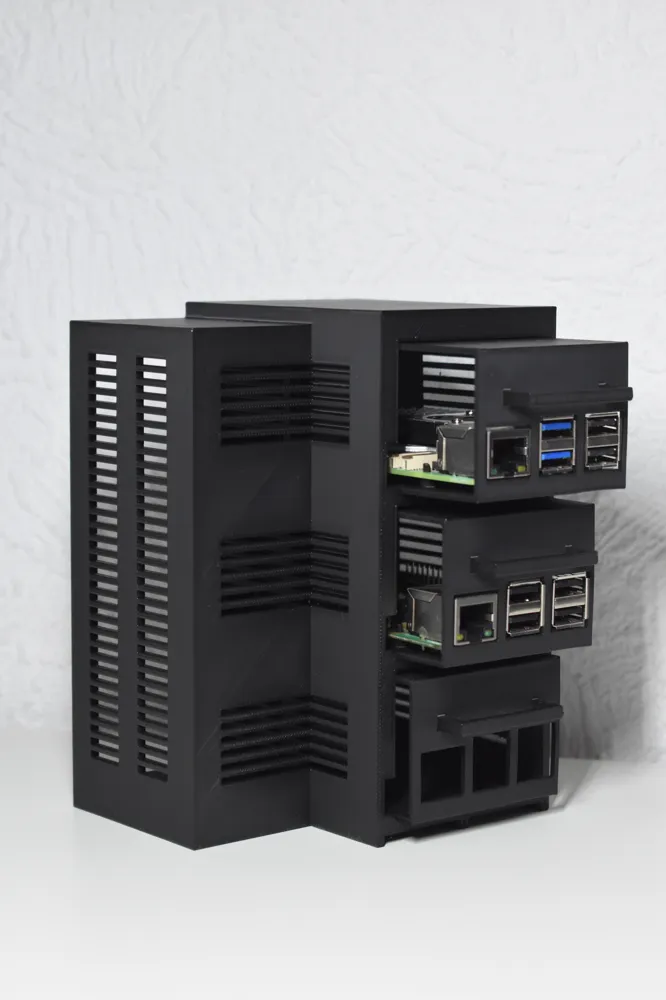

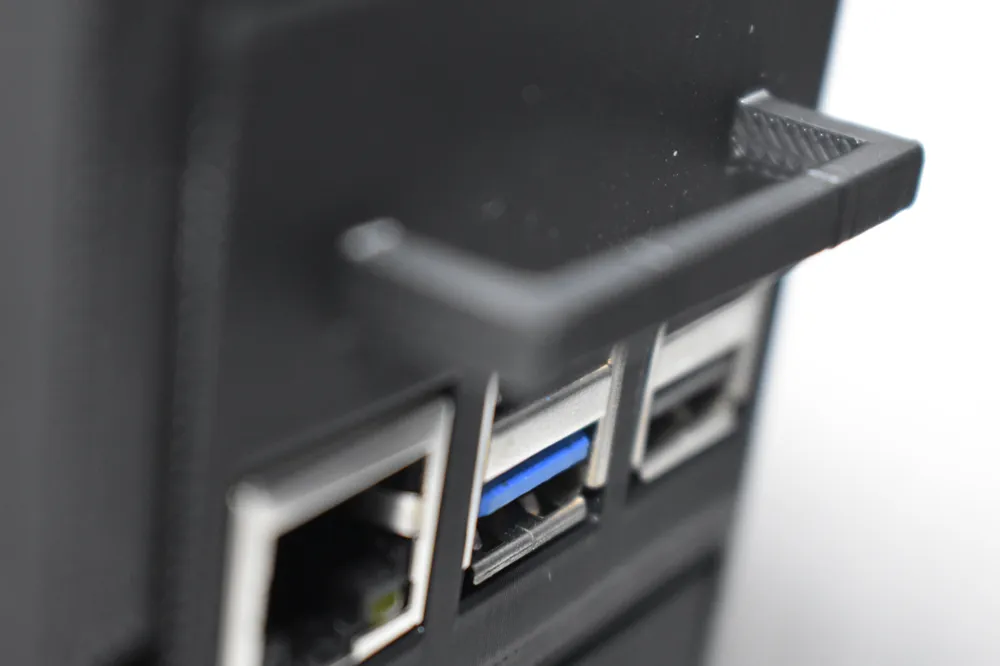

Sled System: The Raspberry Pi boards are mounted onto dedicated sleds that slide into the main chassis.

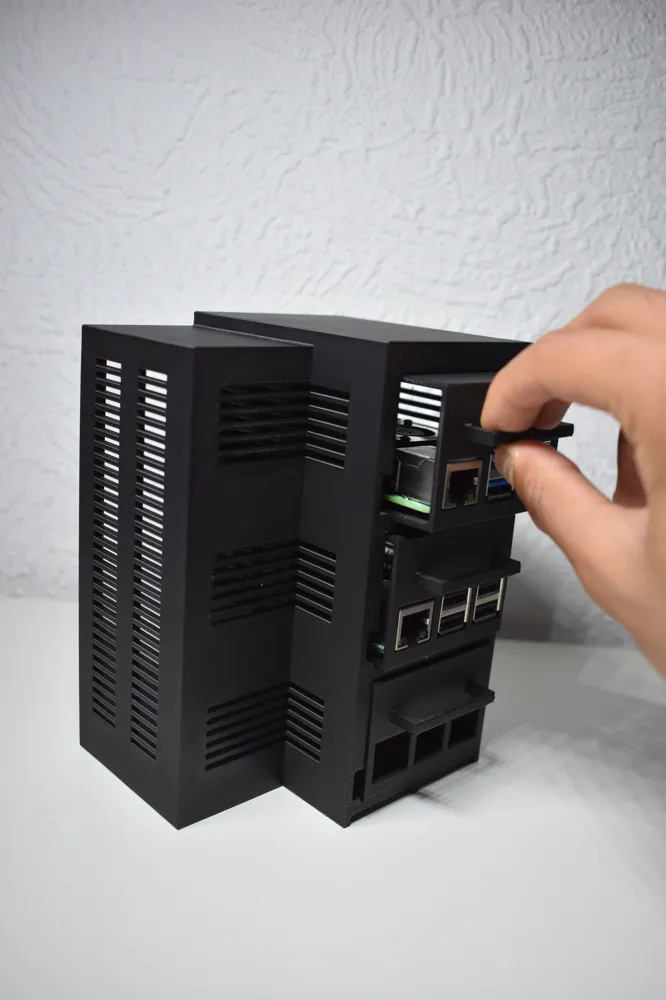

This allows for effortless installation and removal of individual units without disassembling the entire rack.

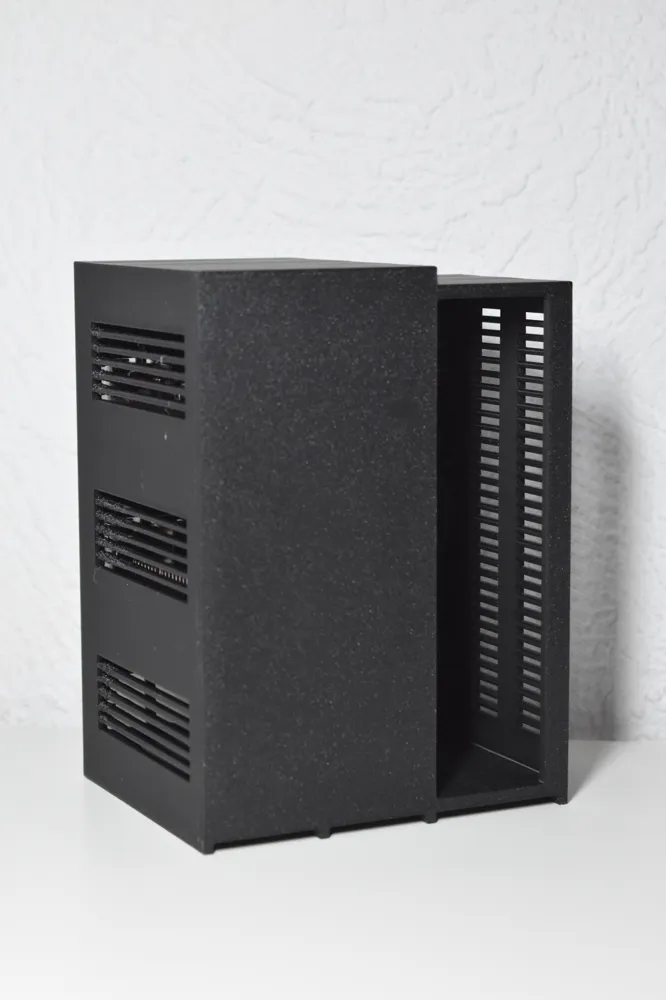

Integrated Cable Management: The enclosure is engineered to hide all power and data cables.
Wiring is hidden in the cable mangement box of the unit, ensuring a clean and professional appearance for your setup.
Universal Compatibility: The sled geometry is designed to support the full range of Raspberry Pi generations, including the Pi 1, 2, 3, 4, and 5.

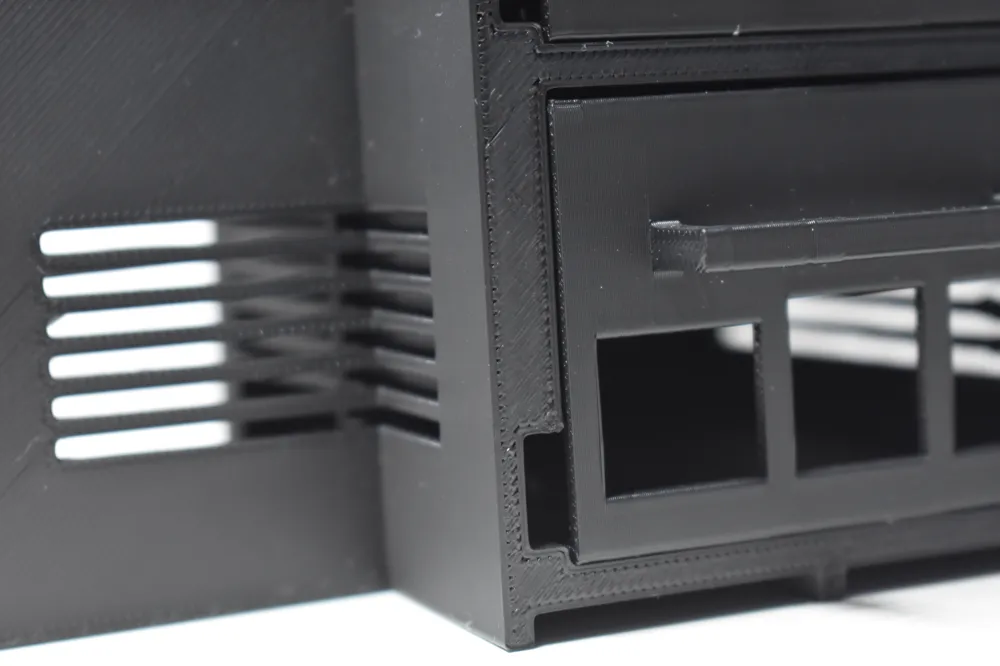

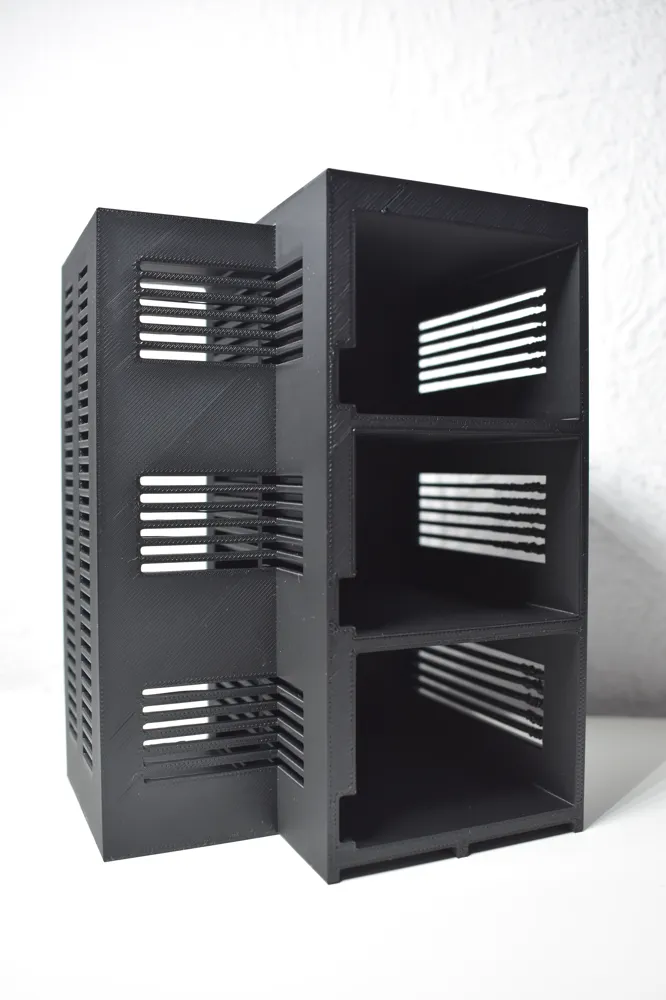

Thermal Optimization: The chassis features multiple ventilation grills to ensure consistent airflow. The open airflow design makes the rack fully compatible with active cooling solutions and fans.
