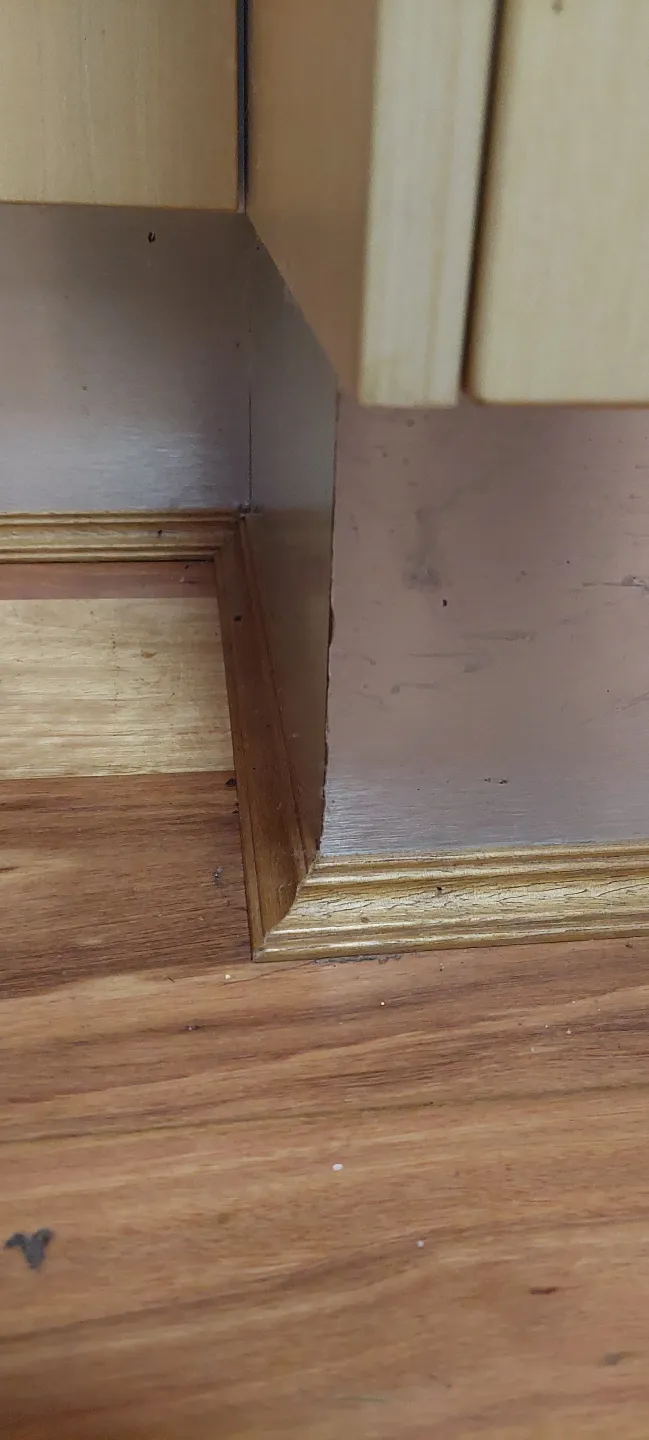

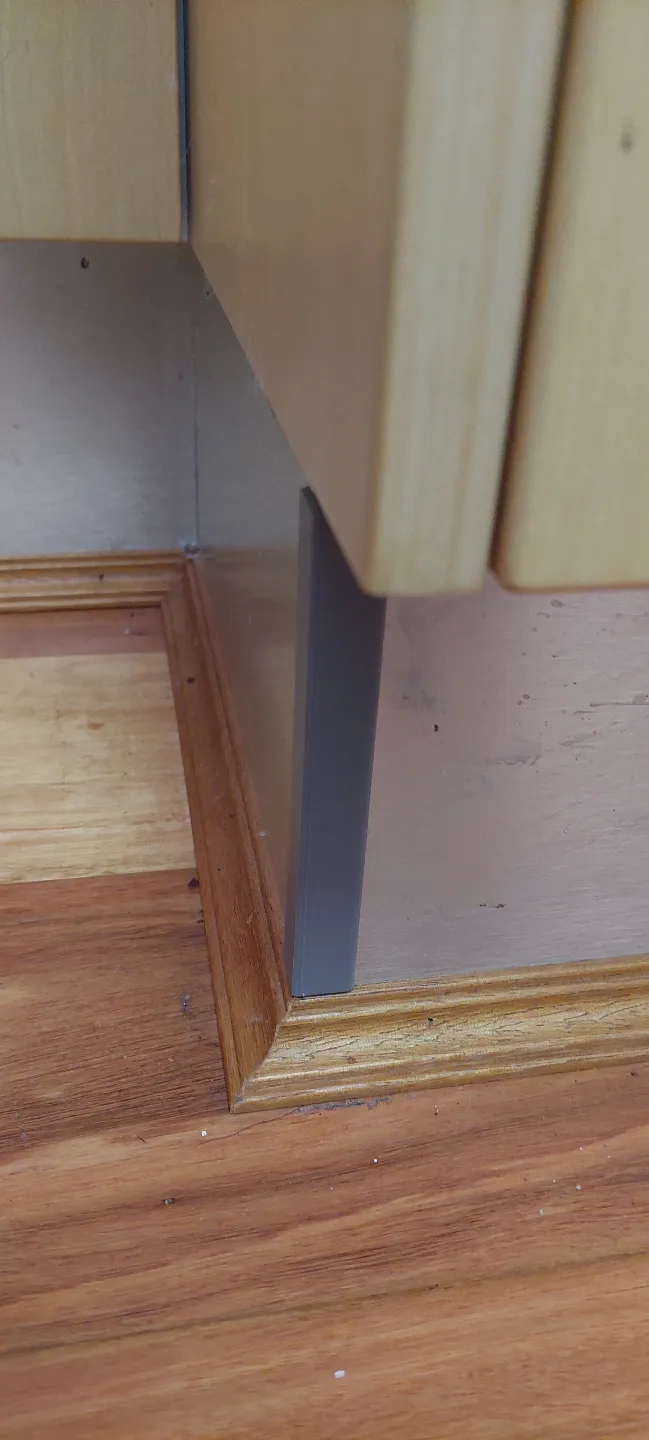

I have some sharp edges in our kitchen and a small child who runs all around the area. This linear edge guard is stuck over the sharp edge and removes the hazard. I use double sided foam tap to attach them but you could use something else depending on your long term preference. The design was done is OpenSCAD and I've uploaded this so it should be fully customizable.

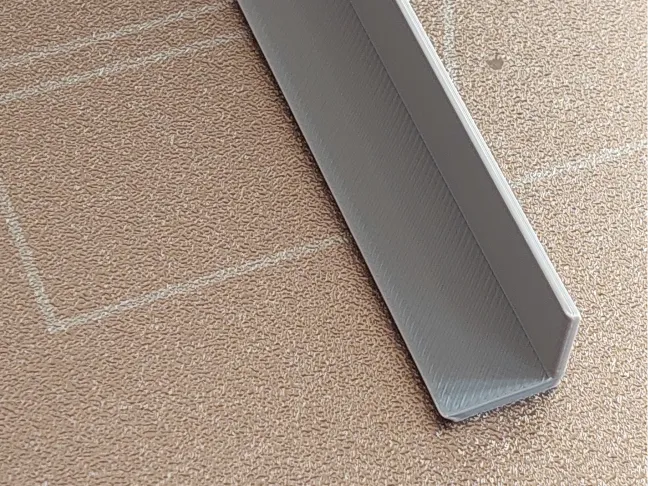

The dimensions I used were 15mm x 15mm , 120mm high, with a thickness of 2mm.



I have edited the code so the model now has control of all three fillets, and they can be smaller than the thickness.

  • If you find anything wrong or would like some improvement, just let me know : )
