Mobula 7 v4 "Graboid" Front Camera Mount

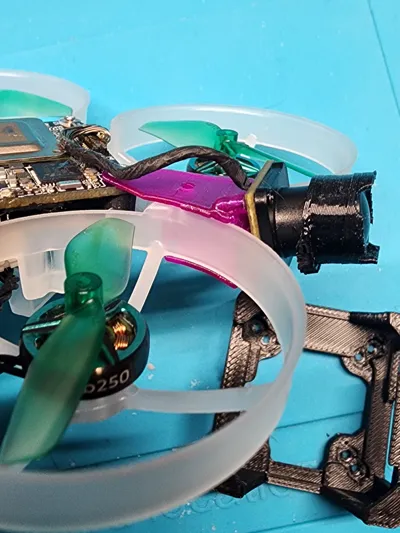

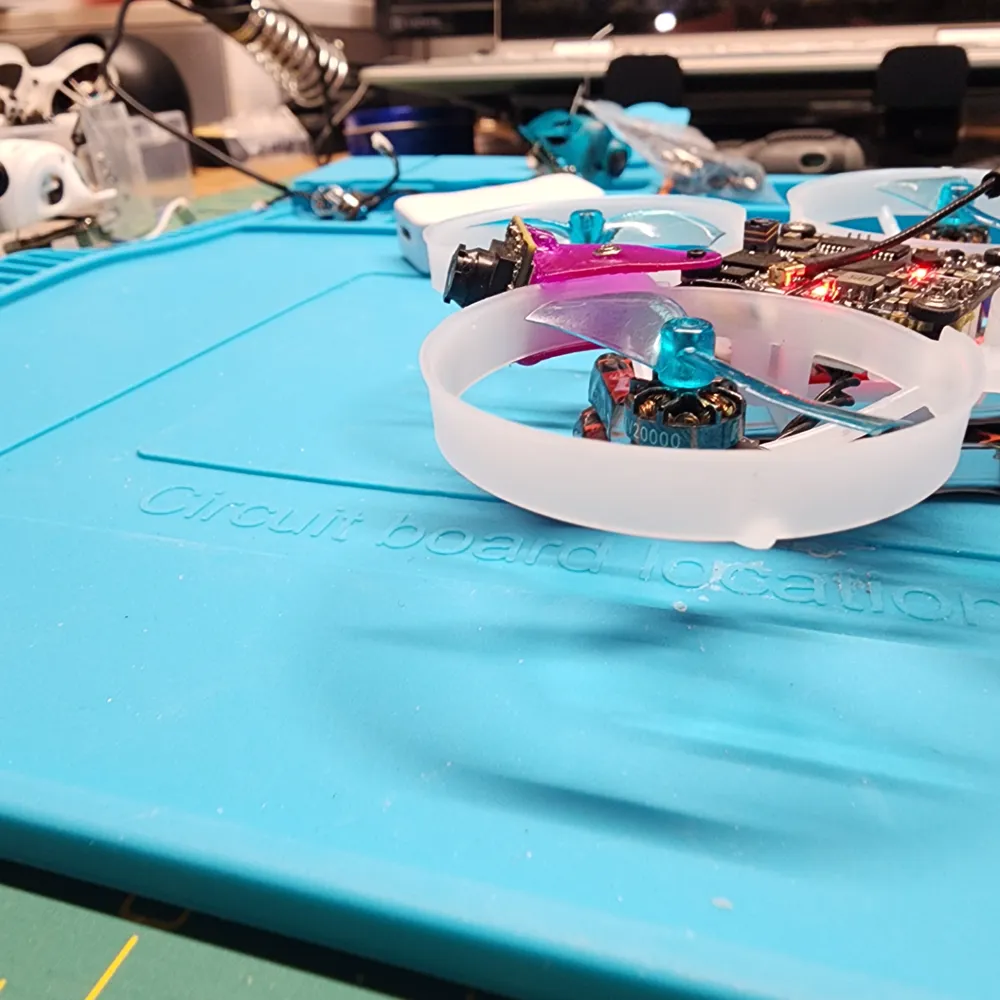

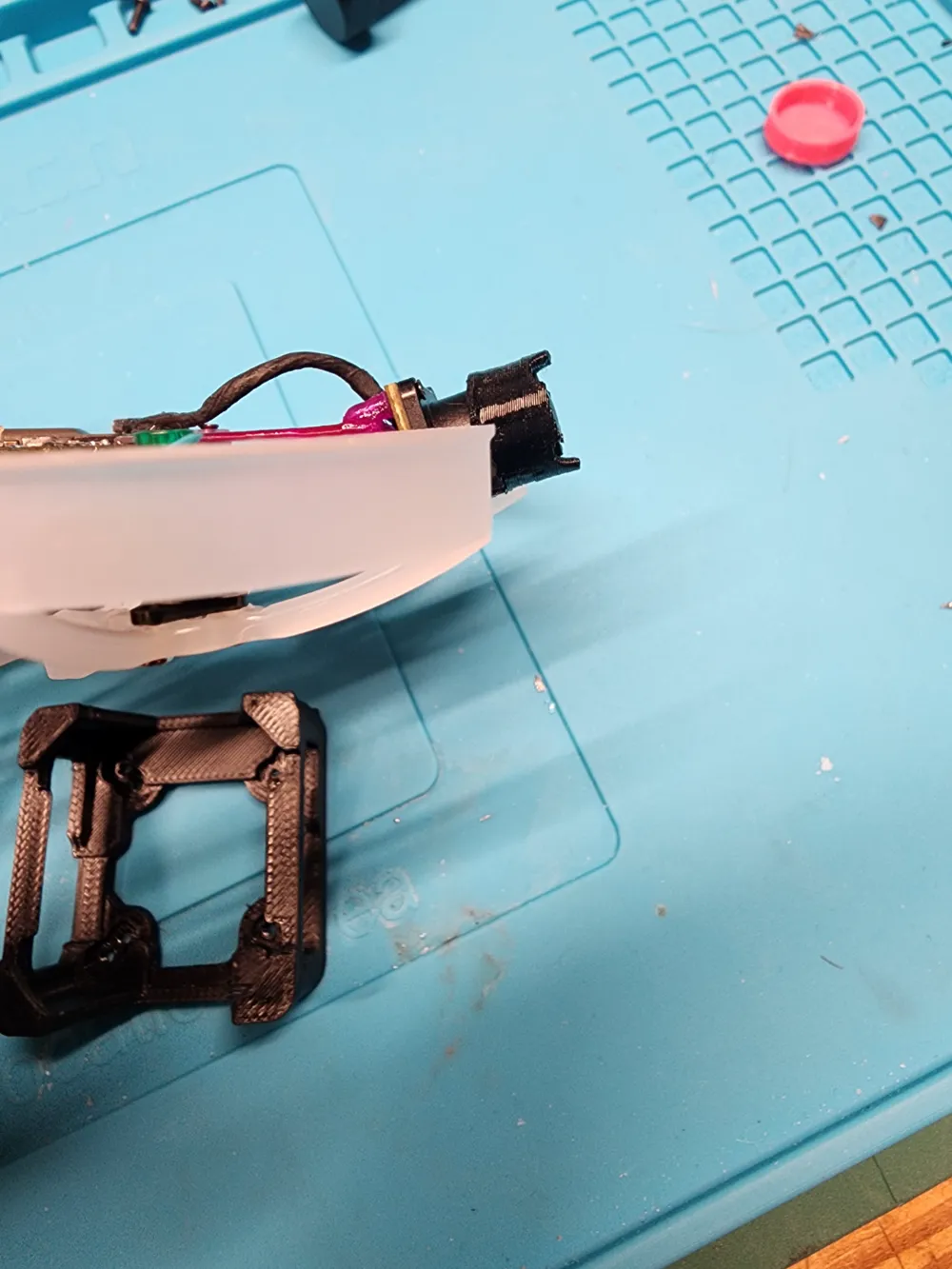

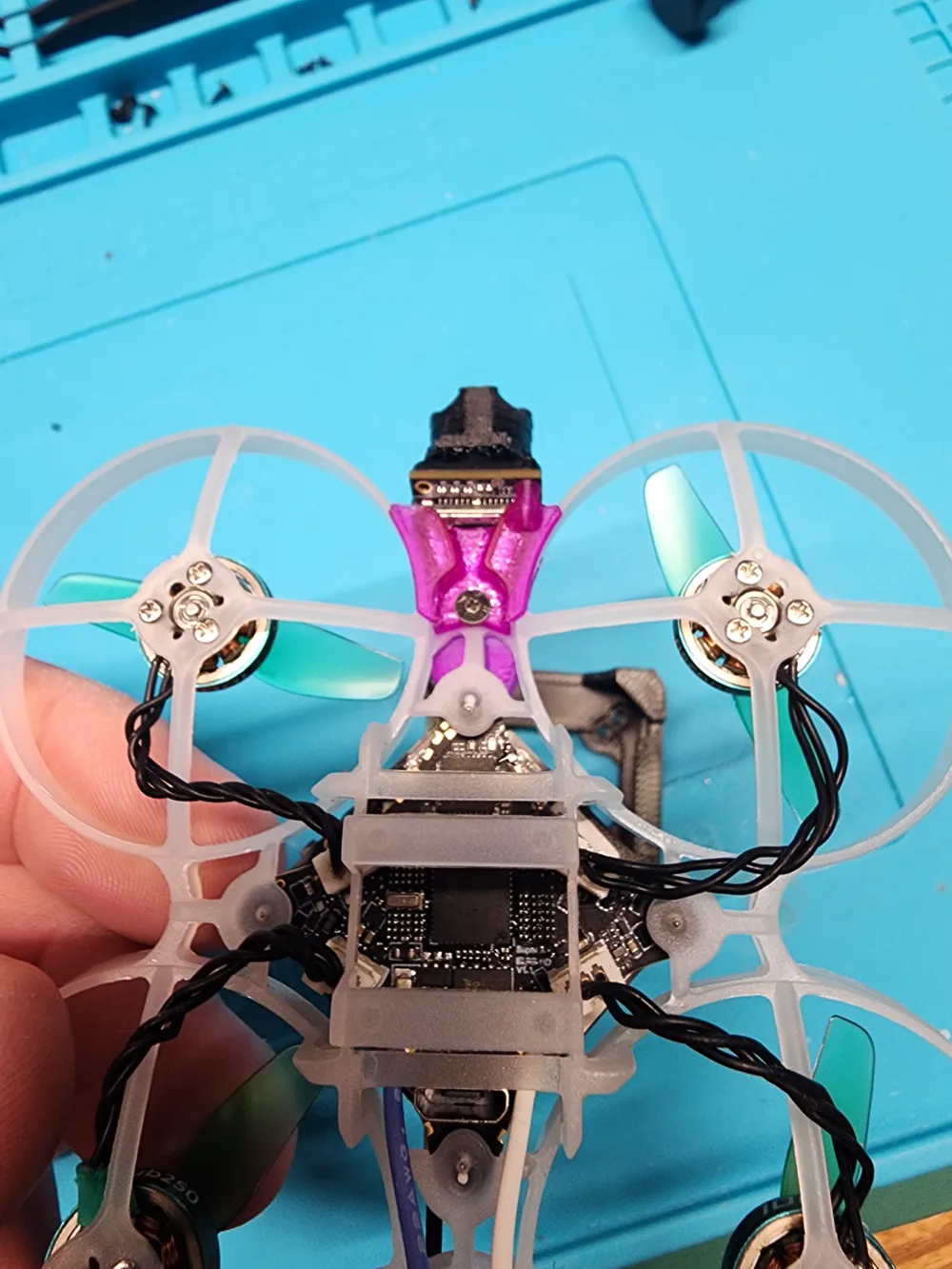

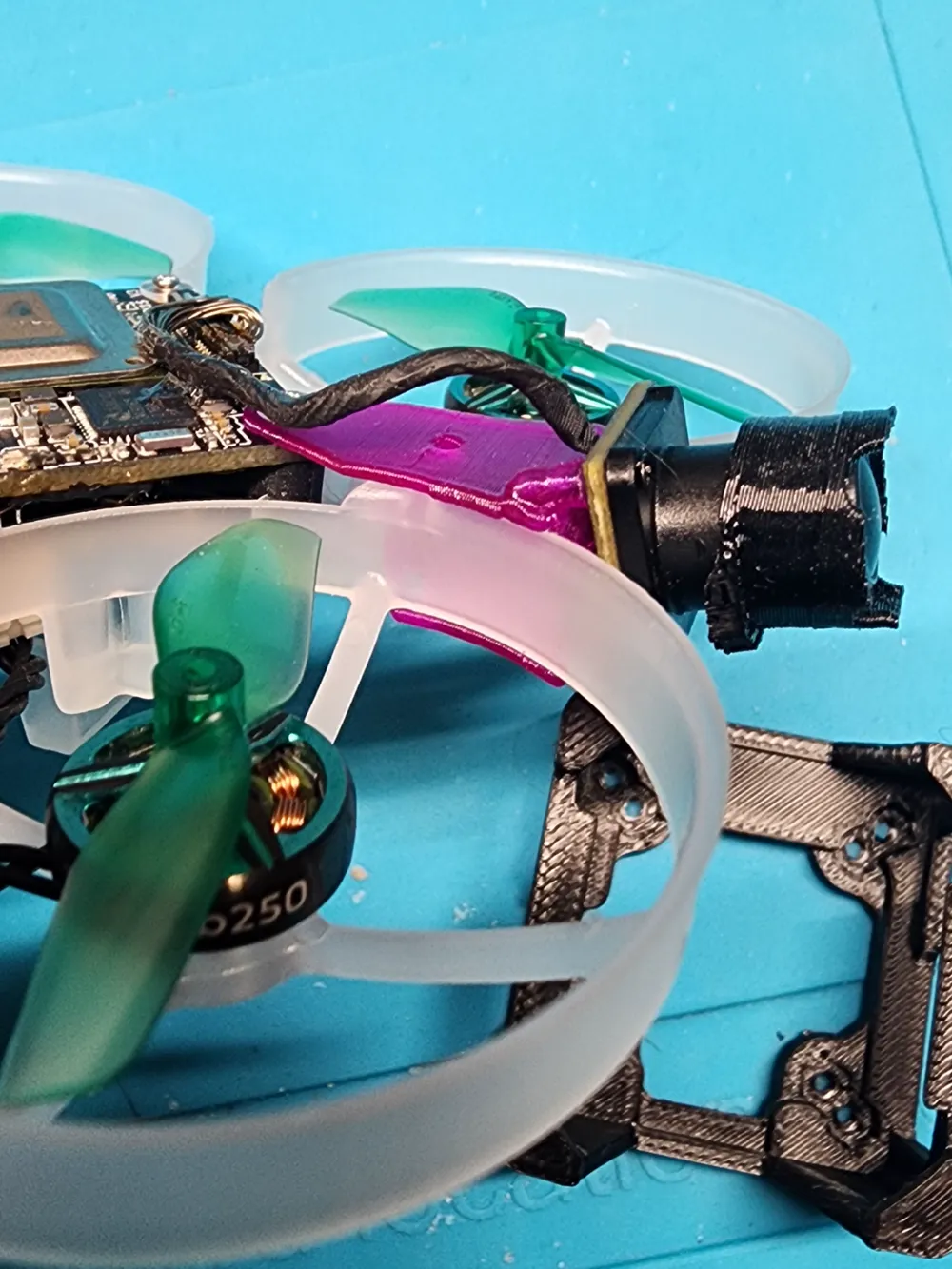

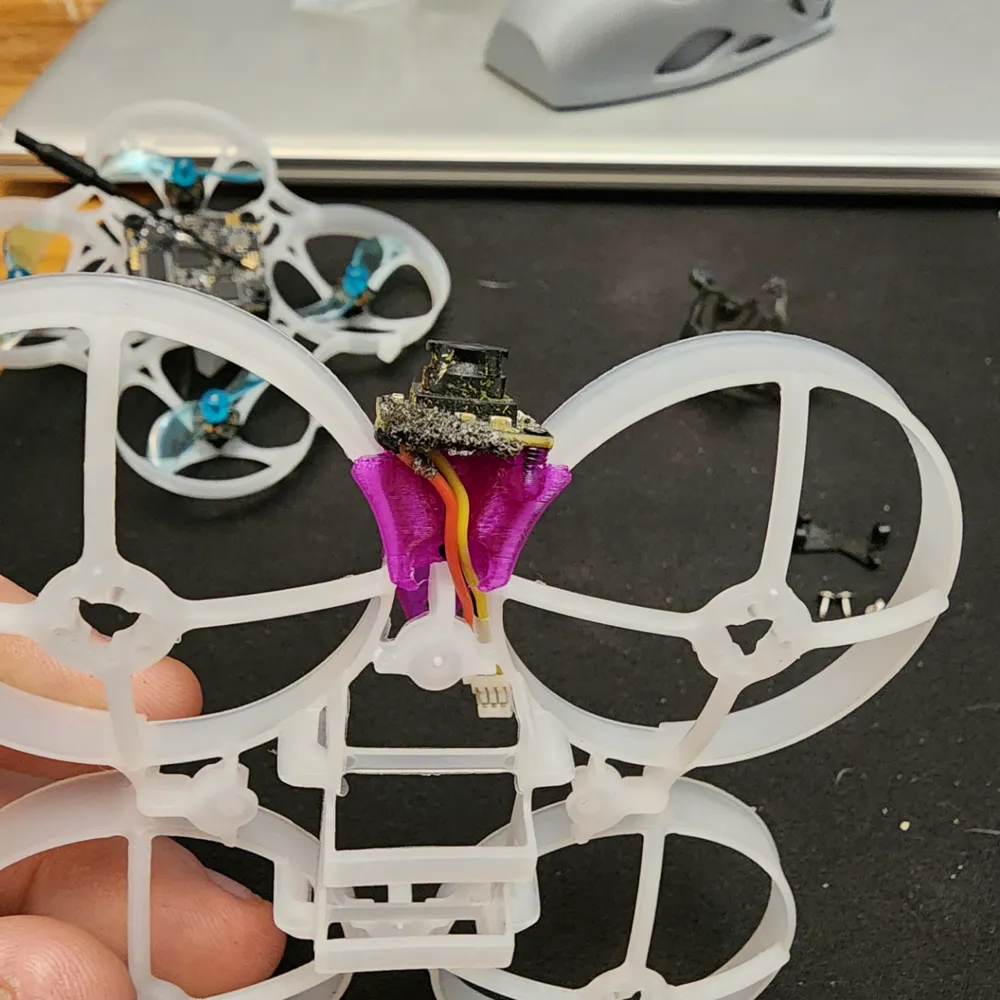

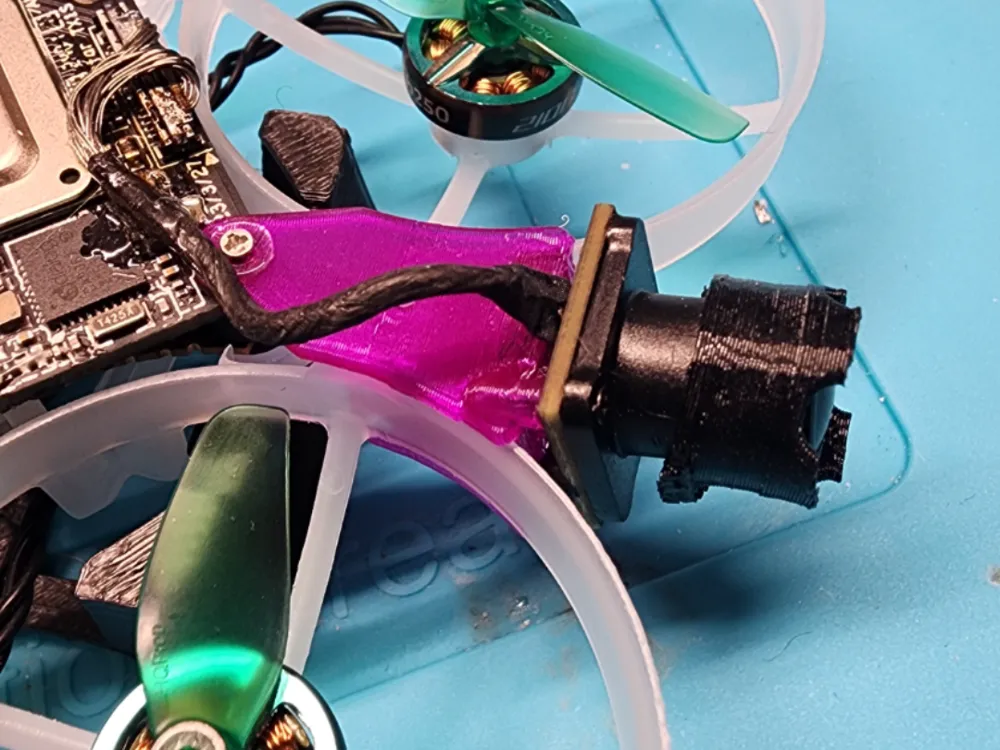

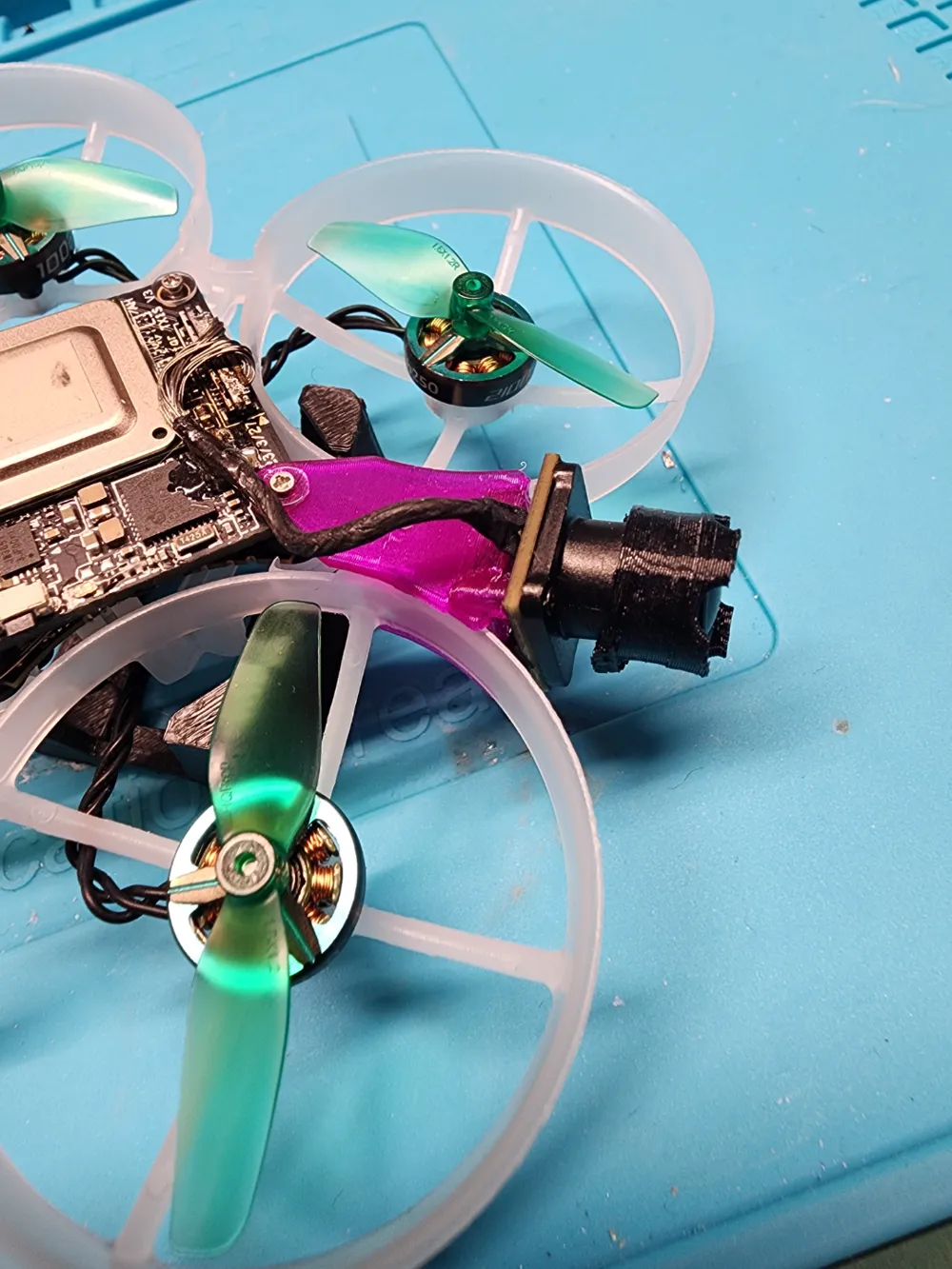

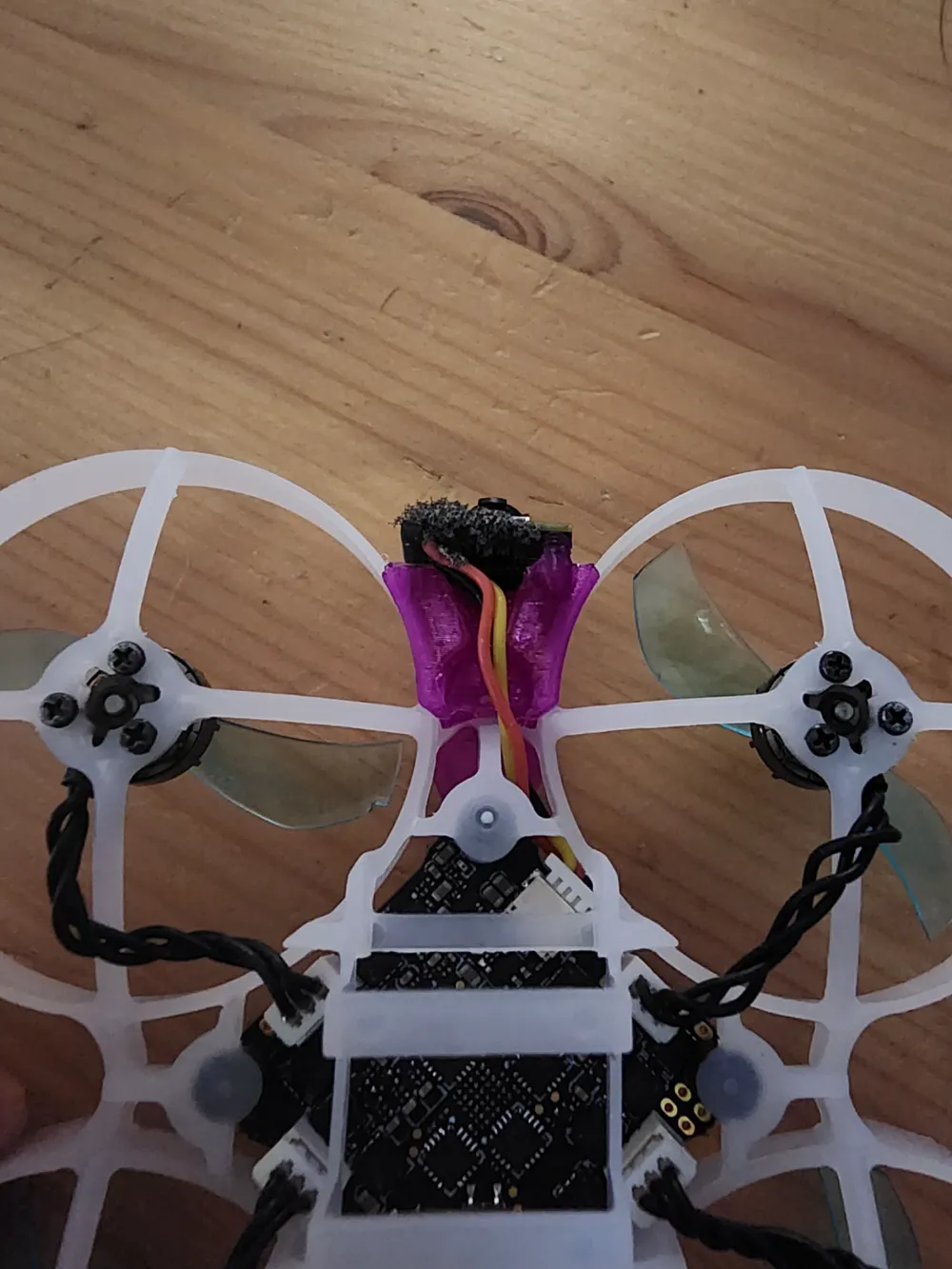

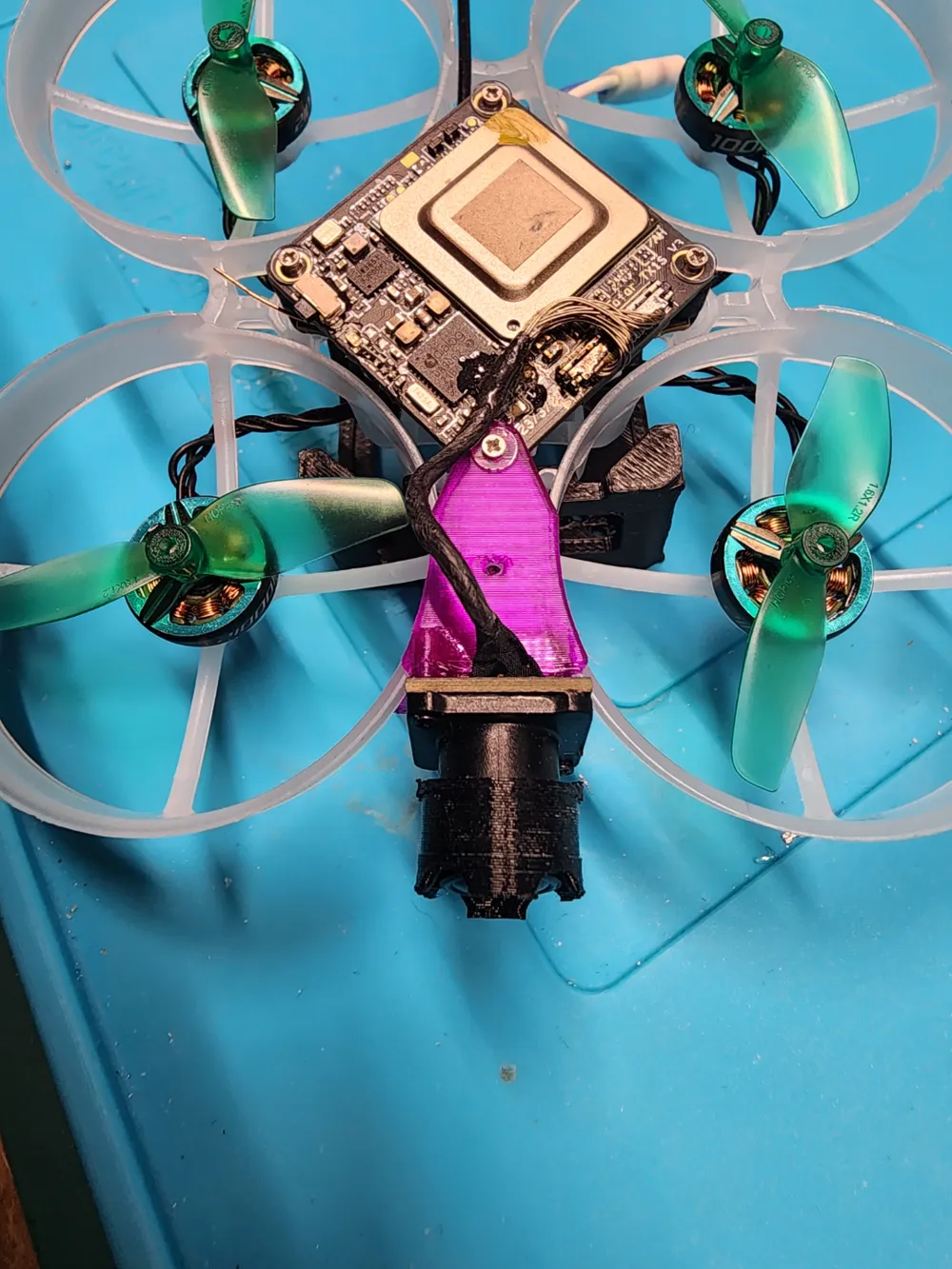

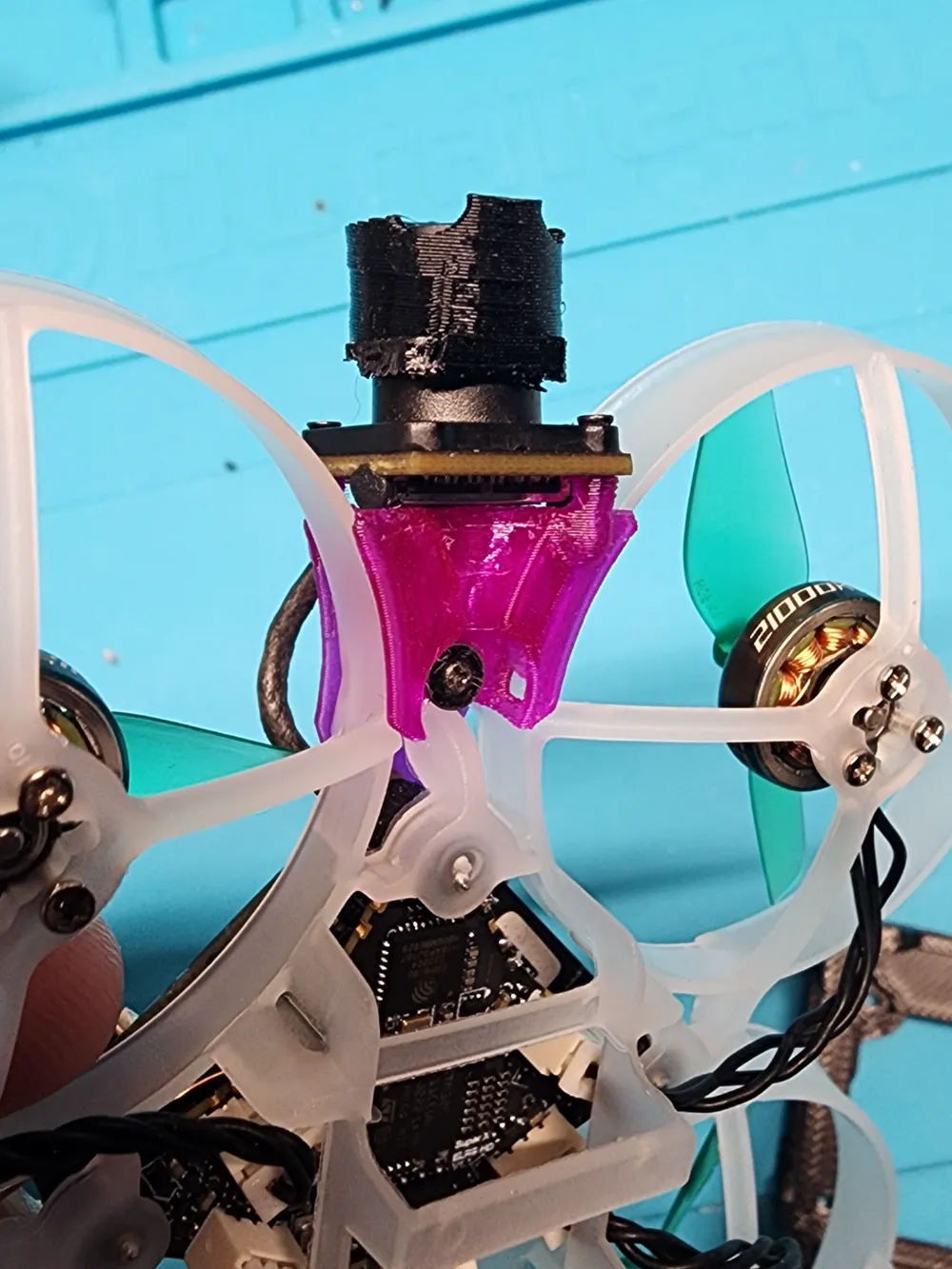

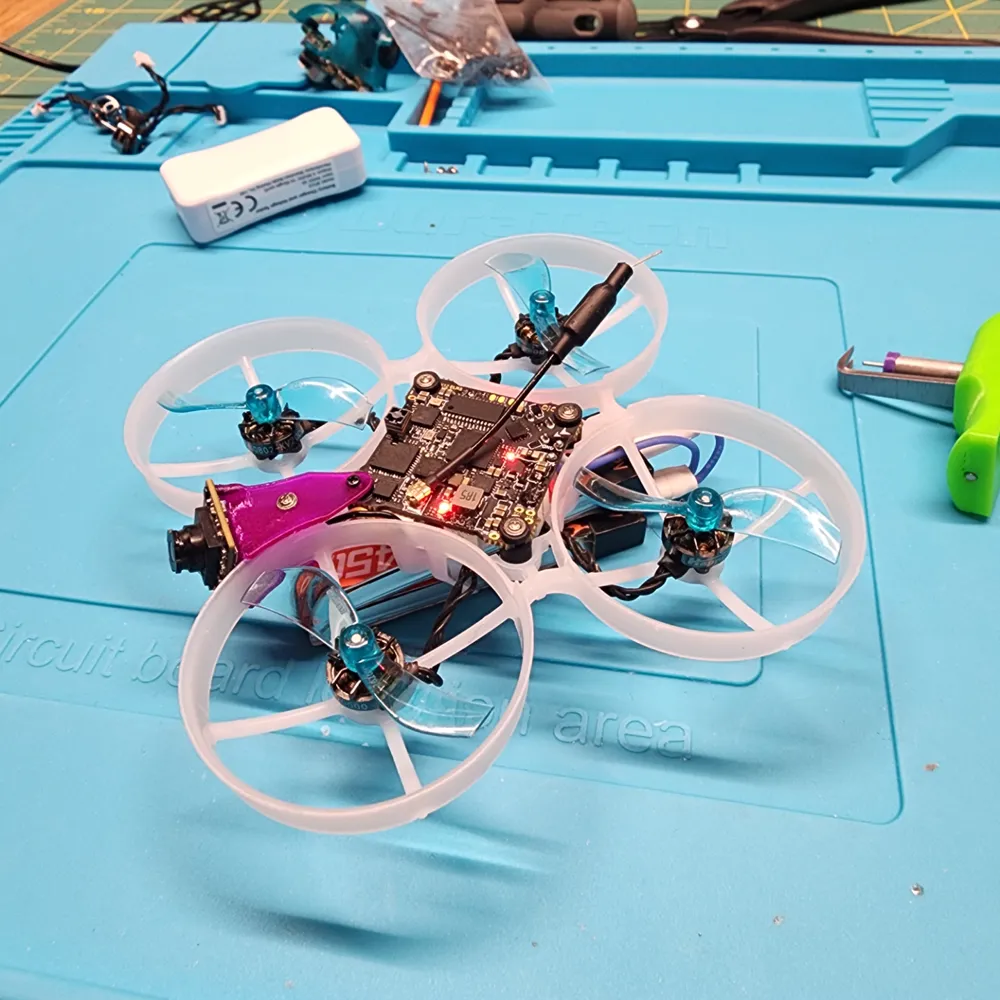

This front camera mount was inspired by CiottiFPV. The goal was to have a minimalist front-mount camera for the Mobula 7 v4 frame that would get the ducts out of view. The mounting pattern matches that of the Mobula 6/7 Canopy camera adapter (the little plastic piece that comes with the rounded canopy). This allows cameras like the Runcam Nano3, FXT camera from the Mob 6 2024, and the Walksnail 1s Lite to be used. The Nano3 is small enough that it is recessed behind the line of the ducts when installed, offering some protection. The Walksnail and FXT cameras stick out a decent bit, so a protective shroud is recommended. The one pictured is an adaptation from my Batwing mount for the NBD Cockroach v3 frame.

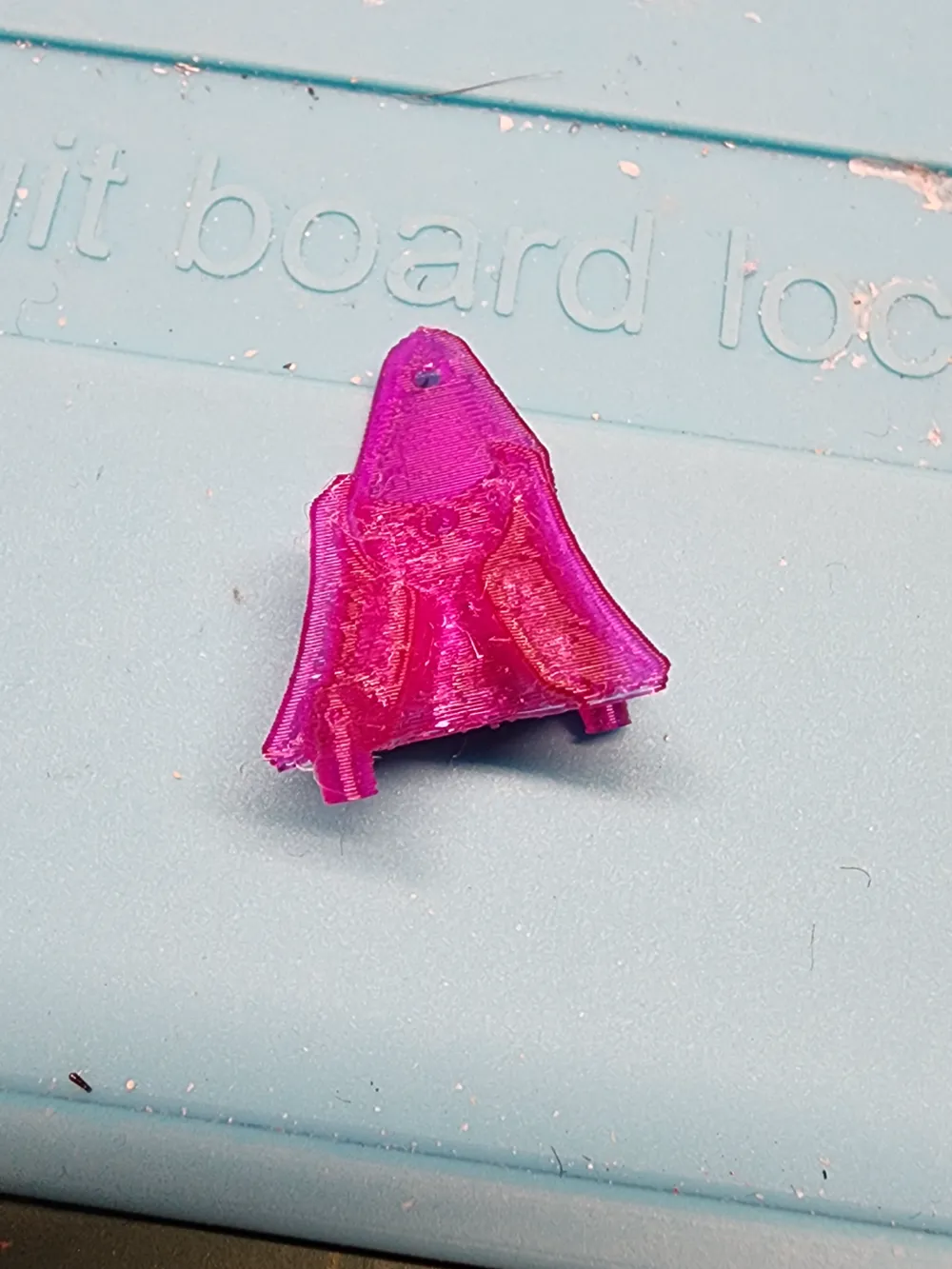

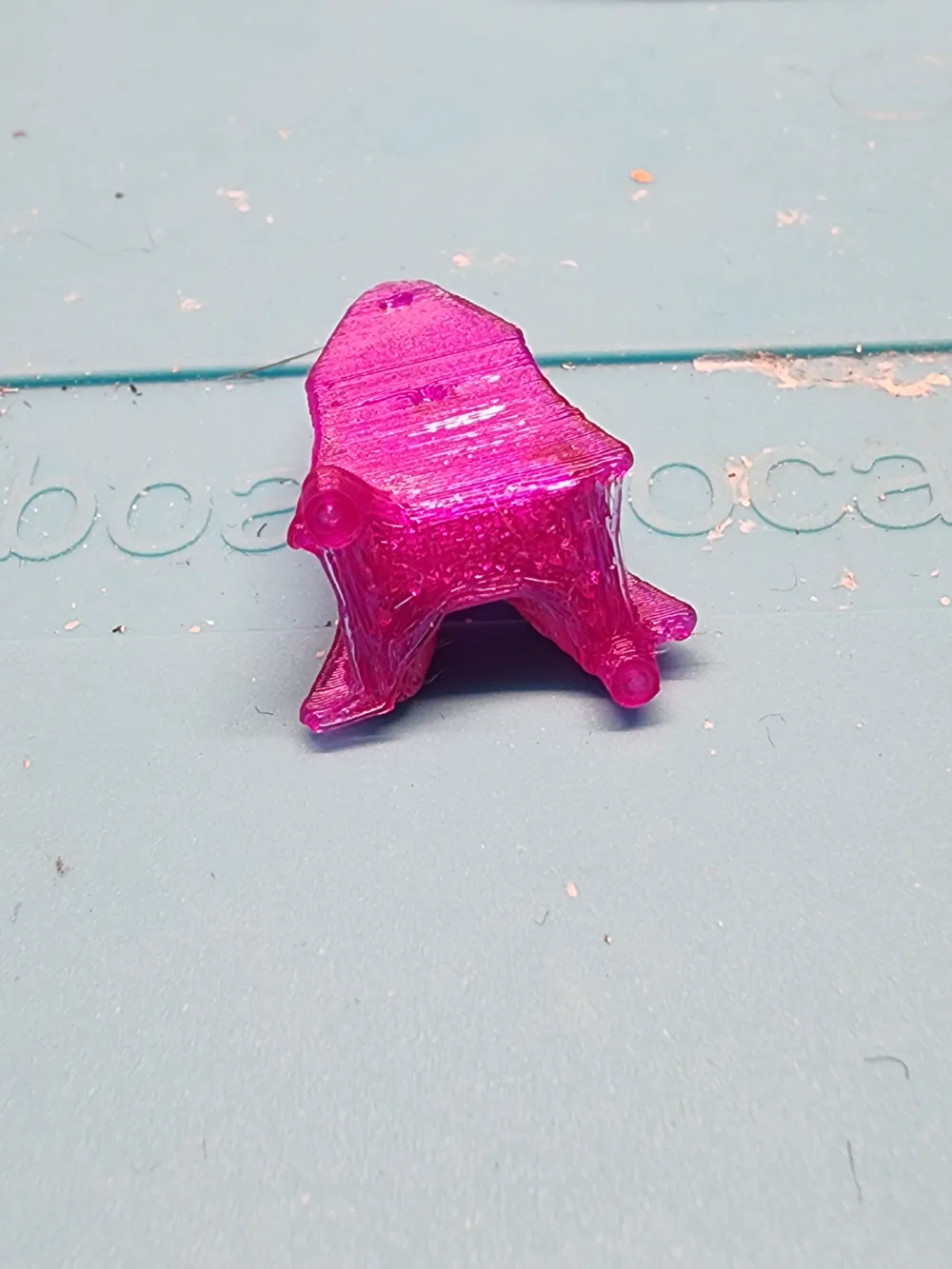

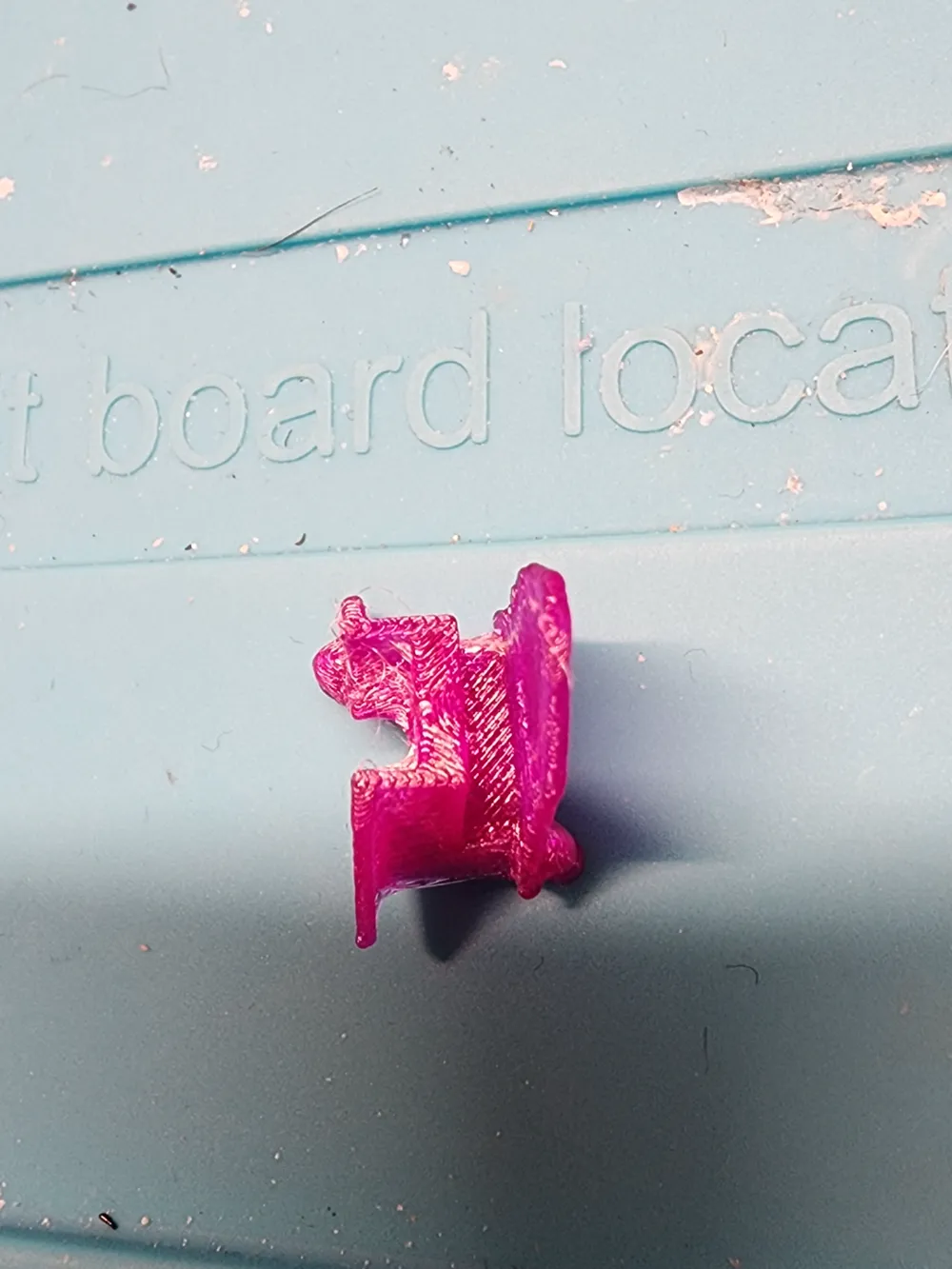

The channel on the bottom side of the mount is for running the Nano3 wiring.

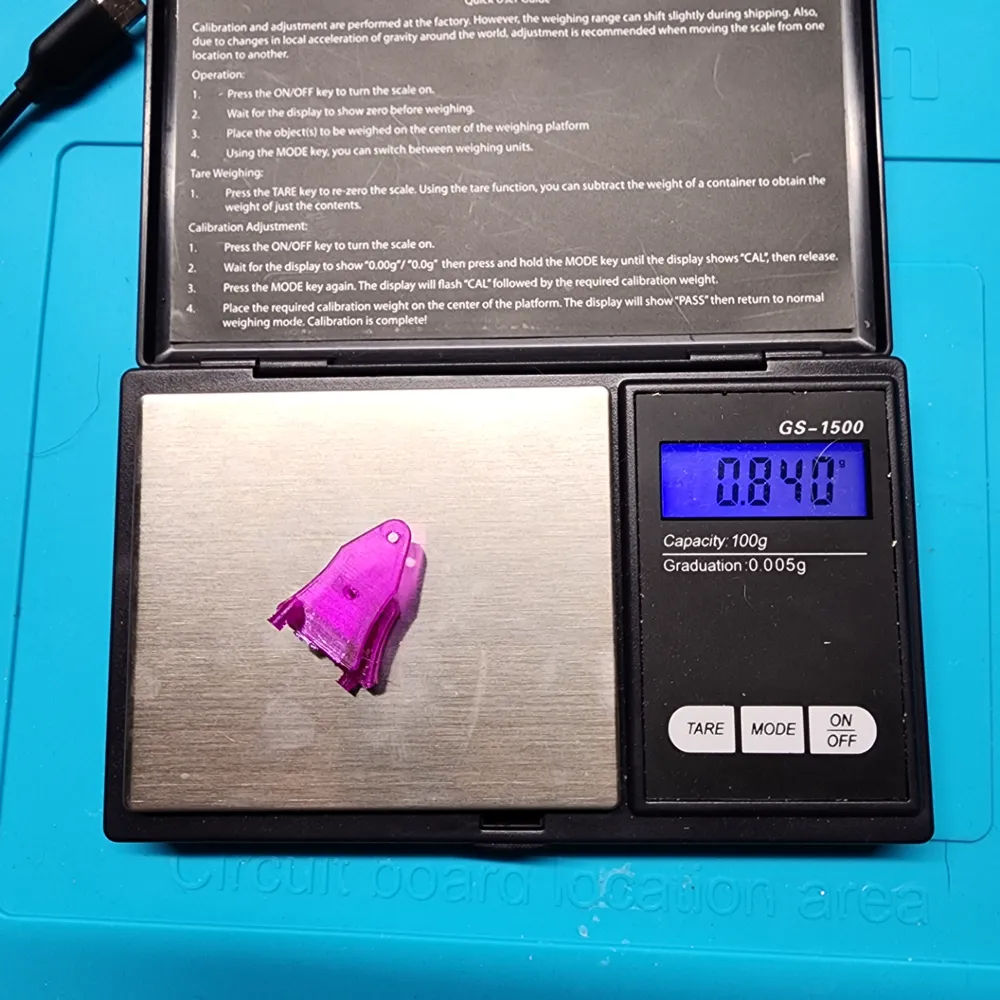

I originally printed this with Classic wall generator, and it ended up creating “windows” on the bottom rear, which didn't affect anything, really just made it a fraction lighter. I uploaded the profile with Arachne walls, but either one should work.

Printed with Geeetech TPU 98A on the BL A1 Mini
