D1 Mini ESP8266 case
Print Profile(7)
Description

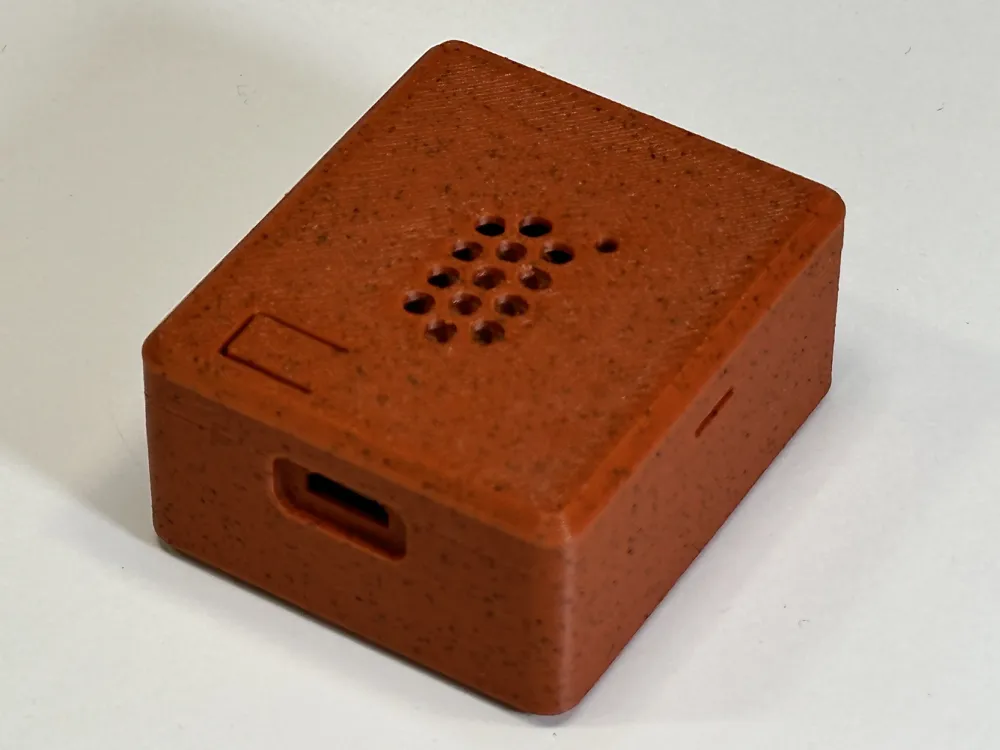

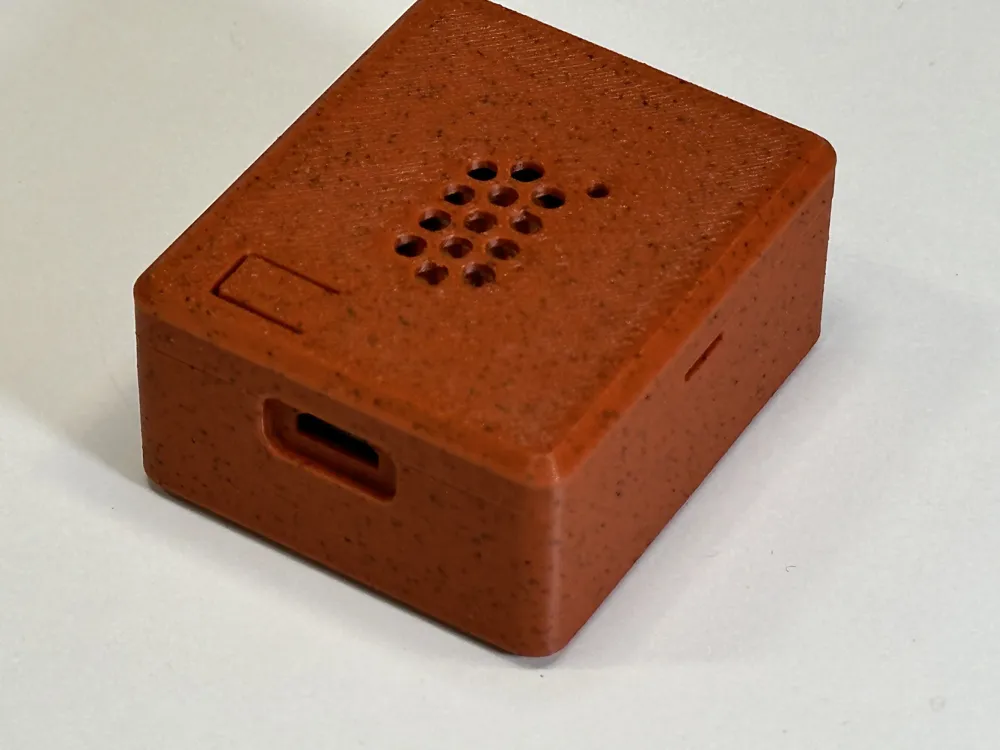

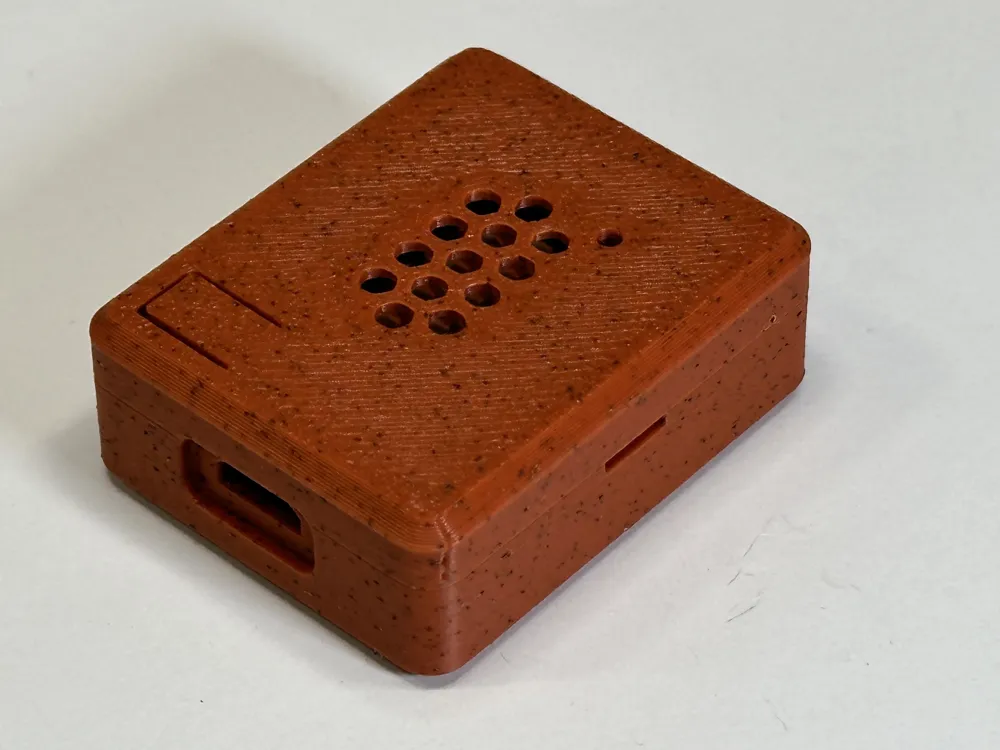

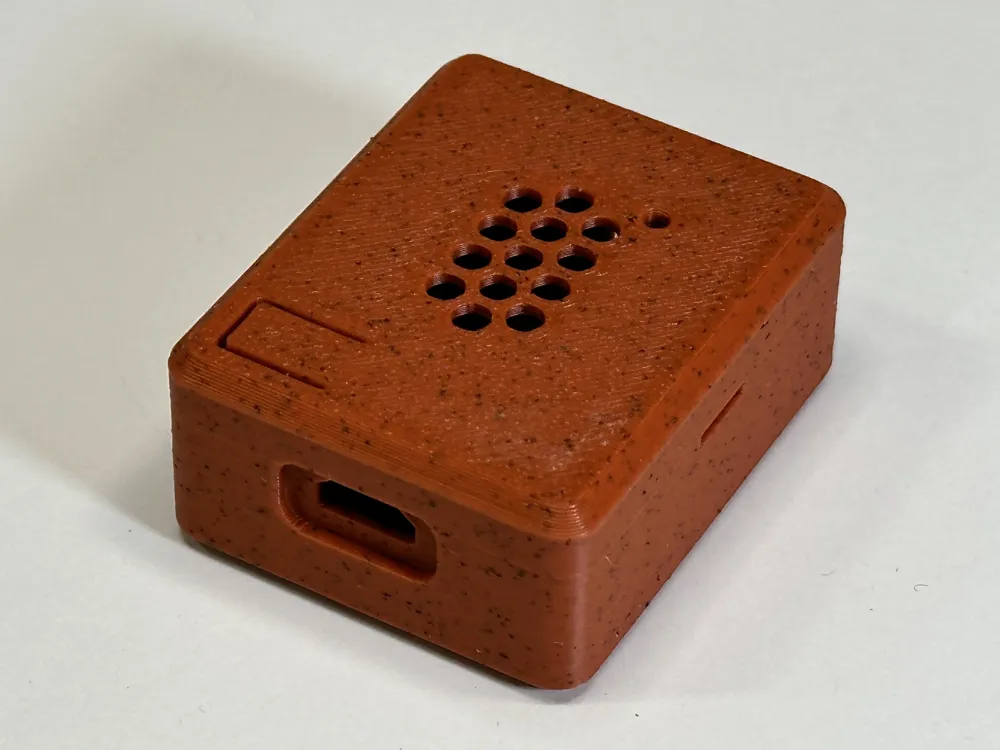

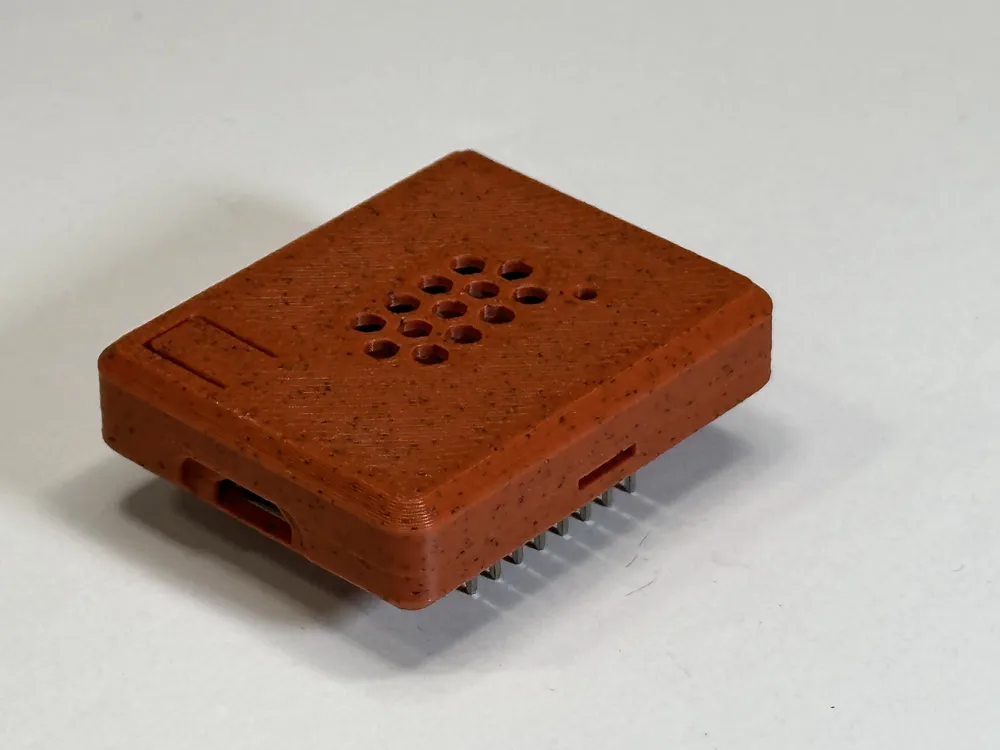

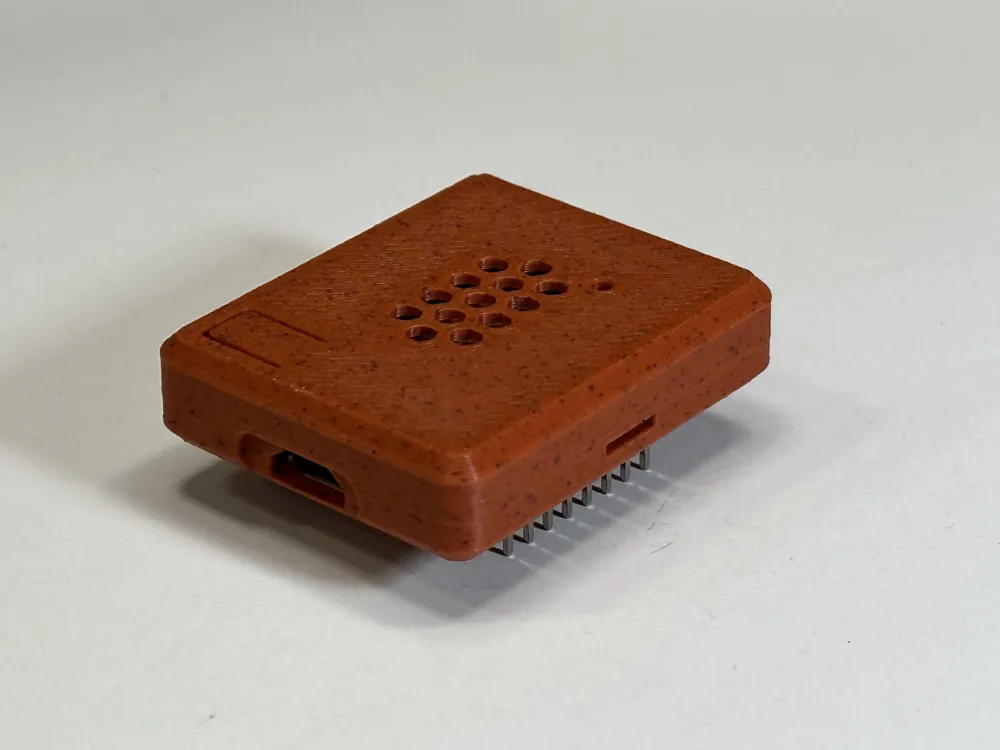

D1 Mini ESP8266 micro USB case (AzDelivery/WeMos):

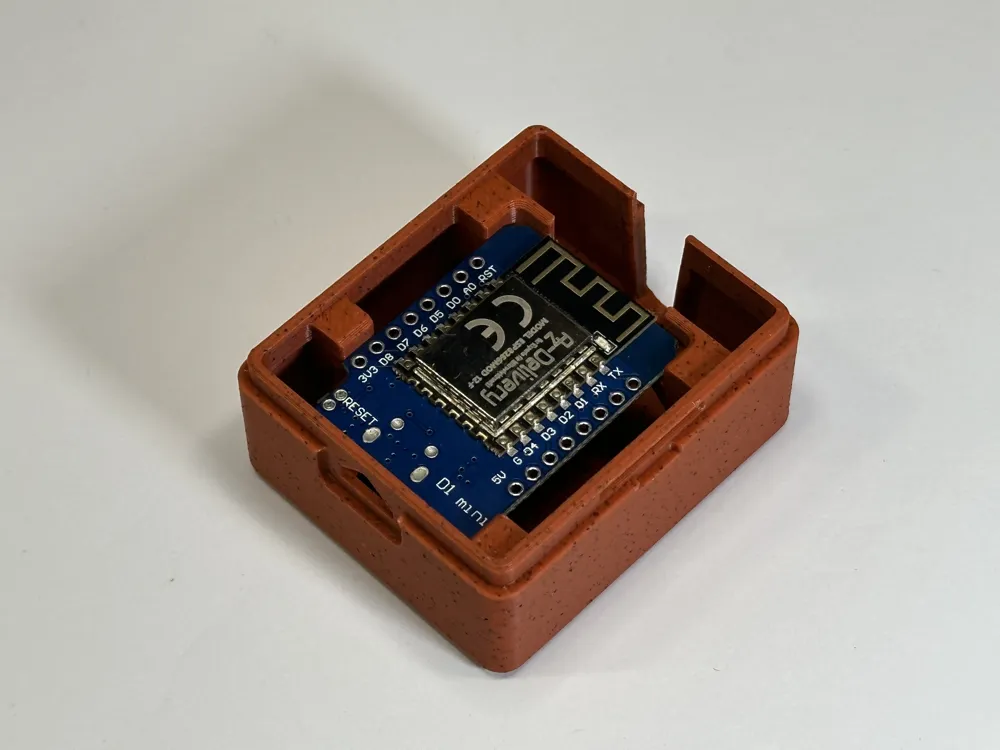

Size of ESP8266 D1 mini board expected: 34.5 x 25.7mm and micro USB
- Snapfit
- Wall Mount
- Reset button
- User led hole tubes (use transparent PLA as a light emitter)
- Connection cable holes and cable mount
For cable mount use screw 2.5x6mm - Cooling grille

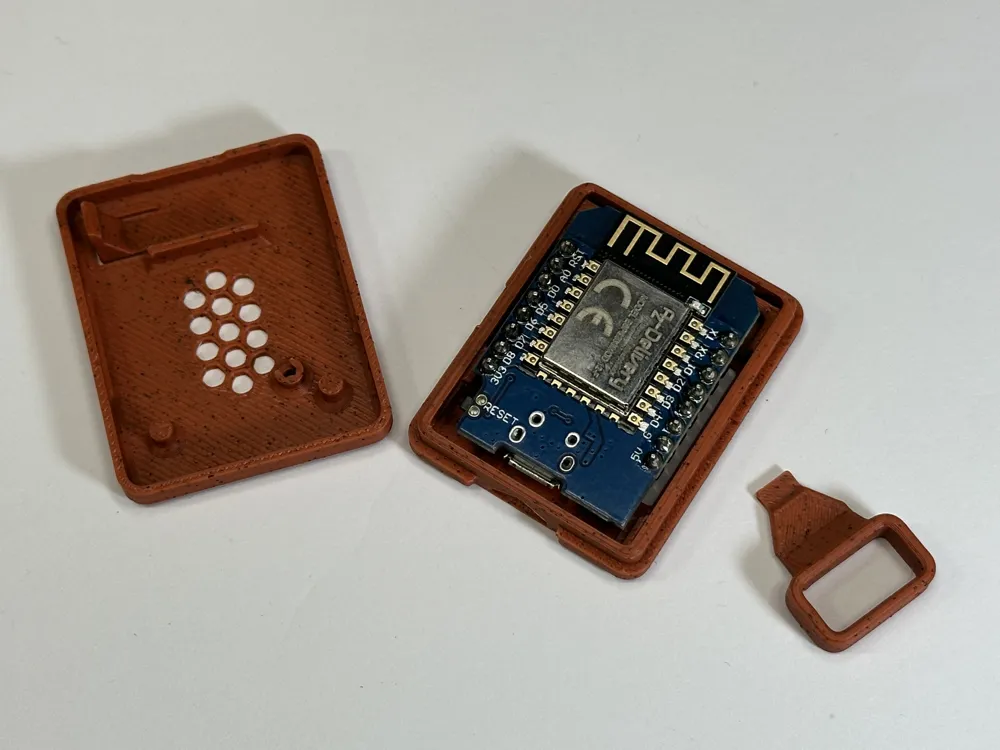

- Opener

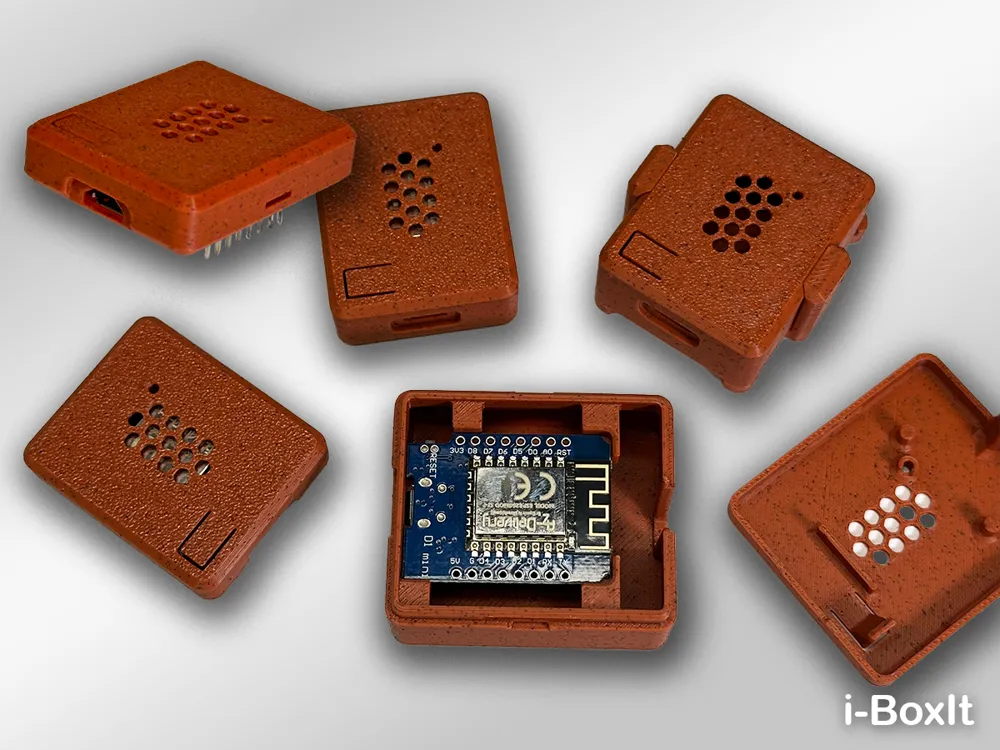

- Different Configurations
- Small Version no Header
- Small Version with Header
- 10 mm
- 15 mm
- 15 mm wide
- 20 mm
- 20 mm wide

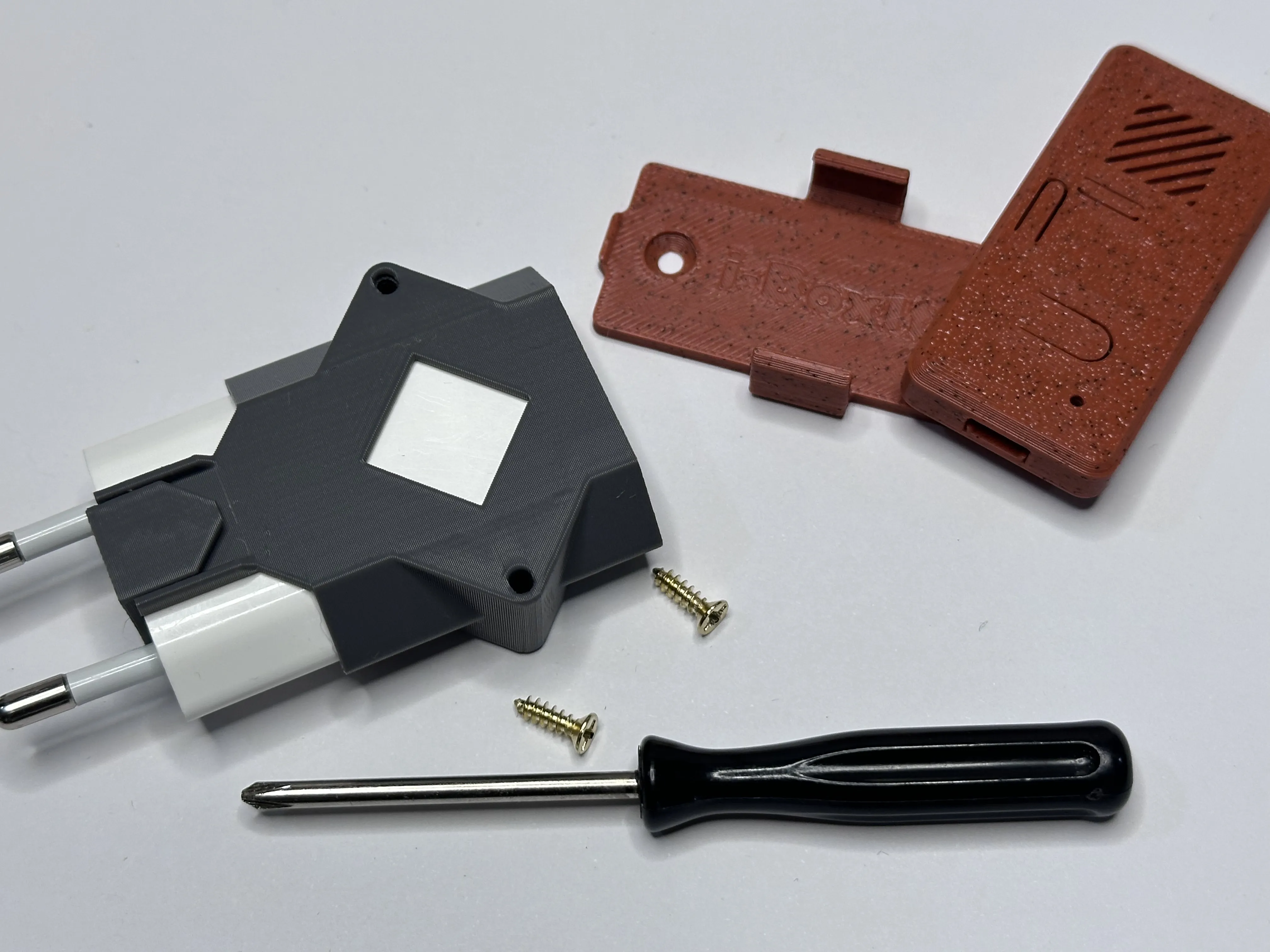

If you want to mount the case to a power adapter, see also:
If you want to mount the box to a DIN Rail, see also:
3D Print settings:
- 0.4mm nozzle
- 0.16mm layer height optimal
- No support needed
