openGrid - Multiboard Snaps

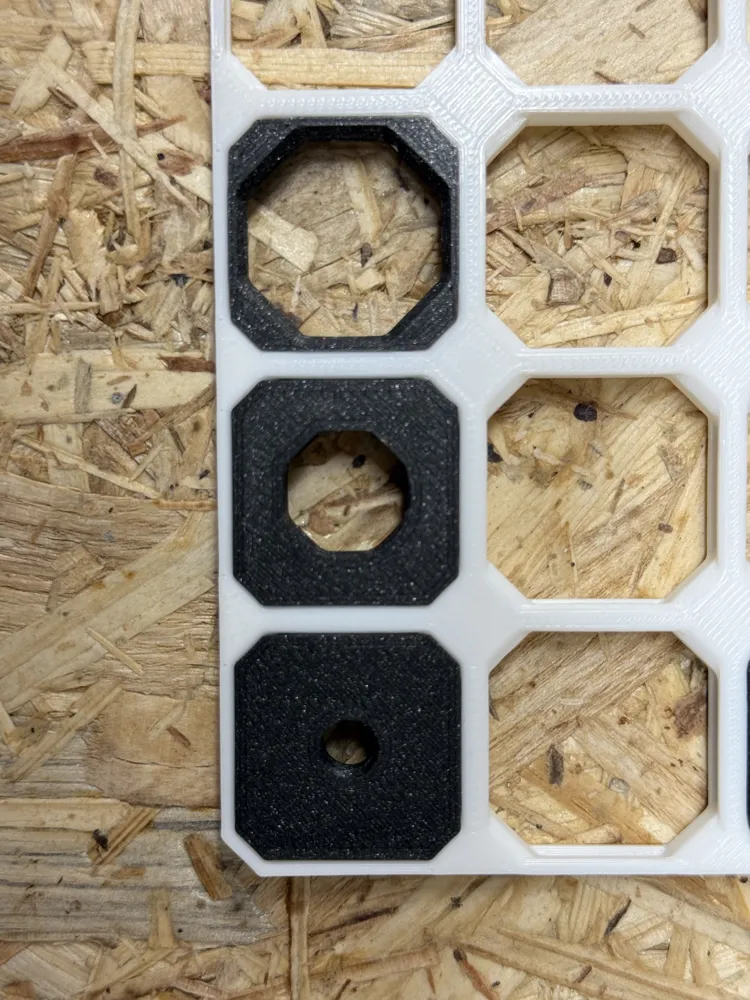

Add multiboard compatible snaps to your openGrid board. This could be either:

• Adding a fill multiboard snap - Yes multiboard does fit into openGrid
• Adding the mid screw/push fit snap
• Adding the small screw snap

Disclaimer: The grid size of openGrid is 28mm, so you can easily attach single tile based solution using the snaps provided here. But all things needing more than one tile will not match the grid side - a simple example for this would be the pegboard click hook, this does not work.

Credits to Jonathan (KeepMaking) for creating multiboard.

Please be sure to also respect the license of all things based on multiboard. This license also applies to all of the multiboard parts here, though it cannot be select on printables.

Version history:

• 2025-03-05: Initial release
• 2025-08-07:
  • Update all snaps to ensure the chamfer is using the same angle as the tile
• 2025-10-05:
  • Update all snaps according to new Multiboard OnGrid update
