Button Fix Type II

Button-fix Type 2

For easily removable panels

Connects panels at 90° or to a frame and engages with a straight push. Ideal for panels with no clearance above or at the side and applications where the emphasis is on ease of access.

Typical uses include:

• Plumbing or electrical services access panels
• Bath panels and radiator covers
• Quick-assembly furniture
• Kitchen unit plinths
• Removable panels with no clearance above or at the side

How to use:

1. Print, suggests with petg . but with pla will also go work

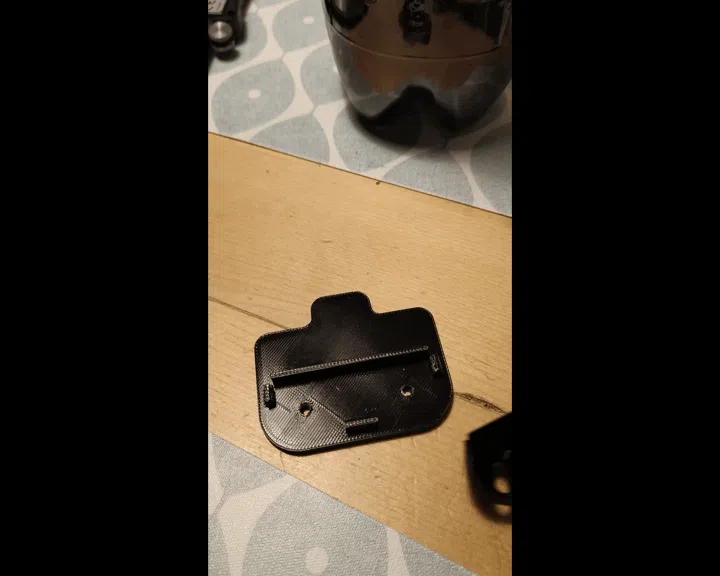

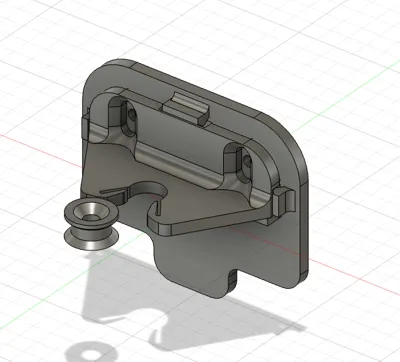

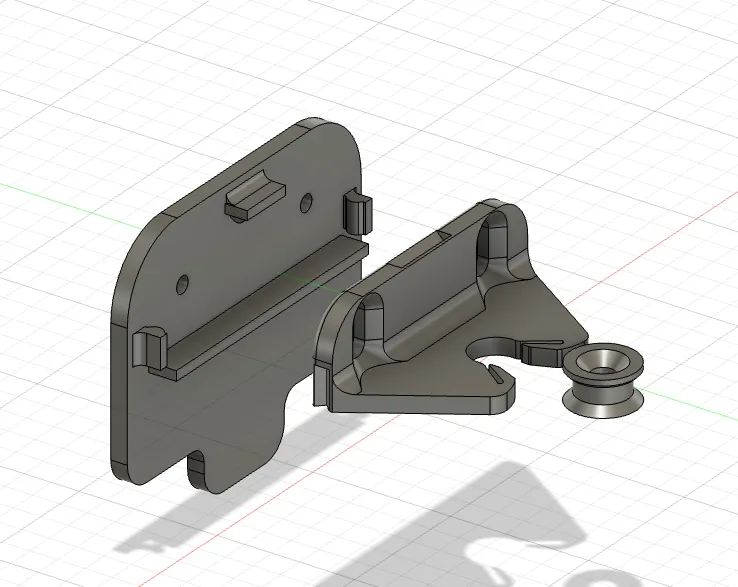

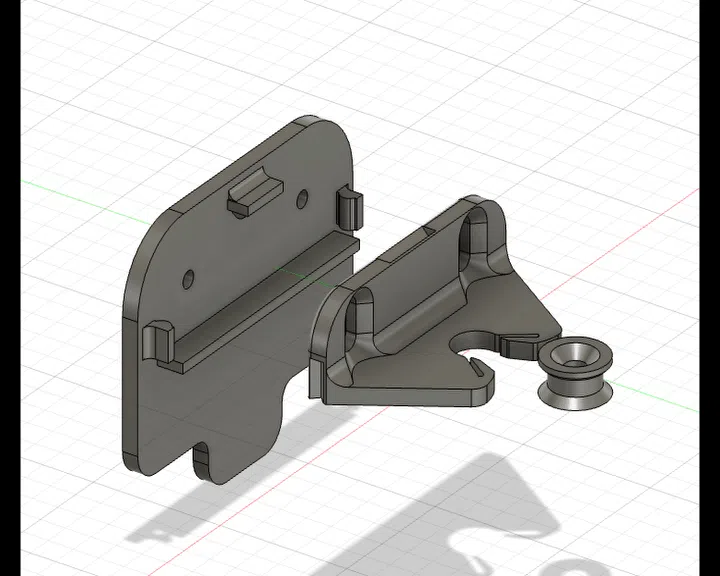

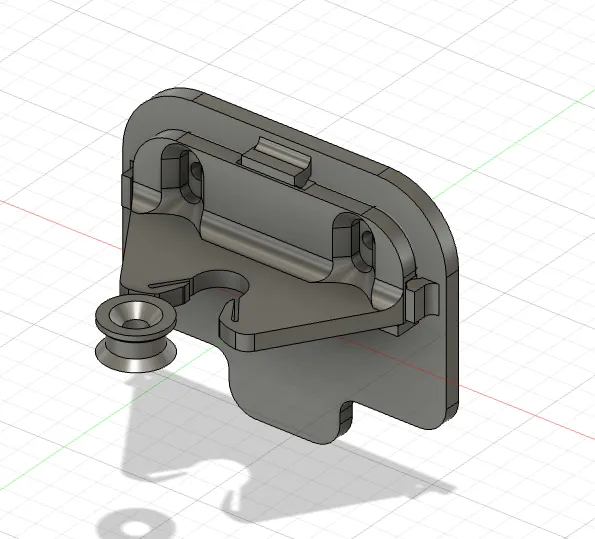

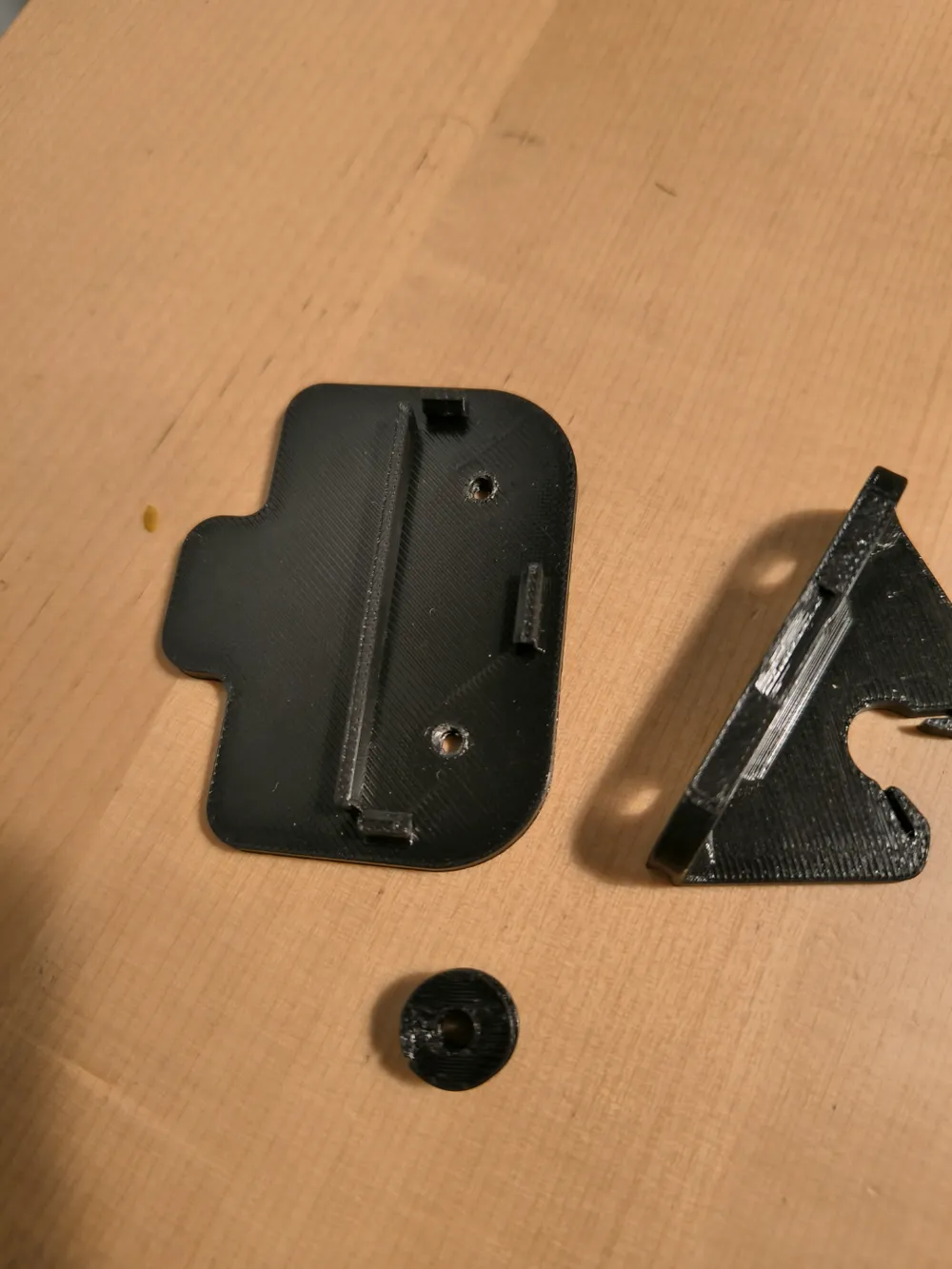

2. assemble all 3 parts together

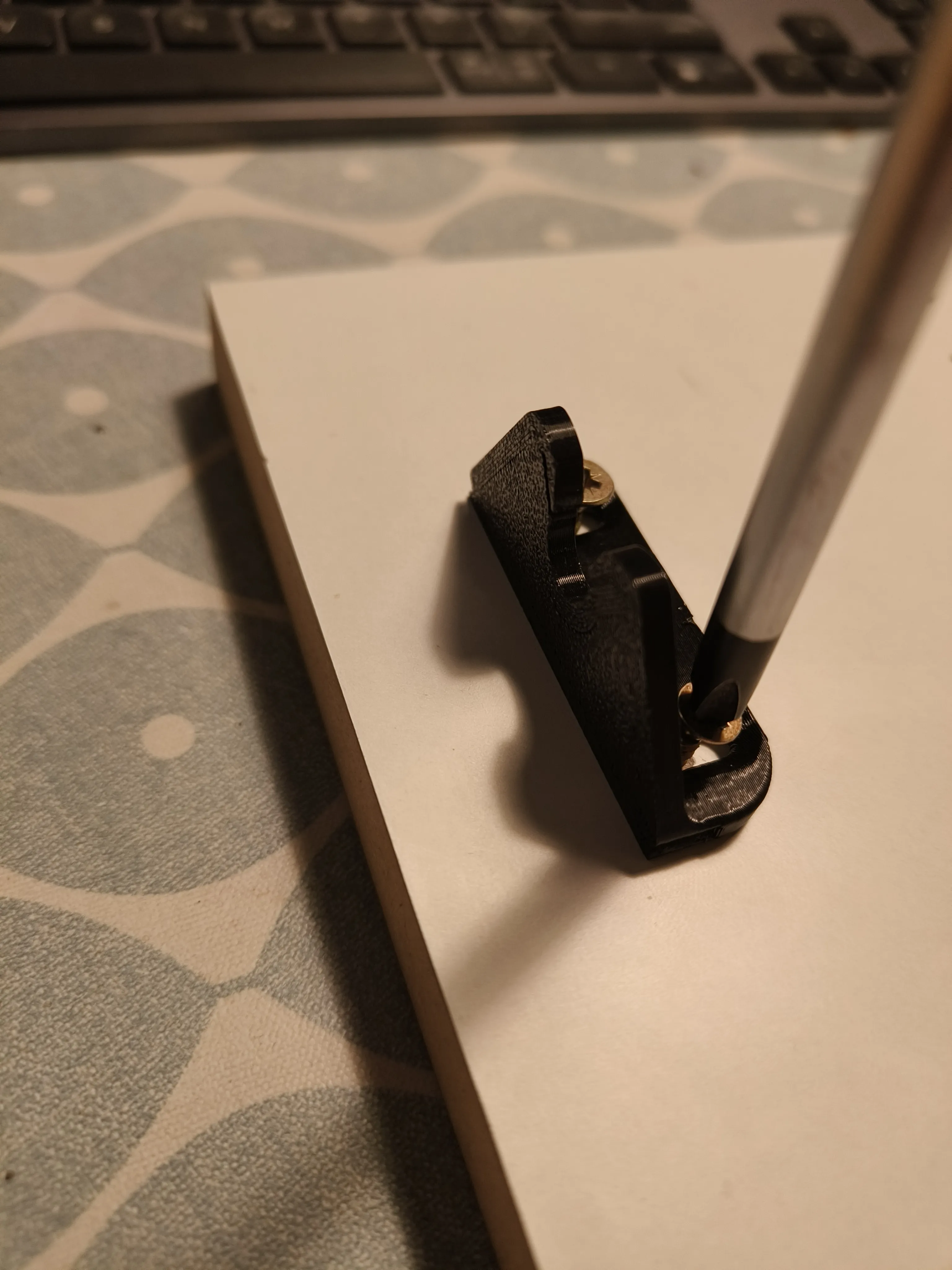

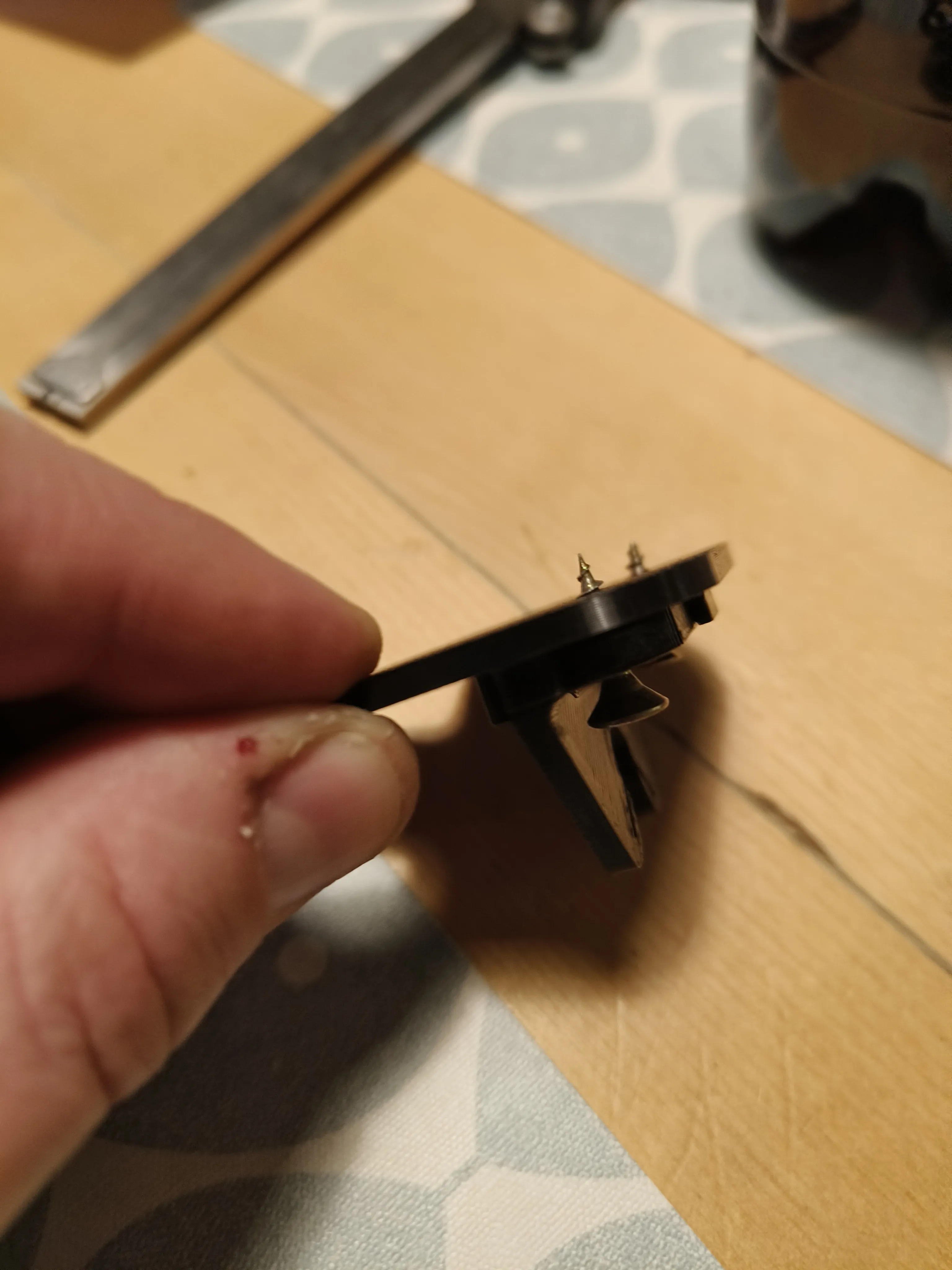

   3. Screw in two sharp screws so that the sharp part sticks out 2-3mm beyond the element

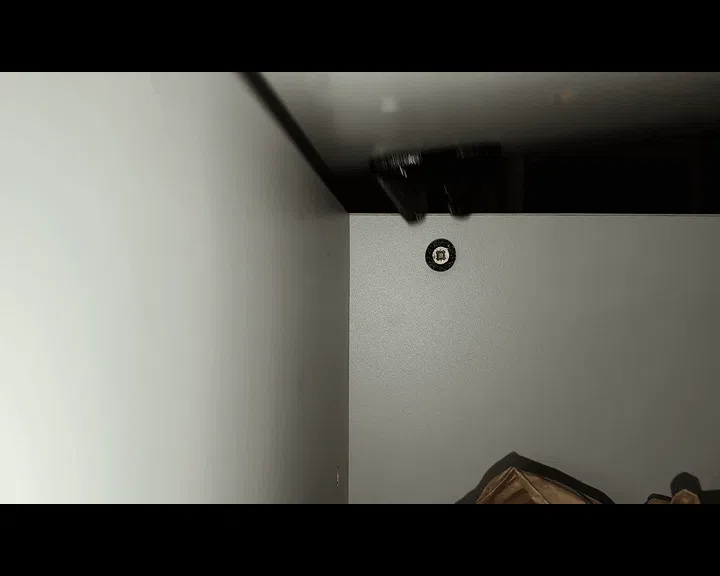

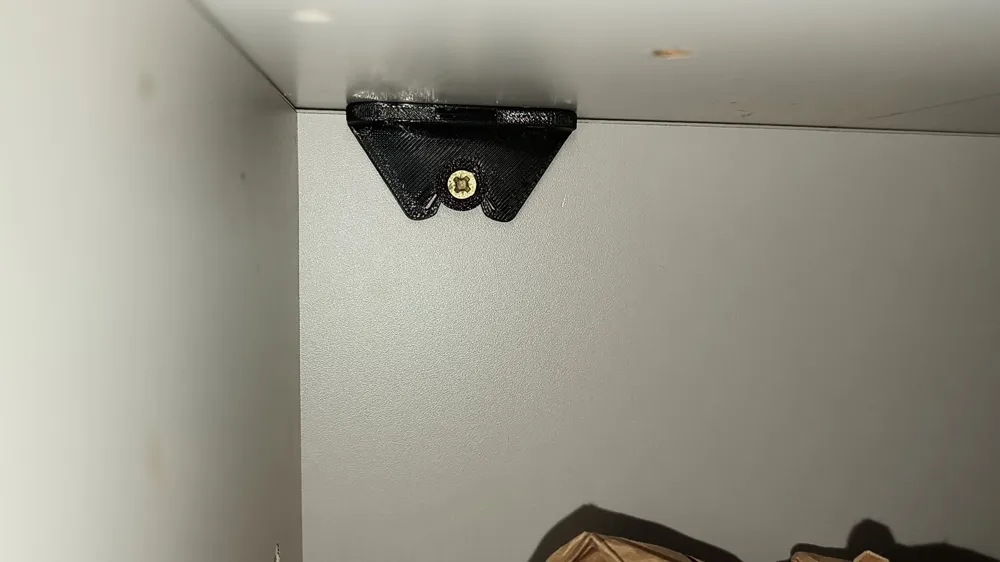

   4. apply screw to side of cabinet,niche

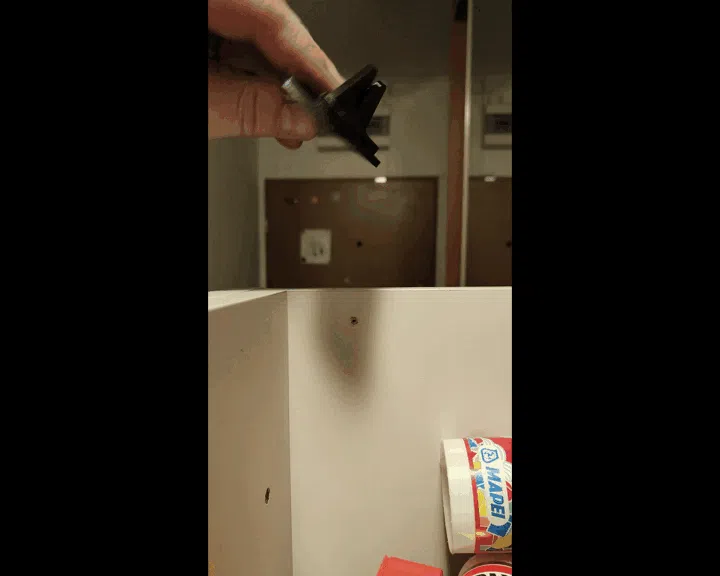

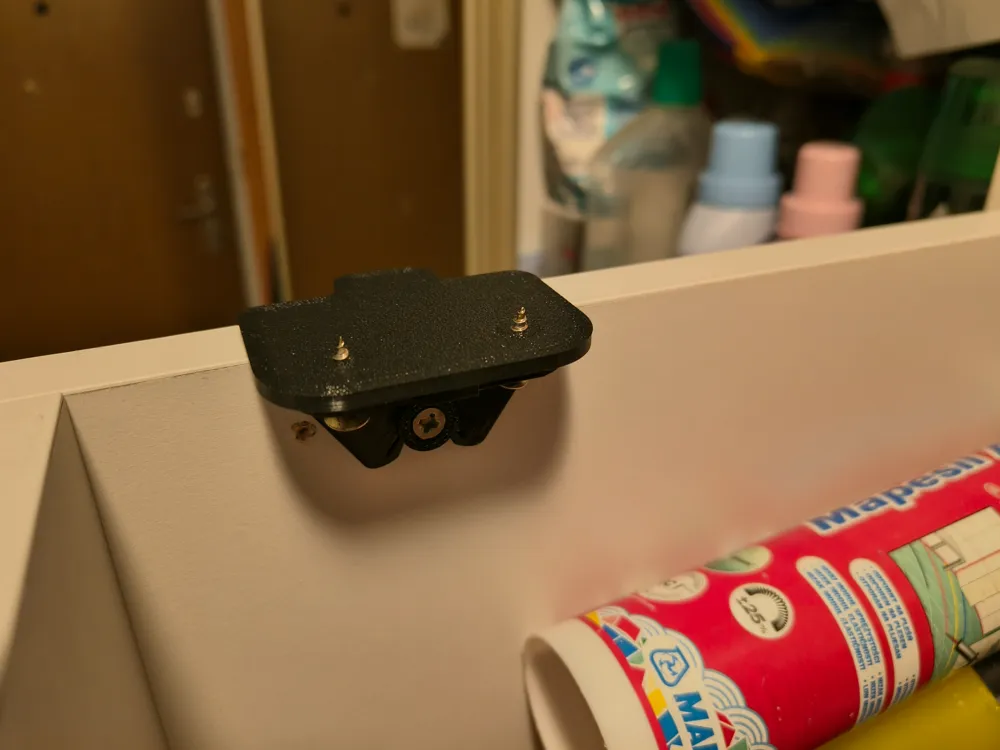

   5. Apply the panel to its position and strike it vigorously ( the sharp ends of the screws will make a mark on the panel)





   6. pull the latch separating it from the round button





   7. unscrew the bolts used as a point, separate the latch from the mounting element and attach the latch to the panel





   8. put the panel into place





   9. READY,   use as many latches as necessary depending on the size of the item to be fixed

check also my other project

https://makerworld.com/en/@Abes
