iFlight Chimera 7 / Chimera 7 Pro side panels
Print Profile(1)
Description

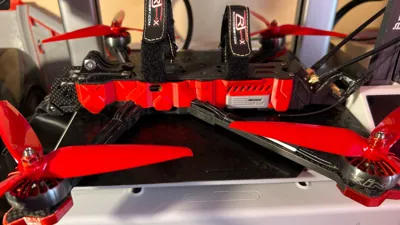

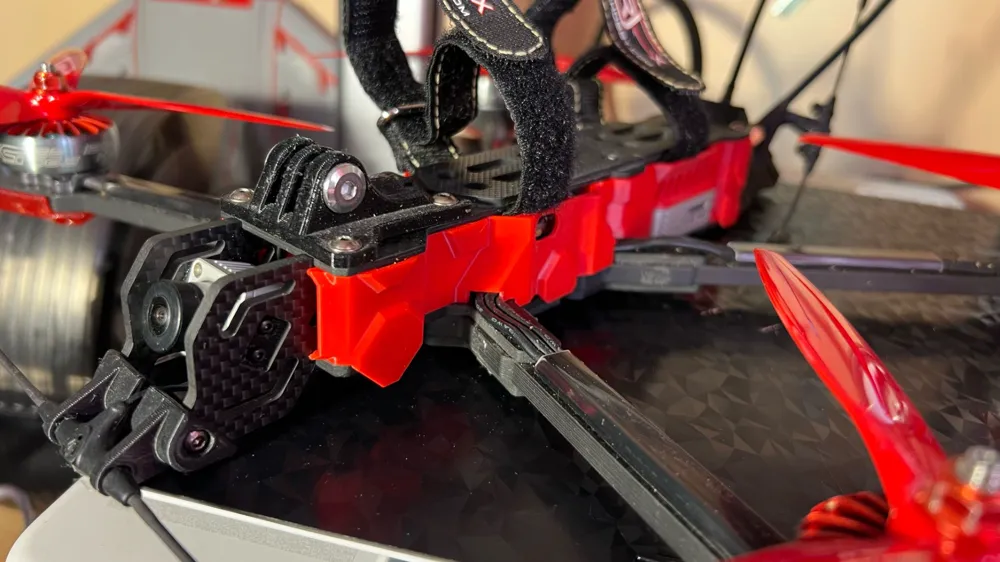

Created these side panels for the iFlight Chimera 7/Chimera 7 Pro, starting from the original STL files from iFlight but ultimately redrawing them from scratch. These panels accommodate the original DJI FPV Air Unit, a TBS Crossfire Diversity Nano Receiver, and provide access to the USB-C port for the iFlight SucceX-D F7 flight controller. They feature air intakes at the front and ventilation holes above the air unit for improved cooling.
To secure the air unit, simply use thin double-sided tape to attach it to the bottom plate. The side panels will protect it and keep it in place.

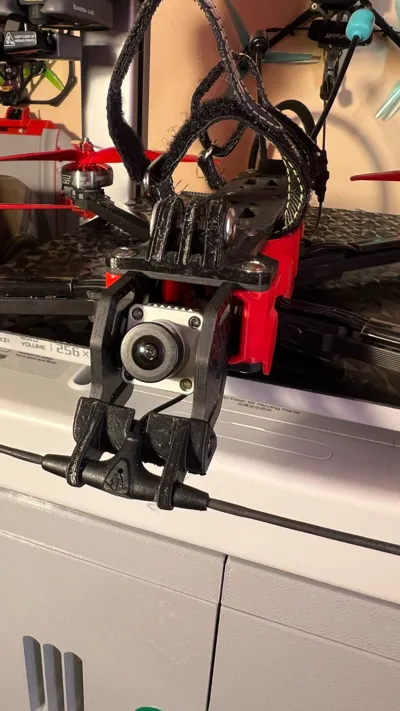

These side panels work perfectly with this AIO mount for Iflight Chimera 7 / Chimera 7 Pro I posted.
Feedback is always welcome! If you need modifications, drop me a message, and I’ll do my best to help.
Don't forget to like and follow! 😉
This remix is based on
