AMS Lite Numbers
Print Profile(15)
Description

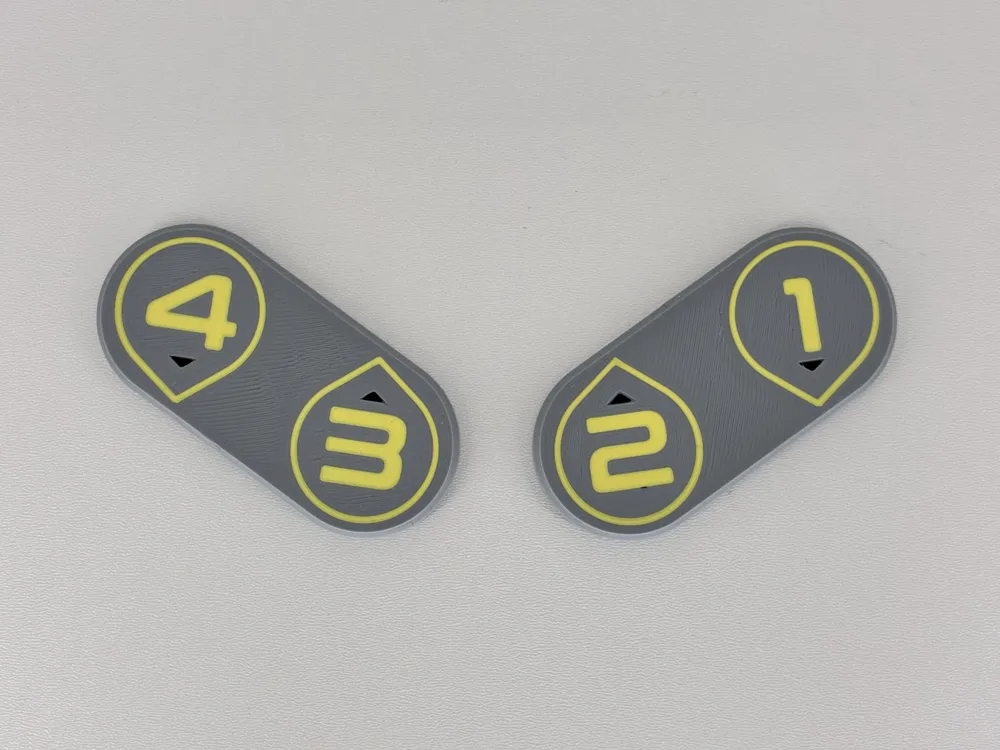

My AMS overlay design with slot numbers.
I used gray and white to make the numbers as visible as possible, but you can of course use any color combination.
I designed a version for users who mount their AMS lite on top of an A1 printer (AMS lite Top Mount for A1). link in the image.
See other projects I have done for AMS Lite:
Boost Me (for free)
Hey! If you like my 3D models, I’d really appreciate it if you hit Boost! 🚀
It’s a big motivation for me to keep creating and sharing new projects with the community.
Every Boost shows it’s worth it – thank you! 🙏
Update !

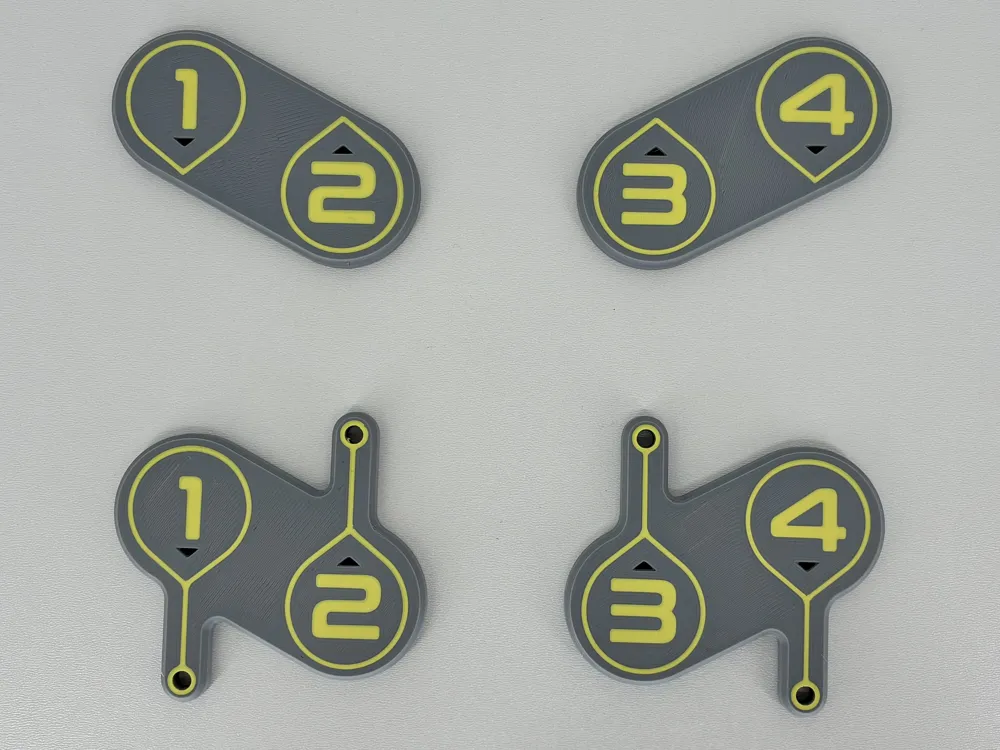

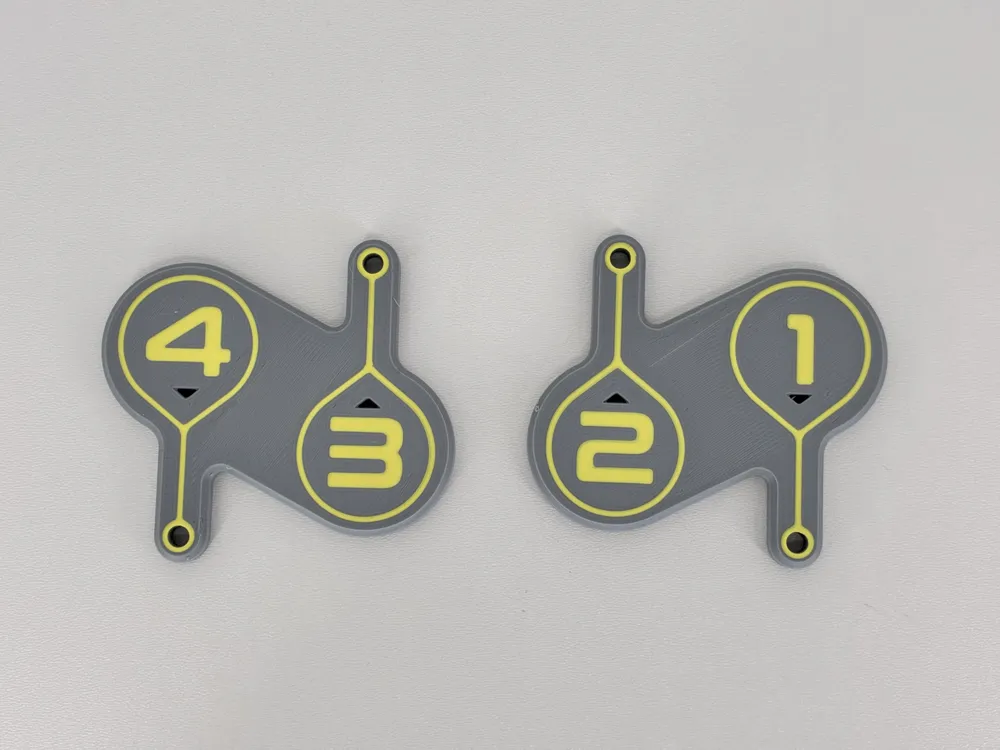

I noticed that some users wanted to protect their Bowden tubes from the excessive wear and tear of tugging, and I thought it might make sense, so I added Bowden tube holders to my earlier design.
The standard version and the version with Bowden tube protection have upside-down versions for people who mount the AMS on the wall or on dedicated stands.
Check the flow ratio before printing. My print has a few flaws, but they are visible only in photos, normally they are almost invisible.
Updated May 9, 2024
- I replaced the source files from stl to step, which makes the model walls smoother.
- Due to the information from the comments that the model is too tight in some cases, I increased the length by 0.5 mm, which should solve the problem. (the width is the same so I shouldn't be too loose)
- Attention! Models with increased length are only in my print profiles!
