Solder Wire Stand, print in place

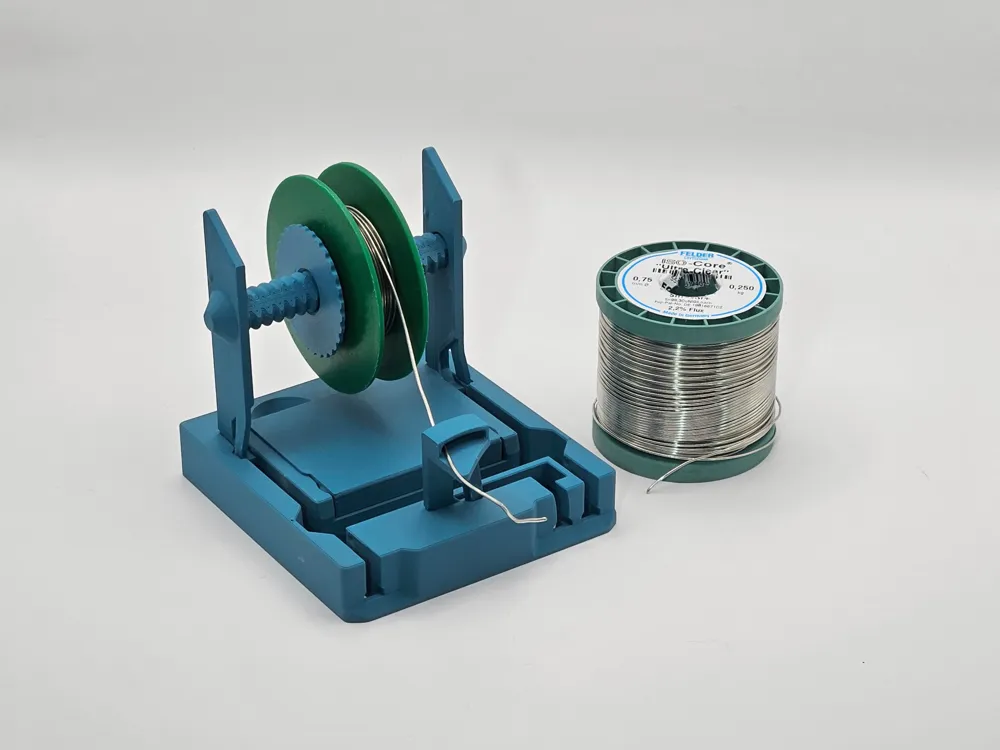

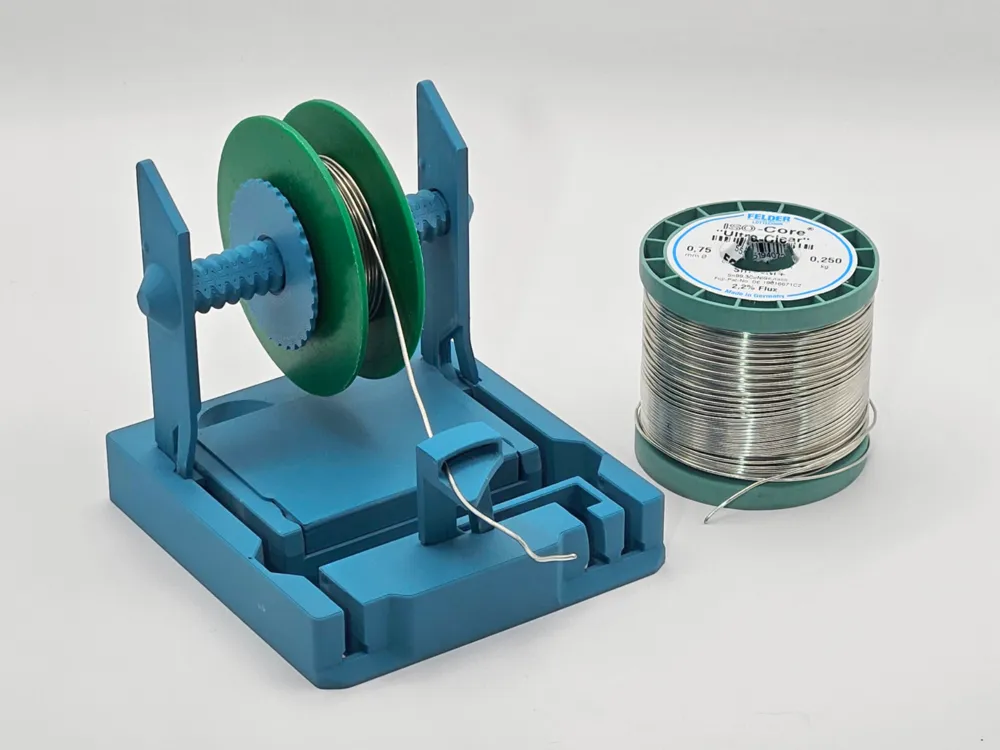

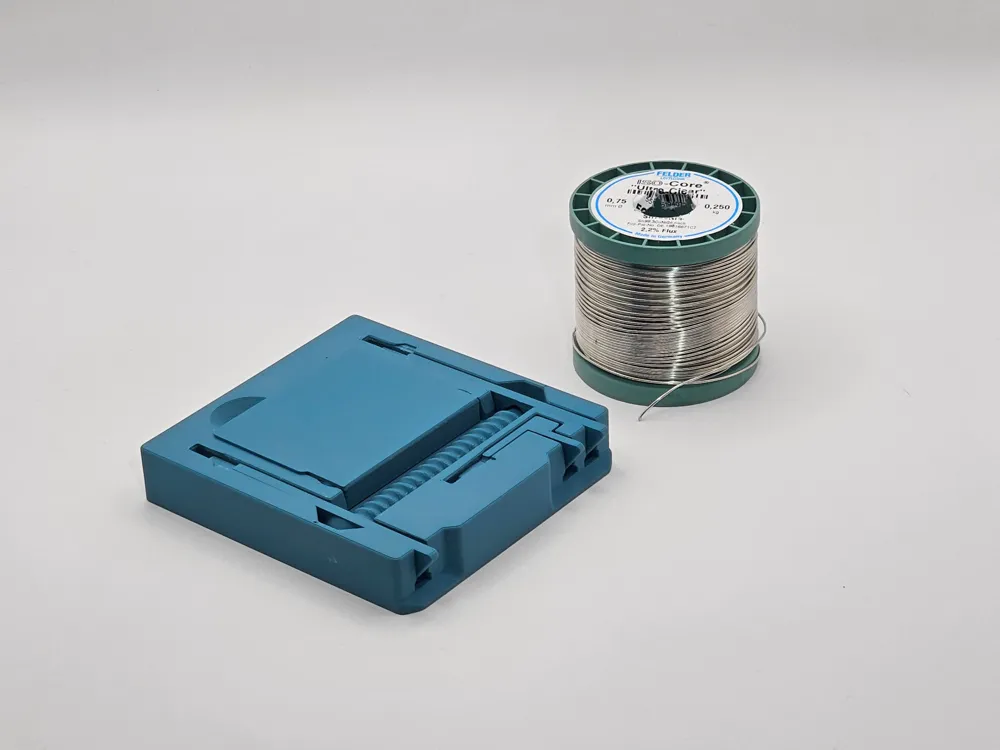

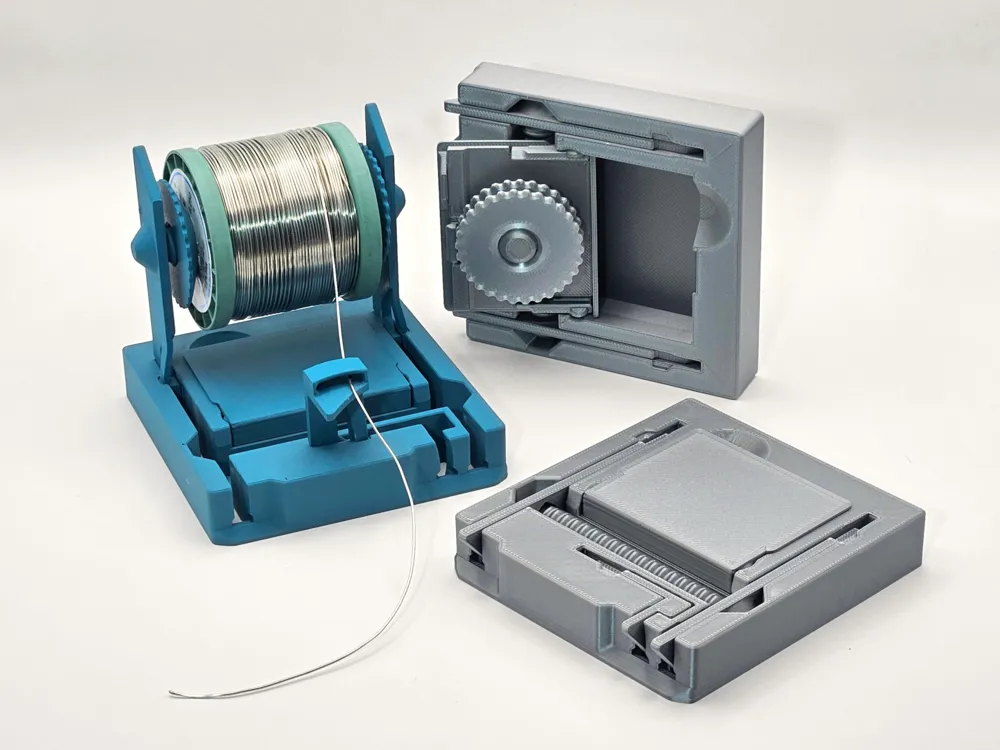

This is my very compact solder wire stand. It is foldable and the moving parts are "print in place".

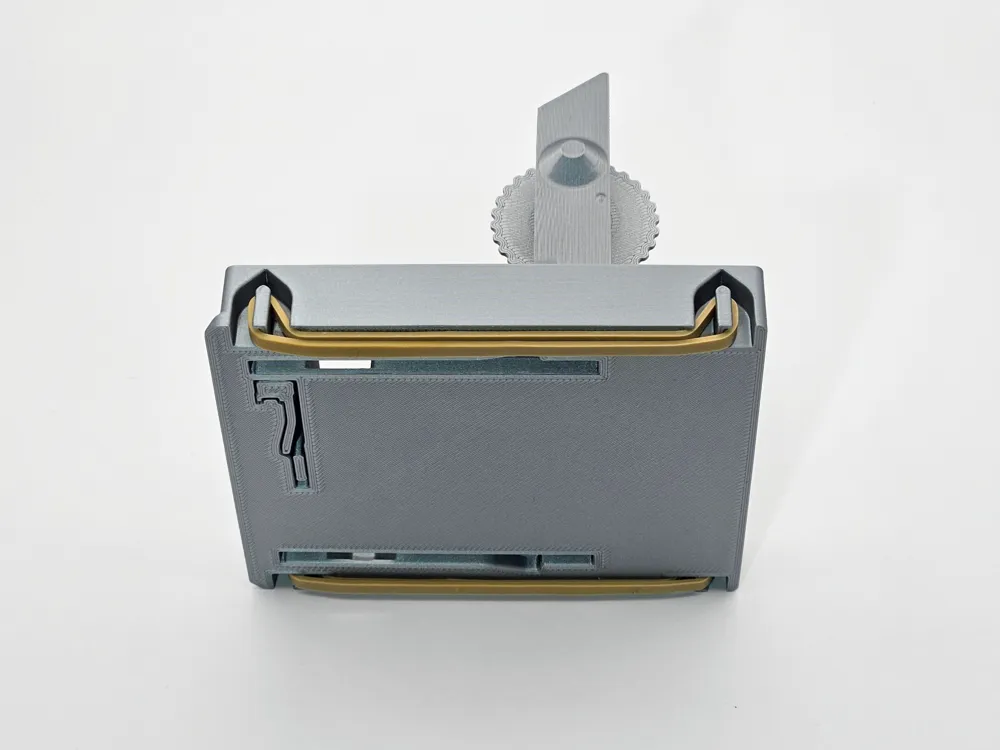

There are two versions available: a slightly smaller one, and another with the option to attach two rubber bands as feet. I highly recommend choosing the version with the rubber bands, as it prevents the stand from slipping on the table.

This solder wire stand is the perfect addition to my "soldering multi holder".

Spools with a width of up to 51mm / 65mm, a diameter up to 75mm and a hole diameter between 12 and 36mm are suitable.

I think most spools up to 250g should fit. If your spool doesn't fit, contact me. I'm happy to receive feedback as I don't have many spools to test.

Update 18.03.2025:

I uploaded a version/profile for a spool width up to 65mm.

Update 27.12.2025:

I uploaded a version/profile for a spool width up to 80mm.

If you print on a Bambu Printer, use the bed leveling and the flow dynamic calibration at the beginning of the print. Make sure you have good bed adhesion. Make sure the filament is dry, especially when using PETG!

To ensure that printing works without problems, I created a test model. For non-Bambu filaments, I recommend printing the test file first: “print in place Test”

I have tested the print profile extensively and got very good results with Bambu PLA Basic, Bambu PETG-HF, Bambu PETG Translucent and good result but a little stiffer on the moving parts with Bambu Silk+ . I do not recommend the normal Silk filament and using matte filaments.

My print profile works with all filament types! Just switch to your desired filament in Bambu Studio or Bambu mobile app.

Give me your feedback! If there are problems, i'm happy to help. If you have any suggestions for improvements, let me know.
