Description

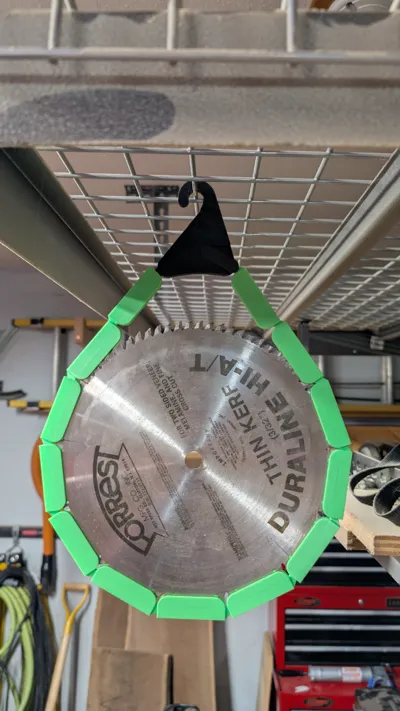

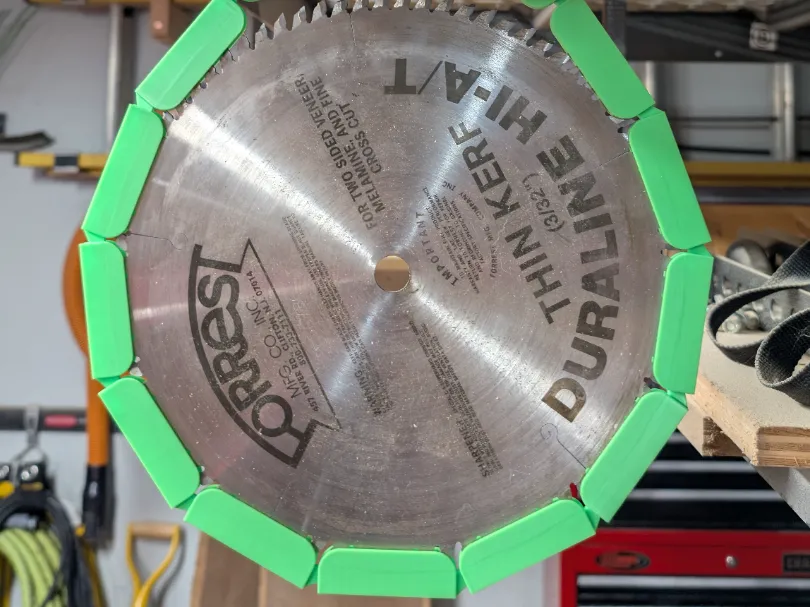

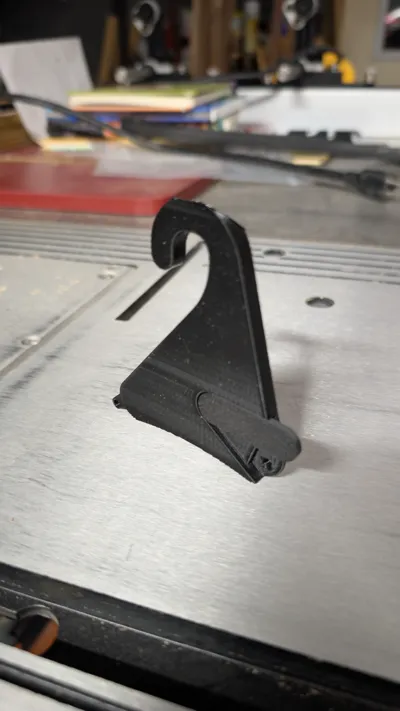

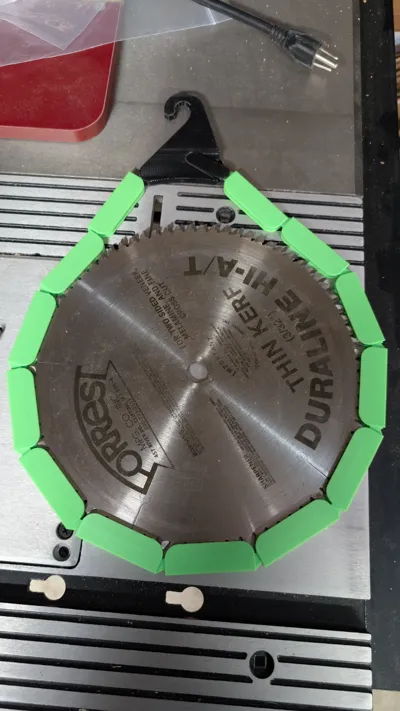

Was looking for a way to store my saw blades by hanging them up and found inspiration online so I went to work creating my own. The included files are setup for storing 10" saw blades (13 segments) but you can print more of the segments to allow for larger blades. I've also included segments for thin kerf and full kerf. The small pieces just snap together and the hook has a small latch the covers up a peg. You will need to glue the latch together after printing but go light on the glue. Too much and it will ooze out and then you won't be able to pivot it. PETG for the latch for better layer adhesion of the peg and regular PLA for the segments. Blades aren't that heavy. The included .3mf has the right settings for the hook. PETG needs to cool down on its own for overhangs or else it warps and that messes with the tolerances for snapping everything together. I printed this on a P1S so no guarantees for other printers.
