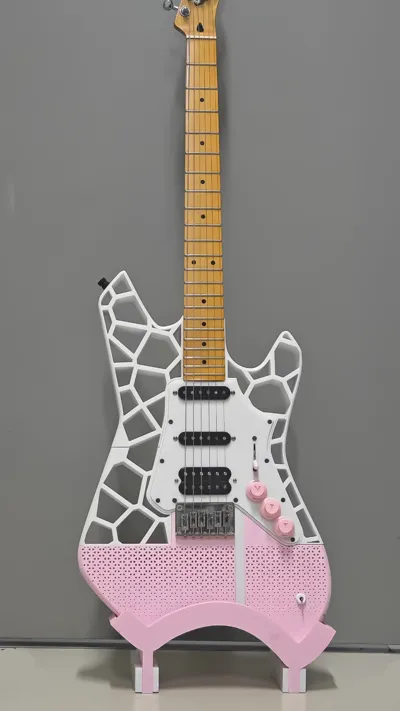

《Fishcaster-Lite》 - Built-in Speaker - Playable Electric Guitar

This is an electric guitar with a built-in speaker, playable without plugging in, of course, you can also connect an external amplifier.

• This guitar is modified based on traditional electric guitar blueprints, after tuning, each fret can achieve its corresponding standard pitch.
• Because the external amplifier and internal speaker sounding simultaneously can cause interference, noise, and feedback, I installed a toggle switch in this guitar to control the sound output channel.
• This guitar is designed according to traditional electric guitar scale, after assembly, the guitar requires self-tuning, intonation, and other adjustments, tutorials for these can be found online. If many people have questions, I can write additional materials to teach everyone how to adjust.
• Detailed accessories that need to be purchased separately and assembly tutorials have been compiled into a PDF.
• I used to play acoustic guitar, this is my first electric guitar, let's listen to its sound:

——————————————————————————————————————————————————————

2025.9.21-Update

Updates are as follows:

1.Resolved the potential issue of high string action. The modified model is the neck joint part (as shown in Figure 1)

!!!ATTENTION!!! If you printed this model before September 21, 2025, you can print the “Neck Pad” model from the last plate (as shown in Figure 2) to improve this issue. If you have not started making it yet and are reading this, then you do not need to print this shim.

Figure 1

Figure 2

2.Manual support surfaces have been added to some models to increase print success rate

Thank you again for your love for this model! I also apologize that this generation was not perfect in some details! The next guitar will avoid all issues you have raised! Thank you everyone!!

——————————————————————————————————————————————————————

2025.4.30-Update

Updates based on feedback are as follows:

1.A small part that was previously overlooked and missing has been added to the shopping list — a 3.5mm audio jack

2.Added a purchase reminder for guitar tuners, Note: Tell the seller you need same-side tuners! If you are unsure which side, you can screenshot the headstock and show it to the seller.

——————————————————————————————————————————————————————

2025.3.5-Update

Based on feedback, the original print profile had missing parts and assembly issues. The print profile has now been replaced. The specific problematic parts according to inspection are as follows:

Modified part 1                                                                    Missing part 2

————————————————————————————————————————————————

2025.2.28-Update

As requested by fans, the PDF file has been updated with purchase links for relevant accessories I used when making this guitar

Please note!! This model has never engaged in commercial activities with any of the merchants in the PDF file! The purchase links listed in the file are for reference only!!

————————————————————————————————————————————————

2025.08.11 Update

I forgot to give this guitar a proper name, today, I officially named this guitar — Fishcaster-Lite

Why Lite That's a secret for now haha
