Improved replacement corners for sliding cabinet
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
1
0
0
0
0
0
Released
Description

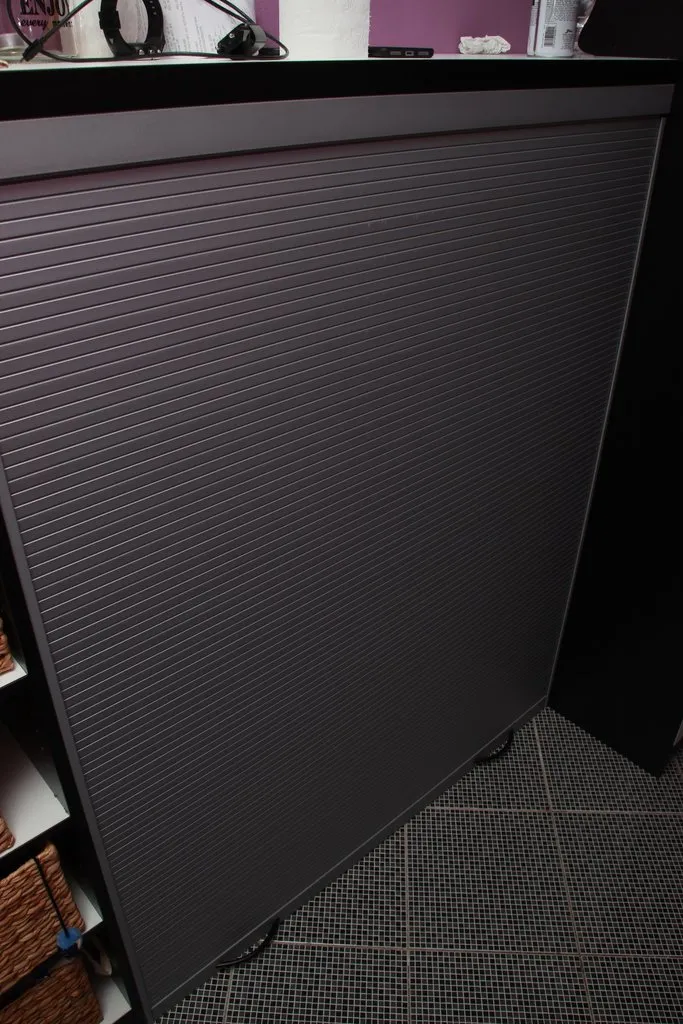

The sliding cabinet is a quite big and it was very hard to slide the doors. The biggest friction was in corners, which has to hold the whole weight of the doors.

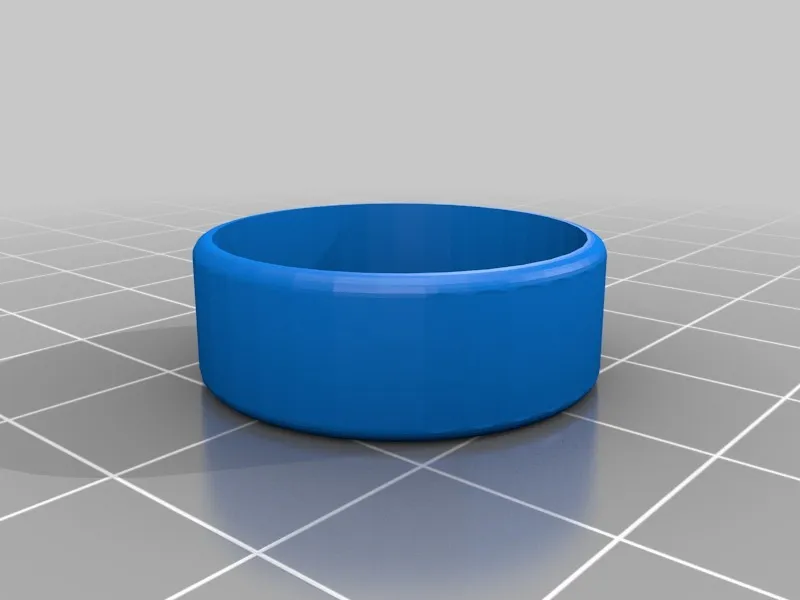

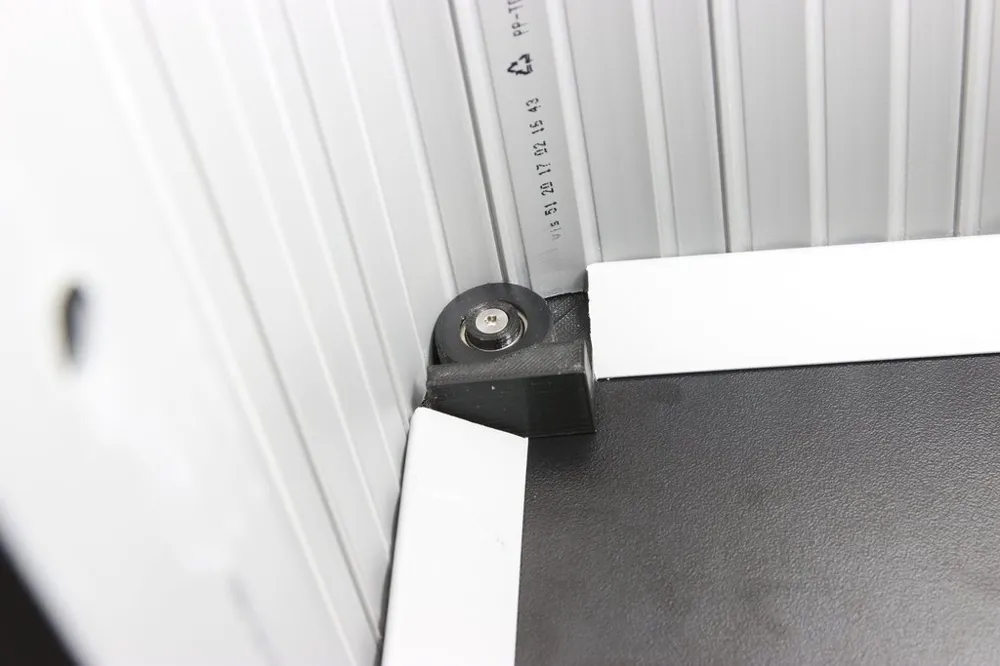

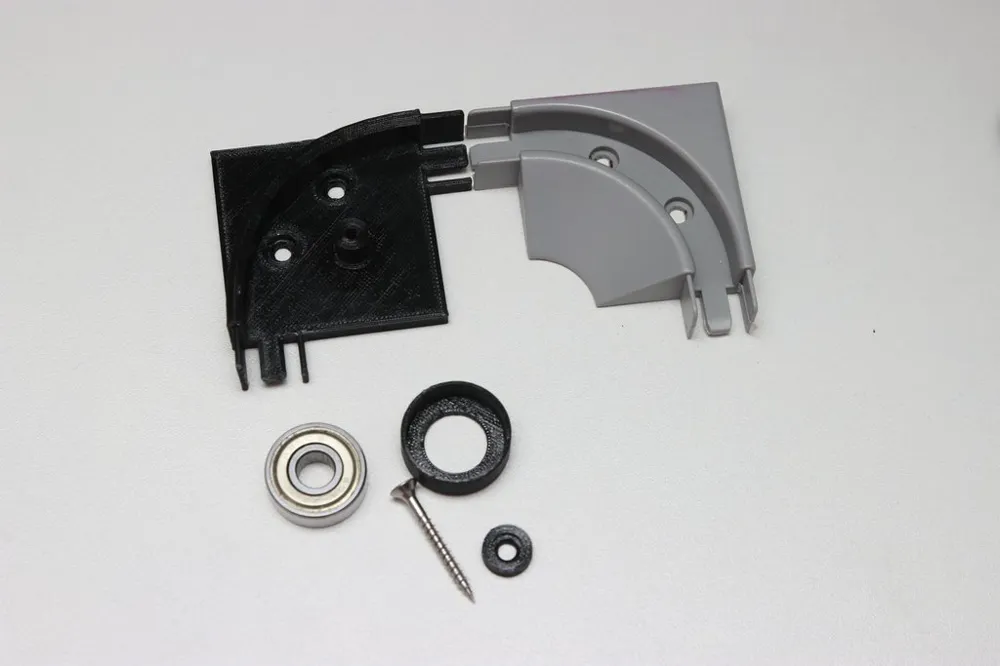

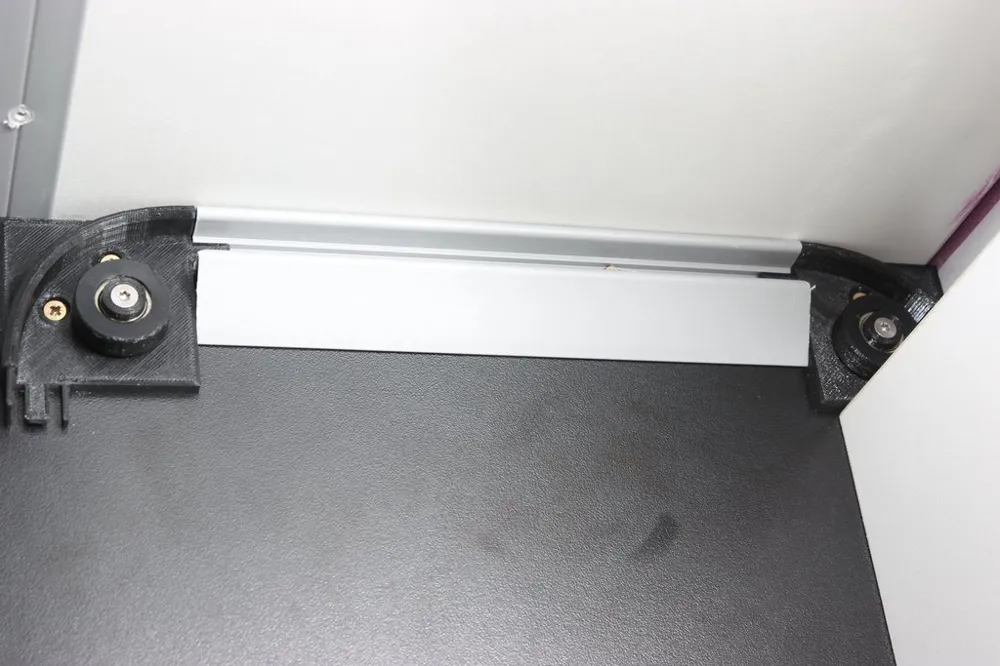

I also designed better "wheeled" corners. Now the sliding is much more acceptable.
Brand of sliding doors is KOOPLAST, but maybe this solution can be used for other manufacturers.
Updates
9.2.2018

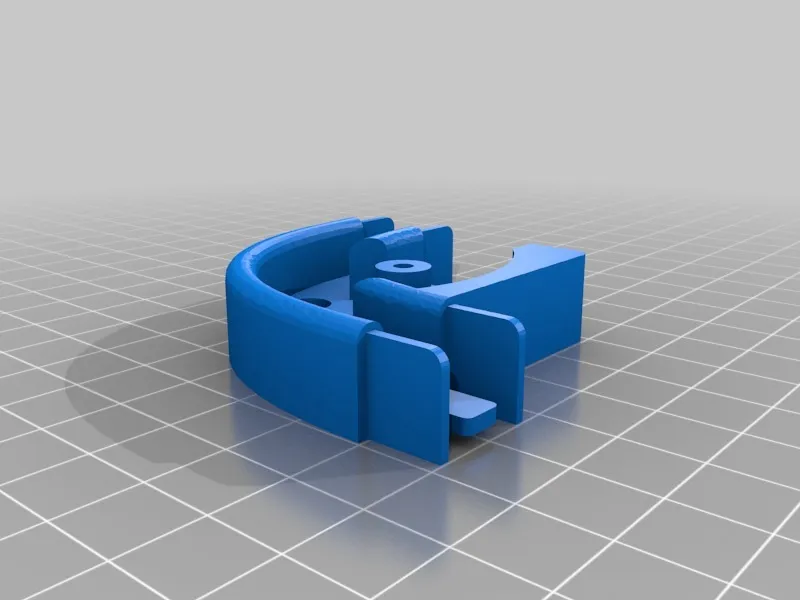

- New version of the corner with better sliding (plese mirror it for the left side).
- Photos are taken with previous versions.
