Modular Door Hook System
Print Profile(1)
Bill of Materials
Description

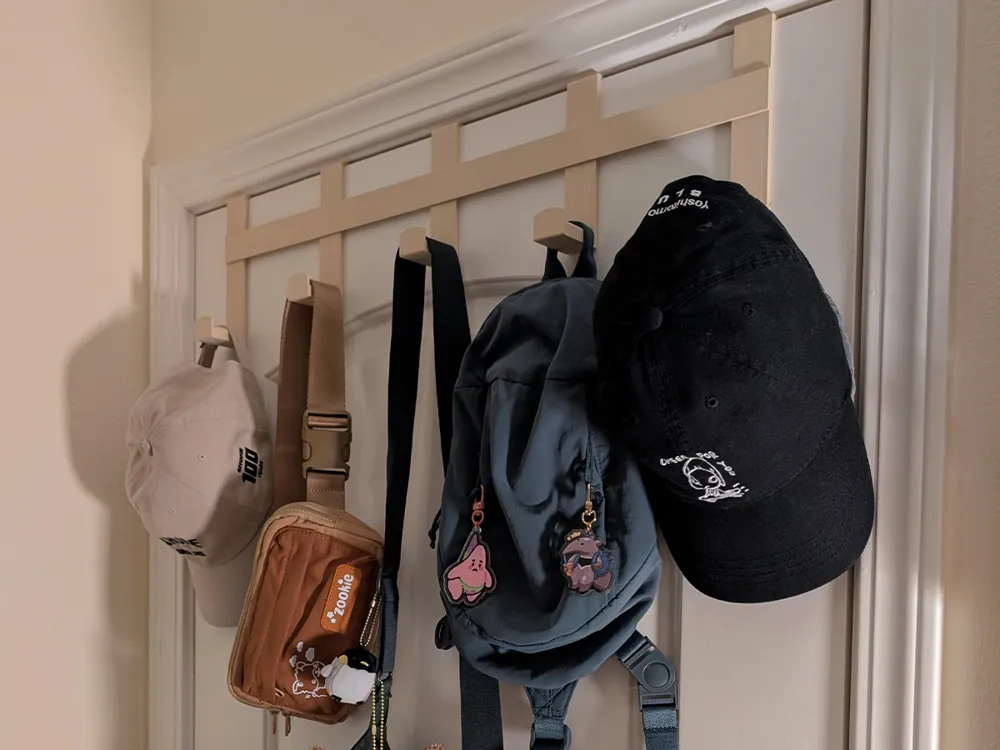

This is a modular door hook system designed to be clean, minimalist, and strong enough to hold up most things without bending!

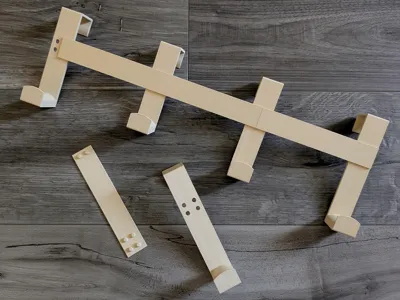

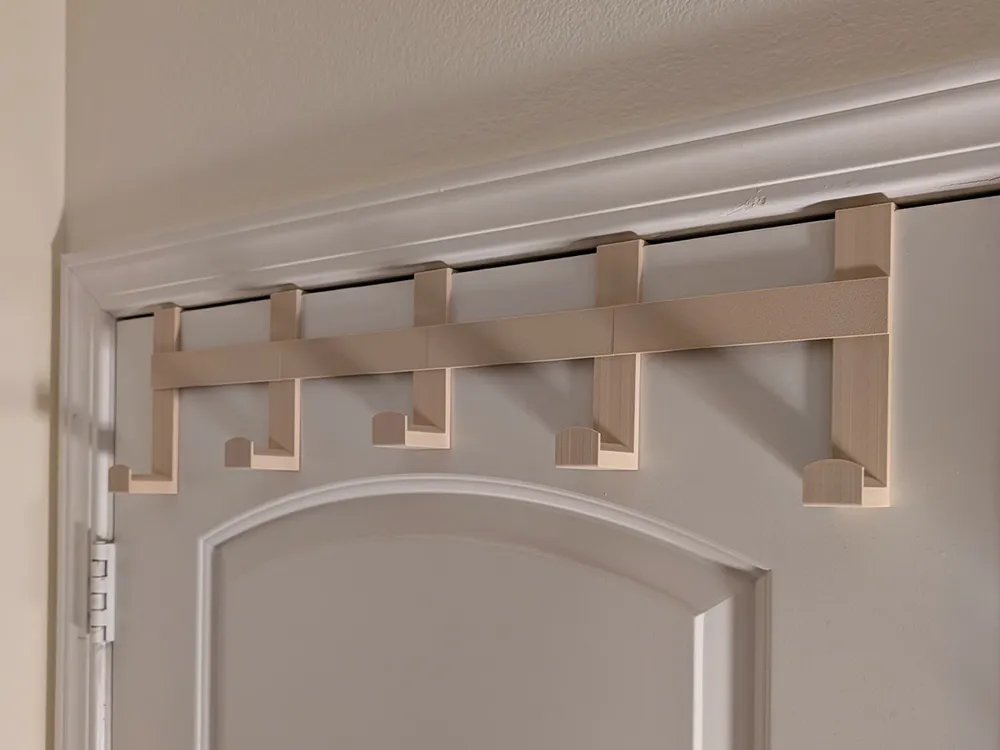

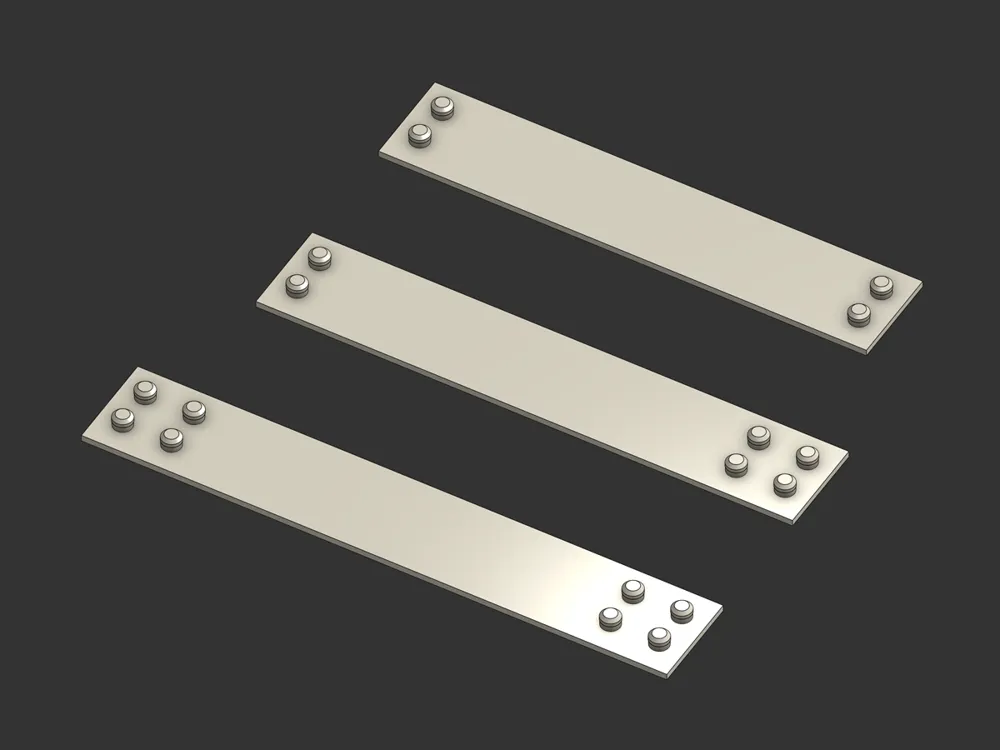

There are three lengths of door hooks: 125mm, 140mm, and 160mm. The doorhooks can be connected together with a series of connector bars, which space the door hooks apart by 120mm. Each door hook is designed to fit a standard 36mm thick door. I've also included versions of the door hooks without pinholes.
I printed this with Bambu Wood PLA using the 0.16mm Optimal profile w/ supports. The pins may be a slightly tight fit in order to make sure the door hook system is solid, so just give it a little extra push to get it in there :)
Boost Me (for free)
If my design was useful to you, I would very much appreciate your boost! .STEP files are provided on all of my posts :)
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
