Hello Jukebox friends!

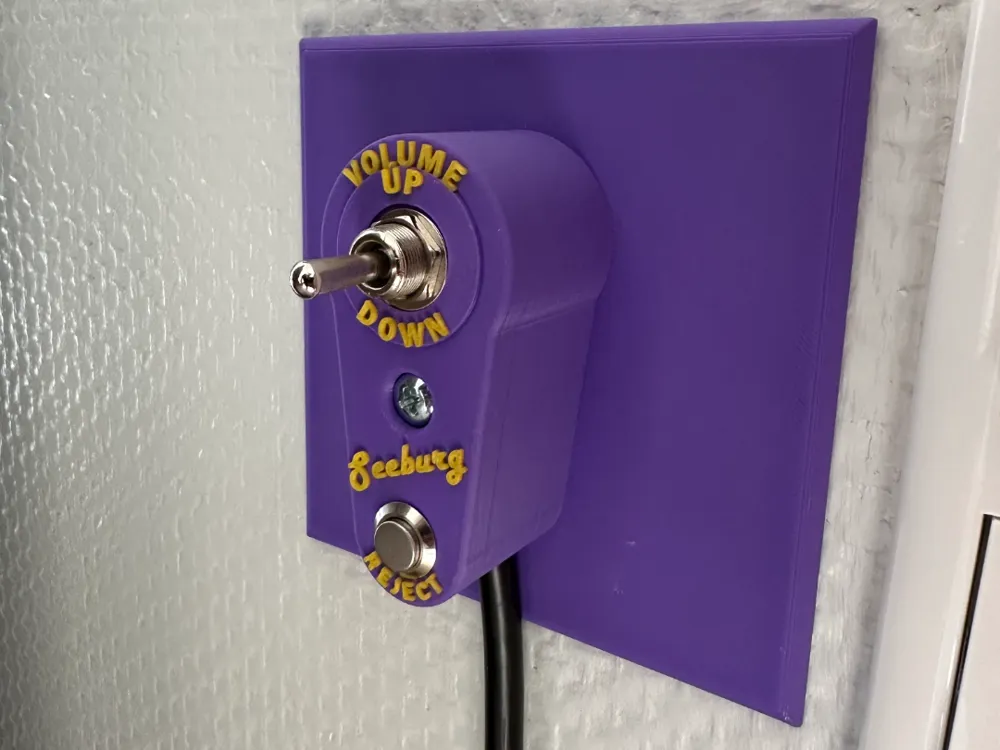

This is a replica of a volume control unit for Seeburg jukeboxes.

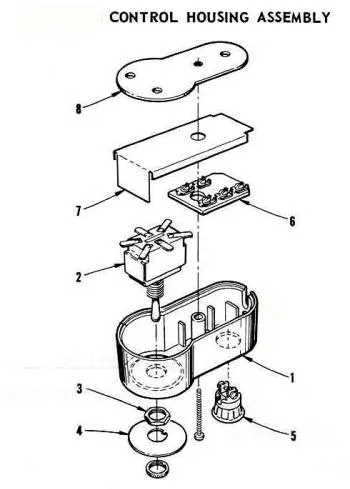

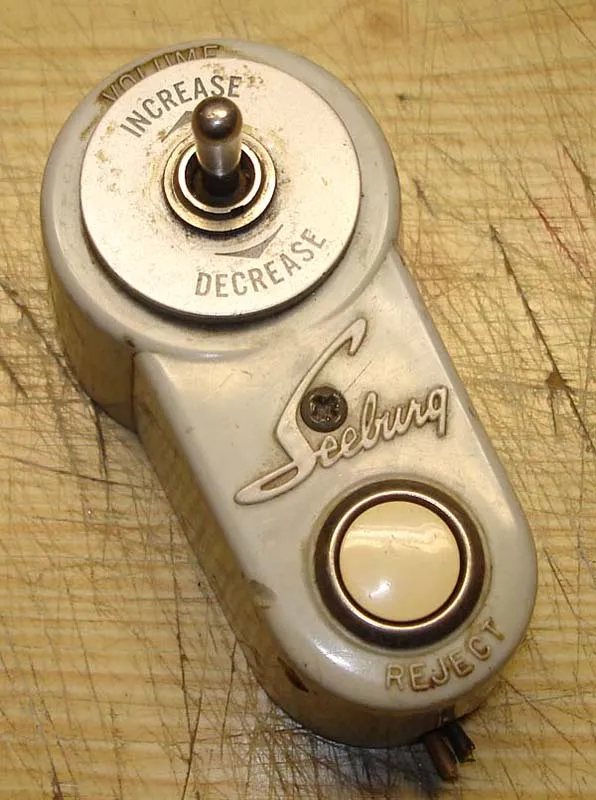

Please note that this is not a replacement housing for the original hardware. Since I only had pictures from the internet, I simply recreated it based on the original and equipped it with modern hardware.

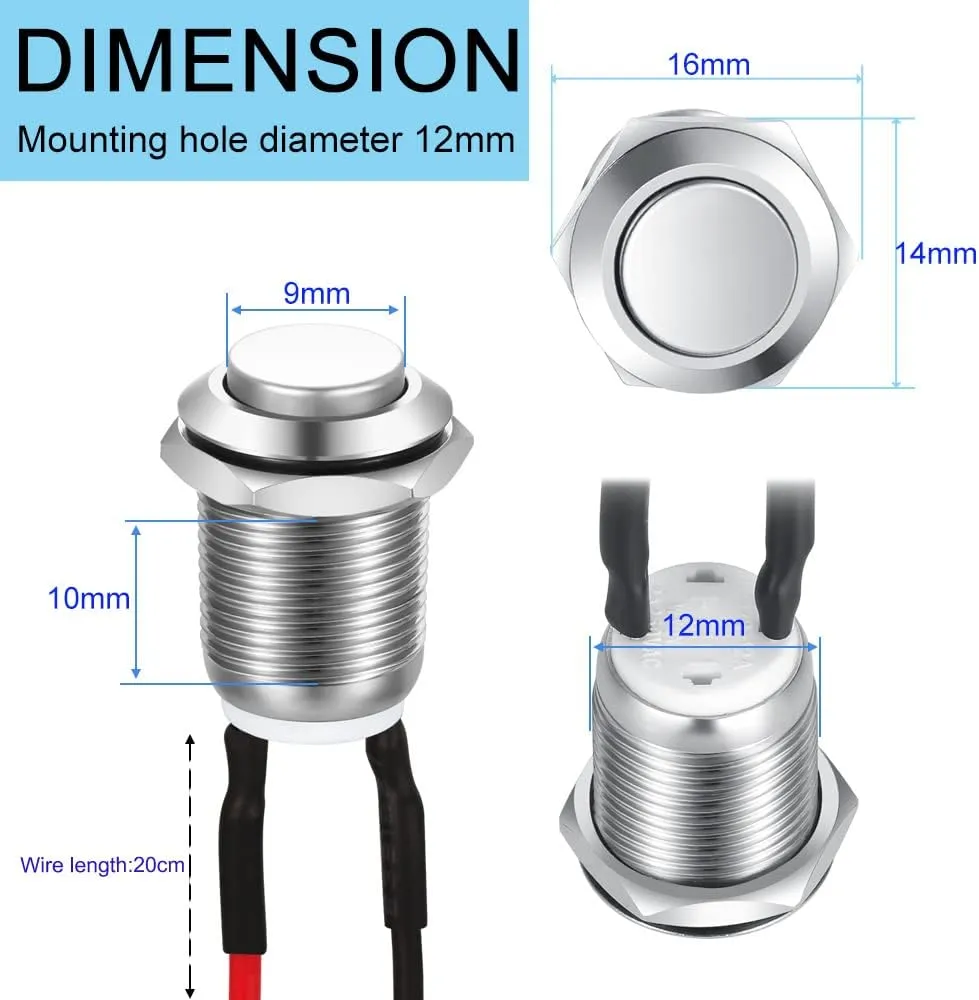

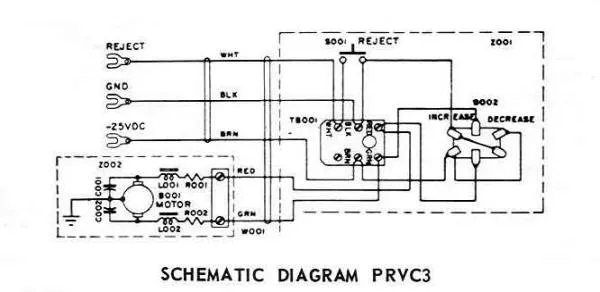

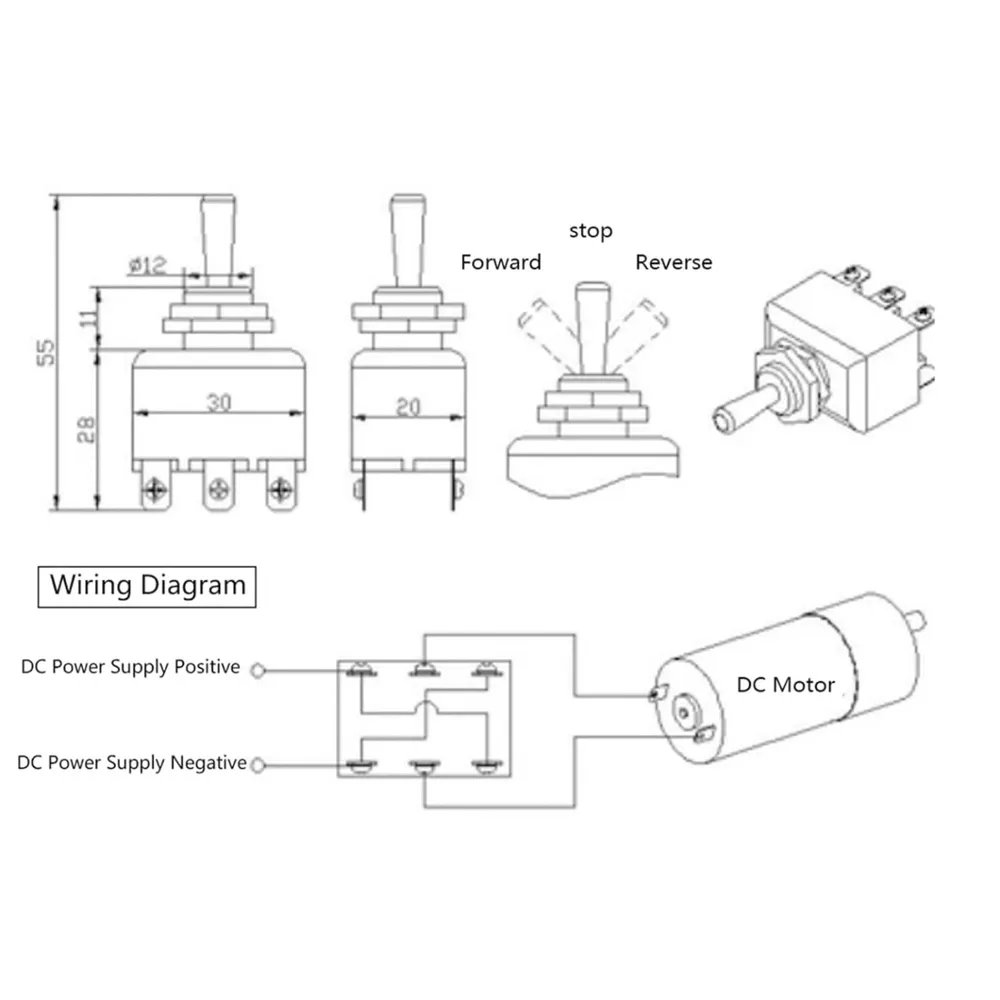

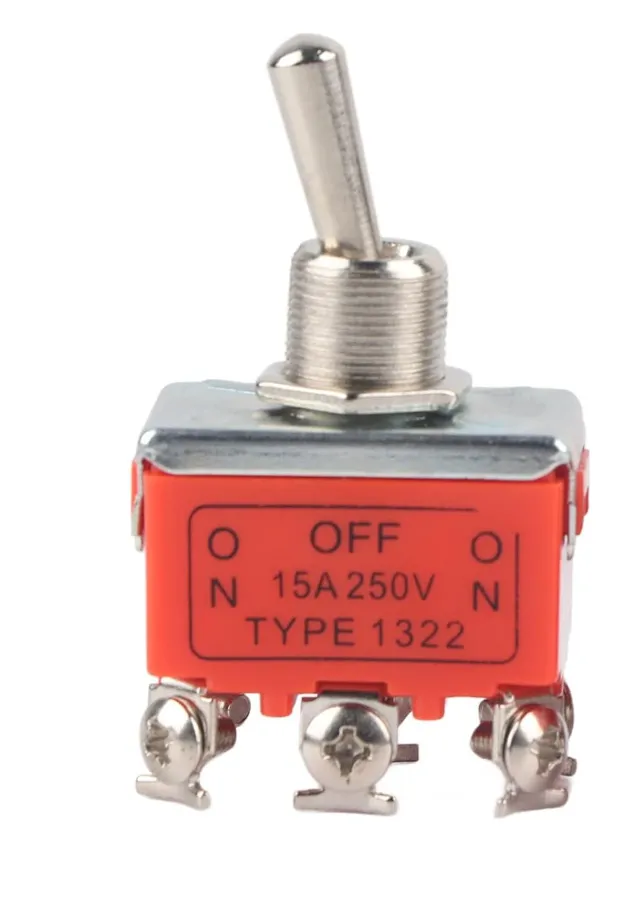

All you need is a motor switch and a push button (see pictures) and a 5-wire cable plus cable plugs. I have also included the wiring instructions from back then. Also a melting thread.

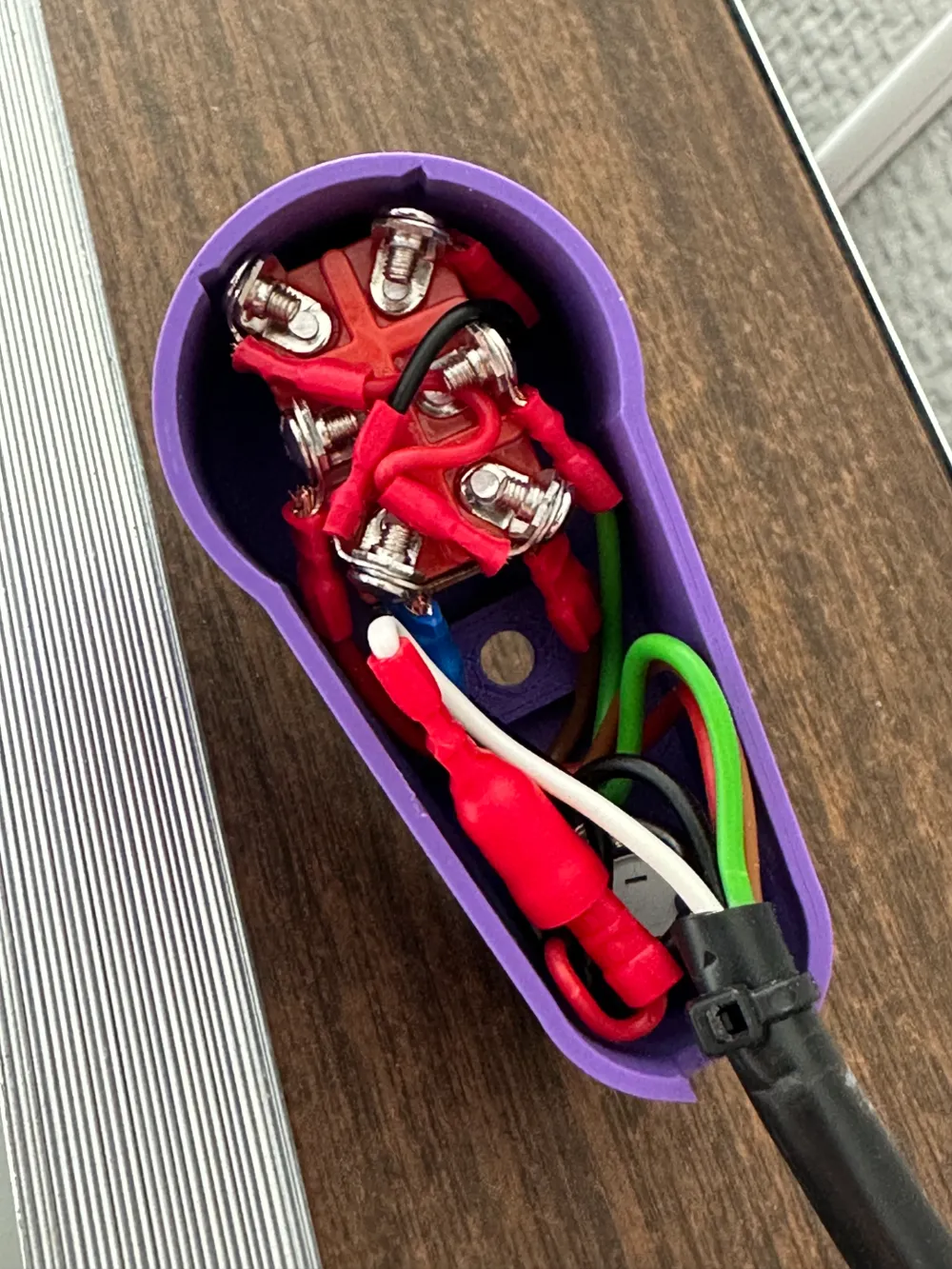

The cable can be secured using a cable tie.
I have uploaded two types of back panel, one with a larger support surface and a smaller one. Both can be screwed to the wall.

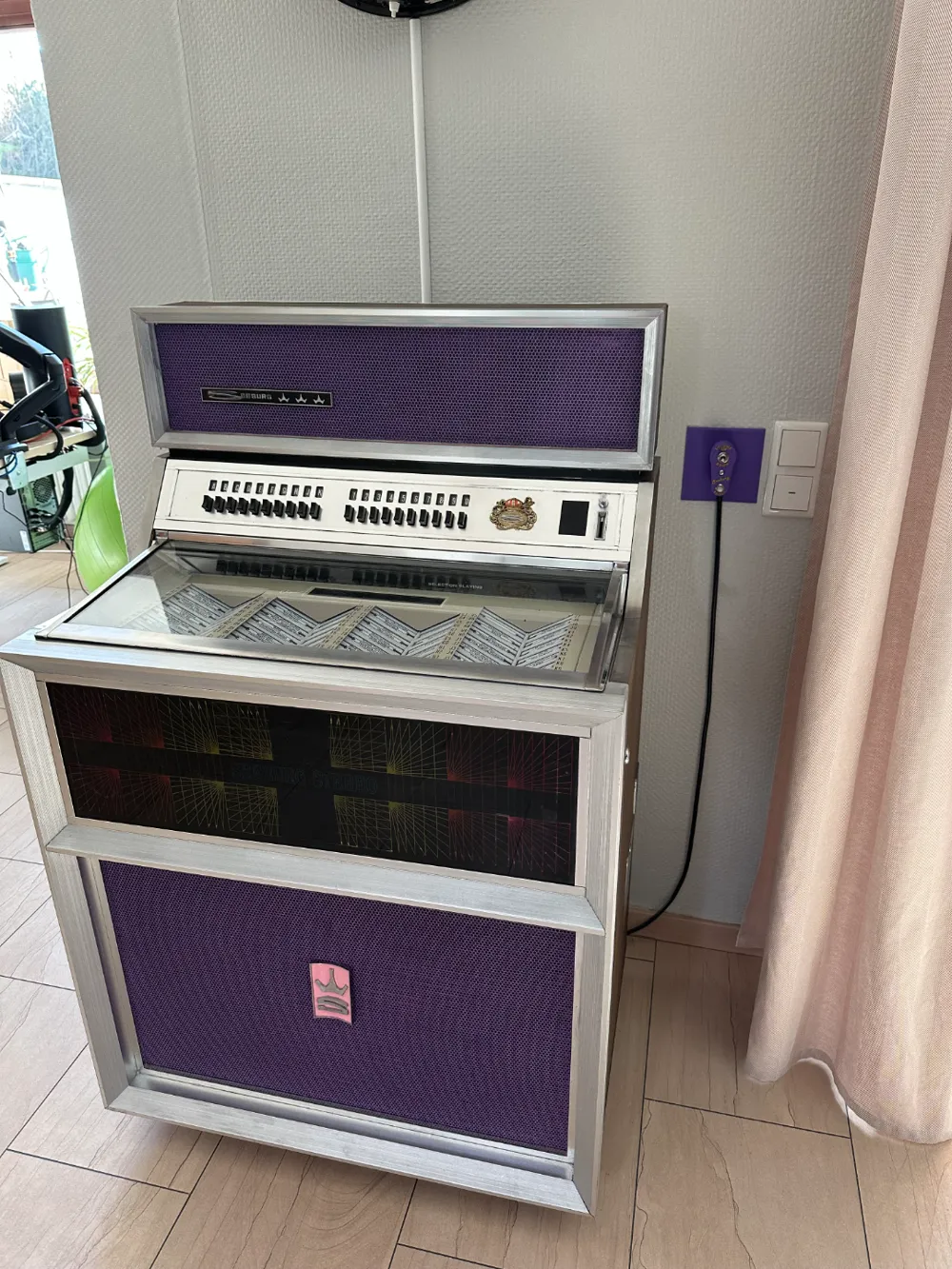

Have fun with the product! I really enjoy my jukebox with it!
