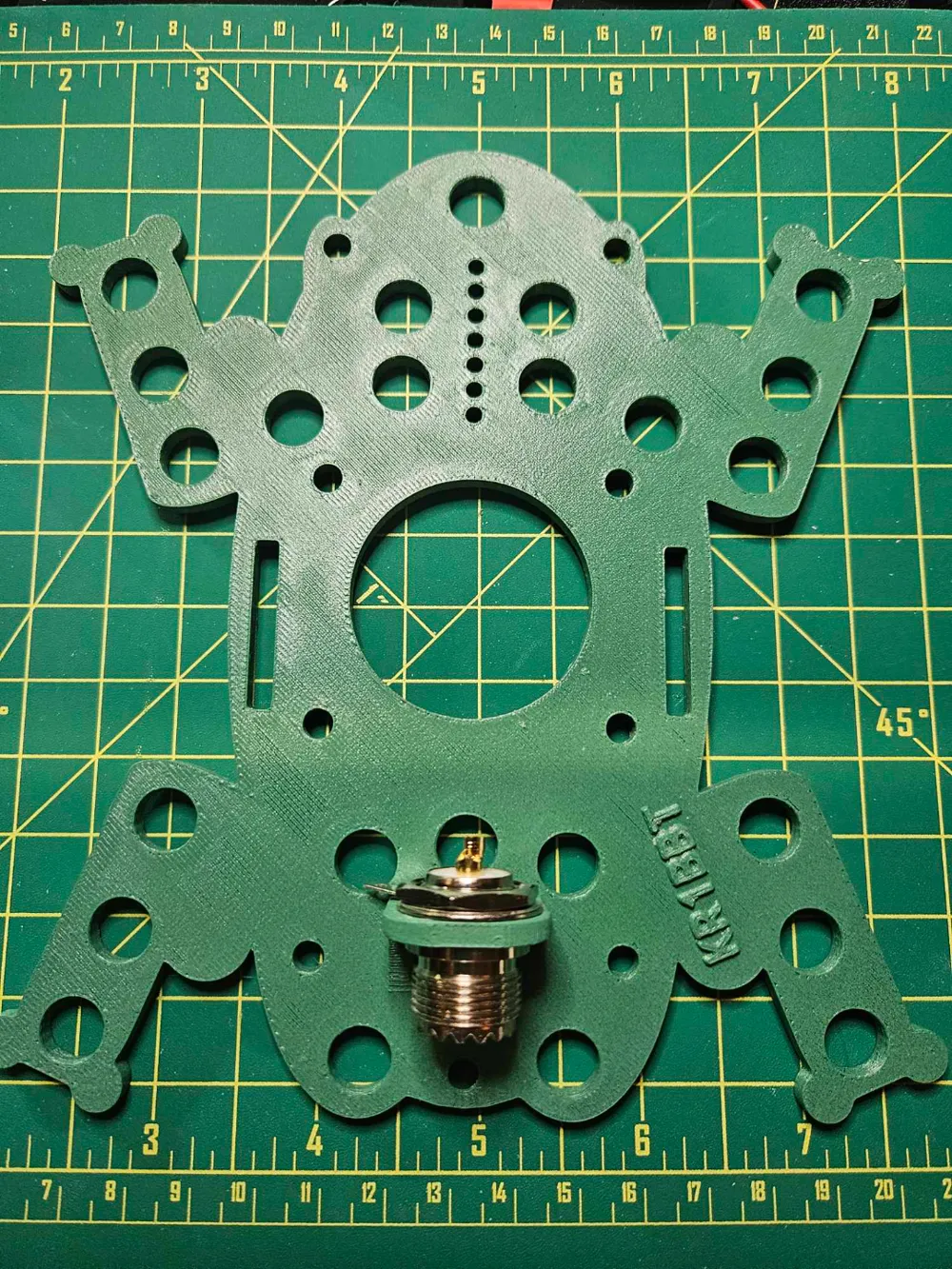

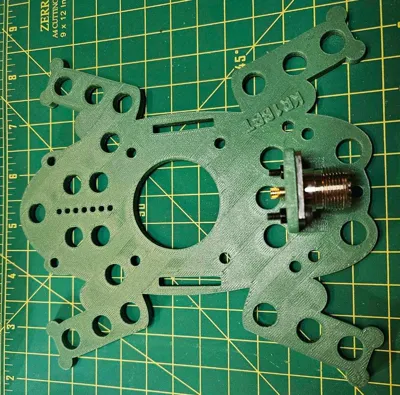

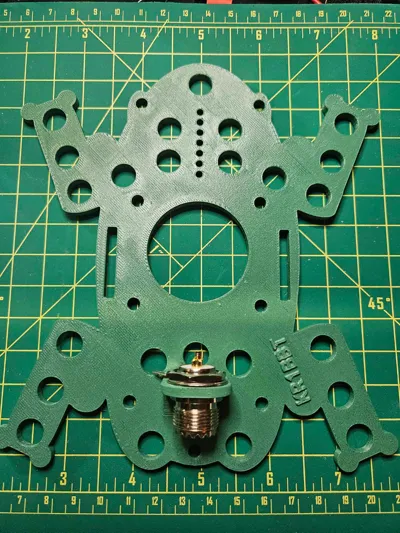

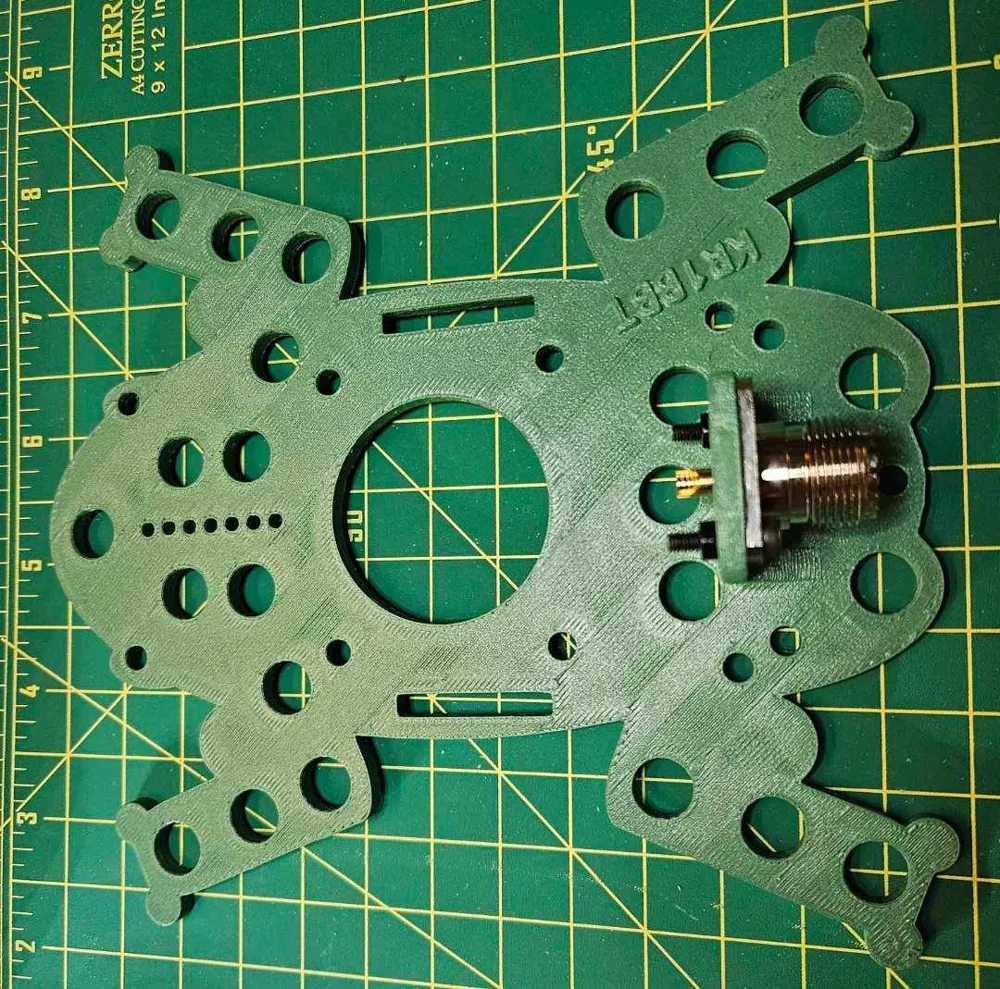

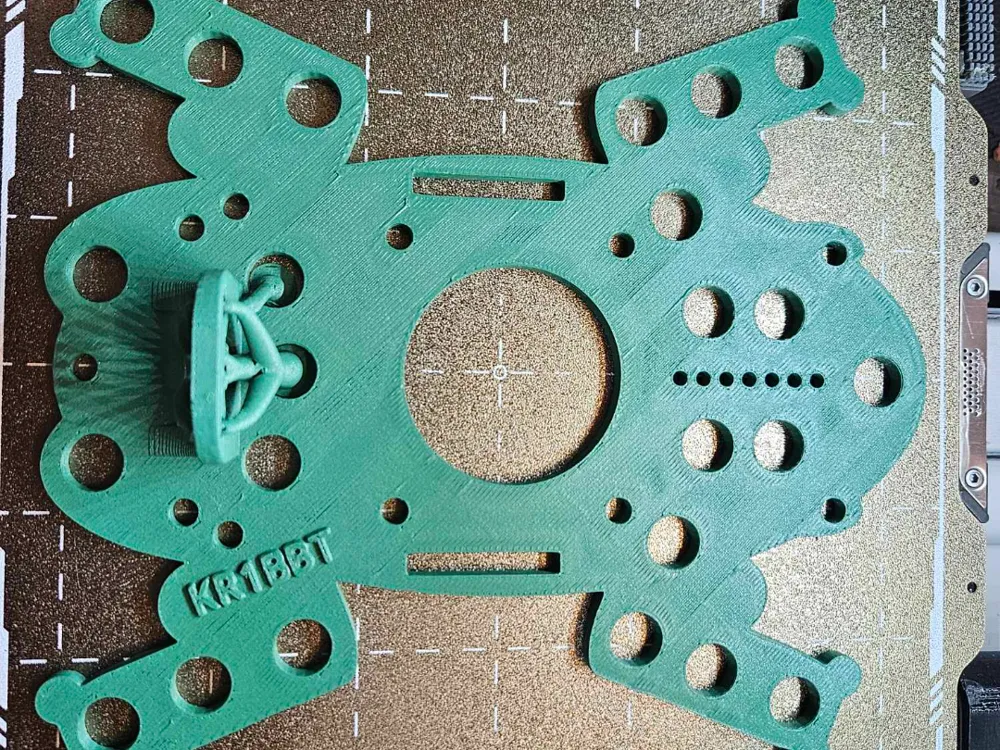

This wire winder is setup for an EFHW or DiPole.
Holes are sized for M5 hardware and 18awg wire.
4mm holes for zip ties
1in strap slots
Updated model to have a thicker base and added another connector type.

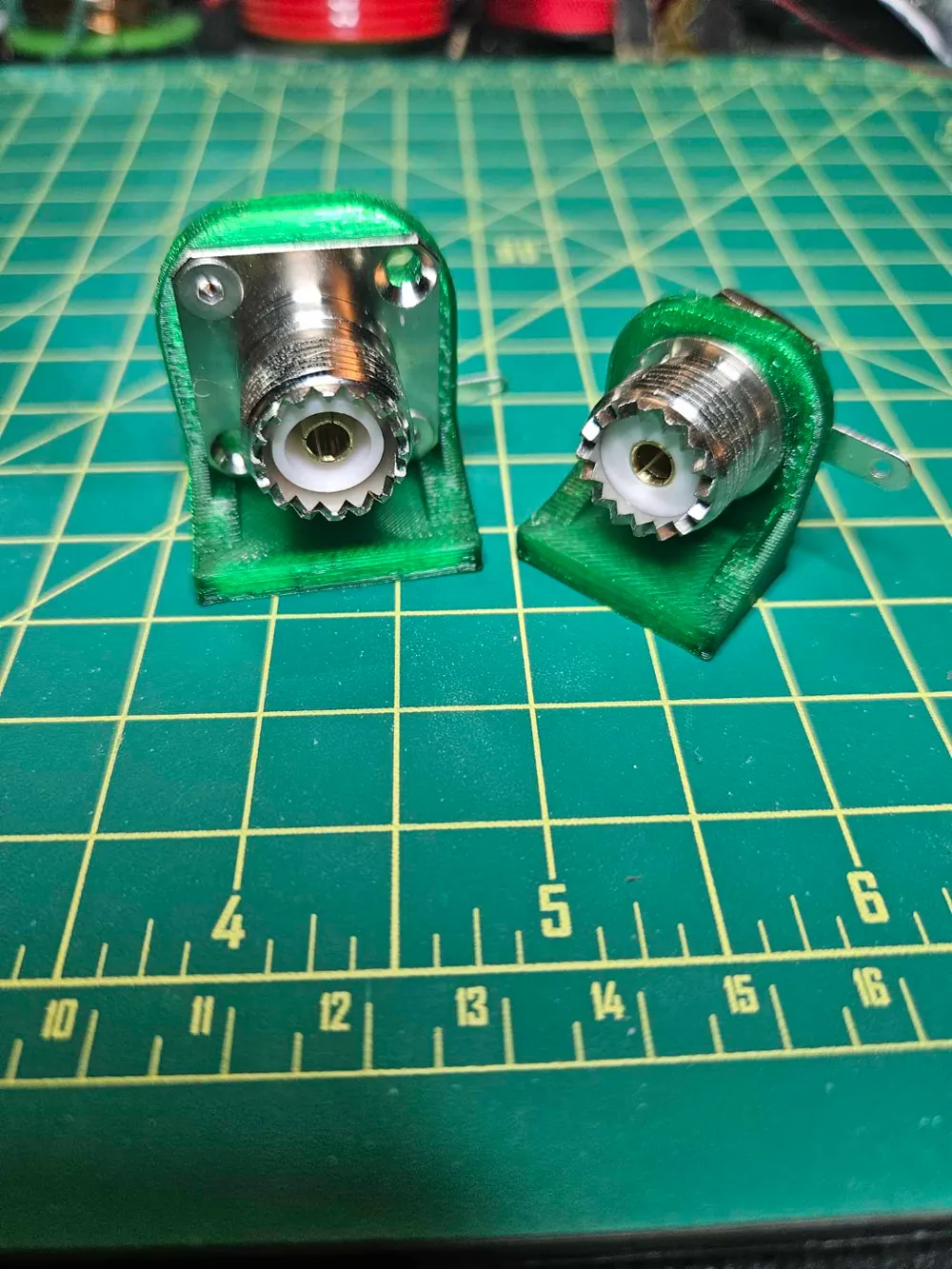

SO-239 Bulkhead Mount
SO-239 Panel Mount
Using FT240 size or similar toroids
