Dupont / Jumper Cable - Male/Female

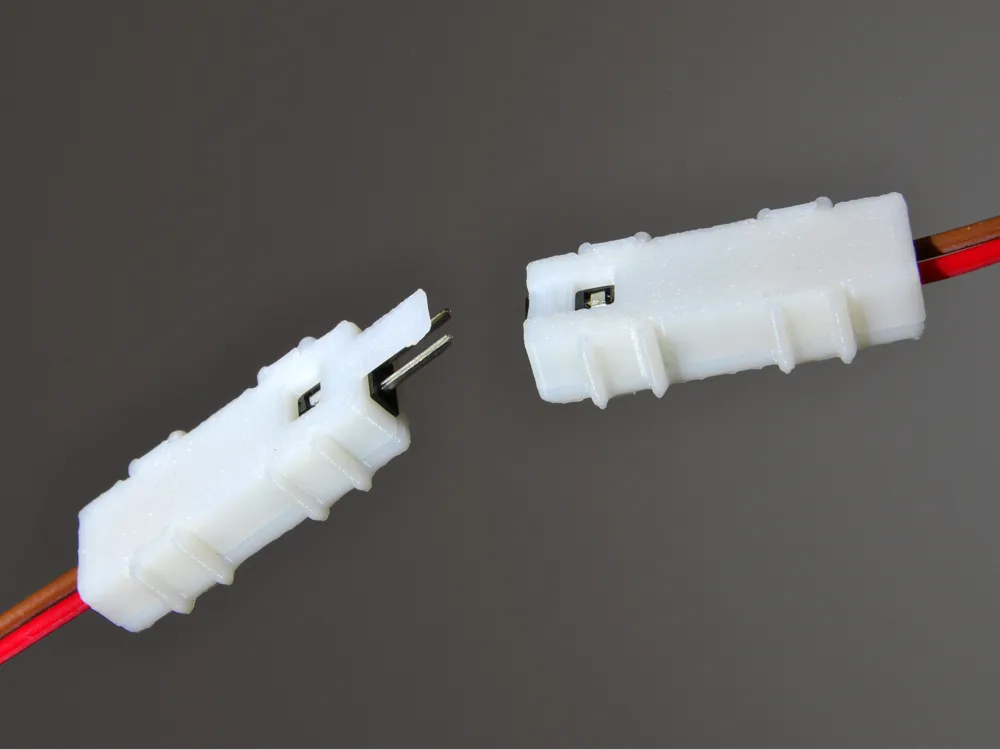

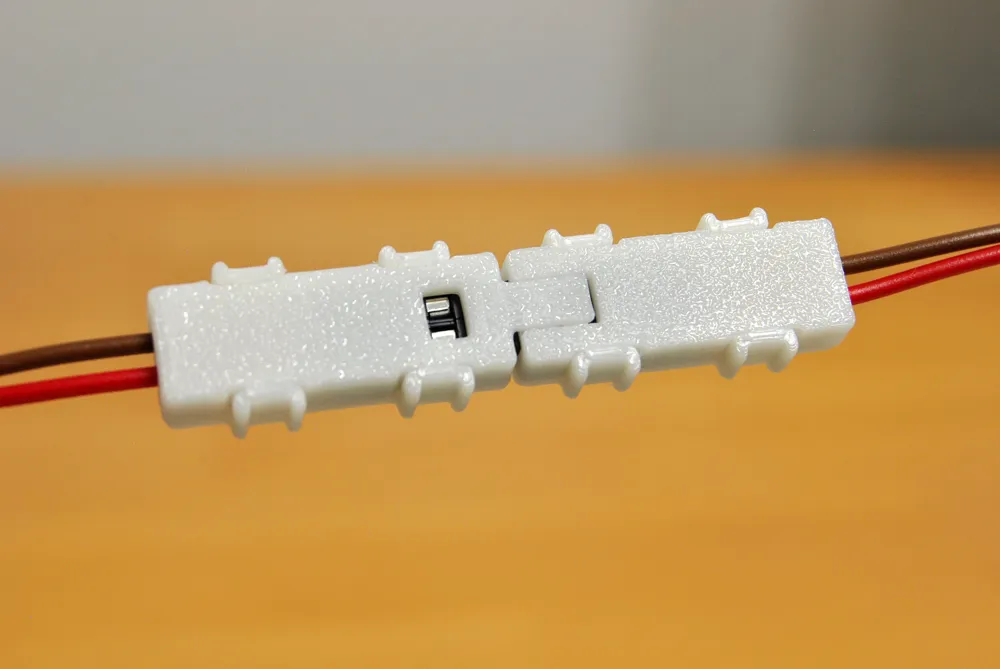

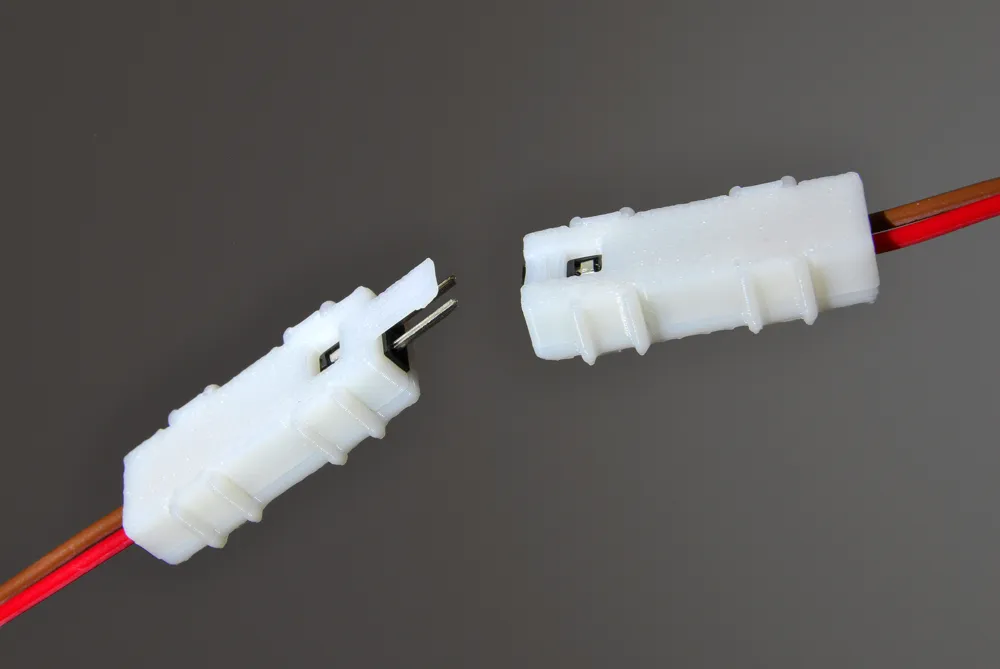

A simple remix of NERDCORNER's Dupont cable connector, this now has a male and a female end, allowing you to use two Dupont connectors similar to a micro JST connector or other small electrical connector. The tab and recess arrangement helps to prevent accidentally connecting it the wrong way round, and it fits snugly enough onto a Dupont connector that glue isn't required (or wasn't for me, at least).

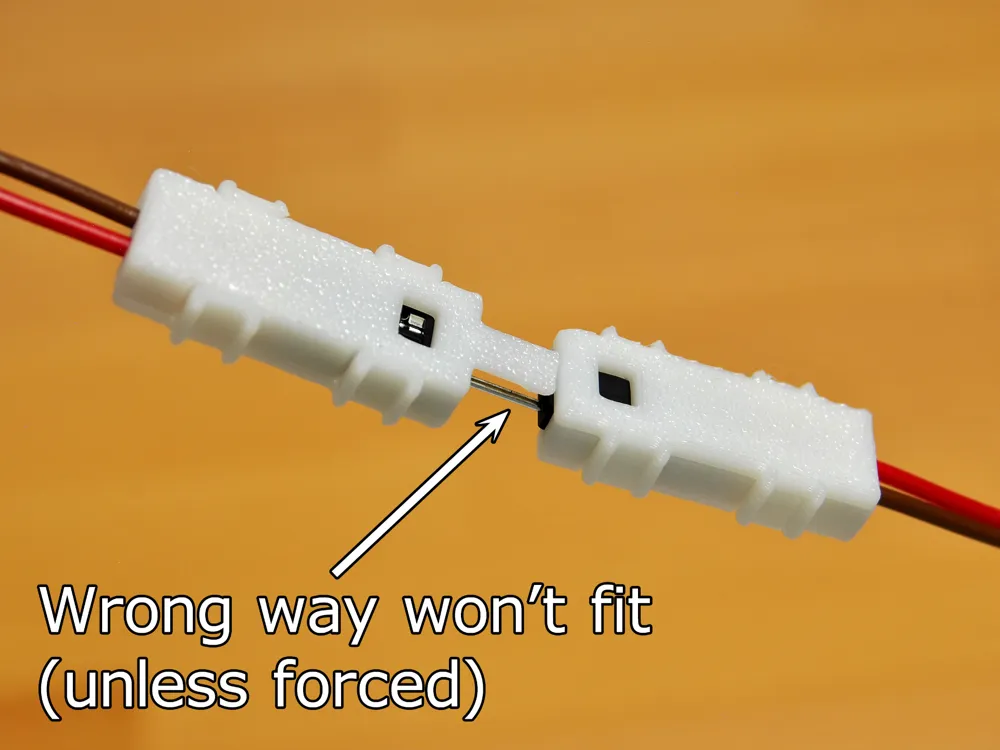

Note that this isn't 100% foolproof - if you press the connectors together with enough force, it is still possible to connect them the wrong way round.

Printing Guidelines

• Layer height: 0.1mm - 0.15mm (0.2mm will work but the tabs that click the top & bottom together don't print as well)
  Supports: No
  Brim: No
  Walls: 2+
  Infill: any

Print:
1x Dupont_Female_bottom
1x Dupont_Male_bottom
2x Dupont_top

then insert two Dupont connectors into the bottom pieces, and press the top on firmly.
