Dual-fan Bracket for Ableconn PEXM2-130

Dual-fan Bracket for Ableconn PCIe Dual m.2 - PEXM2-130 - 40+60mm

Years back, I picked up some Ableconn PEXM2-130 cards to split the PCIe x8 slots in some Dell R720 servers down to x4x4 with dual m.2 slots.

Those old dells don't have onboard bifurcation, so this was a great solution!

One broken Samsung dishwasher, 100+ TB lost, and 2 years later, I got ONE of these cards working and tested in a ZimaBoard.  Only, even with copper heatsinks, the Optane drives were surpassing 70c.

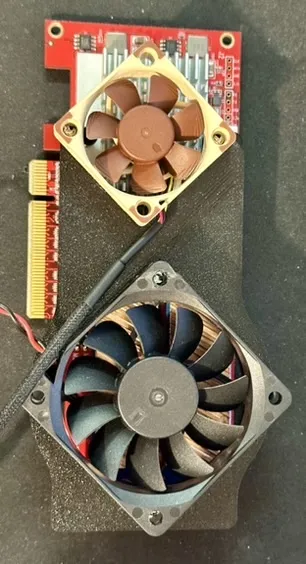

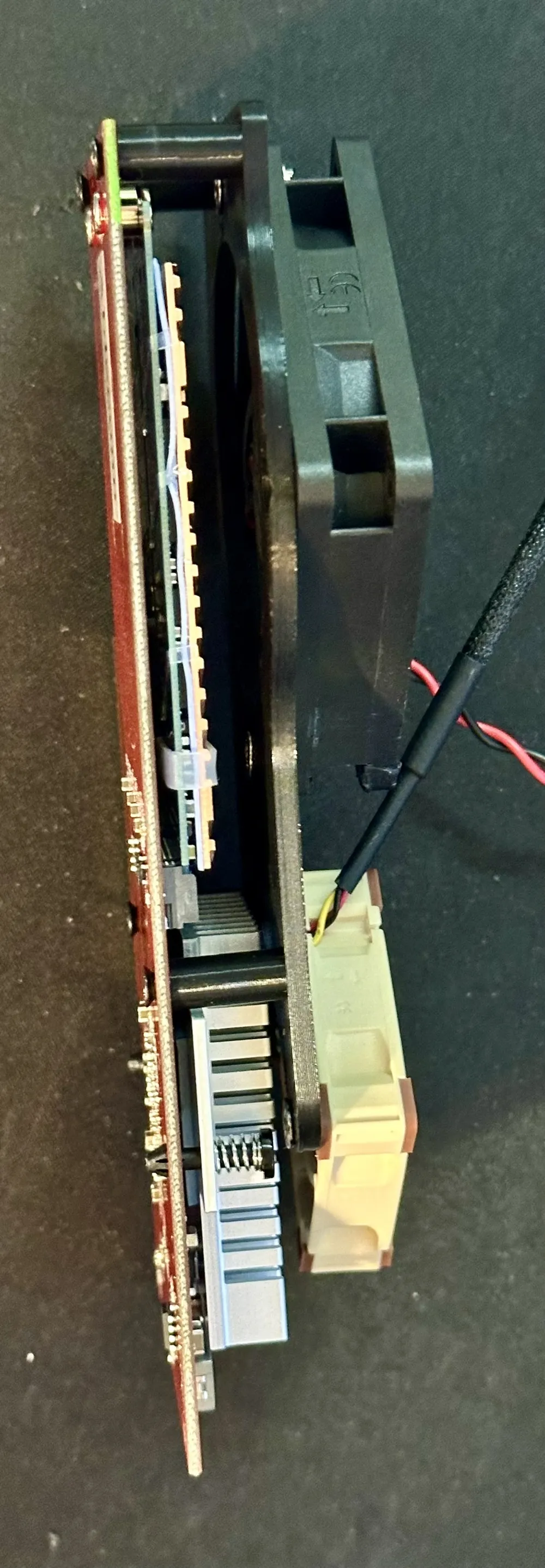

This little bracket lets me throw a 40mm over the PEX heatsink and a 60mm over the m.2 slots.

Dropped my temps significantly - Optanes stayed under 40c, consistently.

It prints in under an hour on my A1 Mini.

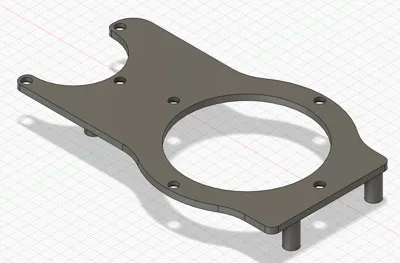

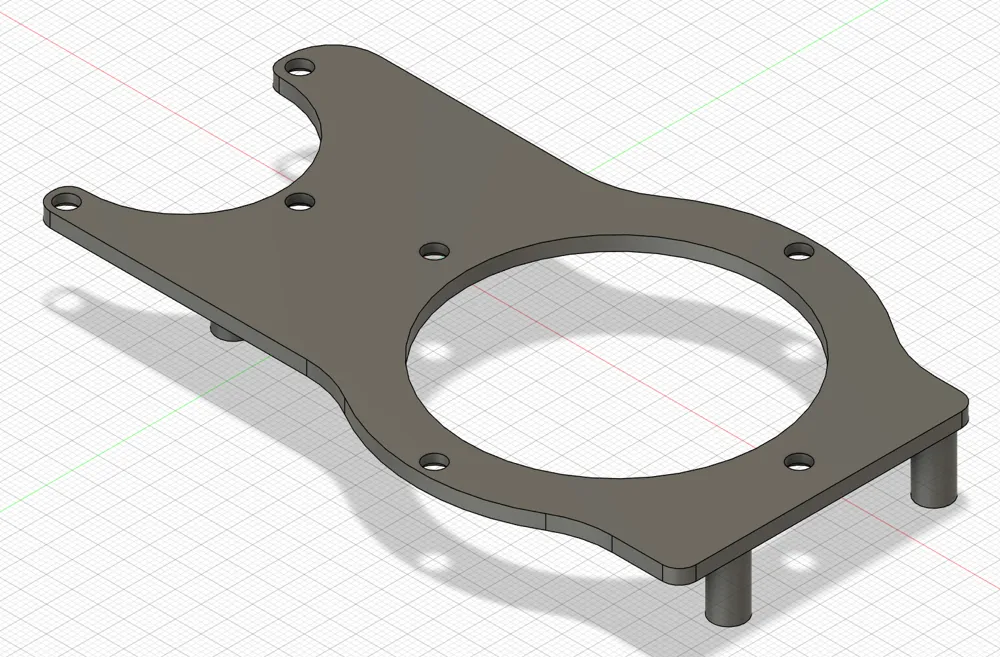

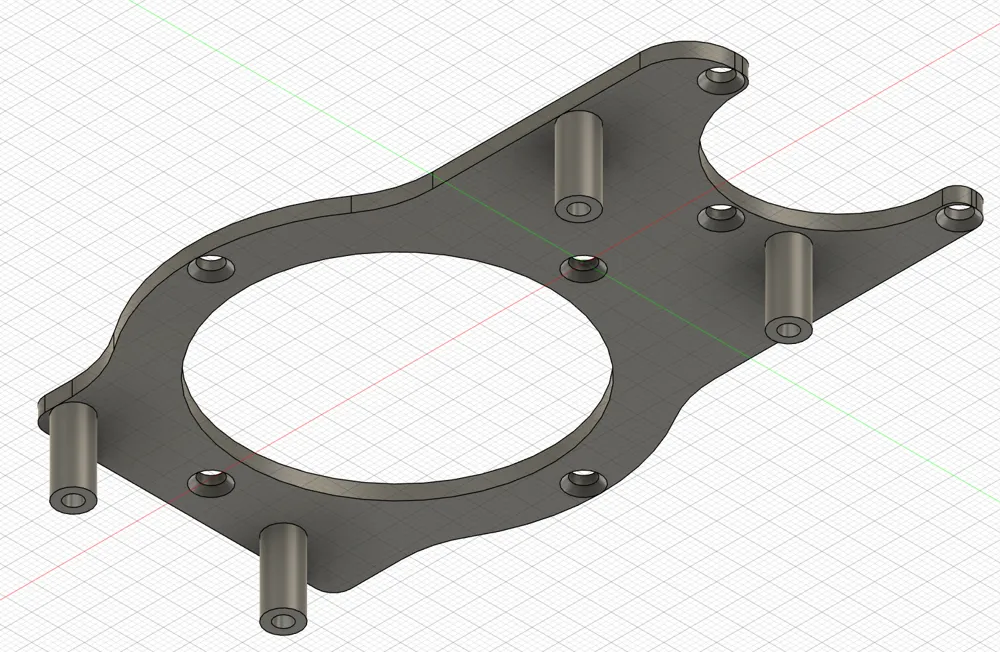

• print with posts pointing upward
• no supports
• I printed in “PLA Tough” from Bambu (it was on sale and out of production)
  • If you do PLA, use a “tougher” variation, I would guess… or ++ the walls & infill
  • Or maybe do a proper material?
• Printed with 3 walls, but I would suggest 4 or more
• 20% or more infill seems sturdy on mine

CAVEAT

 ̶I̶ ̶h̶a̶v̶e̶n̶'̶t̶ ̶u̶s̶e̶d̶ ̶t̶h̶i̶s̶ ̶l̶o̶n̶g̶-̶t̶e̶r̶m̶ ̶(̶a̶s̶ ̶o̶f̶ ̶J̶a̶n̶ ̶2̶0̶2̶4̶)̶,̶ ̶b̶u̶t̶ ̶i̶t̶'̶s̶ ̶b̶e̶e̶n̶ ̶s̶o̶l̶i̶d̶,̶ ̶s̶o̶ ̶f̶a̶r̶

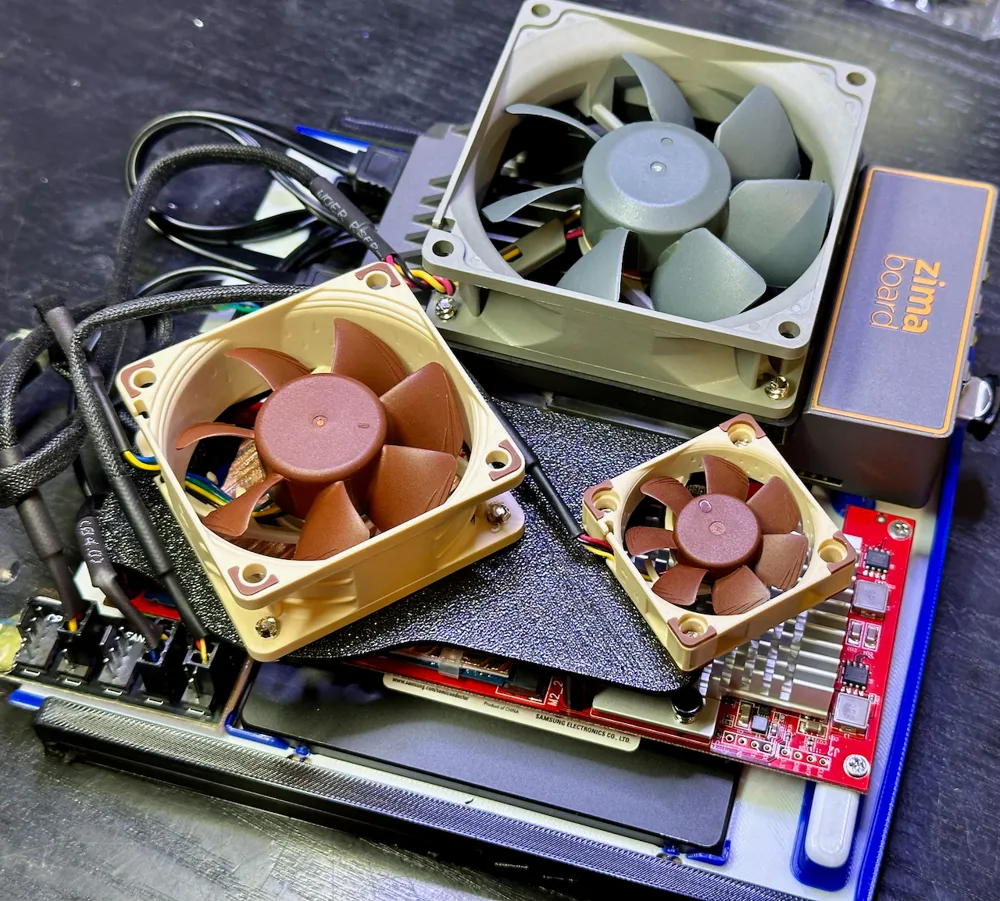

Feb 2025 Update - Works fine!
