Heat Press, Support for soldering iron, micro dril
Print Profile(1)
Bill of Materials
- SolderingIron x 1:
- thread insertion kit x 1:
Description

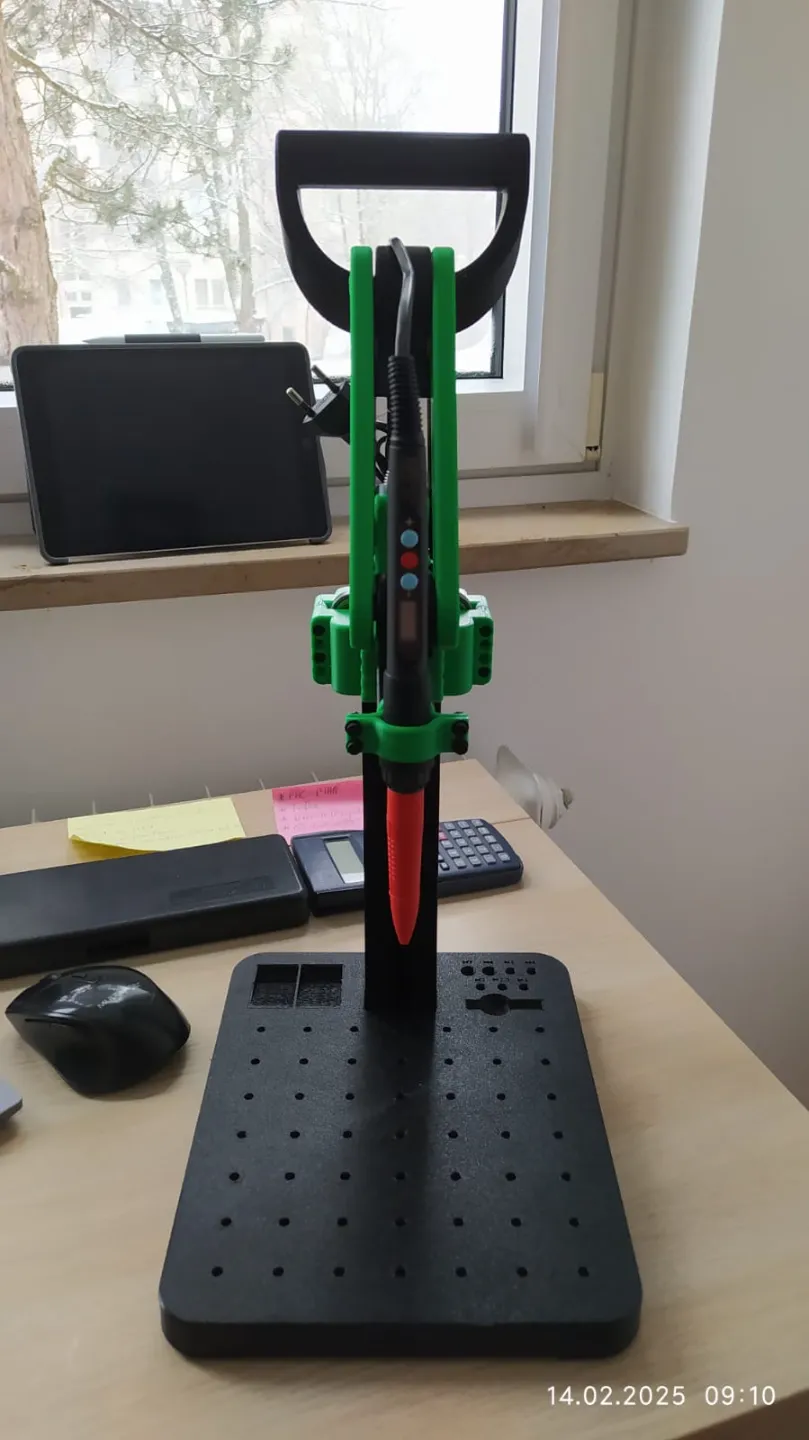

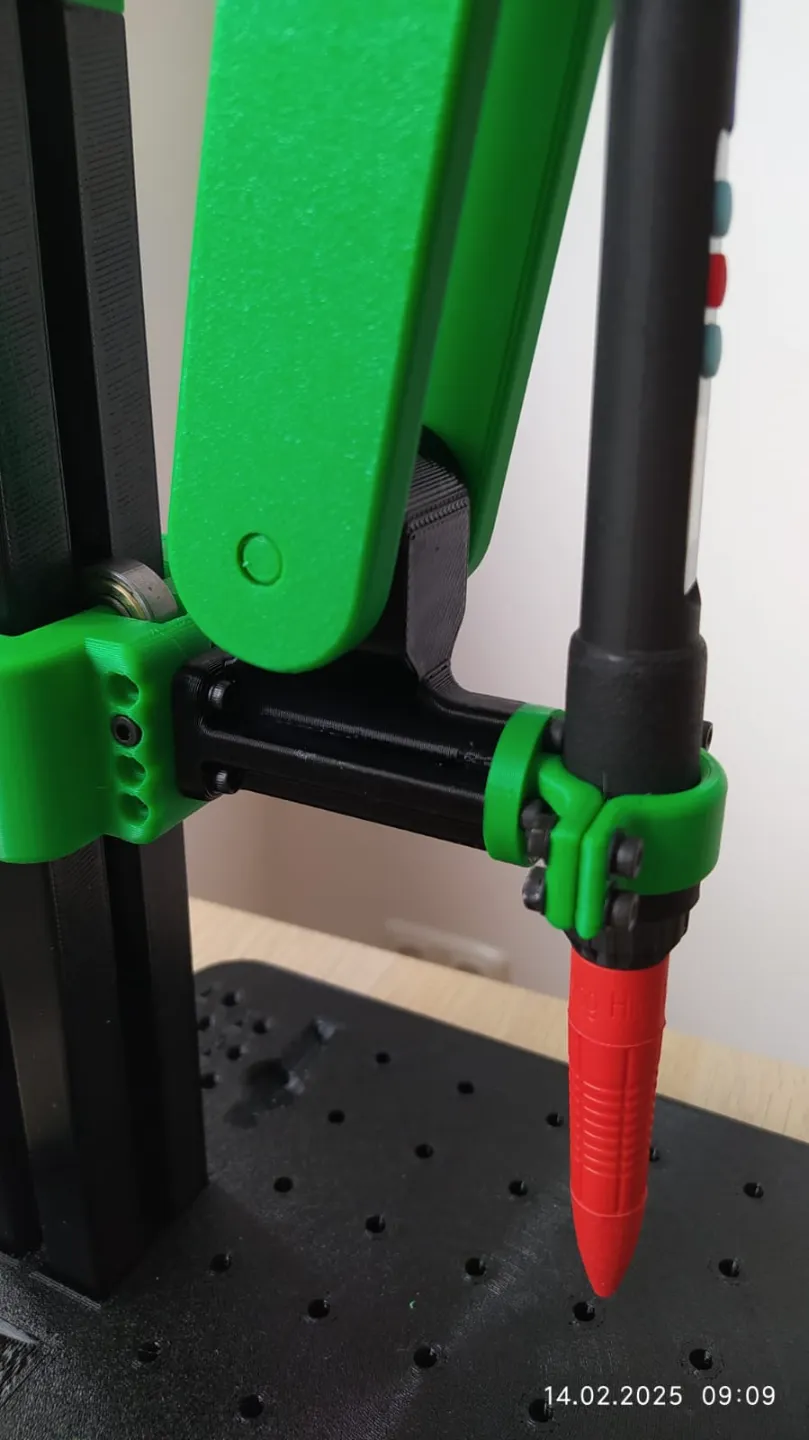

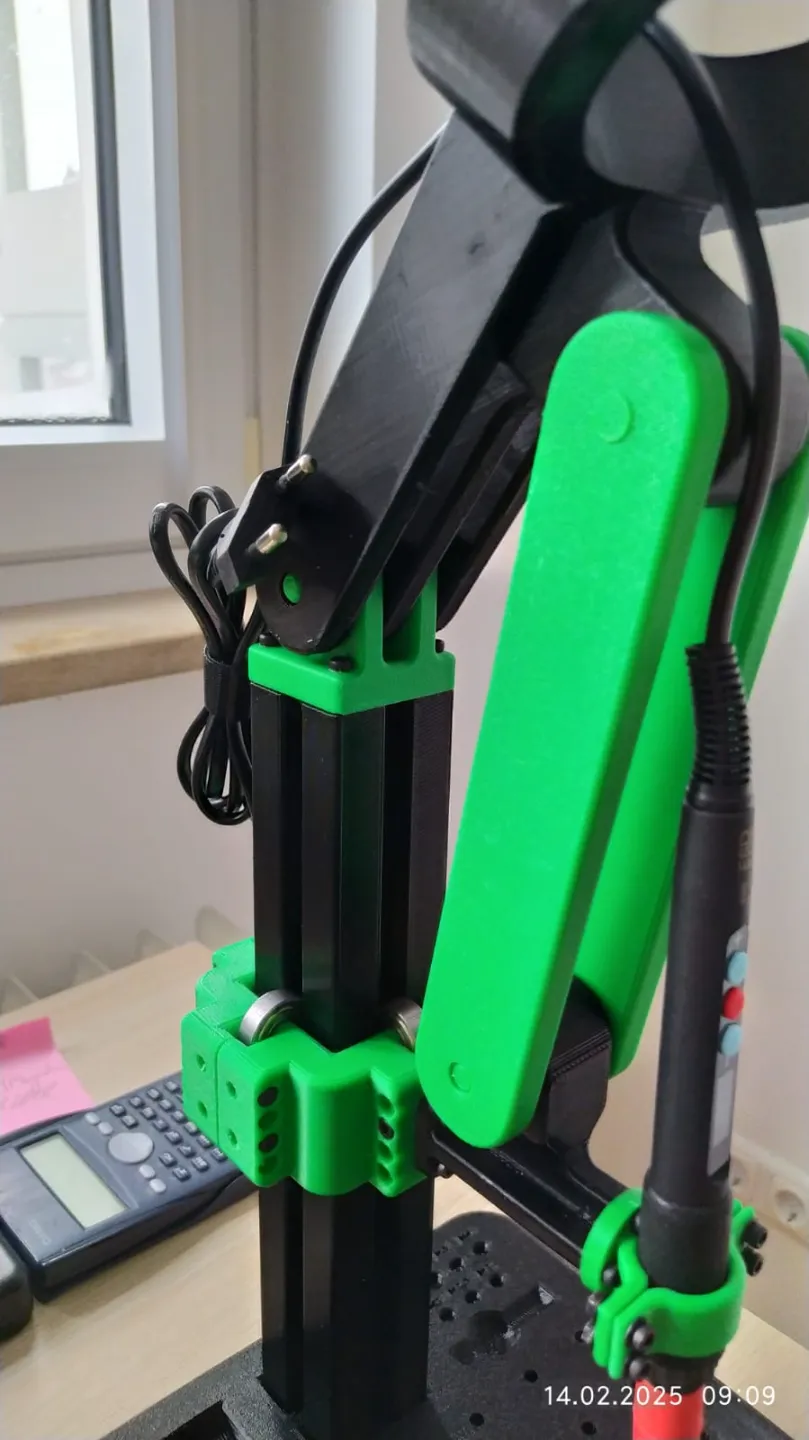

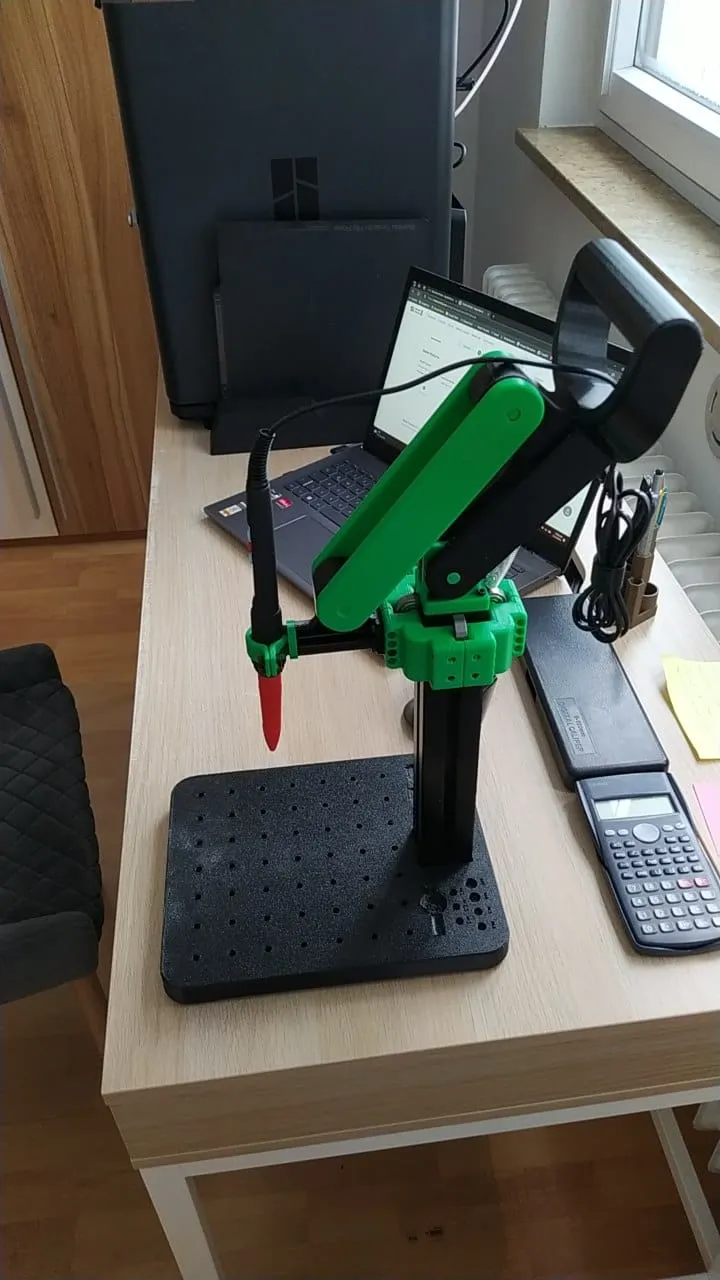

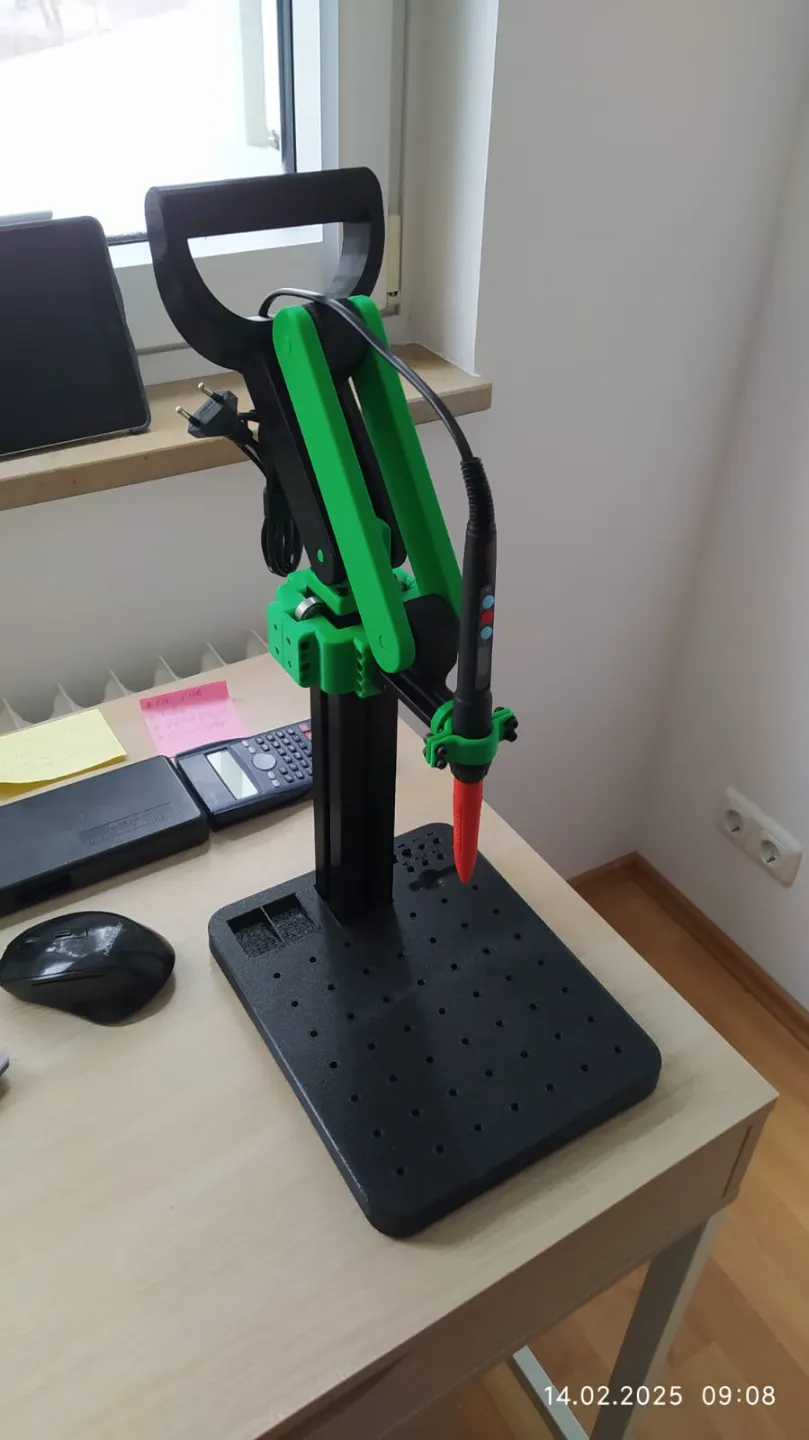

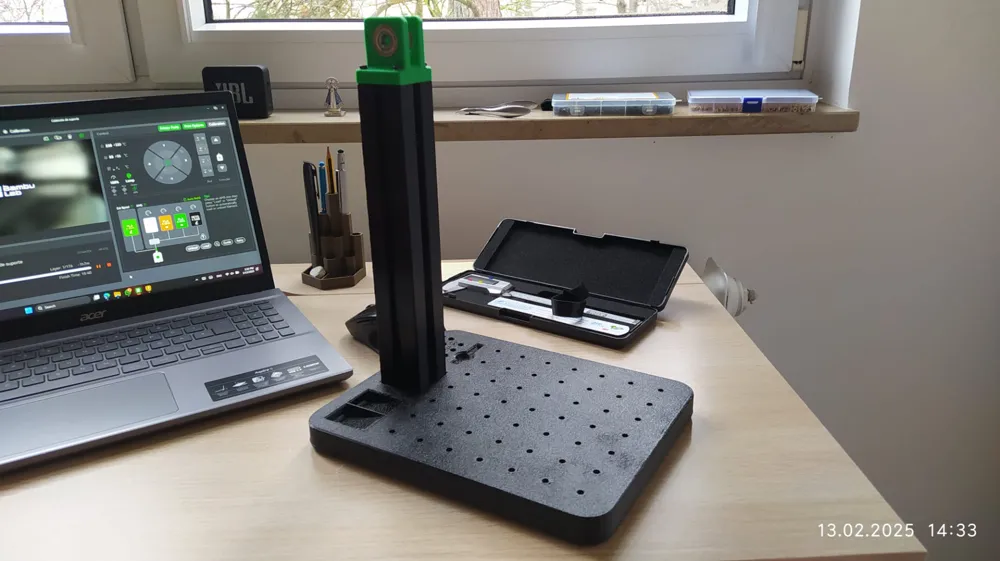

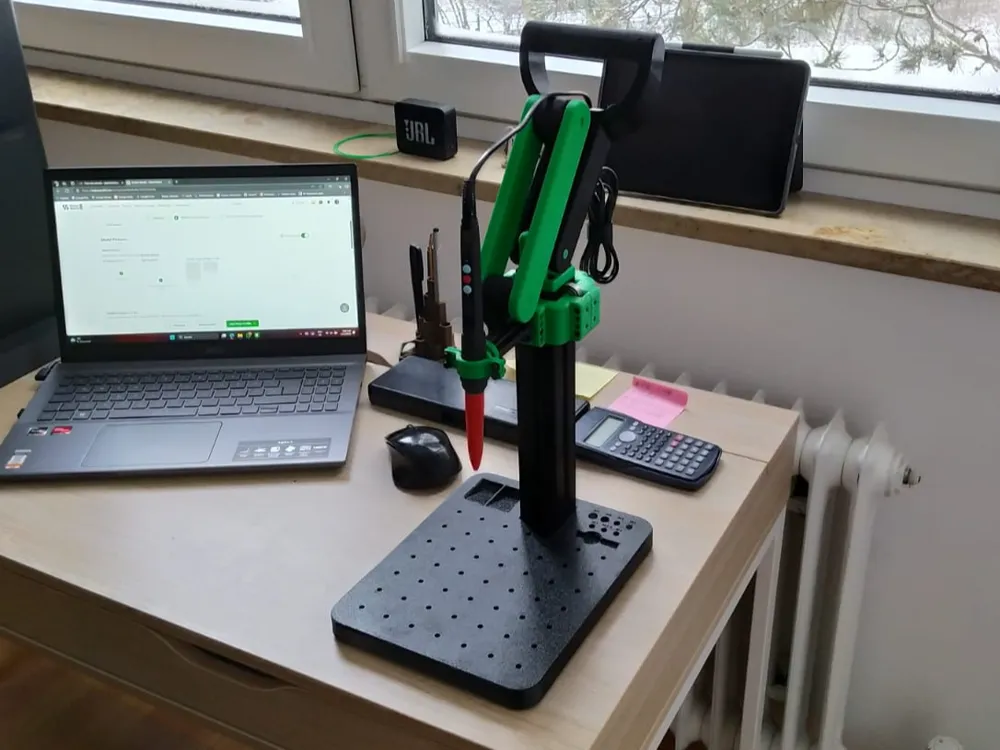

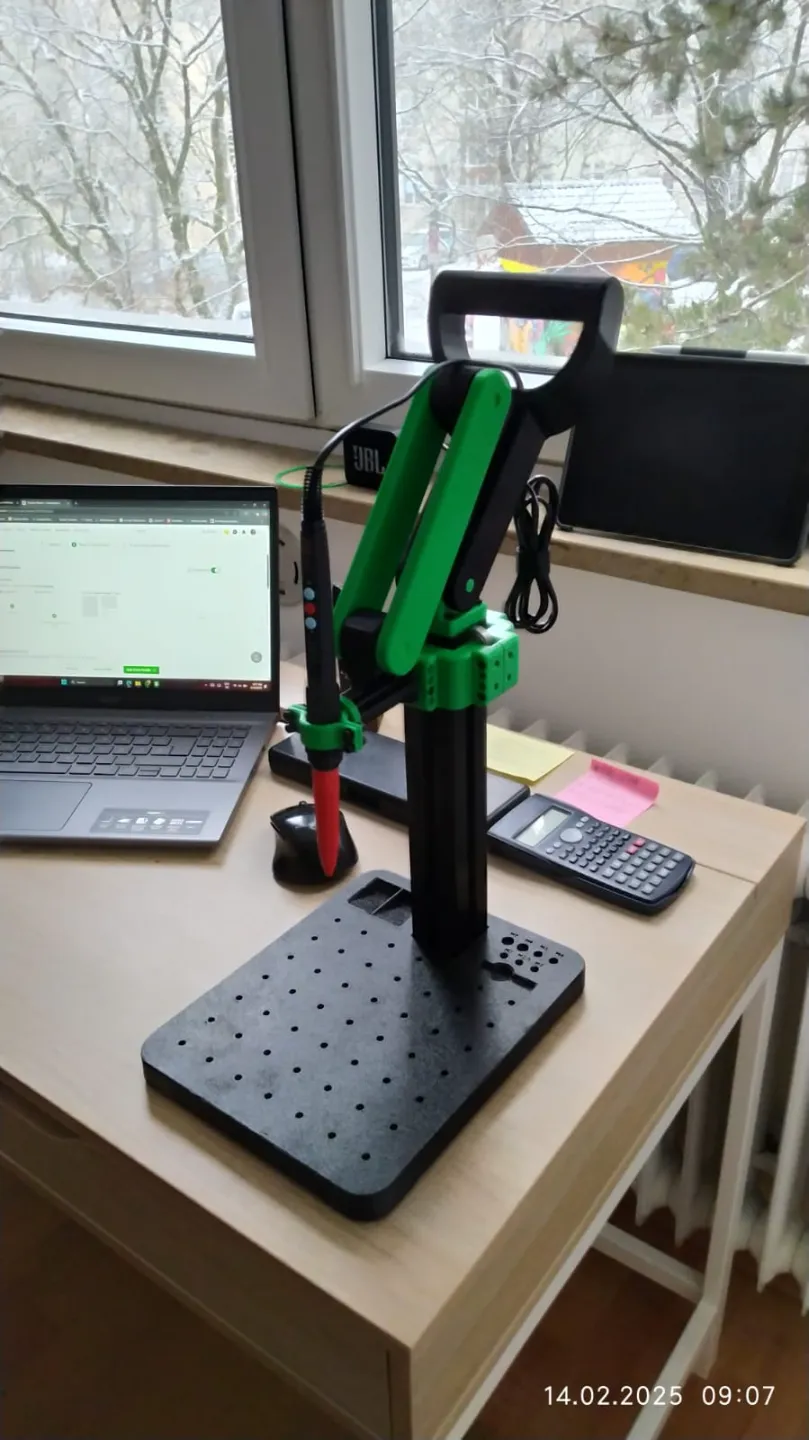

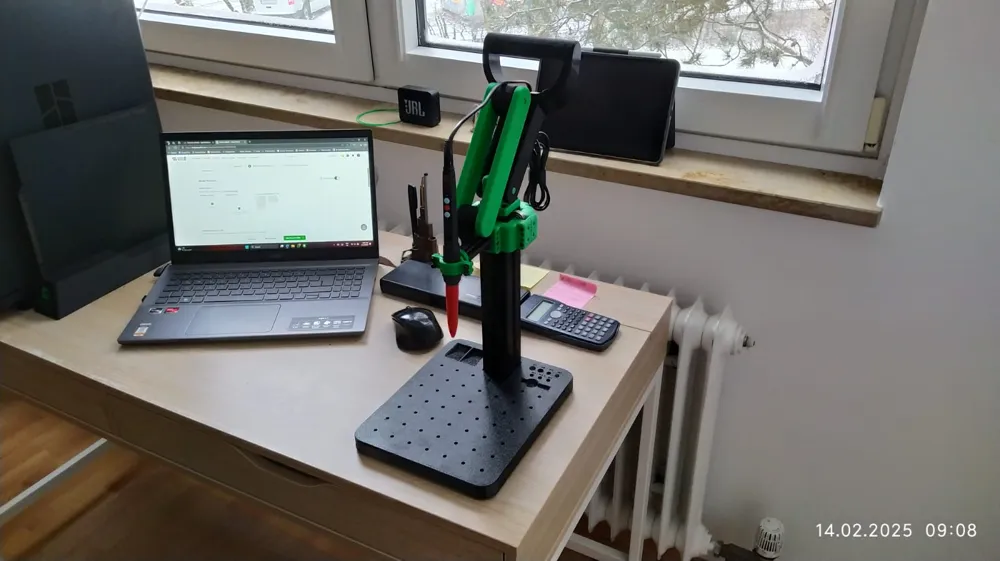

Support for use with soldering iron to insert inserts. Can be used to attach micro drills and micro drills.
The holder is 90% printed and only requires a few extra accessories:
12x M3x20 mm screws
4x M3x16 mm screws (M3x20 mm can be used)
8x M3x10 mm screws
6x M3x8 mm screws
5x M3 Nuts
22x Insert M3x4x5 mm
4x Inserts M3x3x4,2 mm

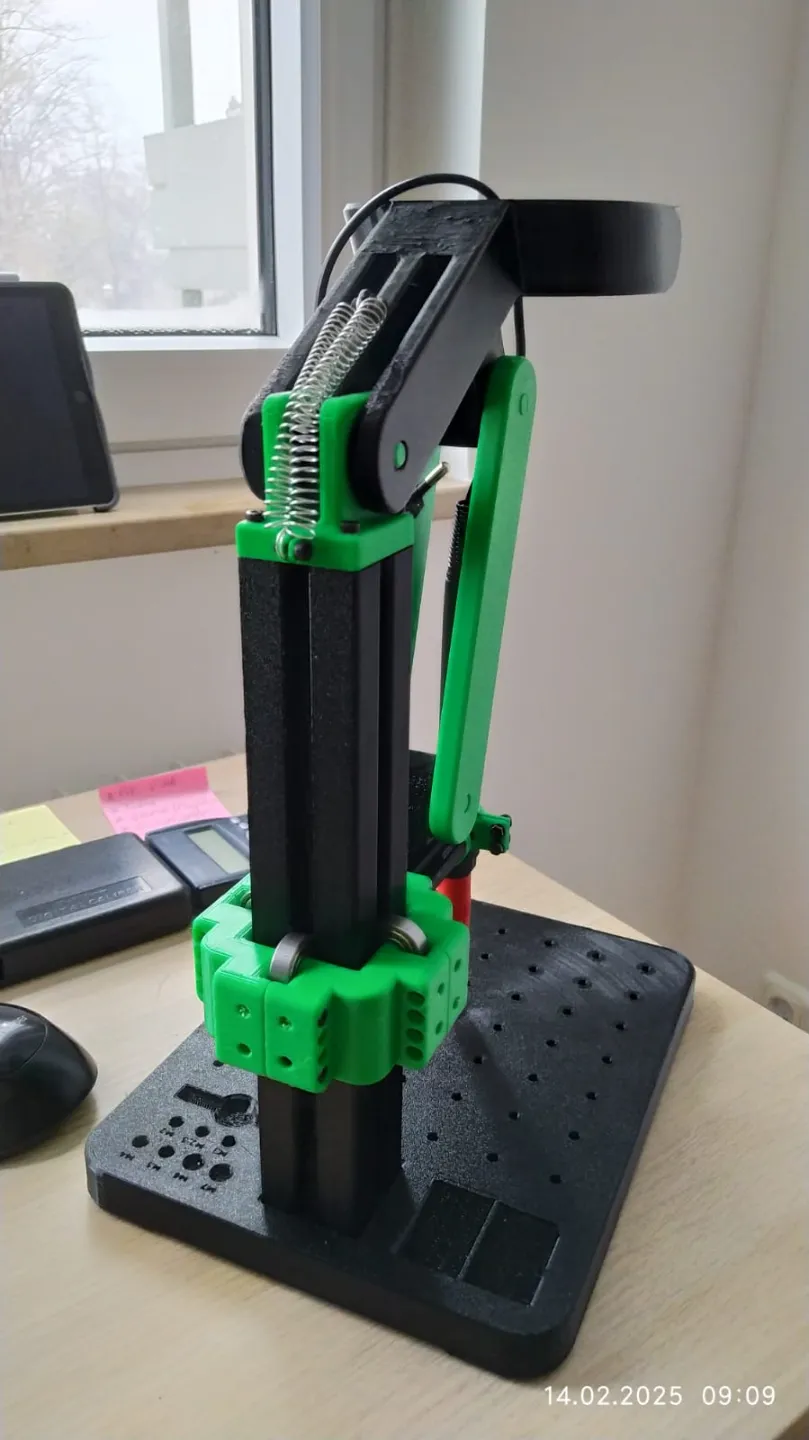

2x Springs Ext 7x30 mm
12x Bearings 8x22x7 mm
The bracket is 90% printed. All you need are M3 screws, inserts, springs and bearings.
OBS:
These bearings can be printed and work just as well.
Office elastic can be used instead of the spring.
In some parts it is not necessary to use inserts, the wall is strong enough to hold the screw, so you can choose.
The black part was made in black PETG, but if you prefer, you can print it in PLA (I recommend Bambu lab filaments on this occasion). It doesn't affect the strength.
