Arknights - Yu's Blade Model

Model files for Yu's sword from Arknights

I'm planning to cosplay as Yu at a future convention, so I made her weapon myselfヾ(≧▽≦*)o

The overall length is approximately 50cm, calculated based on the ratio of sword length to height in the official E1 artwork.

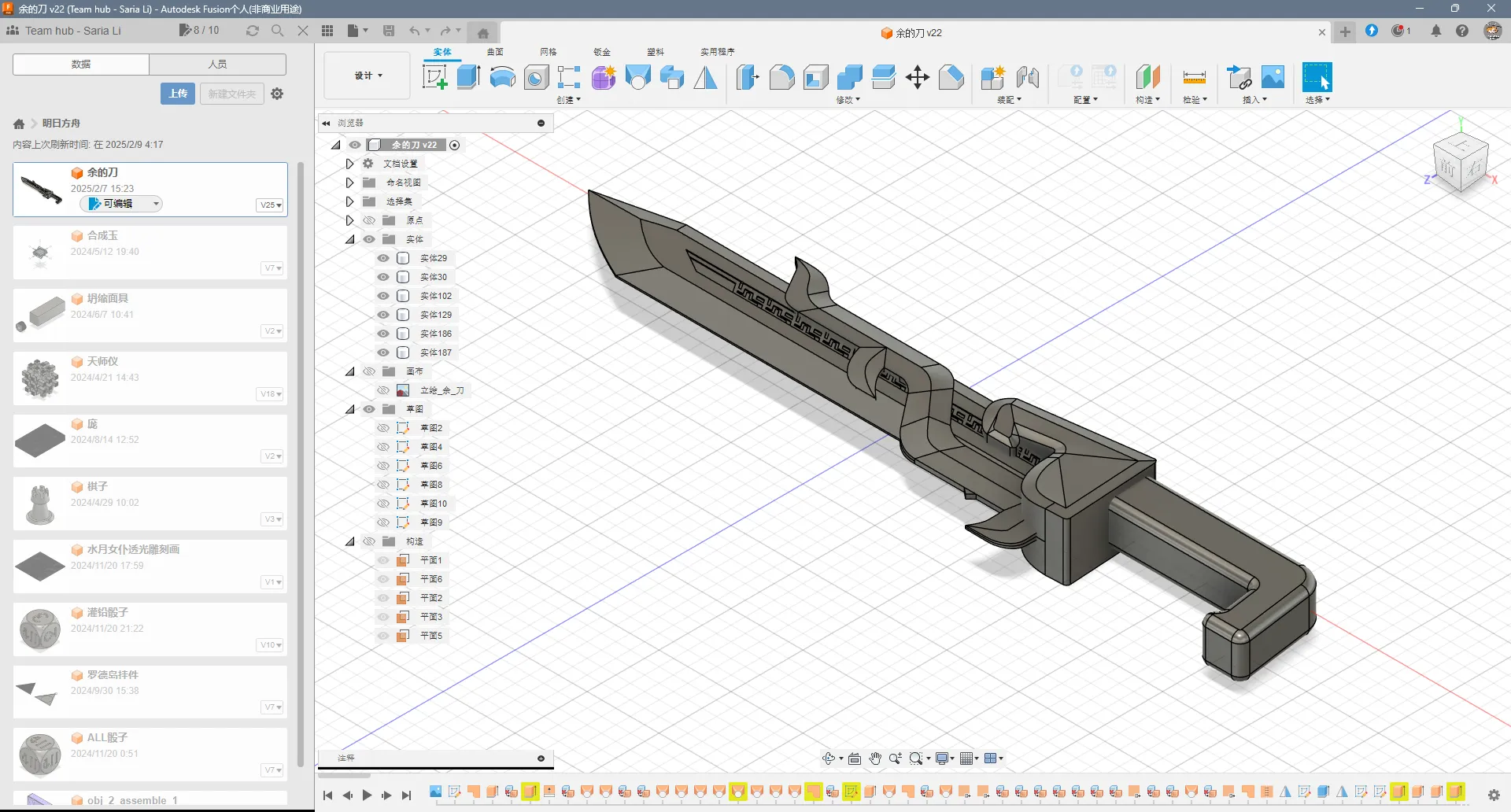

I'm still not very familiar with Blender, so I created the model in Fusion 360 and then used Blender for sculpting, refinement, and partitioning.

I've provided a default partitioned file. This partitioning method conceals the joining seams of the blade for a more aesthetically pleasing result.

However, this partitioning renders the ‘blade_body.stl’ file too large for the A1 mini’s build volume. A1 mini users will need to further partition the file themselves before printing.

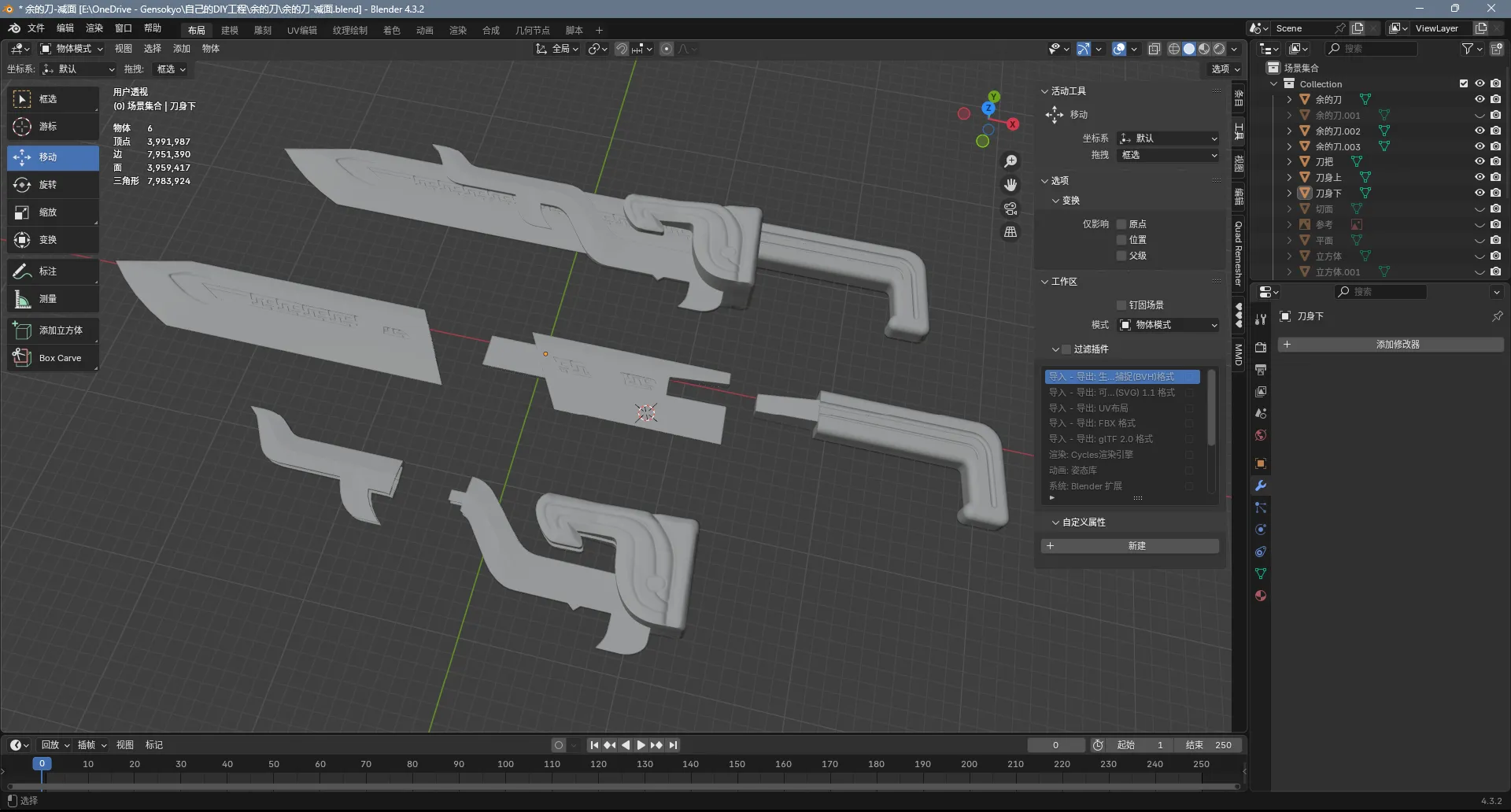

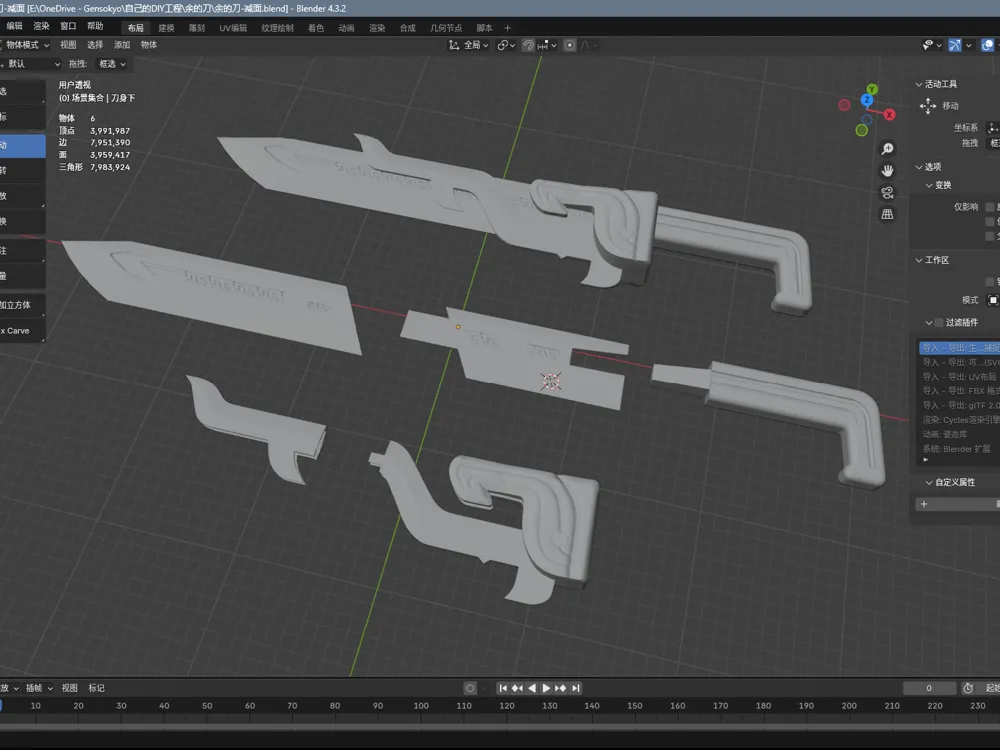

Refer to the partitioning diagram above; the assembly method should be readily apparent.

As I don't use a Bambu Lab printer, I cannot provide existing 3mf slice files. Please accept my apologies.

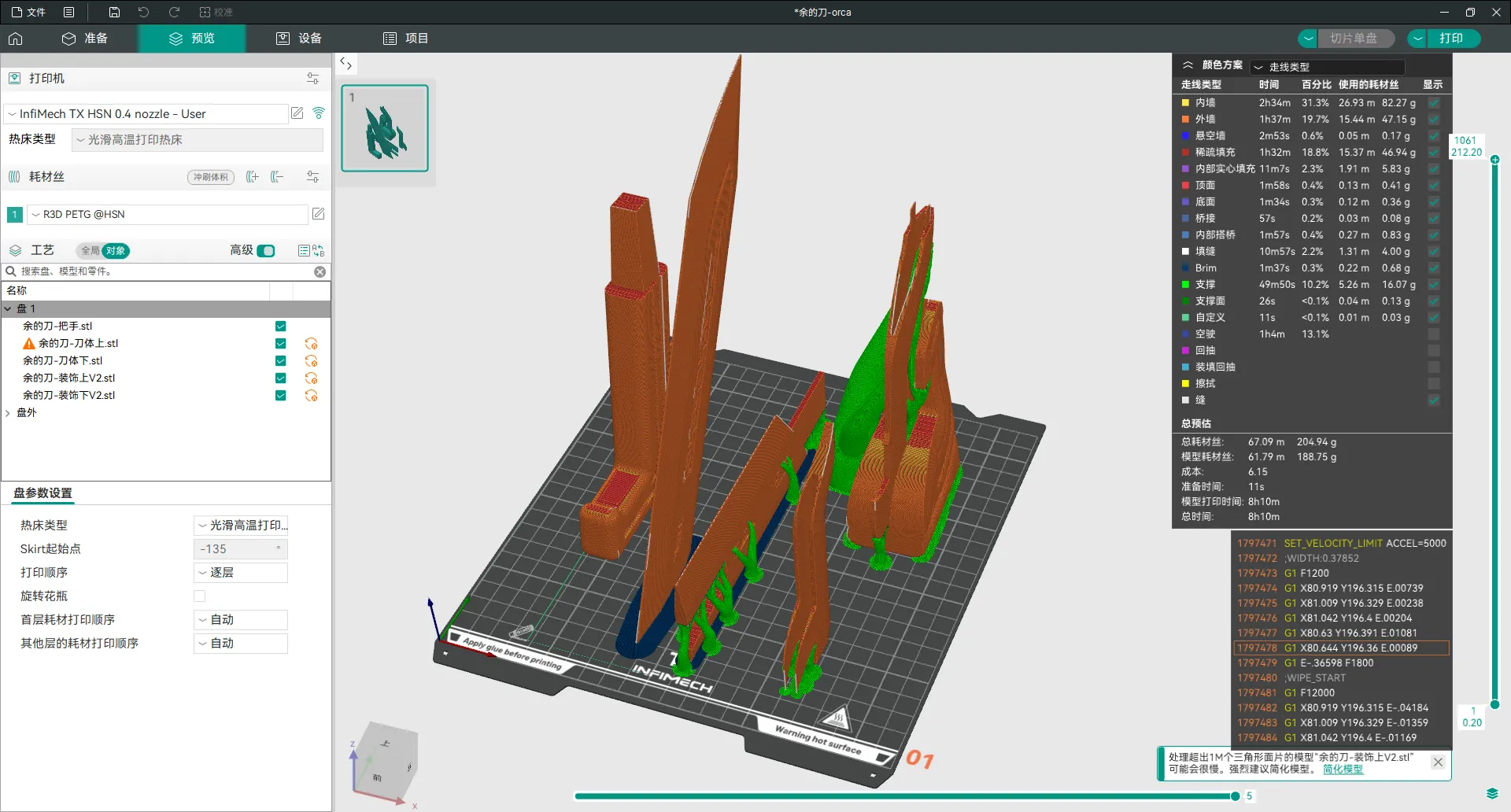

For printing parameters, I recommend adding automatic brim to all parts except the handle. Add automatic tree supports to all parts except ‘blade_body.stl’, setting the support threshold to 45 degrees. Use default settings for the rest.

Please refer to the image below

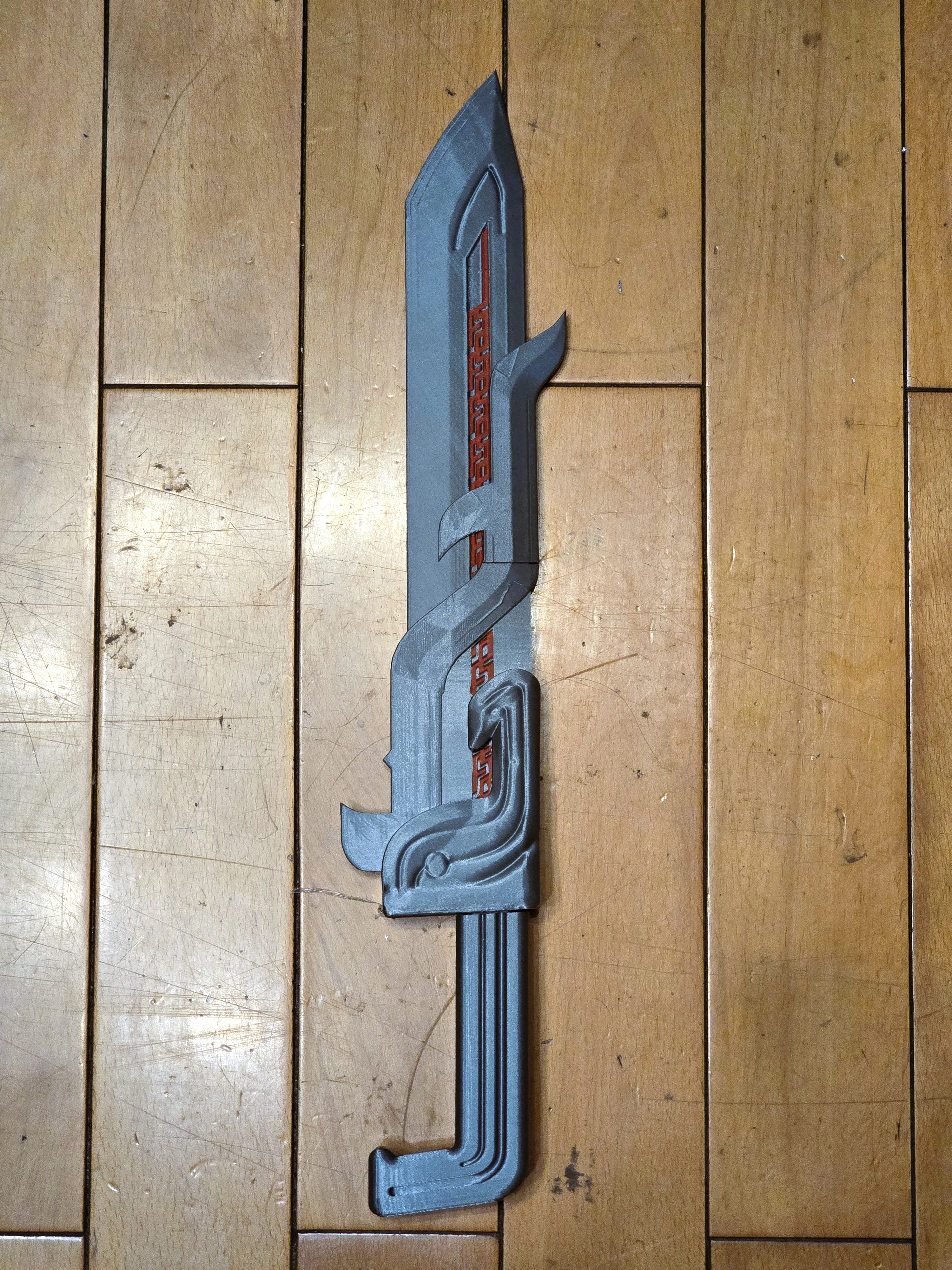

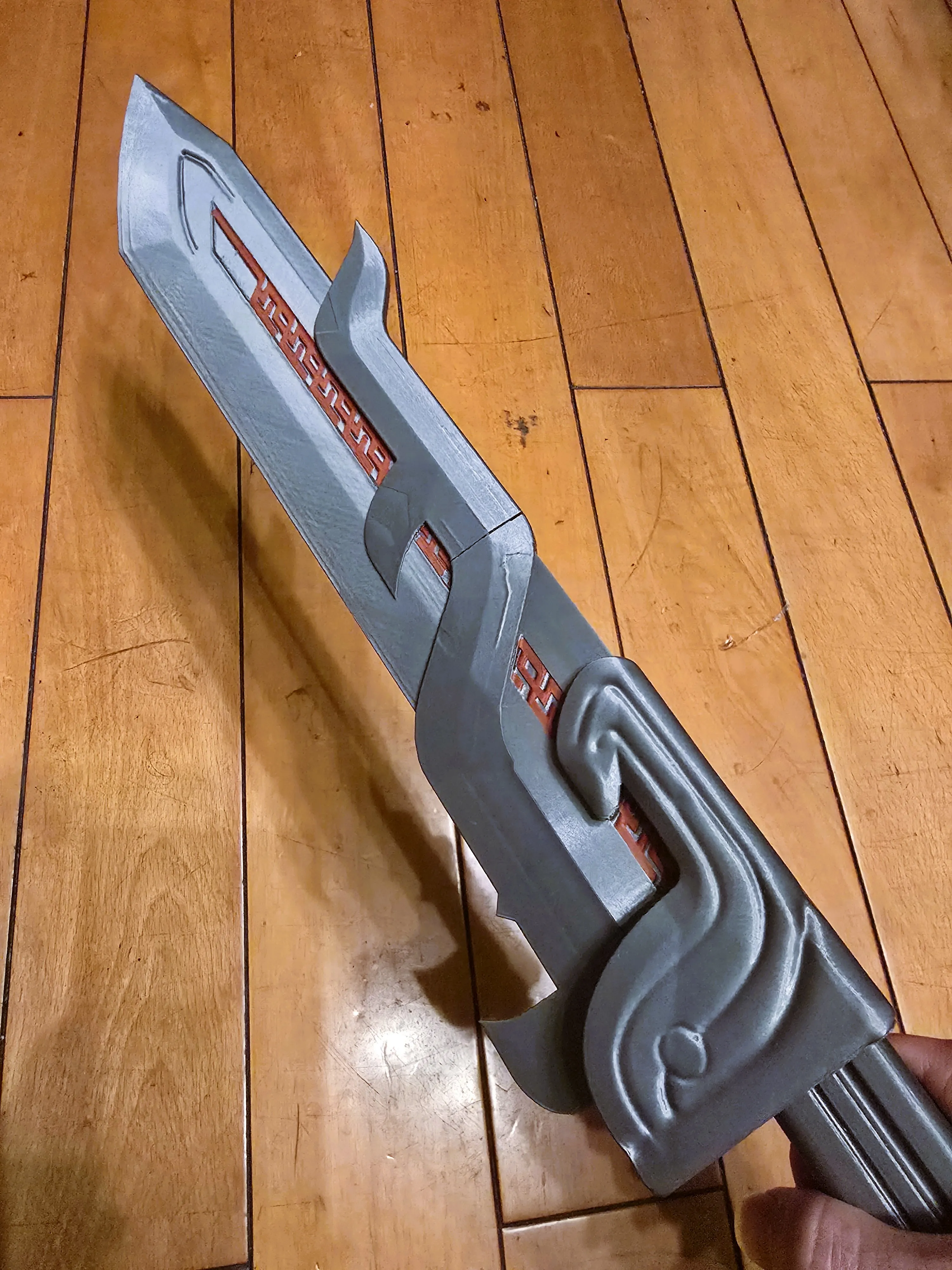

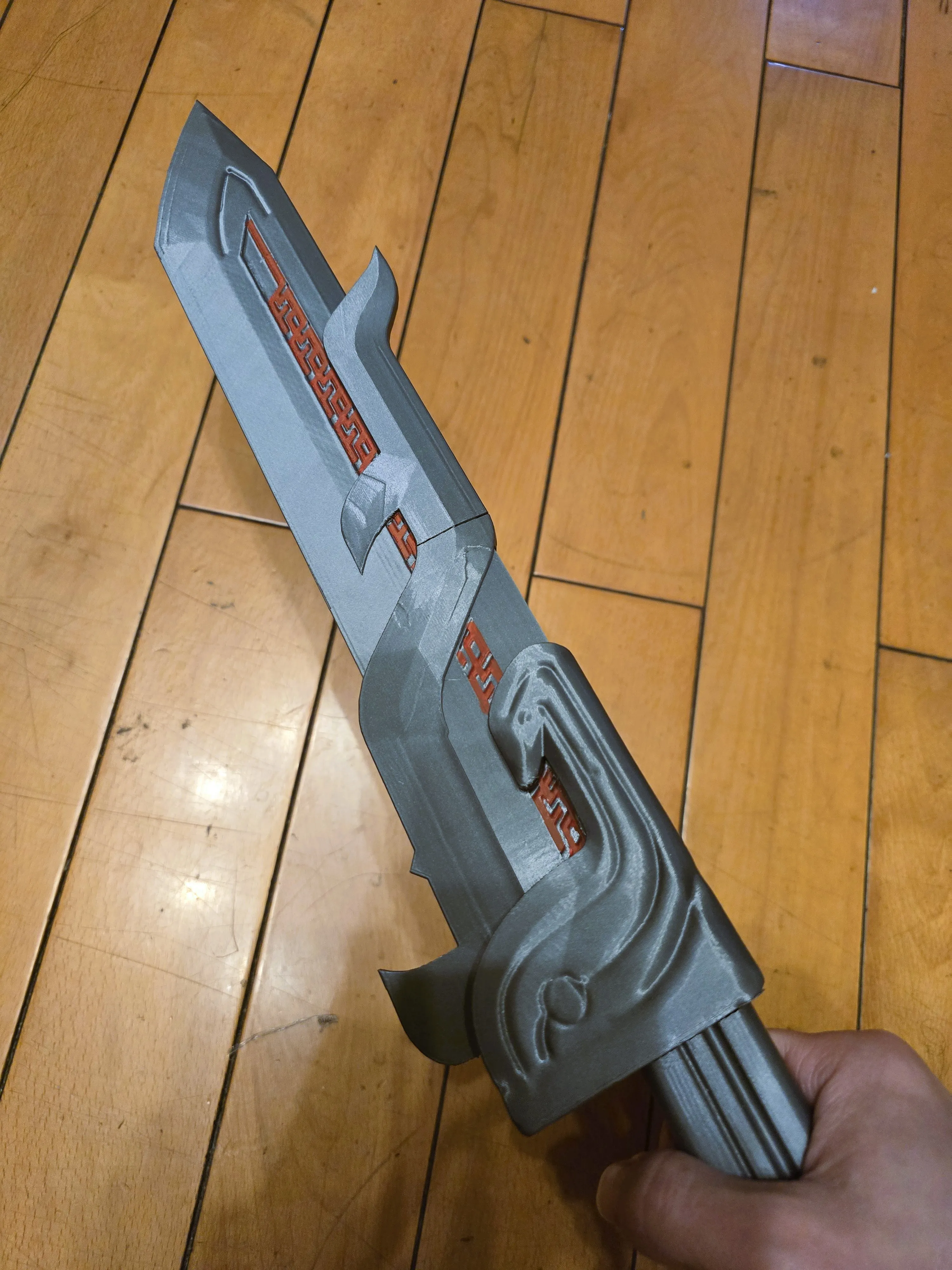

Here are some photos of the finished product

Finally, if you have any suggestions for improvements to this model (as I am still learning), please contact @夕瓜-中国站专用 @RL.Saria.CN This is my Maker World China account.
