Description

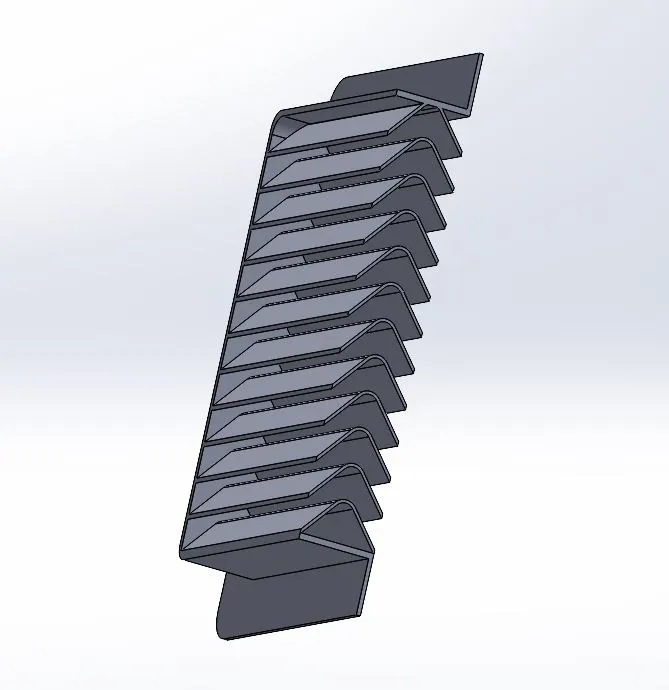

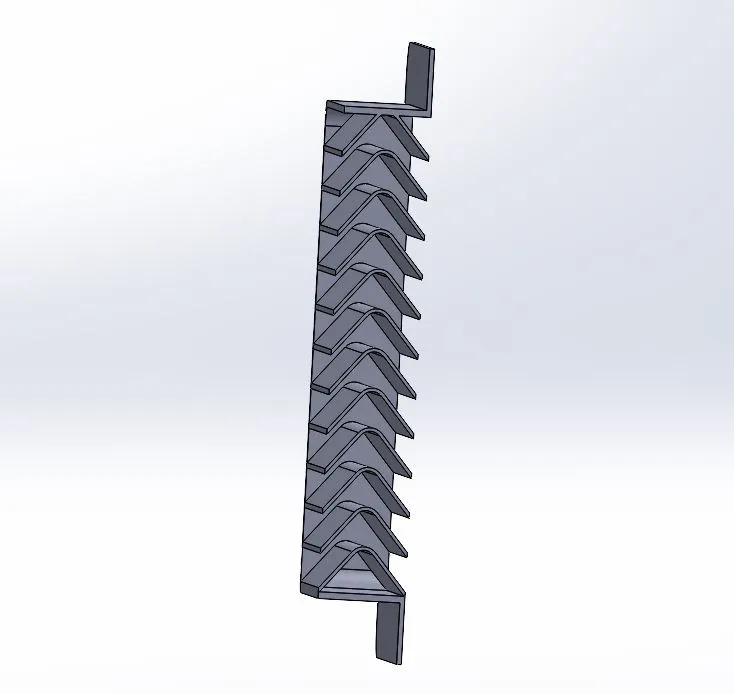

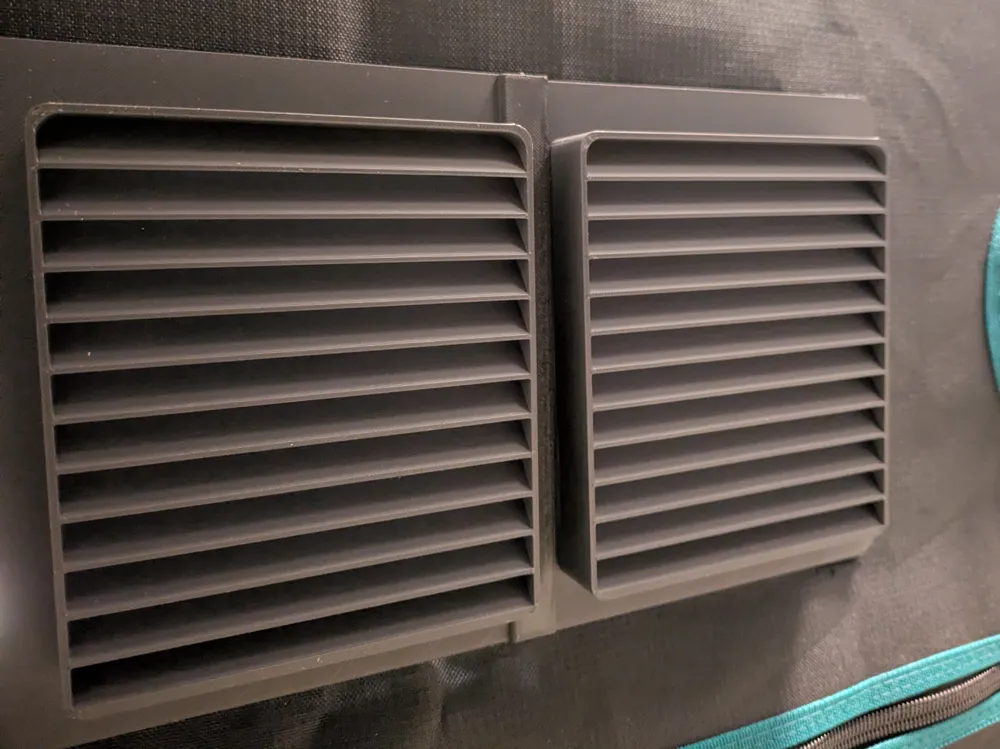

Light trap for Mars Hydro tents, to protect the tent's air inlets from light ingress
This model is suitable for air inlets measuring 380mm x 180mm
Another model for smaller air inlets measuring 300mm x 180mm can be found here: https://makerworld.com/en/models/1098802

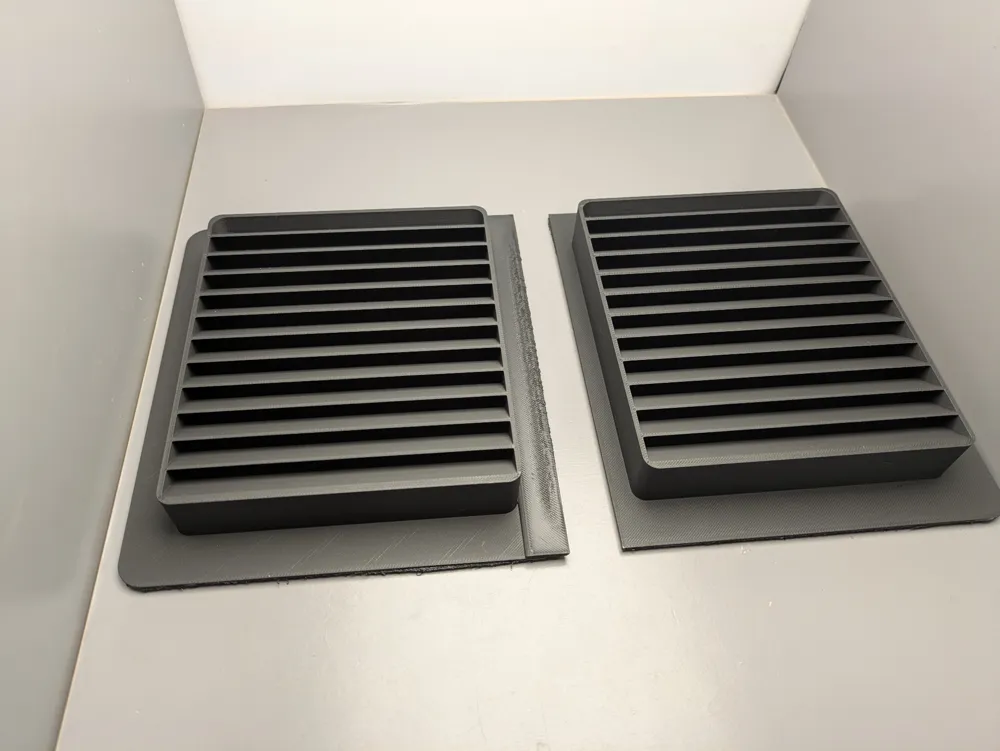

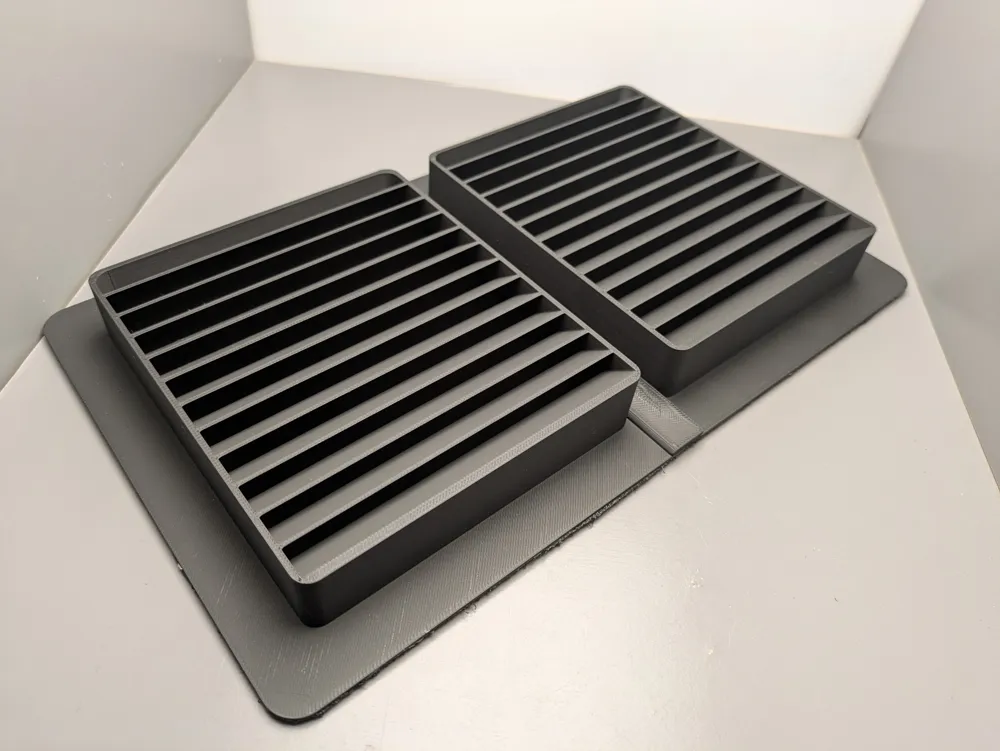

I created the light trap in two parts, as it would not fit on the print bed in one piece

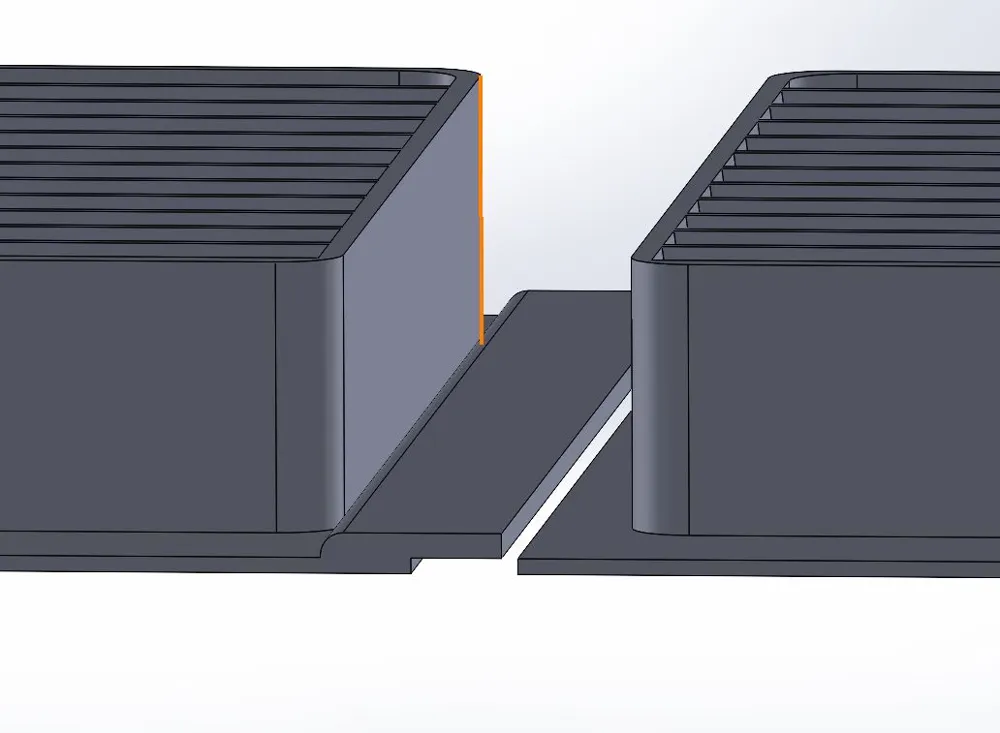

The left side has a small overhang to prevent light from entering the tent between the two parts

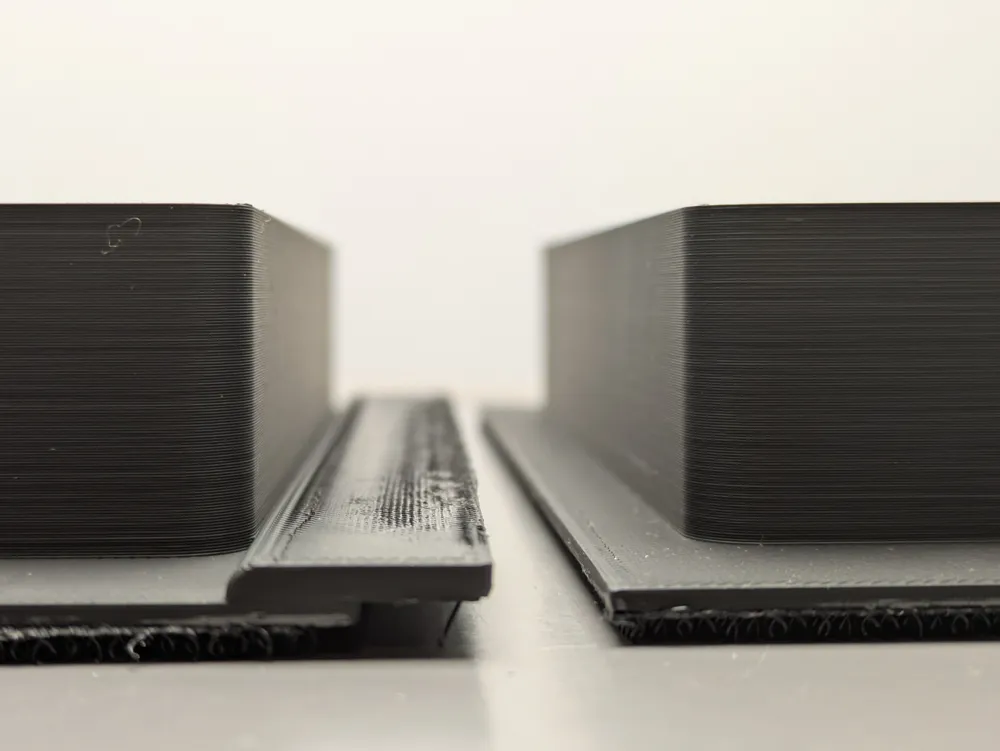

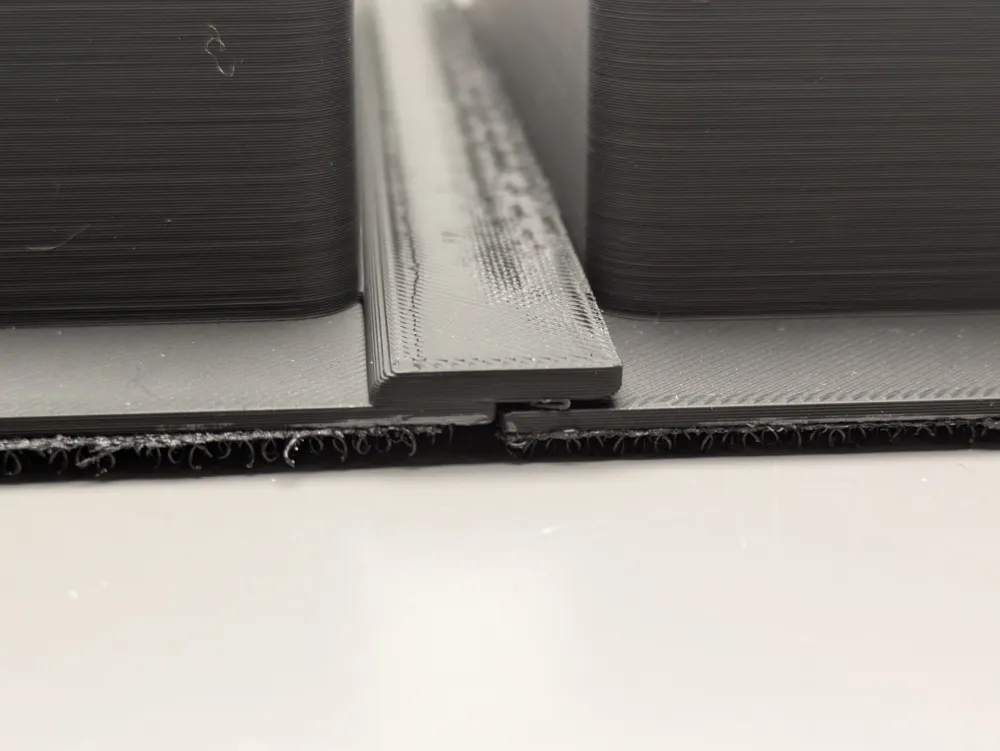

The overhang wasn't perfectly formed in my print (as can be seen in my pictures)
I then made some adjustments to the slicer settings, particularly regarding the support structure A small test print of the overhang showed me that it should now be better
I designed the part to be as material-efficient as possible

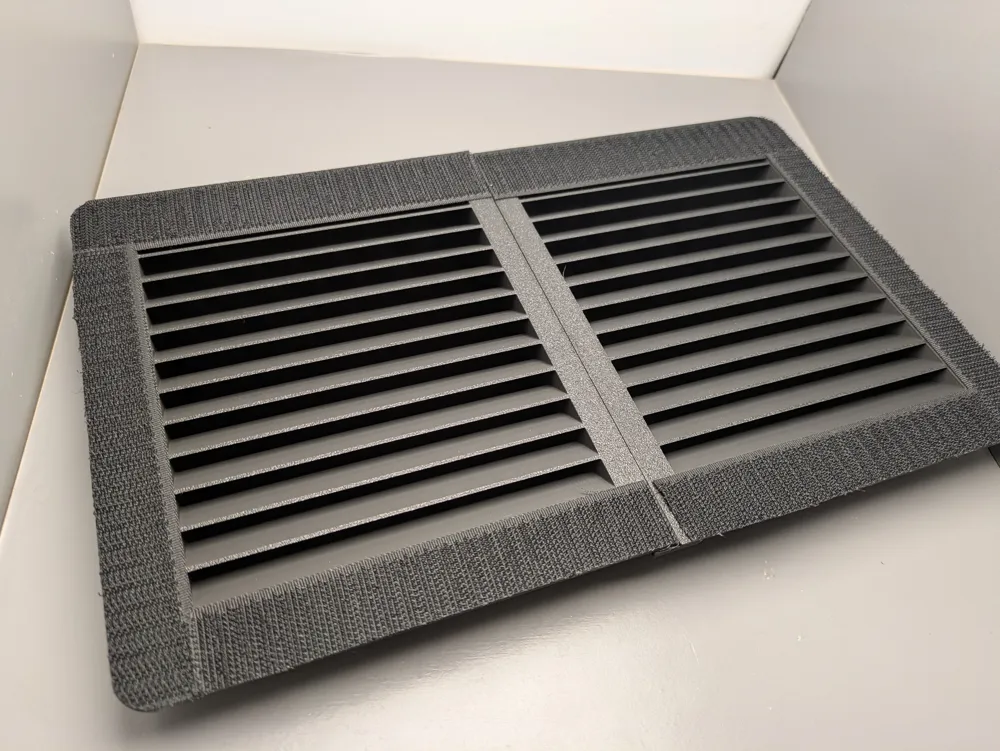

To assemble the light traps, you will also need self-adhesive hook-and-loop fastener tape (the hook sid
