Print Profile(1)
Description

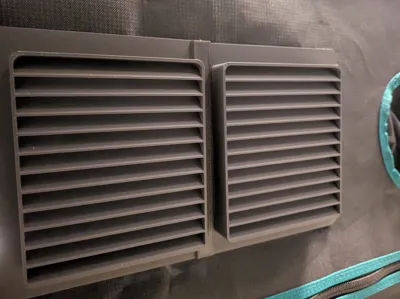

Light trap for Mars Hydro tents, to protect the tent's air inlets from light ingress
This model is suitable for air inlets measuring 300mm x 180mm
Another model for air inlets measuring 380mm x 180mm can be found here: https://makerworld.com/en/models/1102153

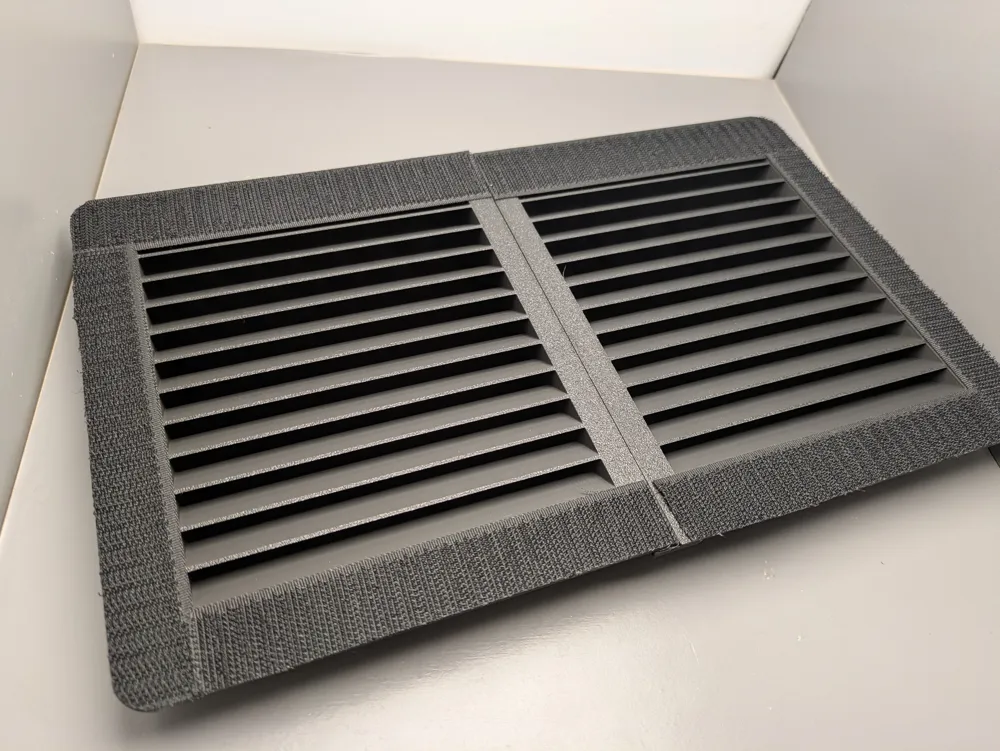

I created the light trap in two parts, as it would not fit on the print bed in one piece

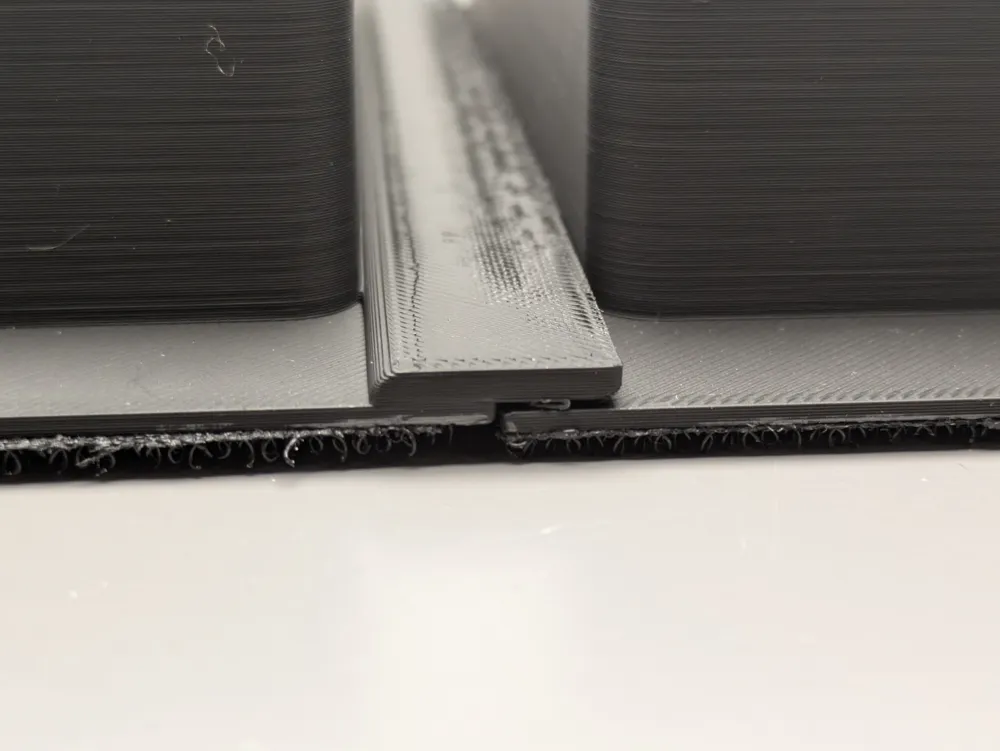

The left side has a small overhang to prevent light from entering the tent between the two parts

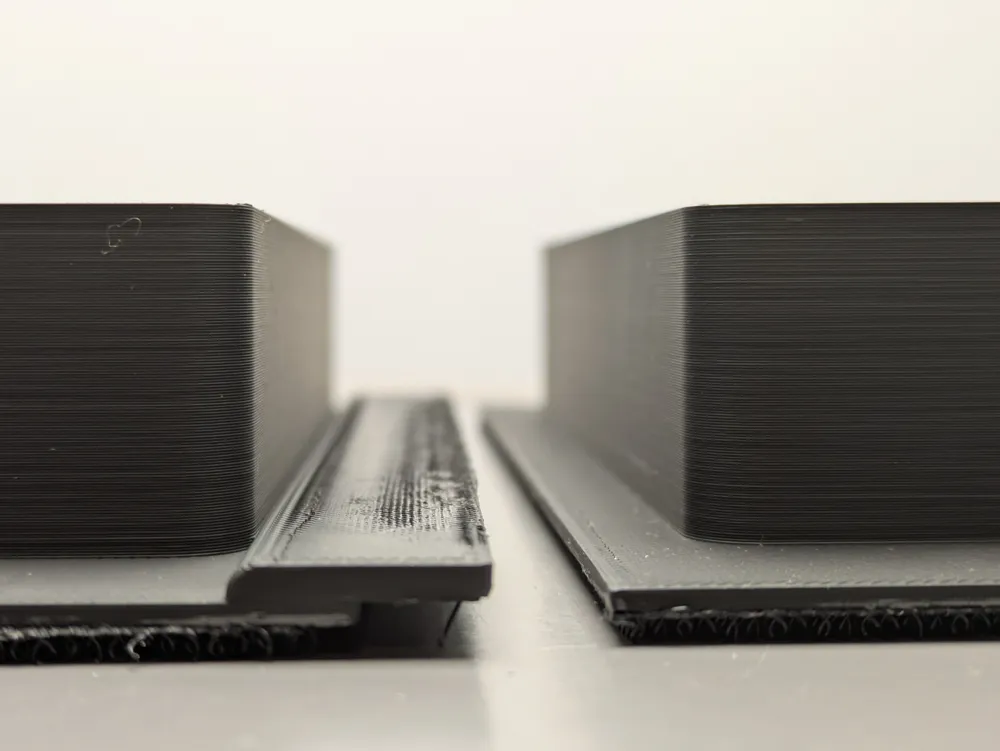

The overhang wasn't perfectly rendered in my print (as seen in my images)
I subsequently adjusted a few slicer settings regarding the support structure A small test print of the overhang showed me that it should now be improved

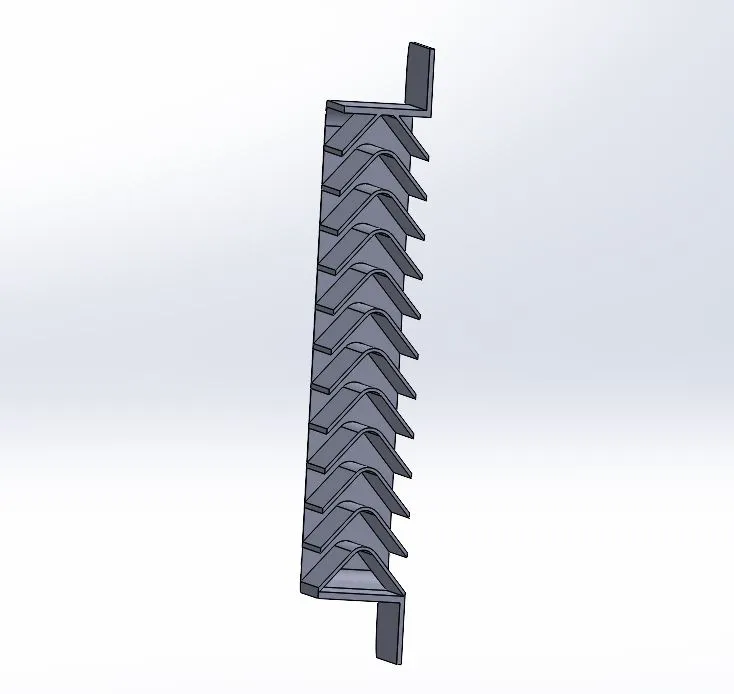

I designed the part to be as material-efficient as possible
To assemble the light traps, you will also need self-adhesive hook-and-loop fastener tape (the hook side) 20mm wide
