Mop Pole Wall Mount Filament Organizer 22mm

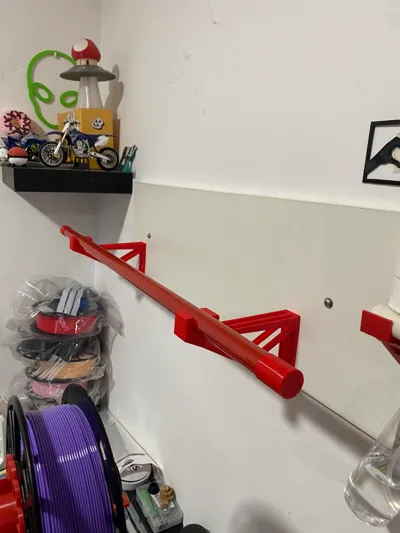

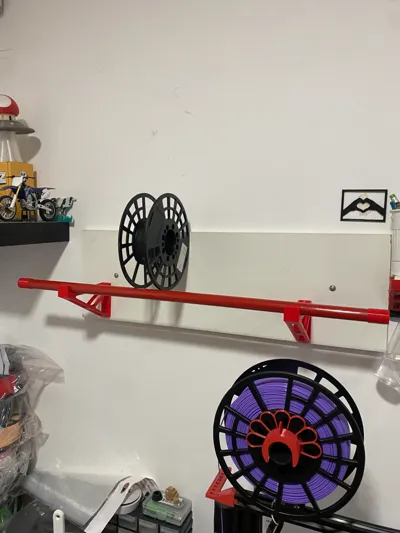

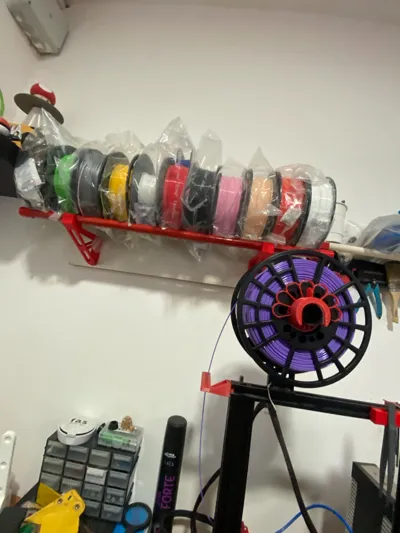

Is your workshop overrun with filament spools, leaving you without an inch of free space? It's time to unleash the power of order and sustainability! This design was born out of a real need for ORGANIZATION: I had nowhere to put my filaments in the workshop, so I decided to rack my brain and design this ultra-resistant wall mount using a broken mop handle. Long live recycling and maker ingenuity! With this mount, you'll transform an everyday discarded item into a high-strength storage system for your spools or tools. Give your workshop the professional look it deserves without overspending.

---

2. 🛠️ KEY FEATURES (Clean bullet points):

• Optimized for Smart Recycling: Specifically designed to house a standard 22mm diameter mop handle.
• High-Security Universal Anchor: Features 6mm diameter holes that allow you to screw it to the wall with a drill bit and rawlplug, or directly onto a wooden panel (OSB/MDF board style) using a self-tapping wood screw.
• Reinforced Structure Without Supports: Optimized geometry for printing completely flat on the build plate, ensuring maximum adhesion, zero filament use for supports, and an ultra-polished aesthetic finish.
• Perfect Tolerance Fit: The 22mm channel has a calculated tolerance so that the tube fits firmly and doesn't wobble under the weight of your heaviest spools.

---

3. 🖨️ LAYER-BY-LAYER FILAMENT CHANGE GUIDE:

This design is fully optimized for printing WITHOUT the need for a multi-material system (AMS/MMU), allowing you to achieve an aesthetic dual-tone finish manually and easily with any basic 3D printer.

---

4. ⚙️ RECOMMENDED SETTINGS:

• Optimal Orientation: Place the part flat on its widest side to ensure that the layer lines reinforce the tension from the pole's weight.
• Perimeters / Walls: 4 perimeters (essential to ensure the structural resistance of the screw area).
• Infill Pattern and %: 50% Infill - Gyroid or Grid pattern to support the continuous load of filament spools.
• Top/Bottom Layers: 4 top and 4 bottom layers for a solid and clean seal.
• Supports / Brim Adhesion: No supports required. No brim required if your print bed is well-calibrated. PLA or PETG material is recommended depending on your toughness preferences.
• Suggested Layer Height: 0.20 mm for a perfect balance between print speed and mechanical strength.

Download the design now, give that broken broom or mop handle a second life, and organize your printing area today! Upload a photo of your setup, we want to see how it looks in your maker corner!

Go for it and long live useful design!
