Description

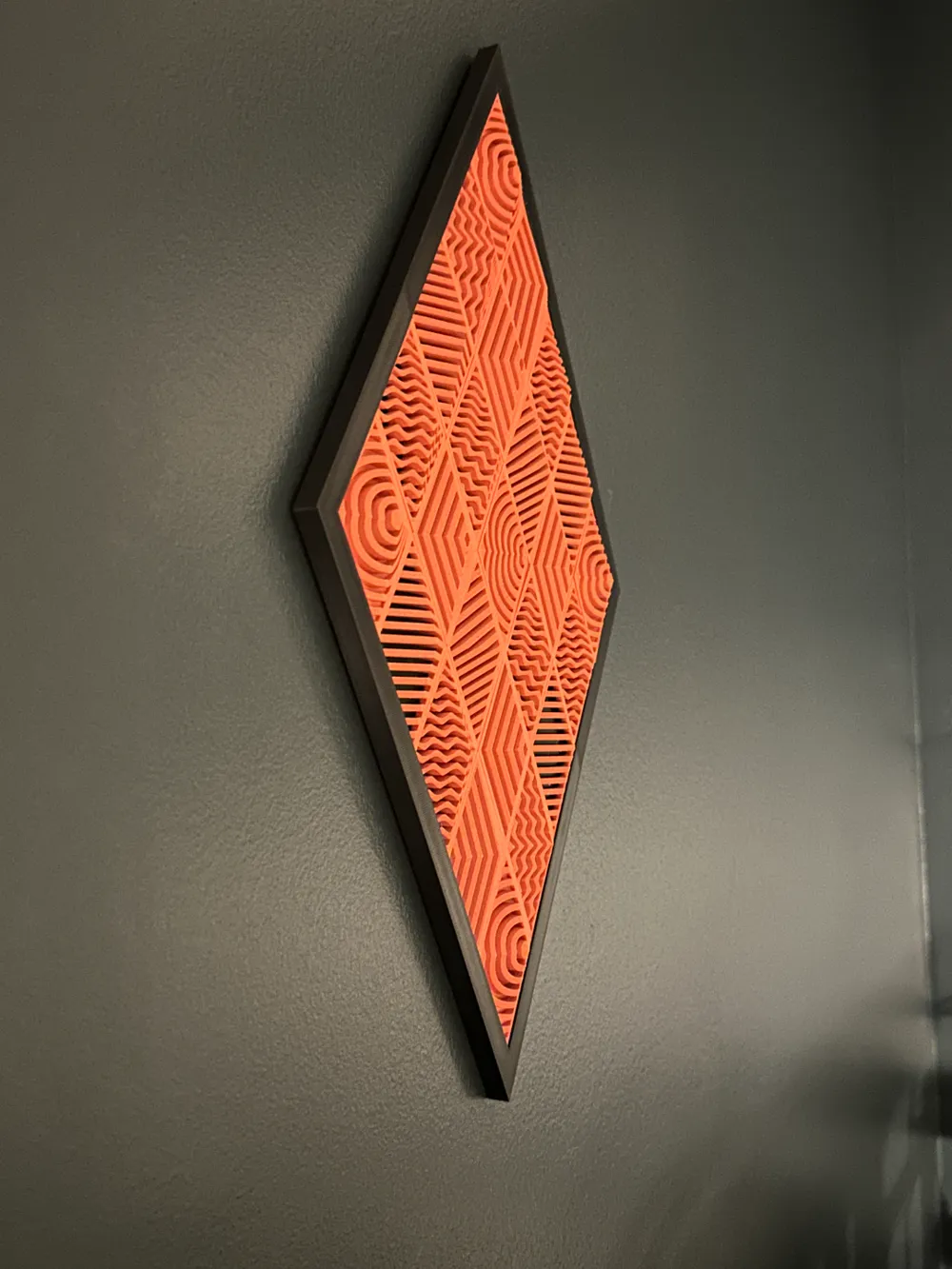

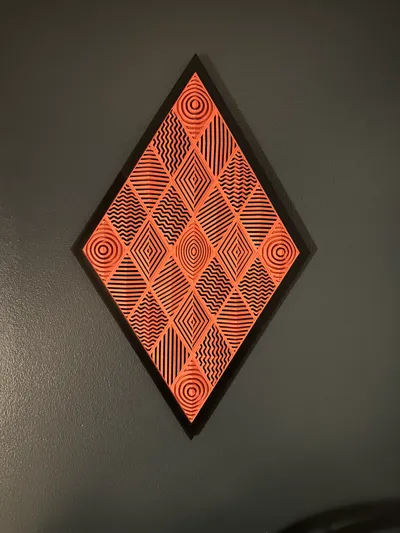

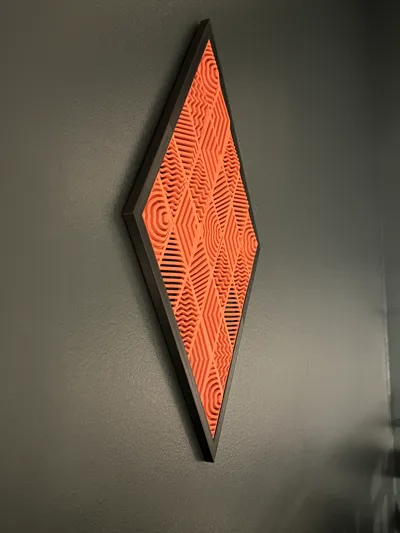

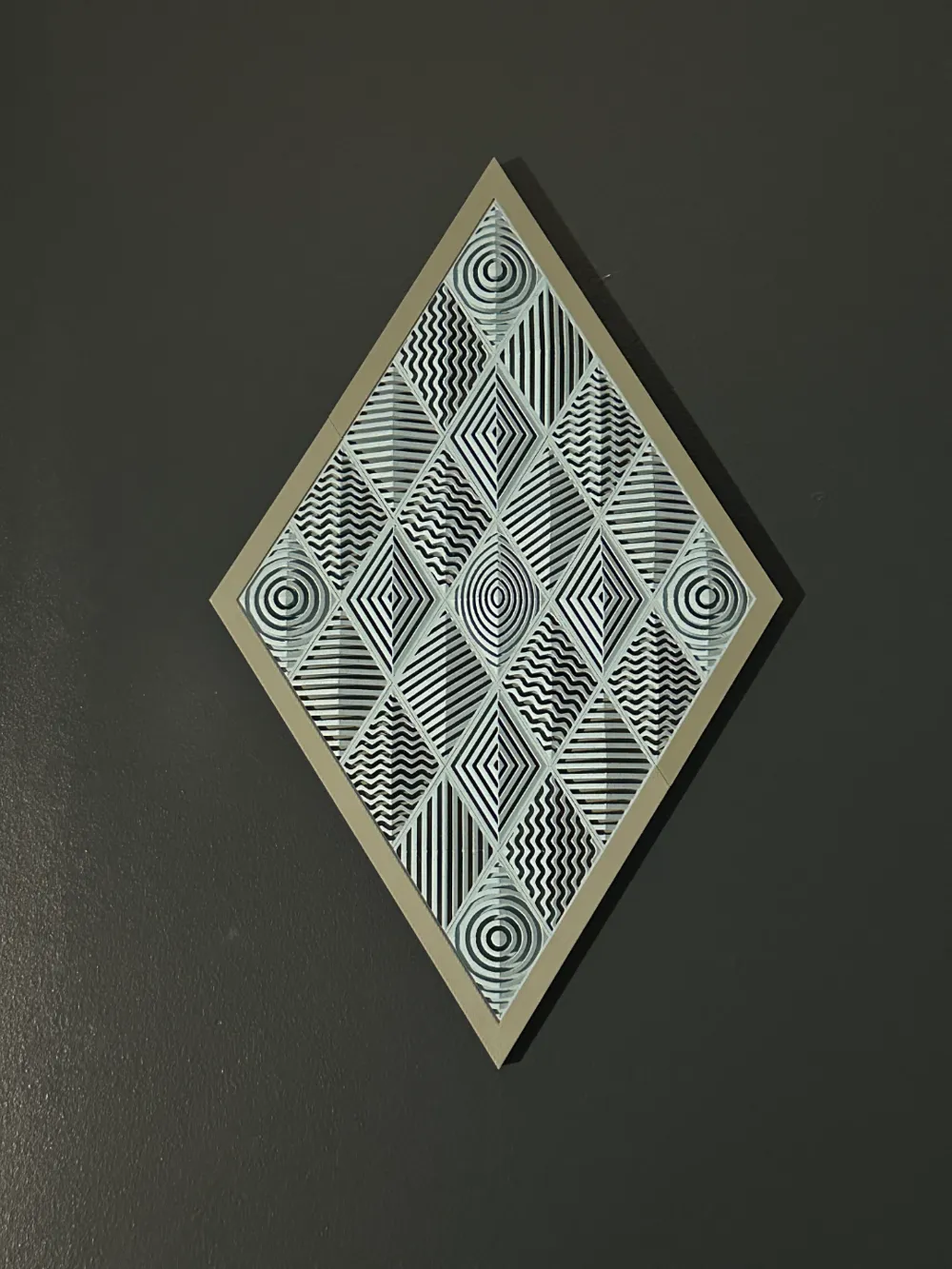

🔶 The Diamond Echo Diffuse is designed to reduce sound and add style to your favorite room! Easy to print, fun to assemble, and mesmerizing to hang, The Diamond Echo Diffuse will be your favorite 3D print for years to come! 🔶

Features:

Fun to Assemble! All pieces clip together like a puzzle, no need for glue or hardware.

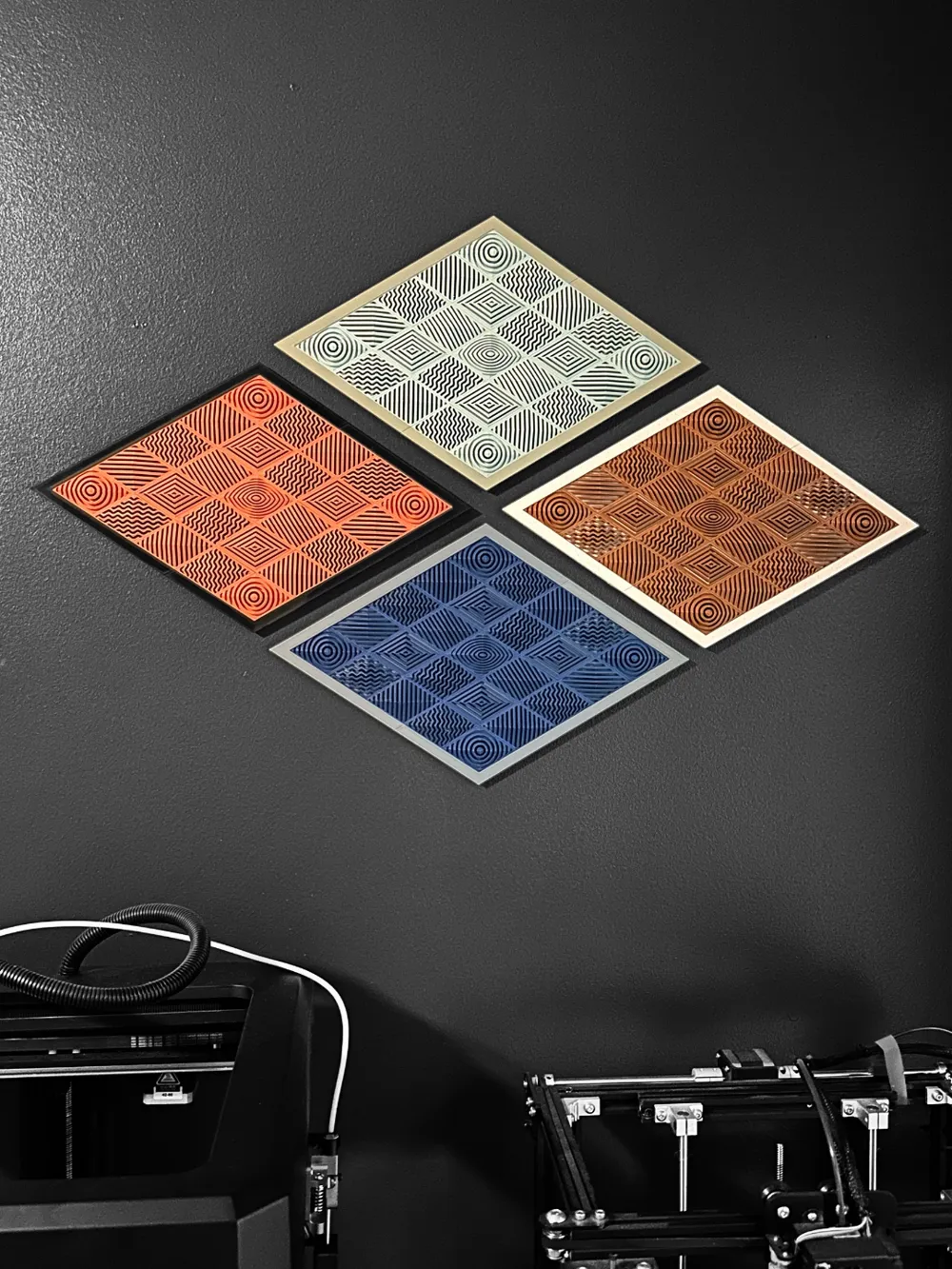

Uniquely Yours! Mix and match the diamond patterns, colors, and assemblies, making an aesthetic that's uniquely yours!
Reduce Sound 🔉 Designed to scatter and diffuse excess sound, giving your room a more natural tone!
Print with Ease! All parts are designed to print on standard 3D printer beds and clip together in assembly.

Why Choose Charleston 3D Studio?

At Charleston 3D Studio, we pride ourselves on creating innovative and high-quality 3D printed products. Each design is meticulously crafted to ensure the best user experience and satisfaction.

Boost Me (for free)

Want more fun, free, and hassle-free prints? Give us a boost to help make these unique designs possible! Your support lets us keep creating memorable designs for every occasion.

Comment & Rating (6)

@user_790906830

Easy to print and easy to assemble. I wonder if it works to diffuse acoustic - but it looks really great. Printed with two-color and three color silk filament which show great effects depending on the brightness and source of the light. Printed with Snapmaker U1 (as my A1 printer is still defect).

@OndraDvoulety

Hello, looks like something I was searching for, is the panel open for to being filled in from the back by double sided tape and acustic insulation? Thanks a lot

The designer has replied

@Charleston3D

Not currently, but that would be a good upgrade. It does a decent job of scattering/ diffusing sound waves even without acoustic insulation. One person printed 4 of them and tested in a small/medium sized room and shared that they got ~ 20% noise reduction. I don't have the equipment to confirm that personally, but have noticed it has helped dampen noise in my office.
