Description

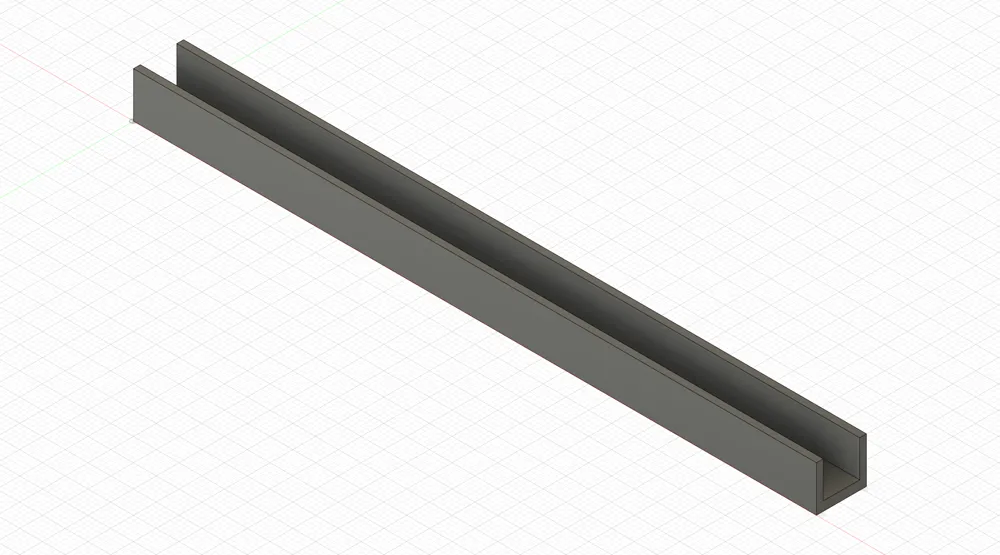

LED light strip with diffuser lid. Basic and simple. use 2 sided tape to attach to any surface.

150mm long

Comment & Rating (166)

@user_1624726749

Print Profile

0.28mm layer, 2 walls, 15% infill

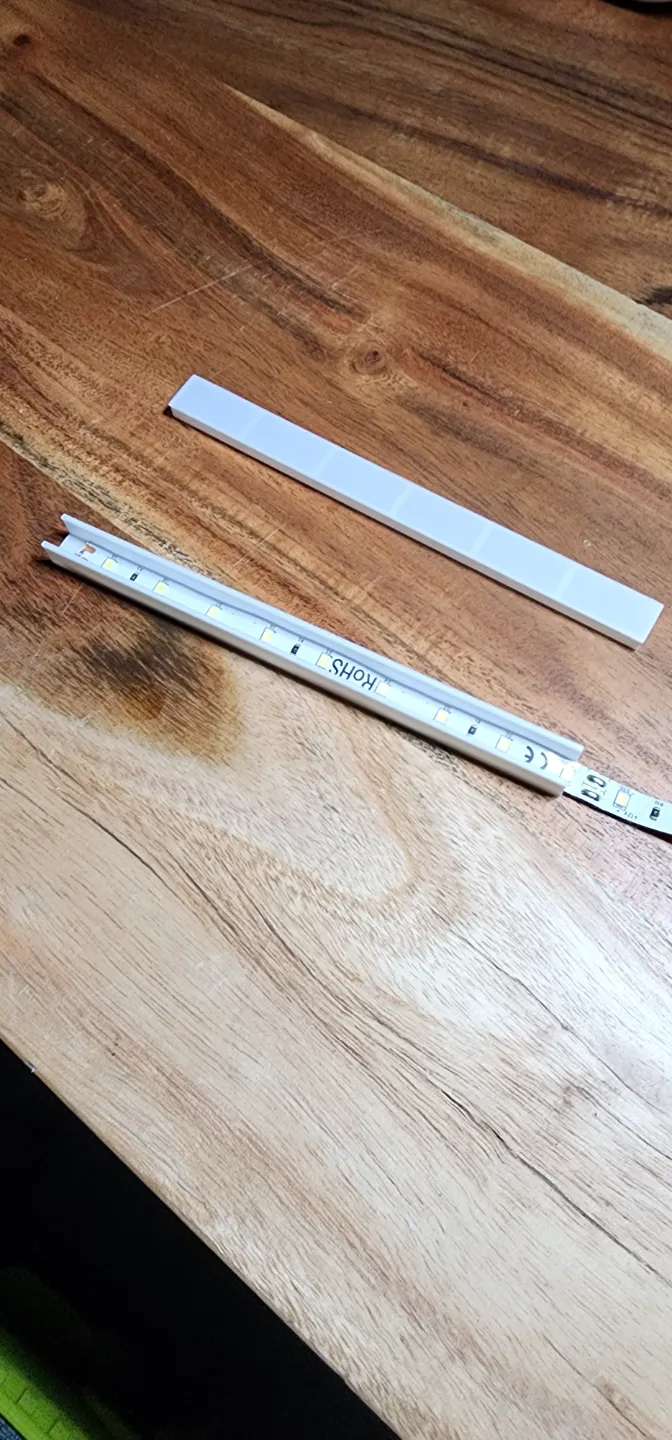

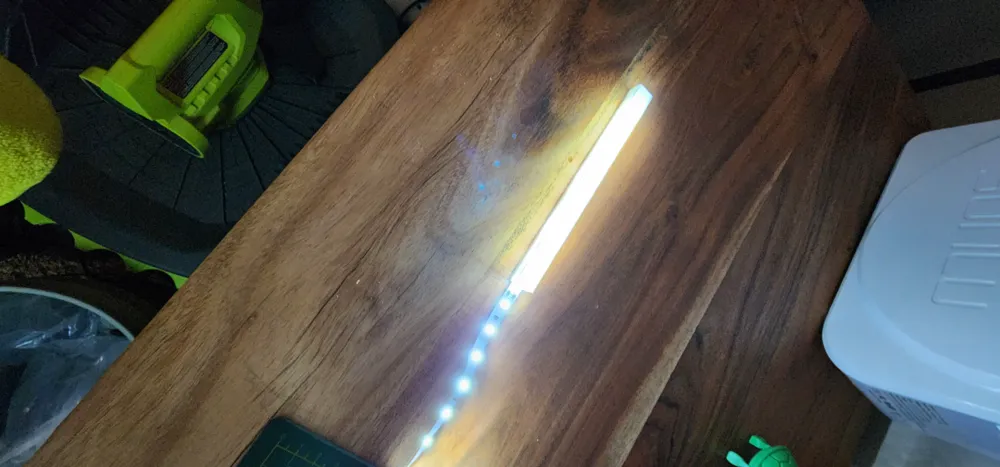

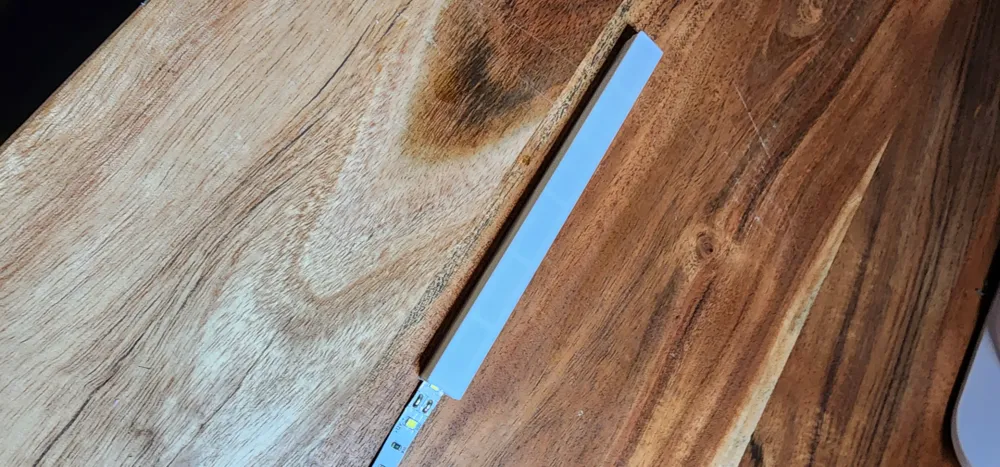

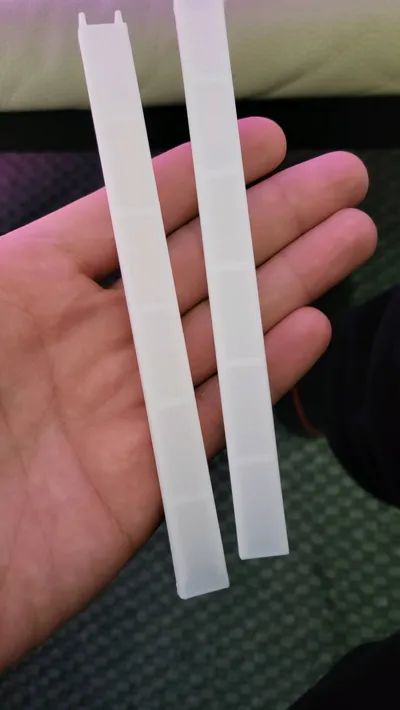

Great idea and printed very well. Printed 1 in white and 1 in clear just to see the difference. Thanks for designing! EDIT: adding the Pic with the lights attached, the clear is brighter but there white looks fine too. The clear is on the left - white on the right.

(Edited)

@ProGolferChubbs

do you have a comparison shot of them when the LEDs are on?

(Edited)

@amol

Which one is good?

(Edited)

@ALKY210

also curious of the difference

@will.breneman

Print Profile

0.28mm layer, 2 walls, 15% infill

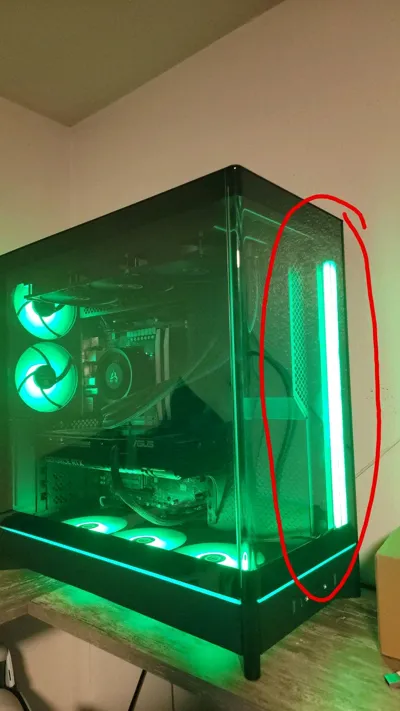

wanted to add a touch more rgb to my case and had some extra ws2812b leds laying around, so stretched this design to 330mm and went diagonal on the bed, came out great and hooked up to a spare mobo argb 5v header I had open. thanks for the design!

@Geo502

looks great thanks for sharing this idea!

@Linux3D

can you control it via argb software?

@Turbojuergen

Replying to @Linux3D :

if you hook it up to a microcontroller running wled you can control it via various software

@MochaFanatic10

Print Profile

0.28mm layer, 2 walls, 15% infill

super 👍

@Alex_Pex

Print Profile

0.28mm layer, 2 walls, 15% infill

Other Issues:The light diffusion is really better than the strip alone, however it could be improved since the model doesn't provide a way to join multiple prints. The fit of the two parts is a bit loose and the top part tends to slip away if used vertically,

@jifyyyyyy

Glue?

@dommedruckt

Print Profile

0.28mm layer, 2 walls, 15% infill

Solely the covers failed to remain securely affixed

Show original

@TheTallTom

Print Profile

0.28mm layer, 2 walls, 15% infill

A bit tight for 8mm

Show original

@landcaster

if it's tight for 8mm... how come it fits on my 10mm snugly?

@samu_dus

Print Profile

0.28mm layer, 2 walls, 15% infill

Works well, unfortunately a little short and the struts are also somewhat obstructive, thus rendering the diffuser unnecessarily bulky It would also be stable without the struts

Show original

@landcaster

a little short? ...but ...i'm sure you can figue out that you can print multiples of these to fit whatever length you need, right?

(Edited)

@Collinthe3dkid

looks and works great!

@AtomXinfinity

Print Profile

0.28mm layer, 2 walls, 15% infill

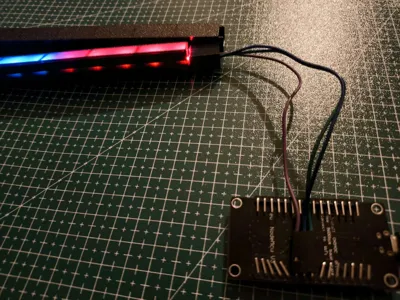

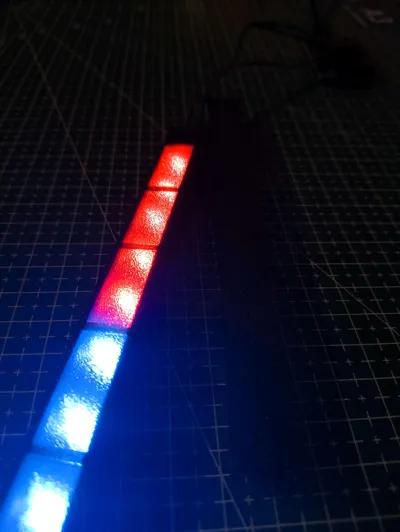

I had to make some adjustments and slight design changes but after afew trials this is what I made.🎊 portable ARGB light stick with Wled and Esp8266 🎁 Thanks for this model!
