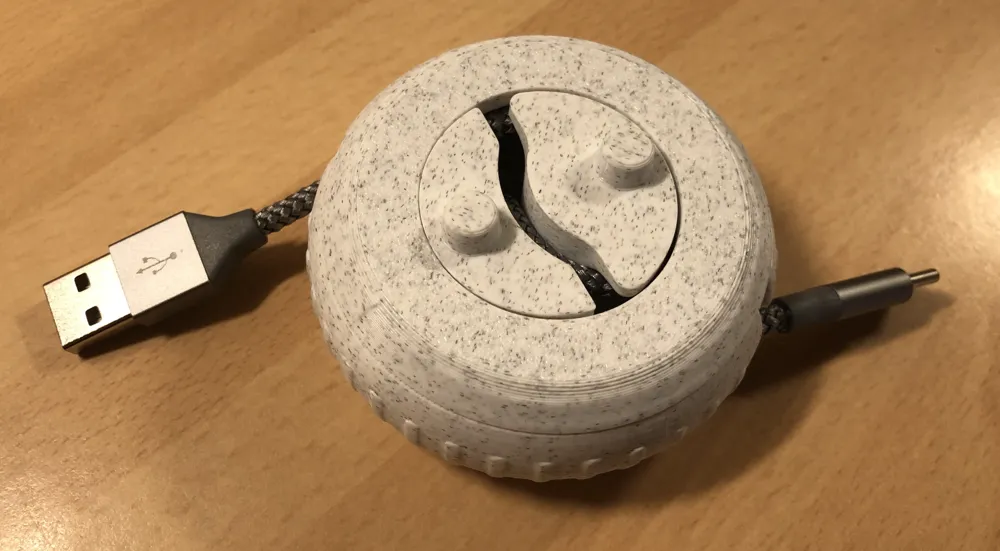

Portable Cable/Cord Winder Pucks V2

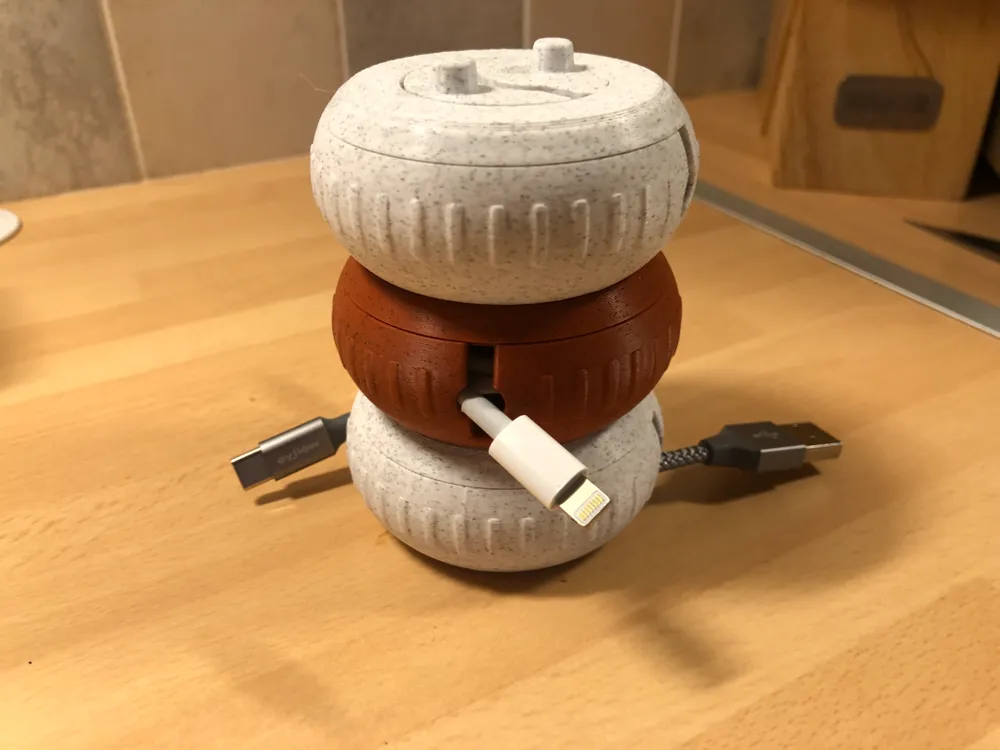

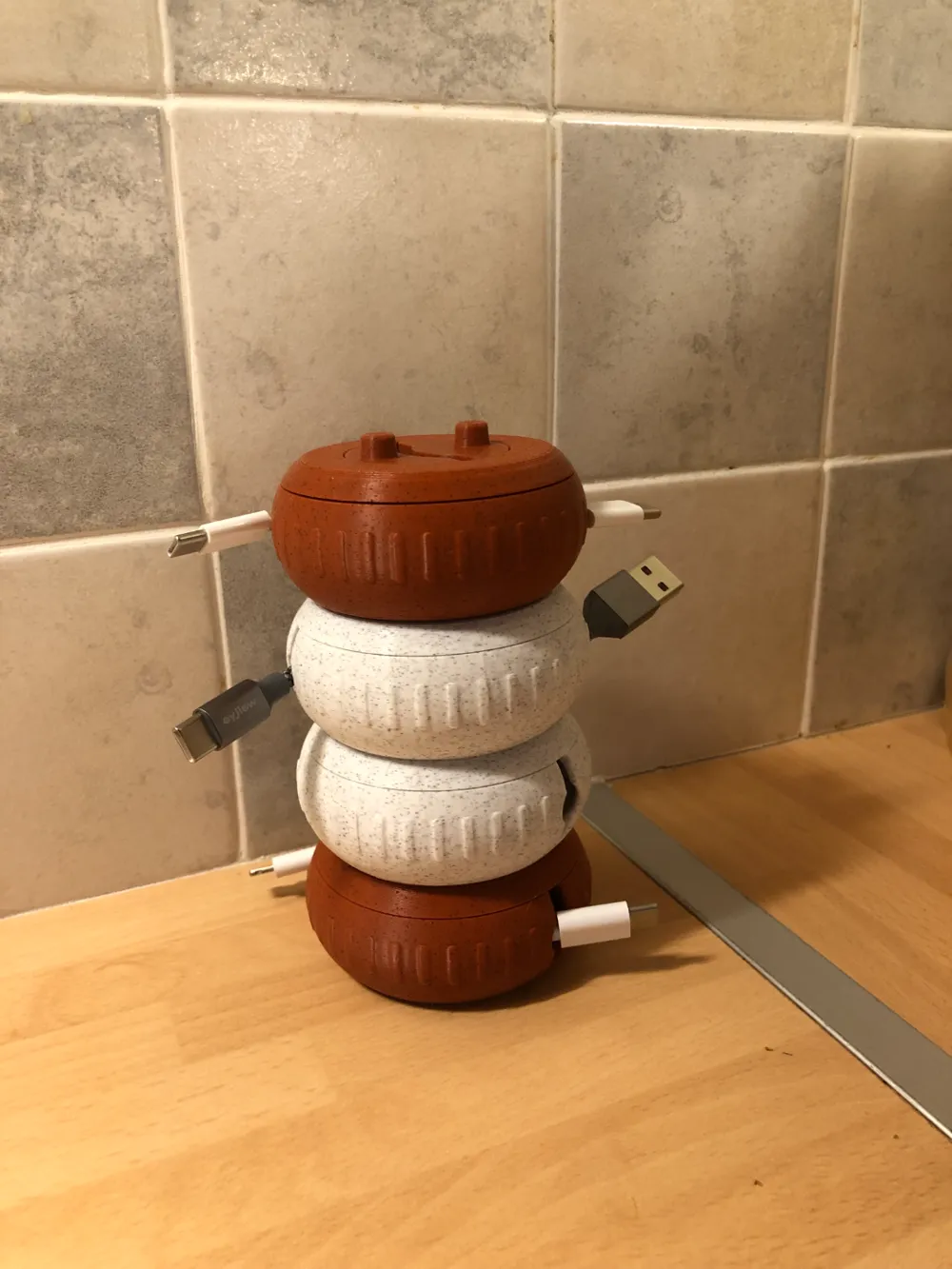

Another version of these popular stack-able phone cable management winders, this V2 version caters for standard 1 meter phone and the braided cables as well.

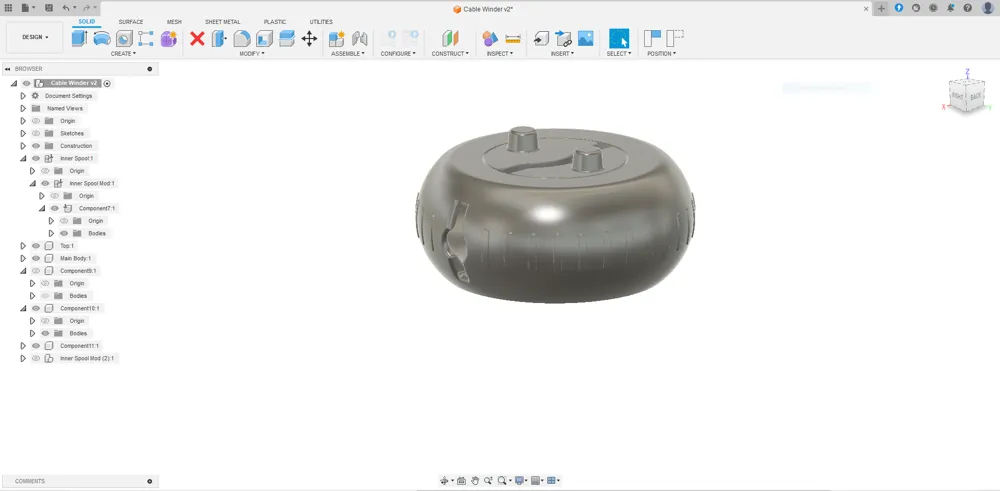

A friend asked me if I could make him some winders and I thought at the same time I would do a Fusion 360 tutorial on how I would go about designing the winders on the Instructables platform.

Anyone who would like to get into designing please feel free to check out the Instructable which is in depth and has around 40 screen shots.

https://www.instructables.com/CableCord-Winder-Print-in-Place-Pucks-Stack-able/

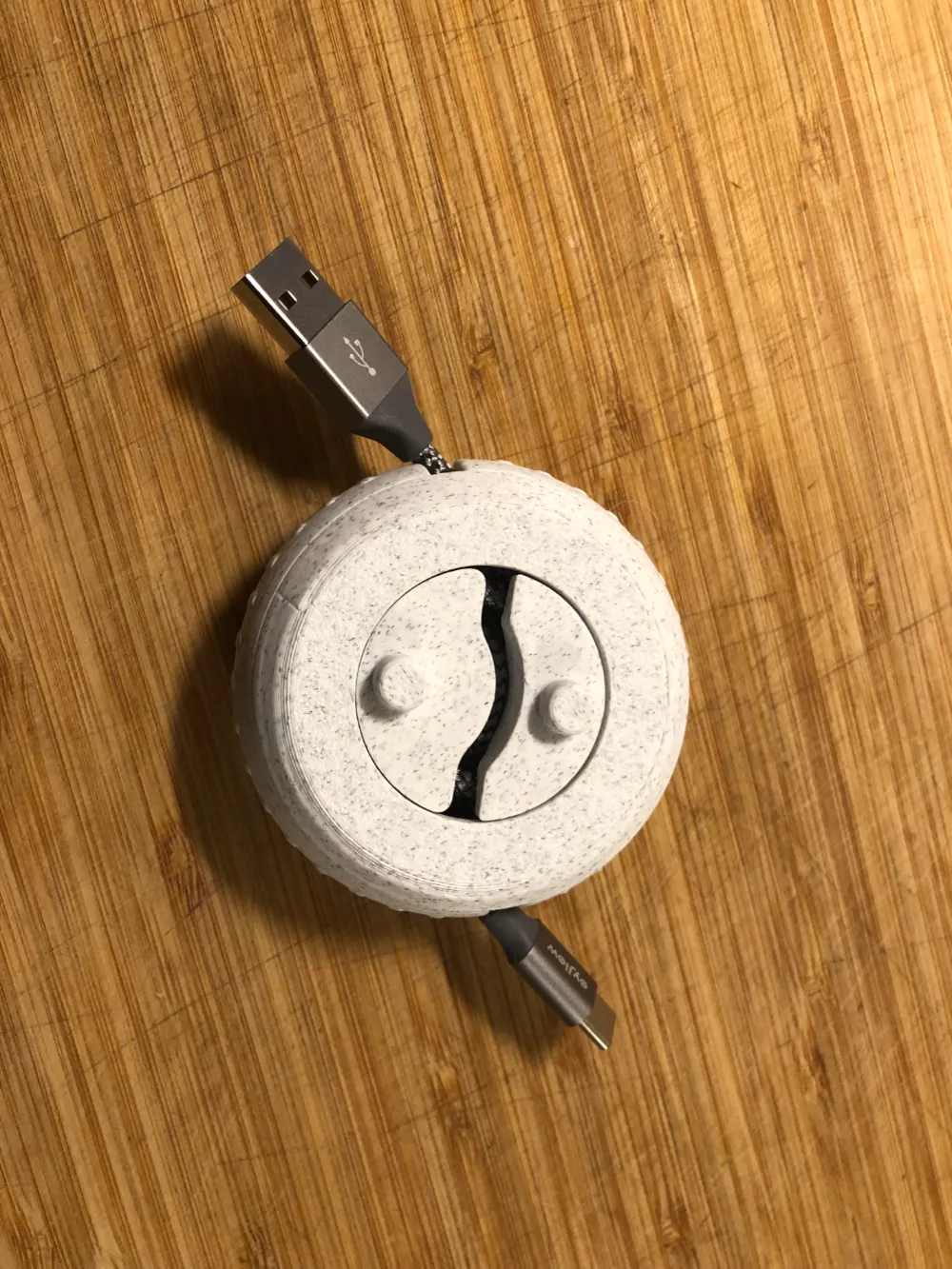

The chamber is both concave on the inner spool and outer body making for a better cavity to put less strain on cables.

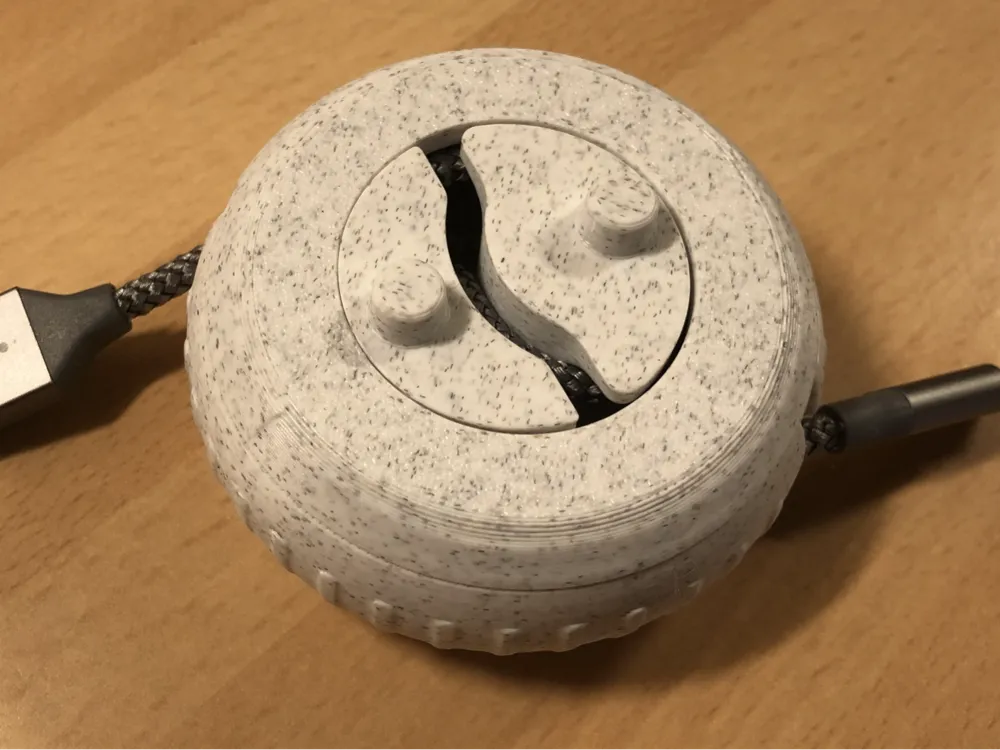

I have added grips to the outside of these pucks.

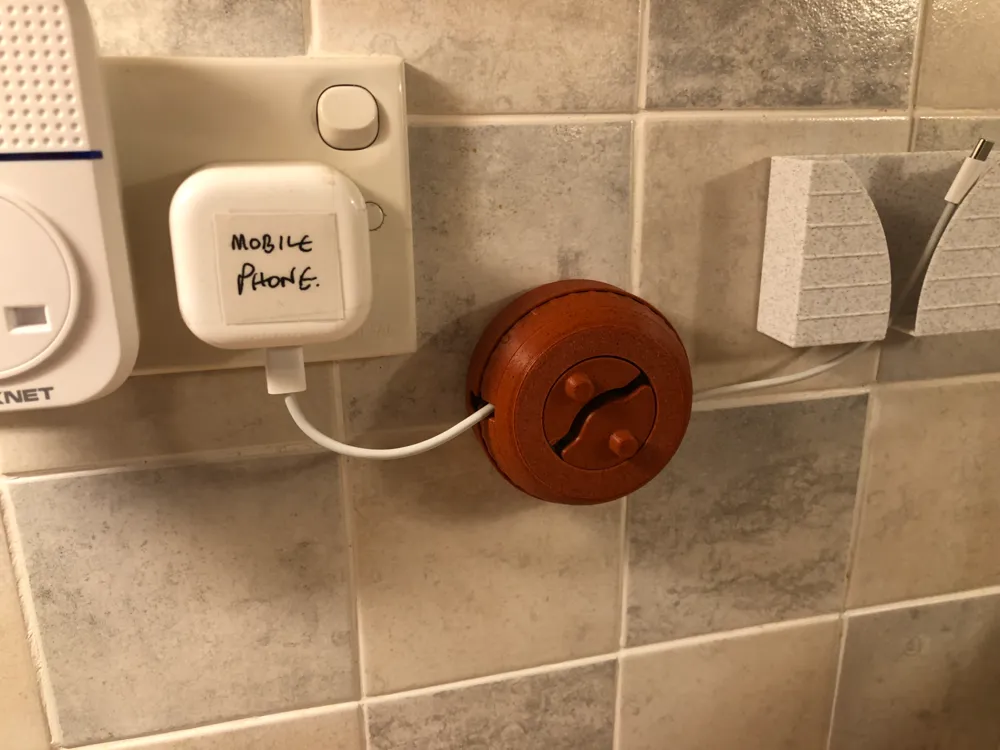

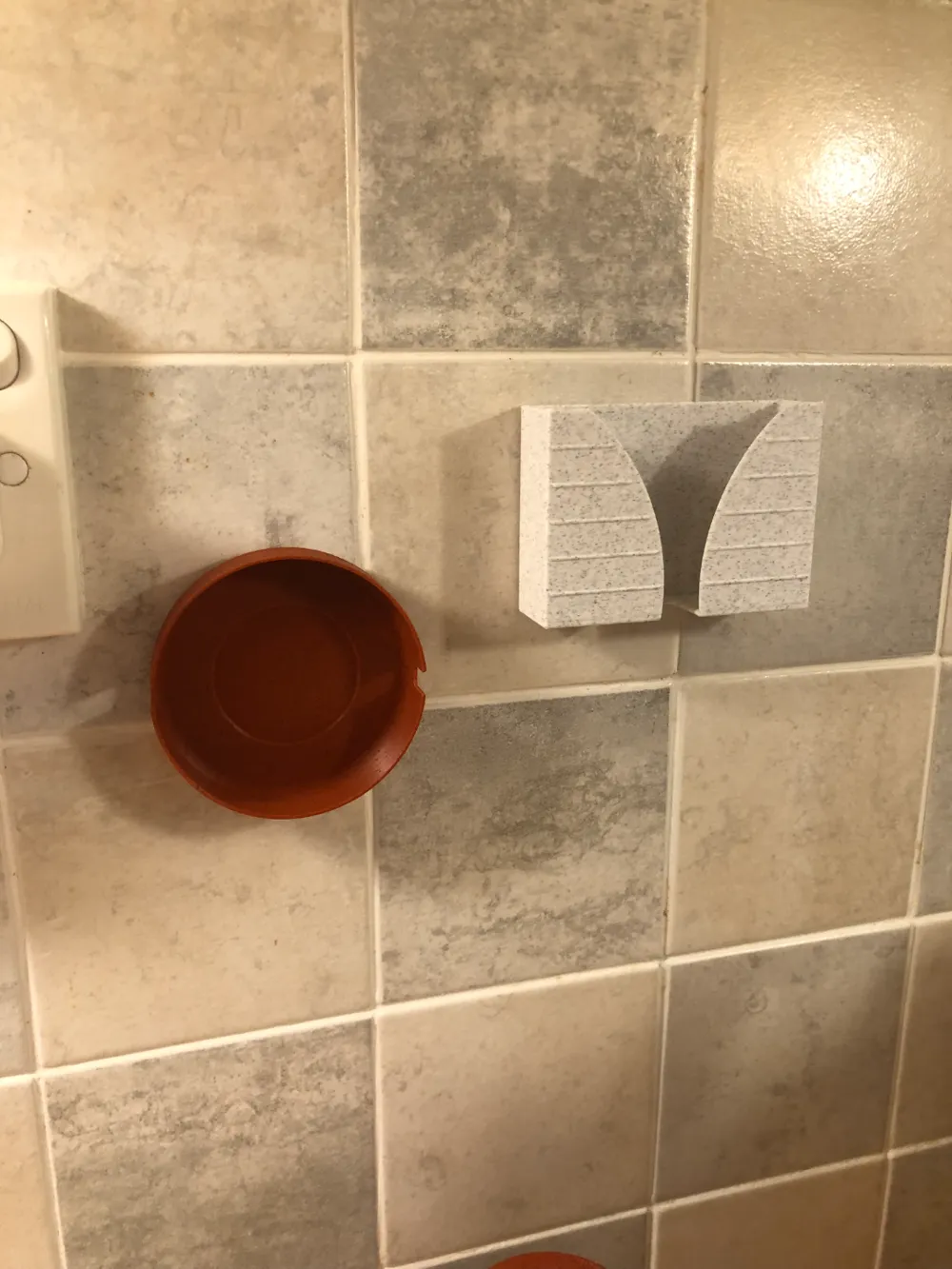

The files include Wall mounts for both winder and phone.

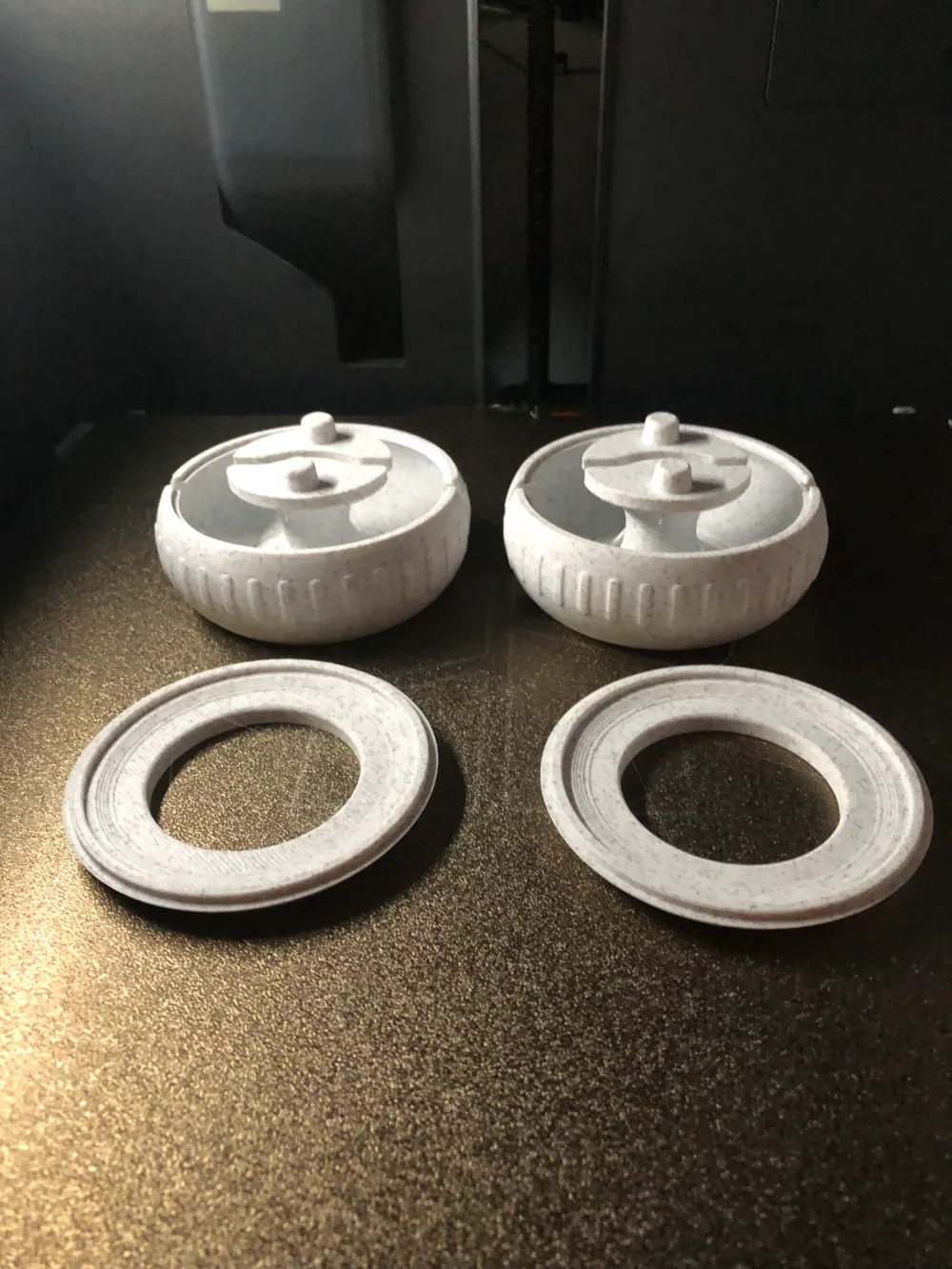

The inner spool and the Outer Body are print in place.

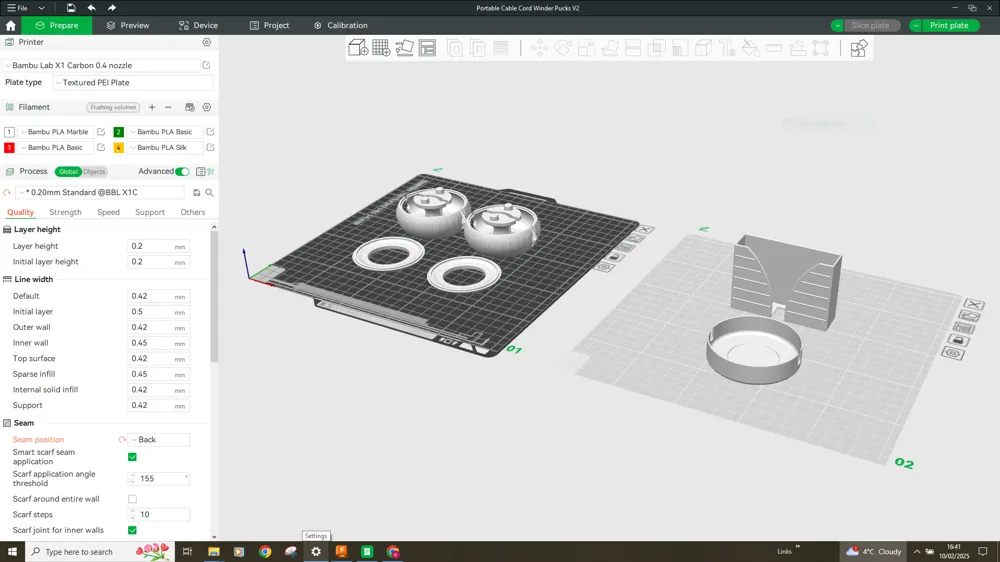

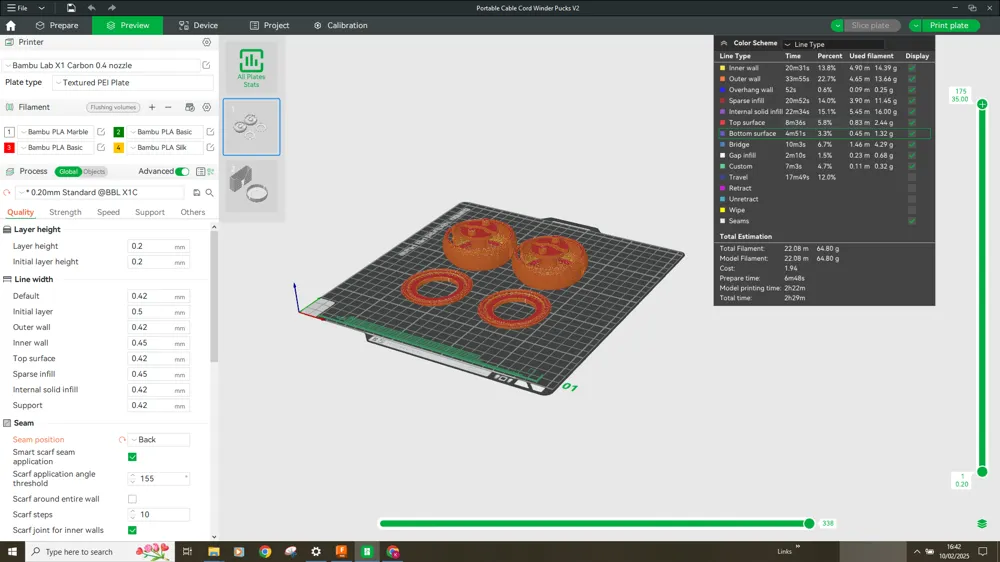

The 3mf file includes the wall and phone mount on a separate build plate.
