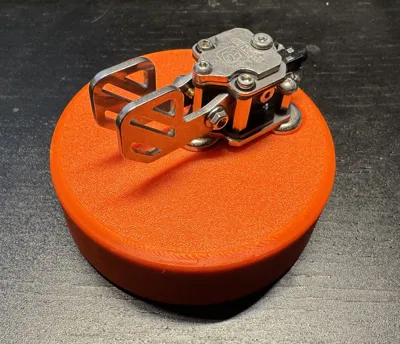

CW / Morse key heavy magnetic base

CW key base:

• heavy (1.1kg with the key)

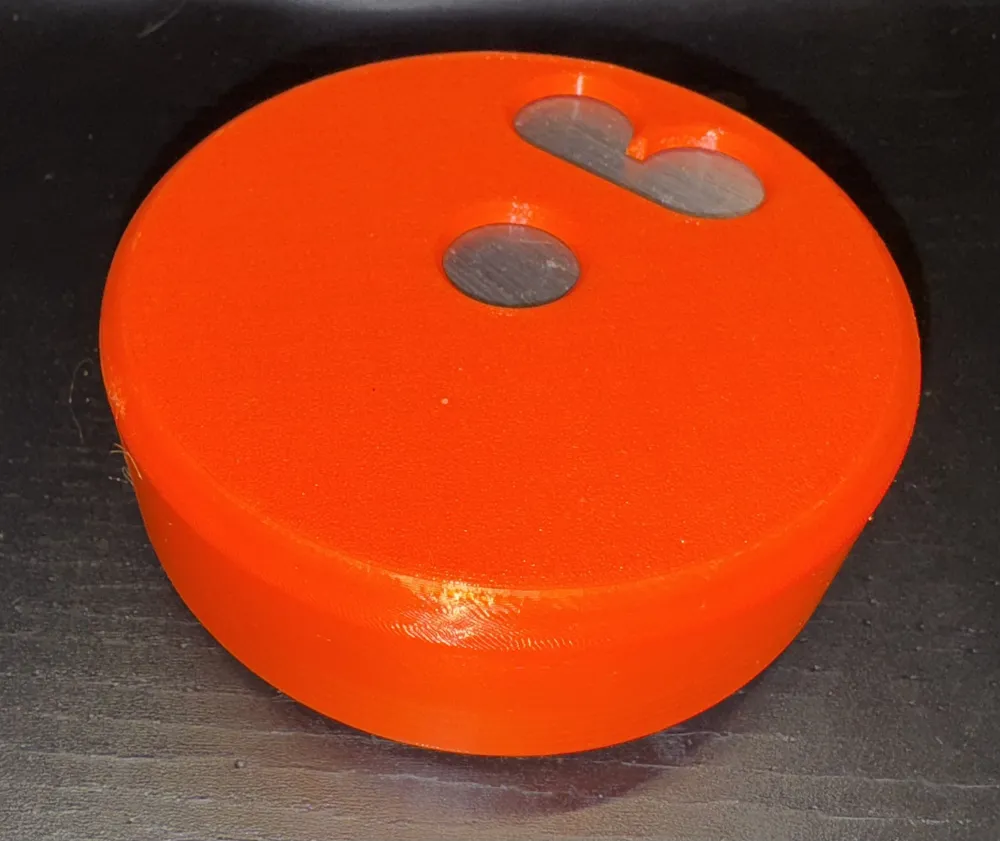

• magnetic key latch on the base

Materials:

• cheap CW key from aliexpress (in my case https://pl.aliexpress.com/item/1005003402252364.html )
• 90x20mm steel cylinder, bought from local ebay-like site ( https://allegro.pl/oferta/pret-okragly-stalowy-fi-90mm-1-5-cm-14931138058 ; custom 20mm height ordered). Raw edges were sanded for smoothness.

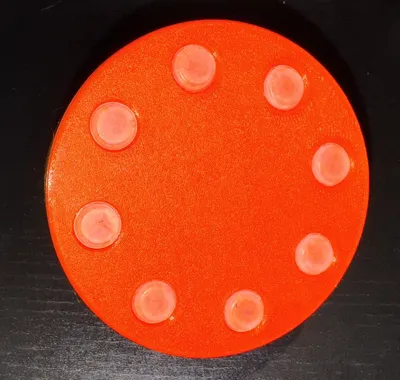

• 6x 10mm diameter, 3-4mm height soft (for better grip) silicone feet (that I already had)

Printing:

• printed from PETG
• entire bottom cover was printed with 0.08 layer height (to get nice thread)
• top cover printed with variable layer height. 0.2mm default but 0.08mm where thread and top filet is
• supports enabled

Fusion / step files are available.
