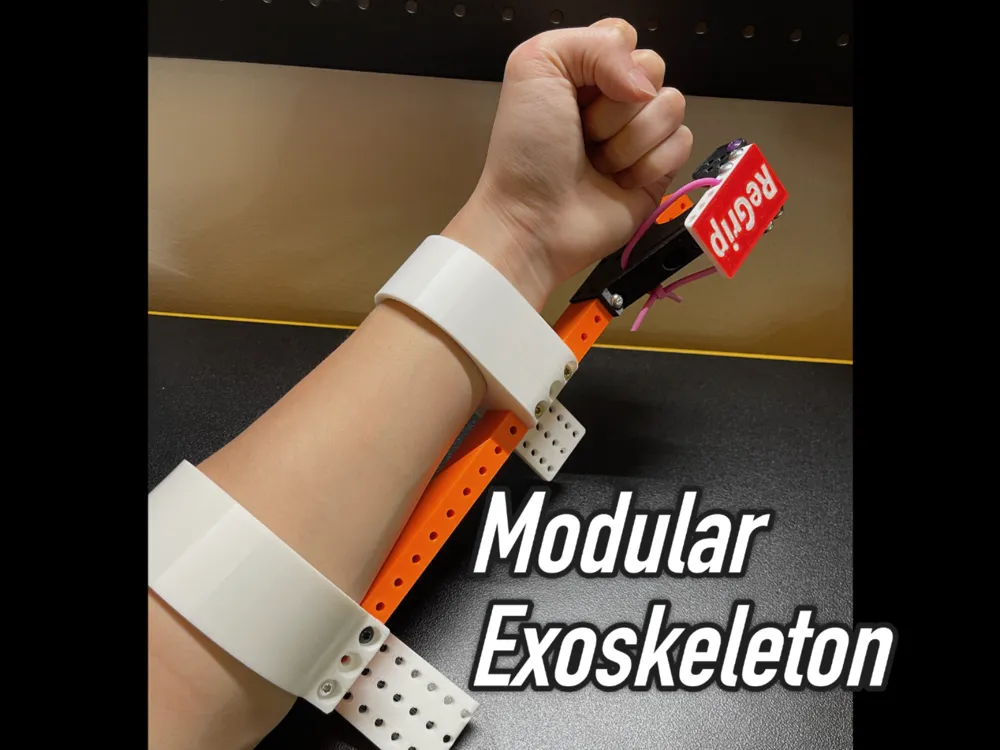

Arm Exoskeleton Brace – Modular

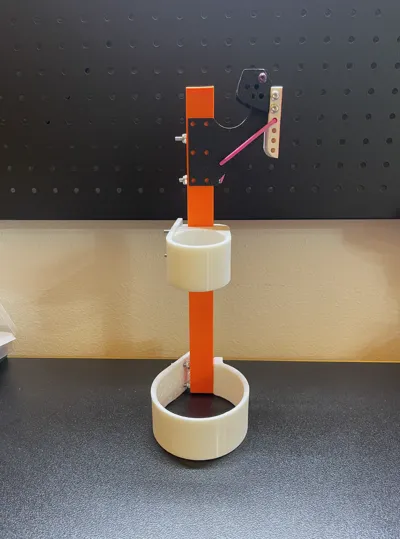

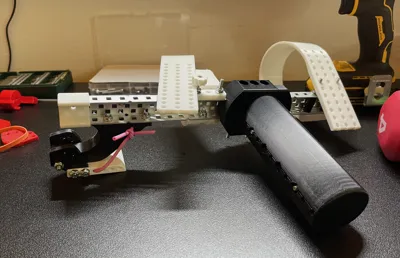

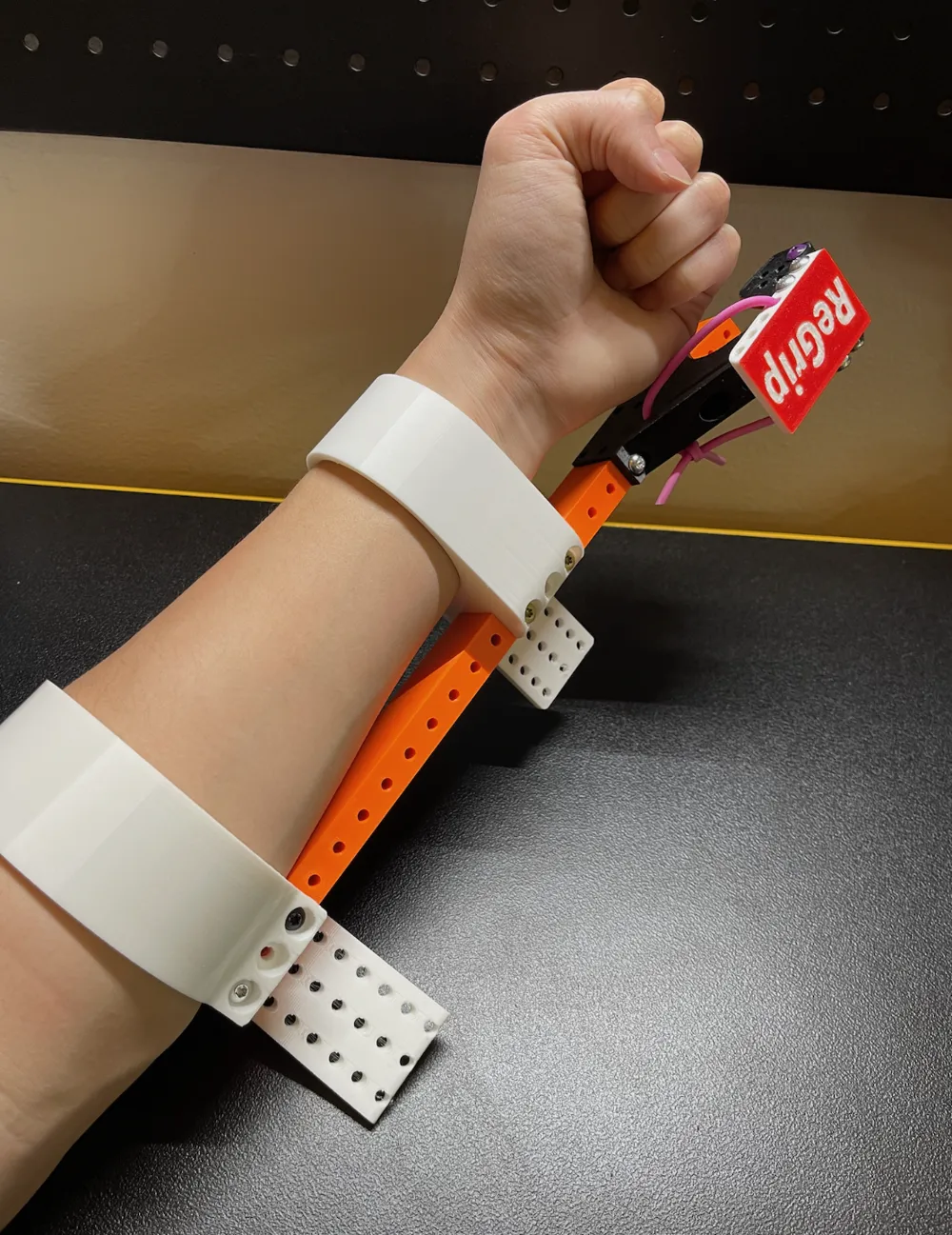

This is a modular arm exoskeleton designed for interchangeable attachments.

Included Attachments:

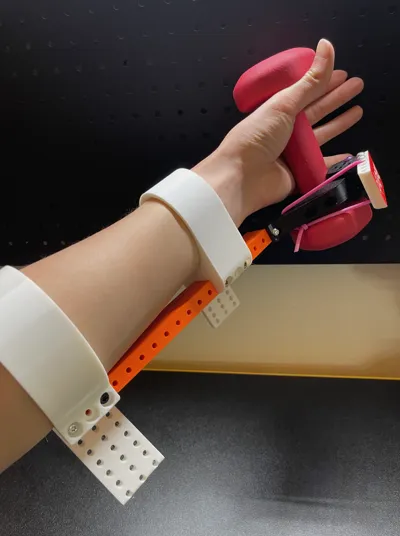

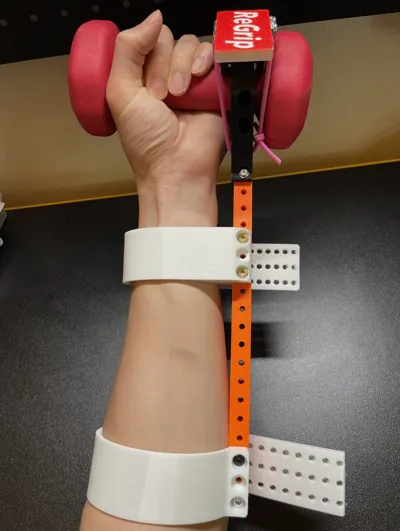

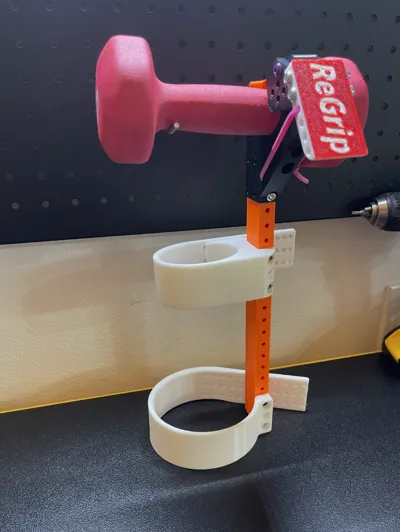

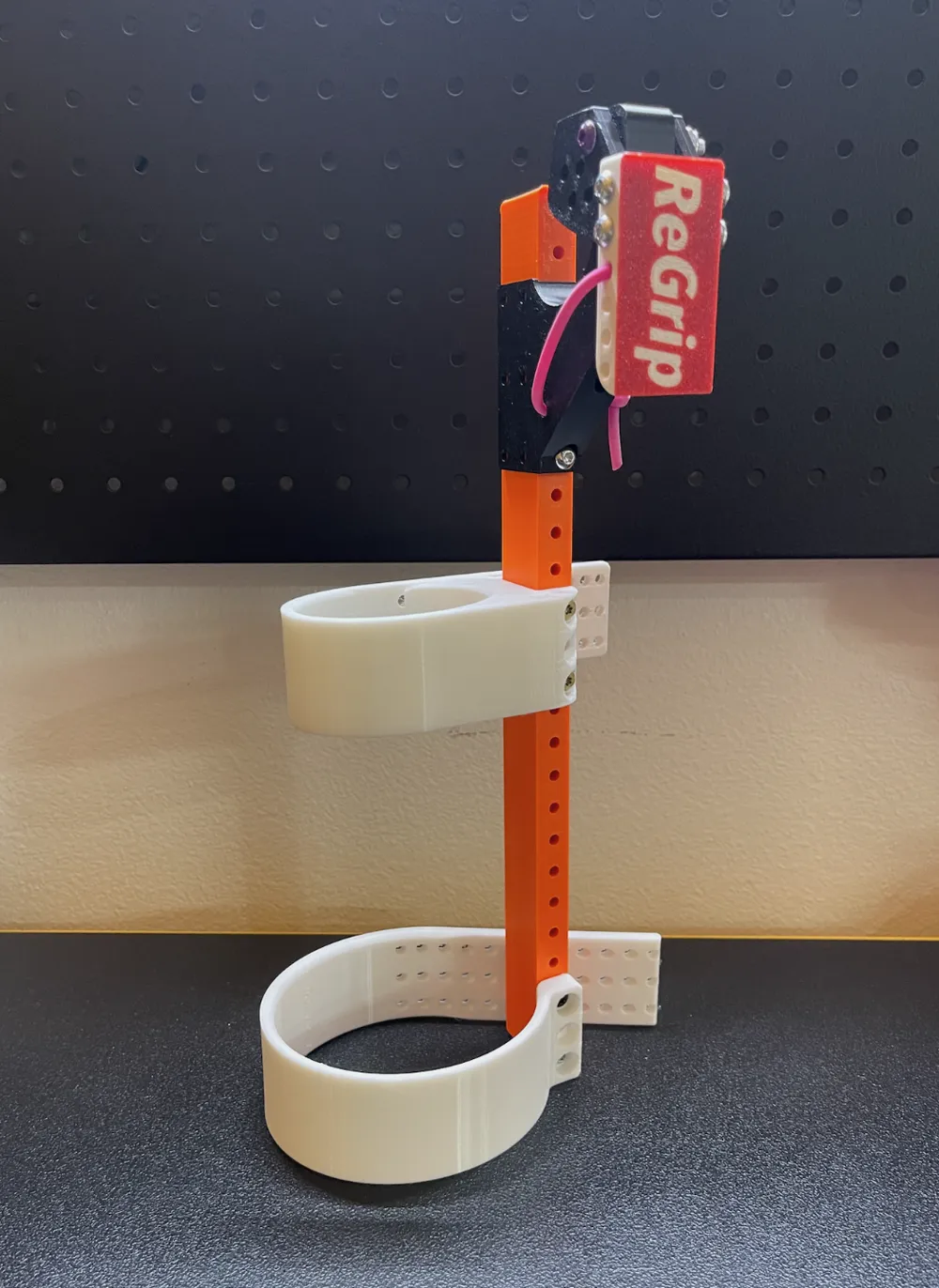

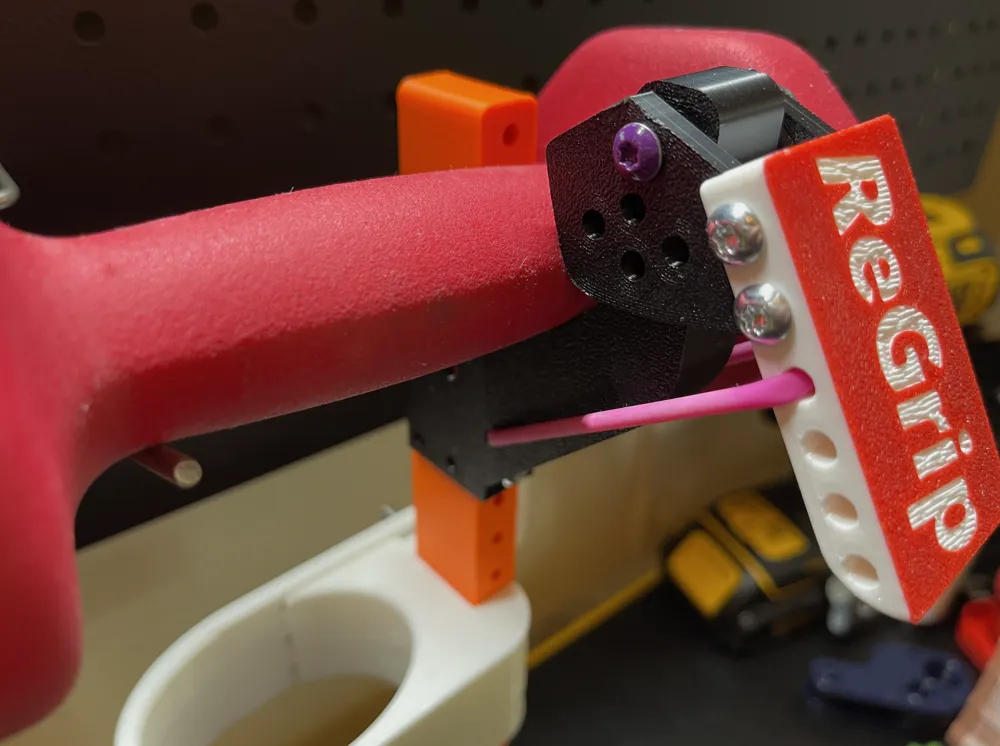

1. Gripper Module “ReGrip” – Fully designed to securely hold cylindrical objects such as dumbbells and barbells, ideal for gym applications. Required a rubber band and screws.

• Print the two straps using TPU, other parts can use any material. (I used ABS)
• Assembly requires 4mm diameter screws (M4 or #8-32 UNC as the imperial equivalent) with a length of 35 to 55mm and nuts.
• The rod piece is interchangeable with a VEX C-channel off-the-shelf component.

The exoskeleton is ergonomically designed for comfort. It has been tested under weight-bearing conditions in the gym.
