Magic Dry Erase Token Box, fits Infinitokens

DETAILS

This model is based off of Magic the Gathering Dry Erase Token and Marker Box by BigBowlkowski. He was nice enough to share the STL with me so that I could tweak the design a bit to allow the disc openings to be a little larger so they would fit the official Infinitoken counter discs.

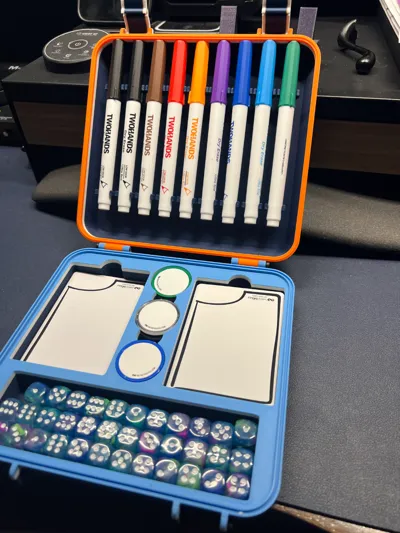

2 stacks of standard size dry erase tokens, as well as the dry erase ability counter discs. Compartment for dice or other accessories. Lid holds 9 small dry erase markers, around 10.5mm-11.5mm in diameter. I used these.

PRINTING

Print as aligned in file, no need for any supports. Most of my filaments printed fine without a brim, but there is one added to be safe. Feel free to turn that off.

CONSTRUCTION

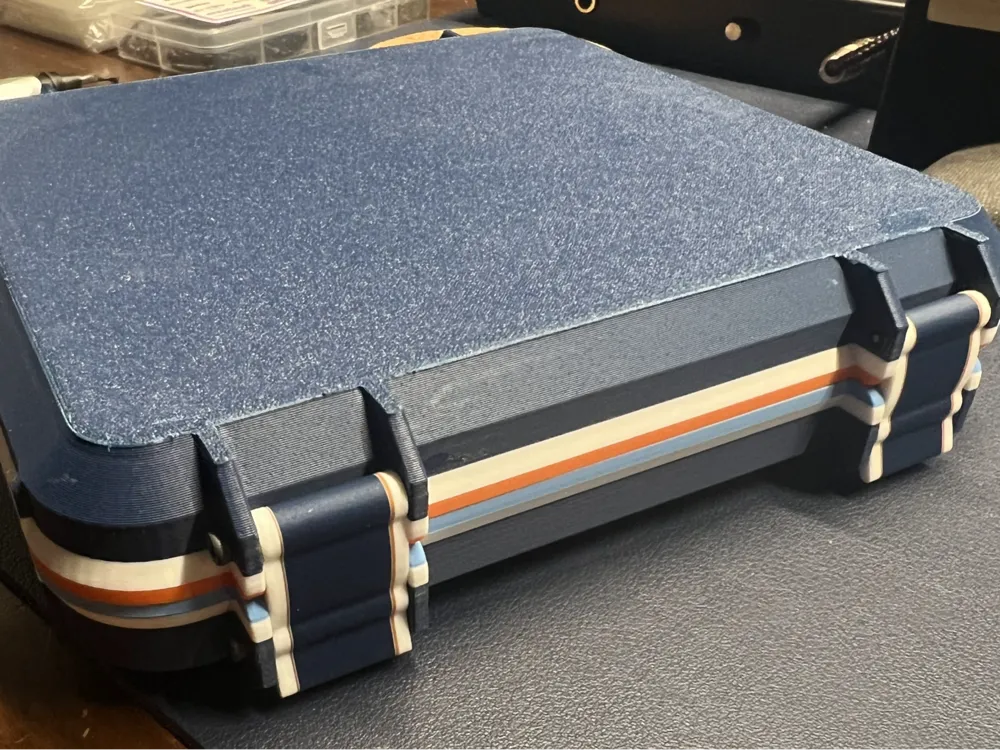

Hinges can pinned with a piece of filament, melted on each end, recommend PETG or stronger. I used 2.5mm M3 bolts. the hinge bolts and latch bolts were 30mm long exactly, but I couldn't put a nut on the end so I just super glued them in place. You would need probably 35mm bolts if you want to fit a nut on the end. OR I think you could just use 3mm M3 bolts and they would be a snug fit (might take some work to get them in though). YMMV.
