2CR5 6V adapter for 2 3V batteries / CR123 batteries
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
26 min
1 plate
Open in Bambu Studio
Boost
17
32
3
0
74
45
Released
Description
Content has been automatically translated.
A remix of my own model, as the batteries are slightly longer and thicker than standard CR123 batteries. Since some CR123 batteries have a recessed negative pole, "hills" have been added to ensure contact.

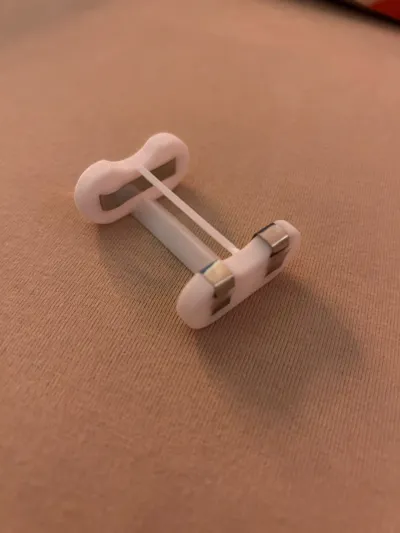

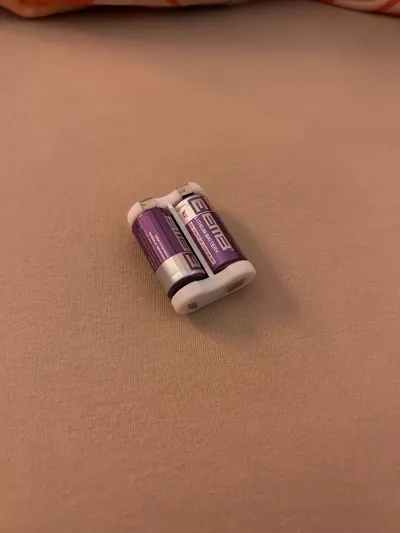

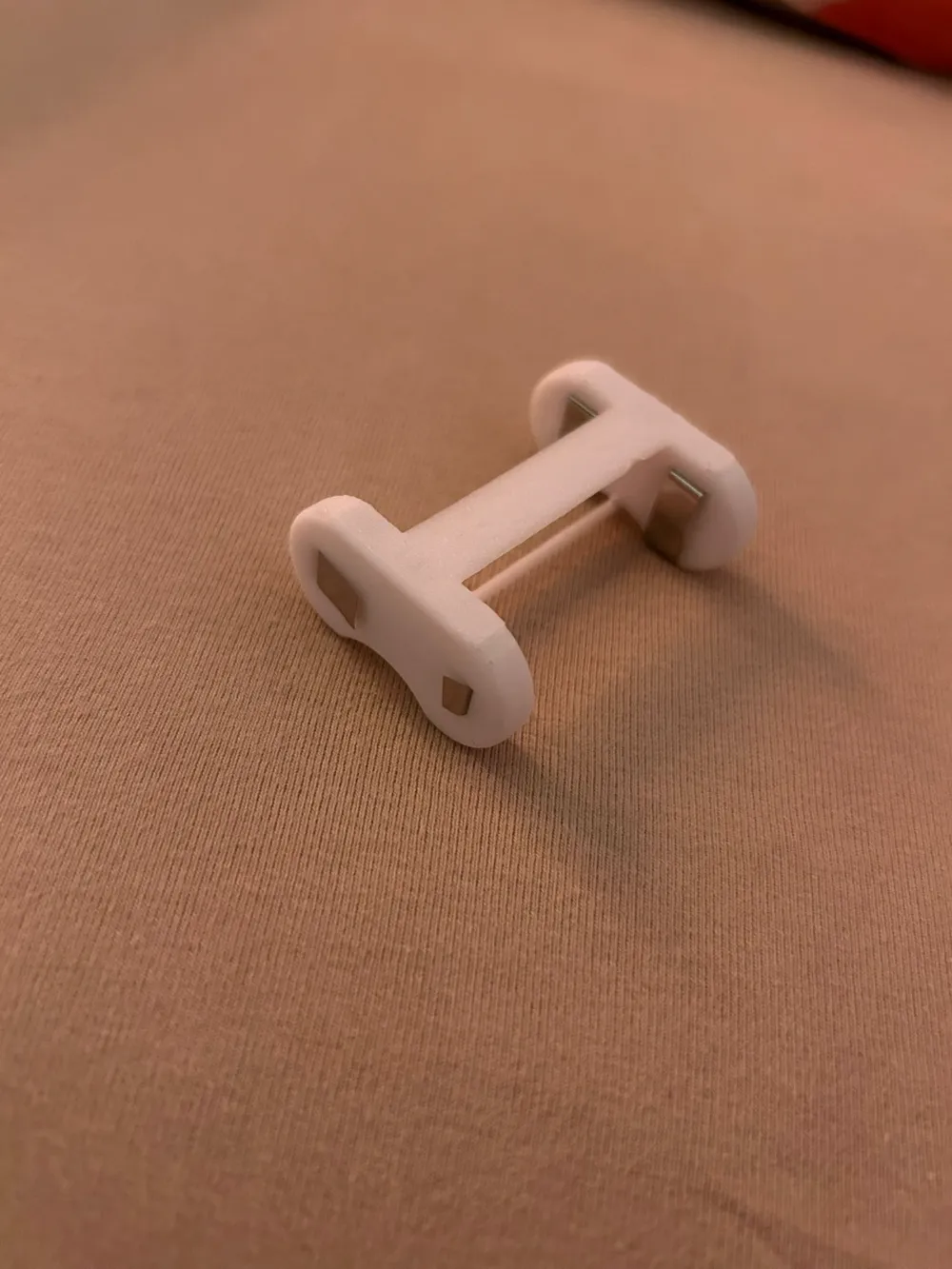

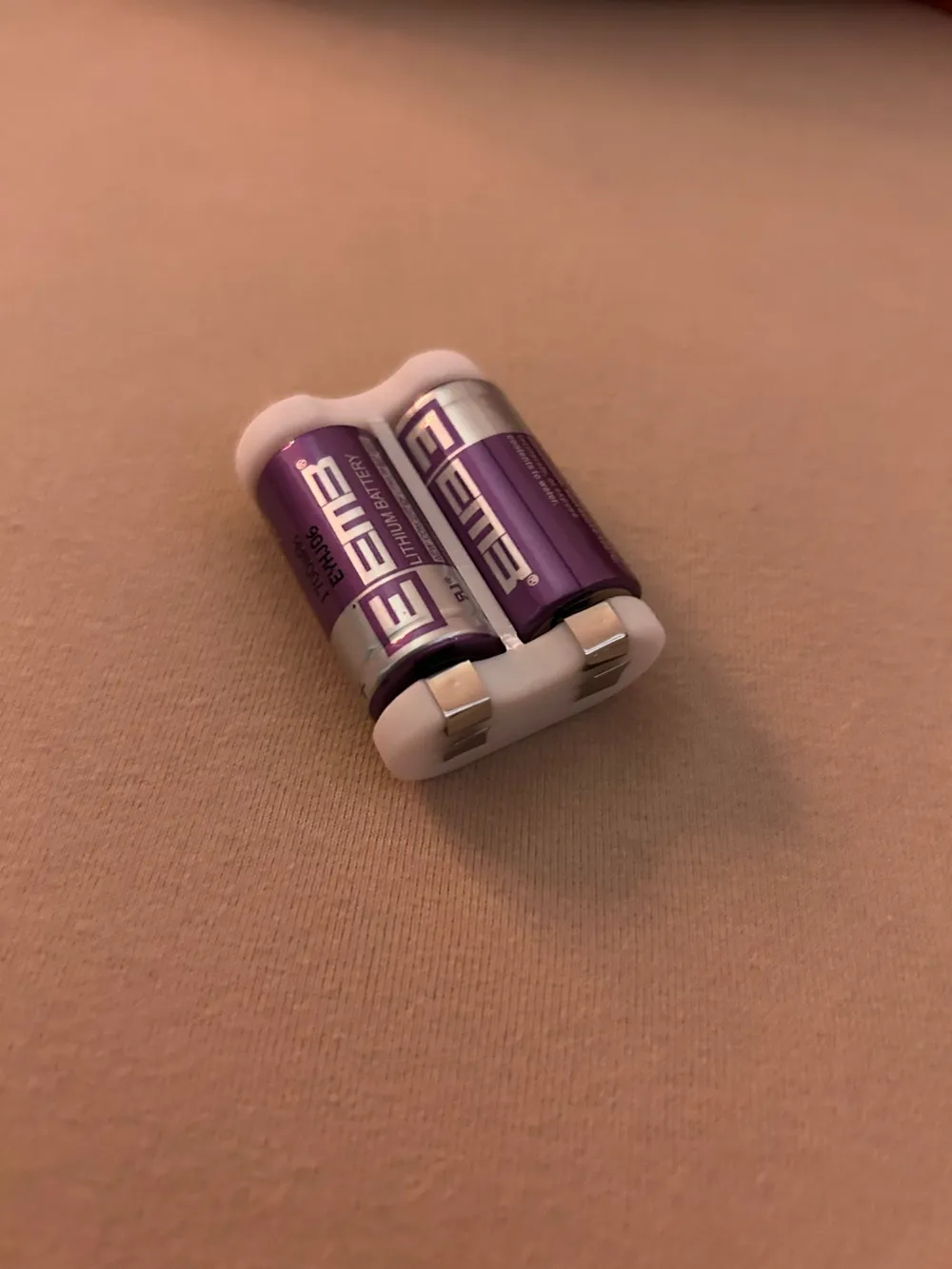

An adapter to use two standard 3V CR123 batteries in devices with a battery compartment for 2CR5 batteries
For example: https://www.amazon.de/dp/B08YK4YN6B?ref=ppx_yo2ov_dt_b_fed_asin_title
Tested in the following cameras (Yashica 230-AF or 300-AF)
Requires nickel-plated steel strip, 5mm wide and 0.1mm thick:
For example:
https://www.amazon.de/dp/B0DP7XNHTR?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial
