This is a modular storage rack system specifically designed for 2020 V-slot aluminum profiles, providing a neat and organized storage solution. By combining various aluminum profile components, users can easily construct a customized rack system perfectly compatible with Gridfinity Storage Box by Pred https://www.printables.com/model/543553-gridfinity-storage-box-by-pred-now-parametric, ensuring efficient and secure storage for each box. Whether in a workshop, studio, or home, this storage framework system optimizes space utilization and enhances organization efficiency and convenience.

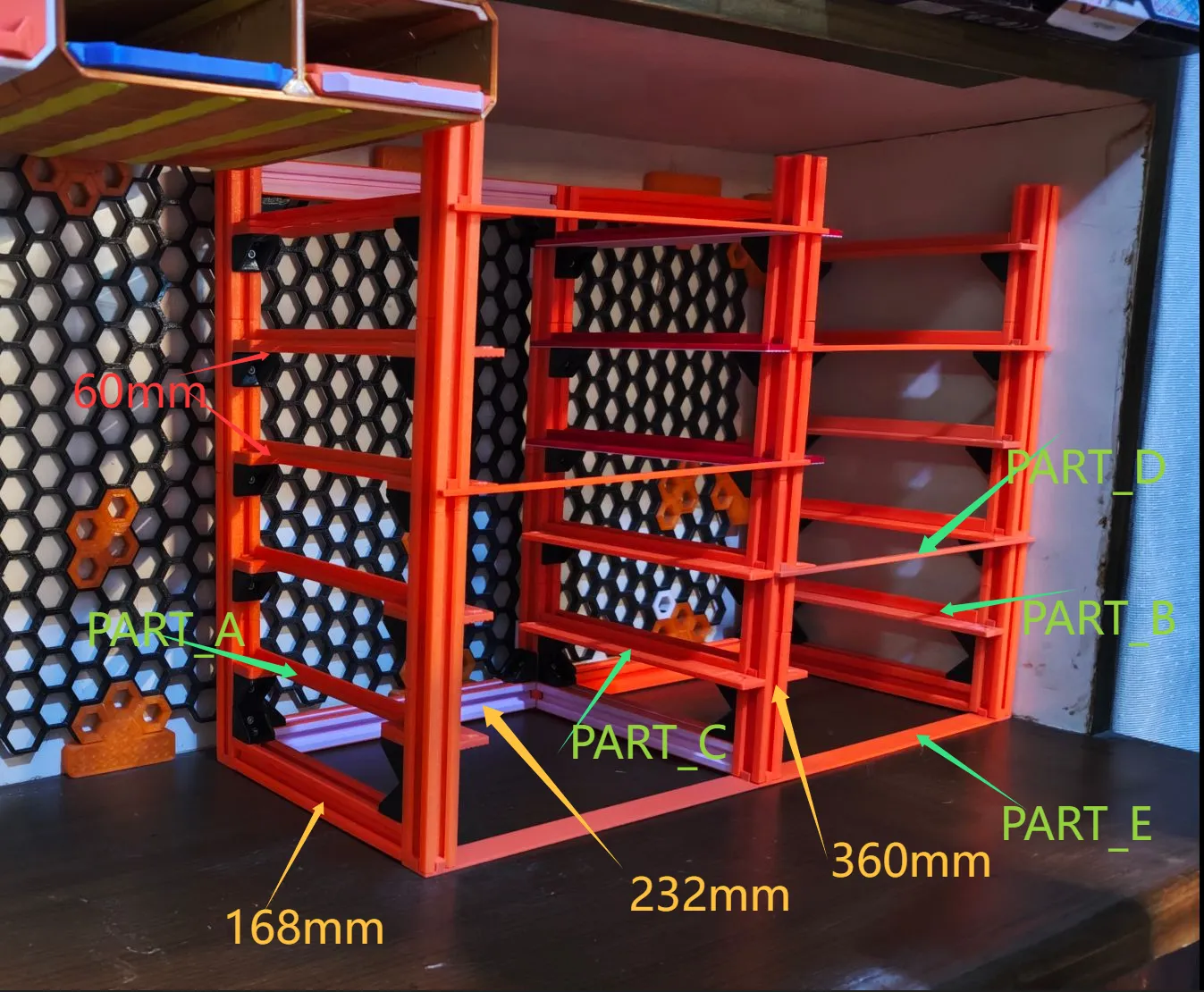

The default reference diagram is based on a fundamental 5X 4Y 6U box. For taller boxes, such as 12U, simply adjust the vertical spacing accordingly. The calculation formula is as follows:

H=12U=12*7+18=102mm

Further width and length configurations will be provided.

However, the maximum dimensions supported by the printer are 6X 6Y; larger sizes cannot currently be printed in a single operation. Custom requests can be submitted in the comments section.

Calculating Aluminum Profile Height

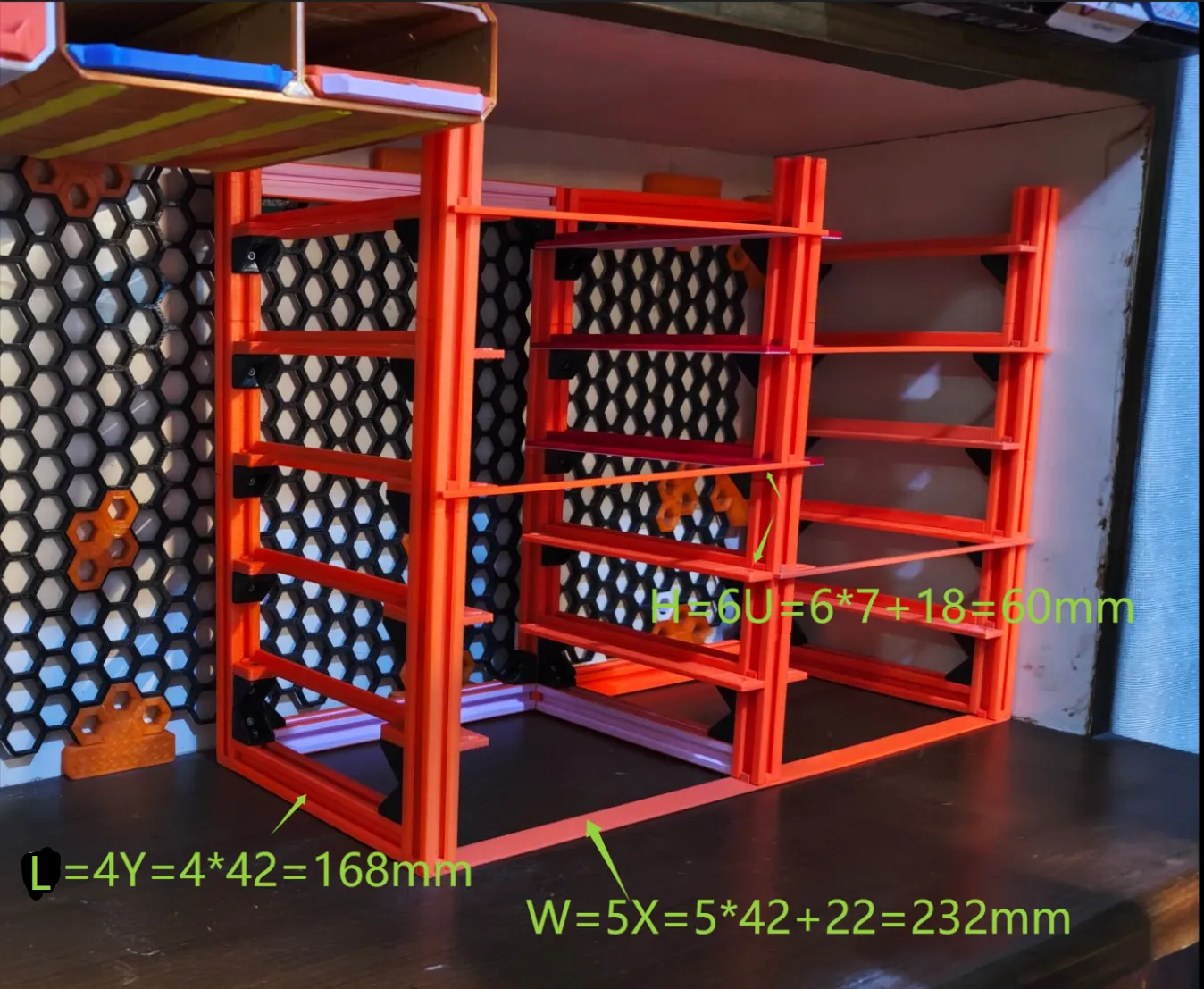

Using the basic 5X 4Y 6U box as an example:

W=5X=5*42+22=232mm

L=4Y=4*42=168mm

Spacing H=6U=6*7+18=60mm

Maximum aluminum profile height per layer = Spacing 60 × Number of layers + Panel thickness 4 × (Number of layers - 1)

Minimum aluminum profile height per layer = Spacing 60 × (Number of layers - 1) + Panel thickness 4 × (Number of layers - 1)

| Number of Layers | Maximum Aluminum Profile Height (mm) | Minimum Aluminum Profile Height (mm) |

| ---- | ------------------- | ------------------- |

| 3 | 188 | 128 |

| 4 | 252 | 192 |

| 5 | 316 | 256 |

| 6 | 380 | 320 |

| 7 | 444 | 384 |

| 8 | 508 | 448 |

| 9 | 572 | 512 |

| 10 | 636 | 576 |

| 11 | 700 | 640 |

| 12 | 764 | 704 |

| 13 | 828 | 768 |

| 14 | 892 | 832 |

| 15 | 956 | 896 |

| 16 | 1020 | 960 |

| 17 | 1084 | 1024 |

| 18 | 1148 | 1088 |

| 19 | 1212 | 1152 |

| 20 | 1276 | 1216 |

Gridfinity

2020

2020 aluminium profiles

gridfinity

gridfinity box

Comment & Rating (12)

@user_497251219

Boosted

Hi Baze, great idea and design in my opinion !! any chance, for getting sizes > 6x6 ? actually i printed 7x6 @h2d would appreciate very much… Merry Christmas, happy new year and happy printing stefan

The designer has replied

@wrrwrr111

You can easily use Bambu Studio to make modifications. First, slice it into three parts along the direction of the green arrow. Then, extend it by 42mm along the yellow direction. Next, scale and connect the middle part along the blue arrow direction to join the left and right sections. This way, you will obtain a 7x component.

@user_497251219

Boosted

Thank u very much Cheers

@kickwriteteach

I'm guessing that this is adjustable to different size boxes? different WxHxL?

The designer has replied

@wrrwrr111

I have provided the calculations for the lengths and spacing of the aluminum extrusion. Height adjustments can be easily achieved by modifying the spacing, and for varying lengths and widths, I have added three to six print profiles. For larger dimensions, the current solution exceeds Bambu Lab's capabilities

(Edited)

Show original

@kickwriteteach

Replying to @wrrwrr111 :

looks good. I'll give it a try!

@user_3927722673

Great, and where is the other part, like 2020 V-slot aluminum and other connectors?

The designer has replied

@wrrwrr111

https://makerworld.com/en/models/869106-m3-t-nut-for-v-slot-2020-extrusion#profileId-820668 https://makerworld.com/en/models/985791-20mm-x-20mm-horizontal-print-extrusion-v-slot-180m#profileId-960416 I mainly used these

Show original

@user_3927722673

Replying to @wrrwrr111 :

Thanks so much!

@user_4084371217

I adore this shelving unit Thank you for the detailed description and calculation specifics This will fit perfectly into my cupboard One question: Do you happen to recall which template you used for the drawers shown in the photo, the ones the bins rest on, and could you share the link if there is one Many thanks

The designer has replied

Show original

@wrrwrr111

1 https://www.printables.com/model/413761-gridfinity-refined The 5x5 ones are too narrow.I added some parts on both sides and the front to fit this shelf. If you need it ,tell me. 2. I’ve already listed it in the introduction, it’s a remix of it.
