LILYGO T-CAN485 Case
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.6 h
1 plate
Open in Bambu Studio
Boost
6
27
7
1
81
51
Released
Description

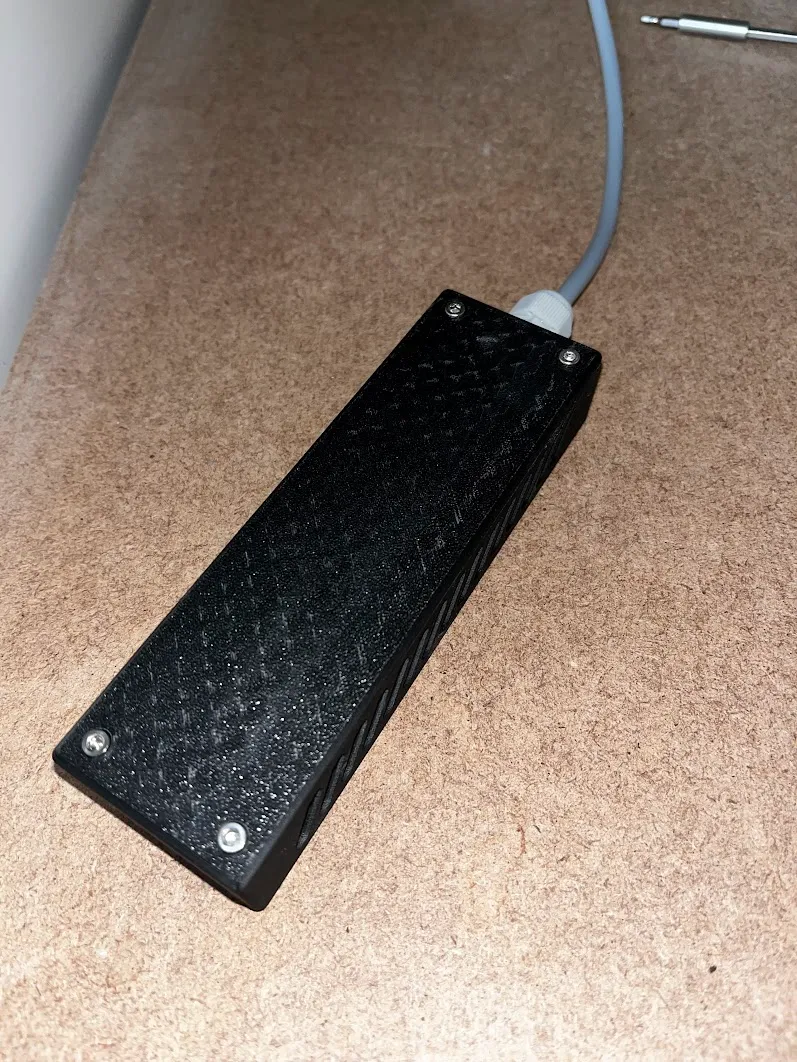

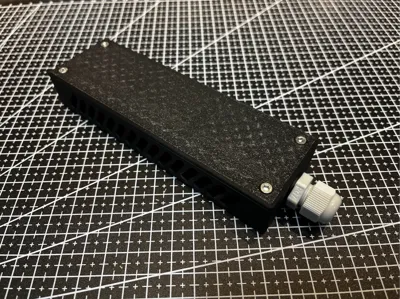

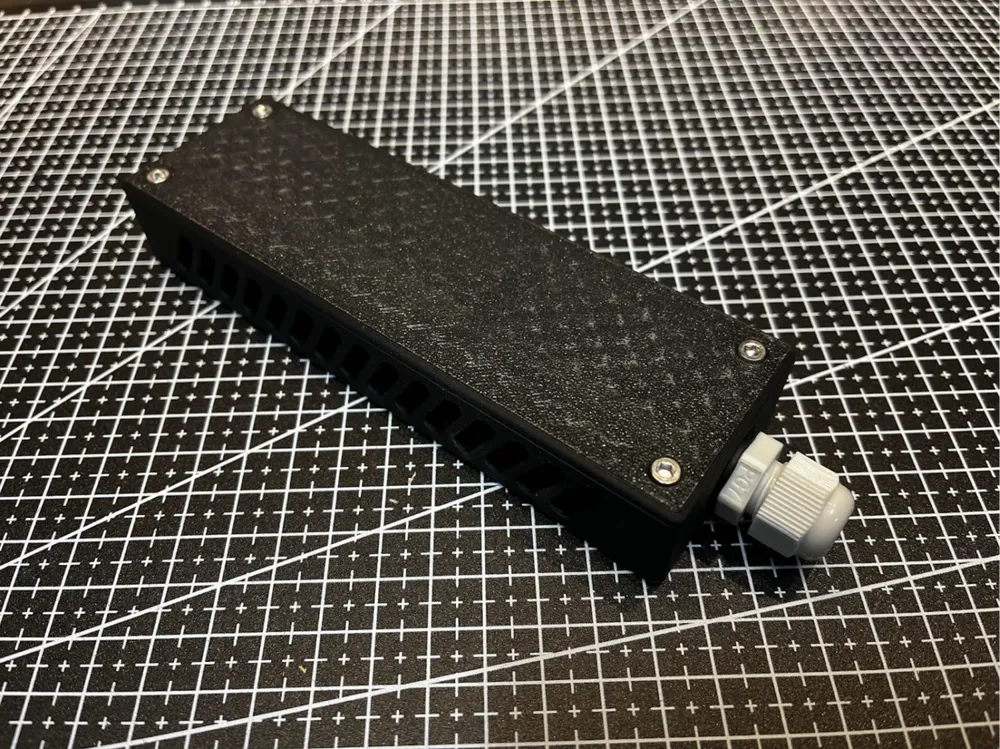

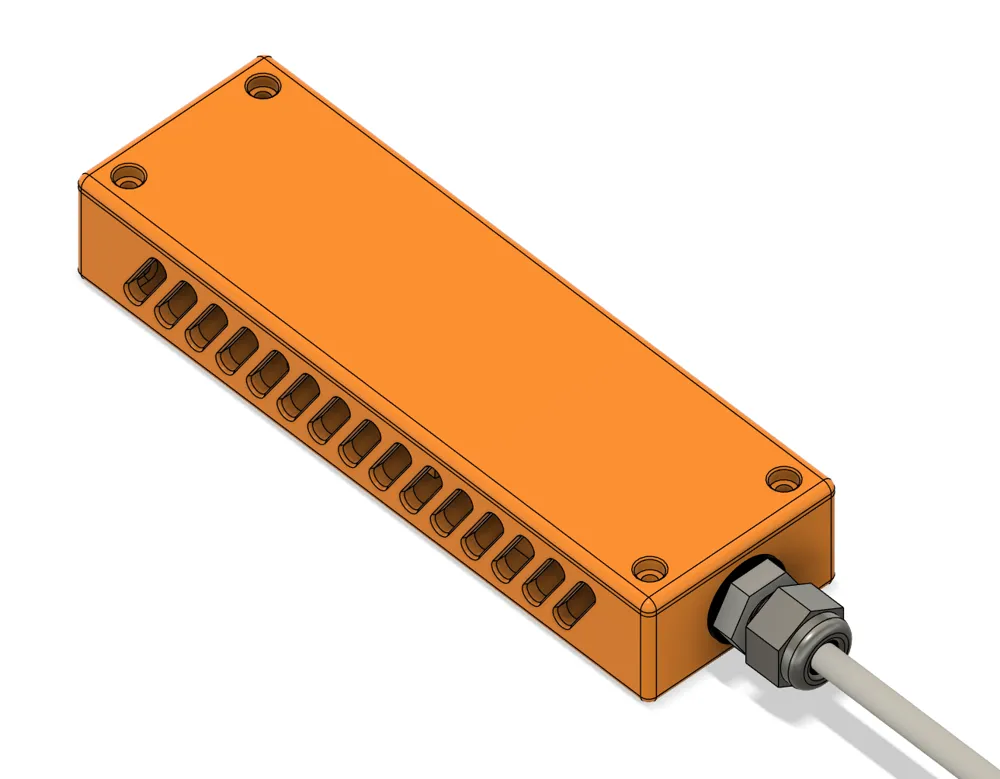

Simple case for LILYGO T-CAN485 ESP32. I've used this to control a Nibe heatpump using the esphome-nibe project (https://github.com/elupus/esphome-nibe) and hom-eassistant (https://www.home-assistant.io/)
Required hardware:
- 1x LILYGO T-CAN485 ESP32 (https://lilygo.cc/products/t-can485?srsltid=AfmBOoobHl4MtfOY9qdVcwu2jNKuoXf5ZpRDcgd5v3Uo2UAnW3BR5gvJ)
- 4x M3 6-12 mm screws for securing the lid
- 1x M12 Cable Gland
Instructions:
- Tap holes used to secure lid with M3 tap

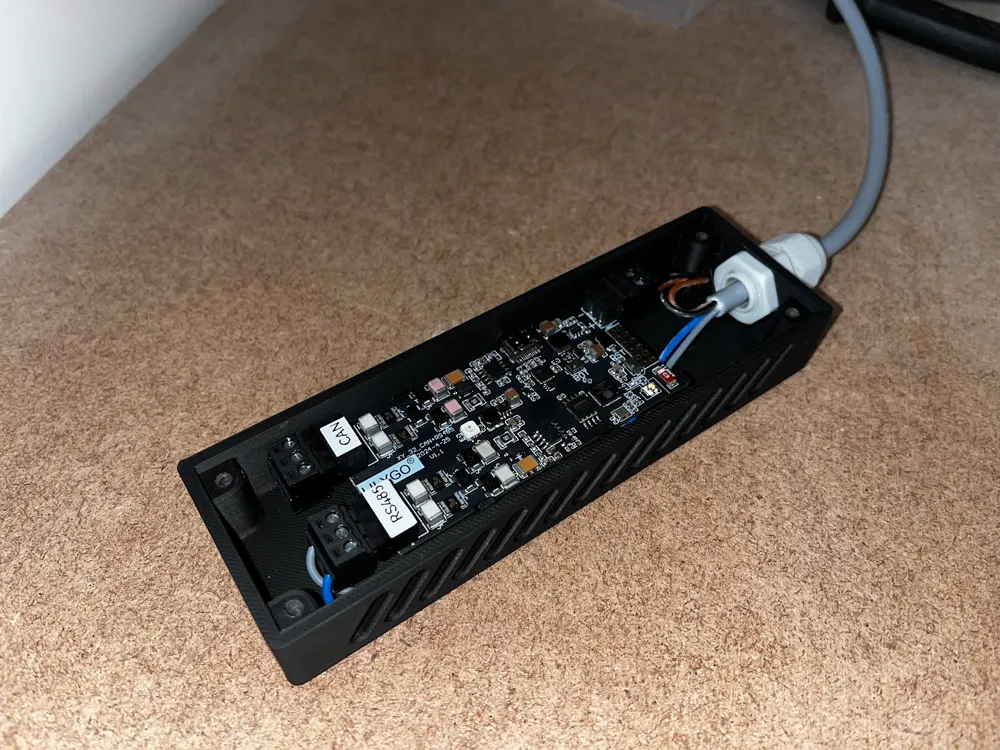

- LILYGO T-CAN485 snaps in place
