Mini Metric Vernier Caliper

Mini Metric: Credit Card-Sized Vernier Caliper

Precision Measurements, Anywhere, Anytime

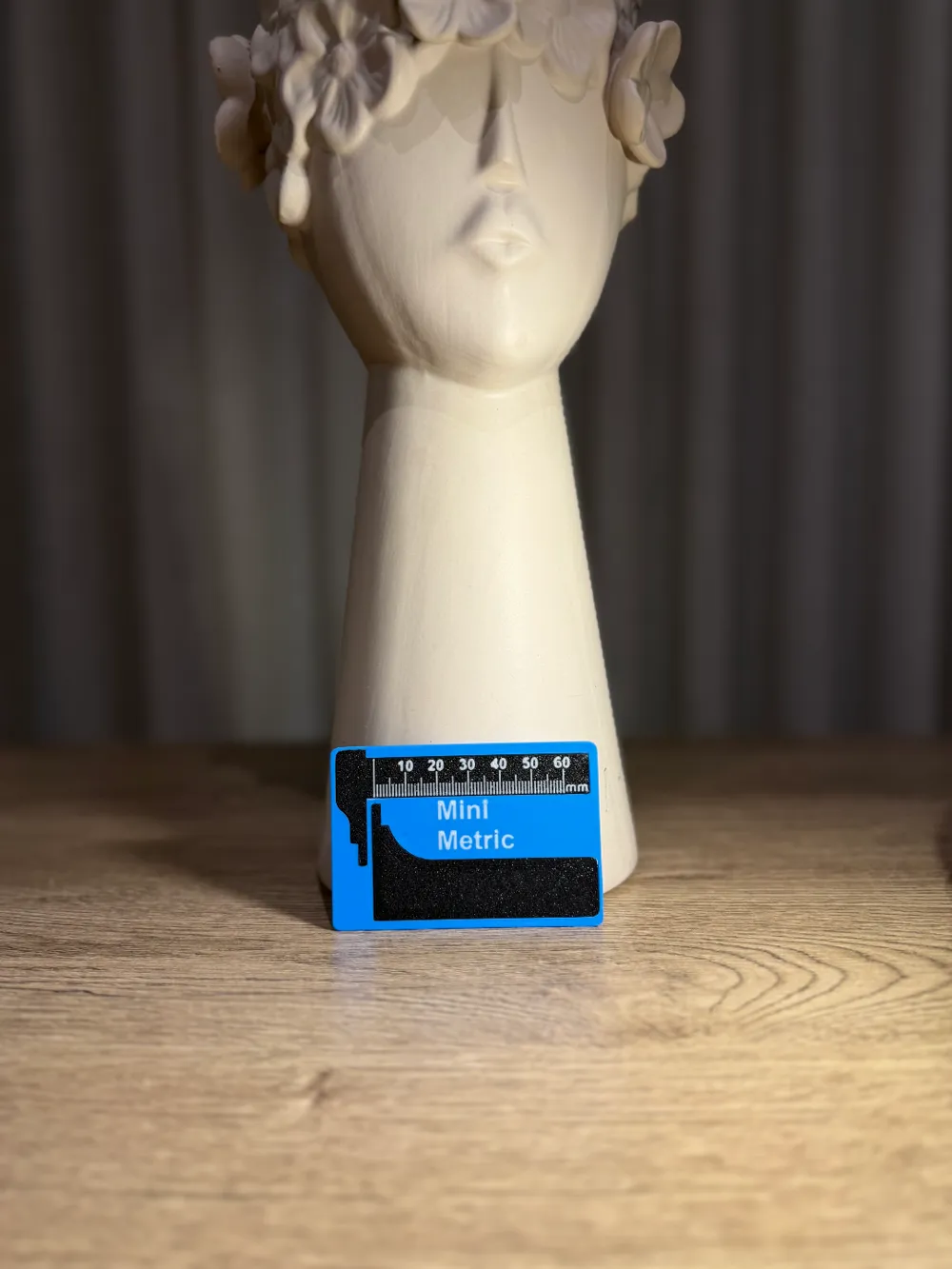

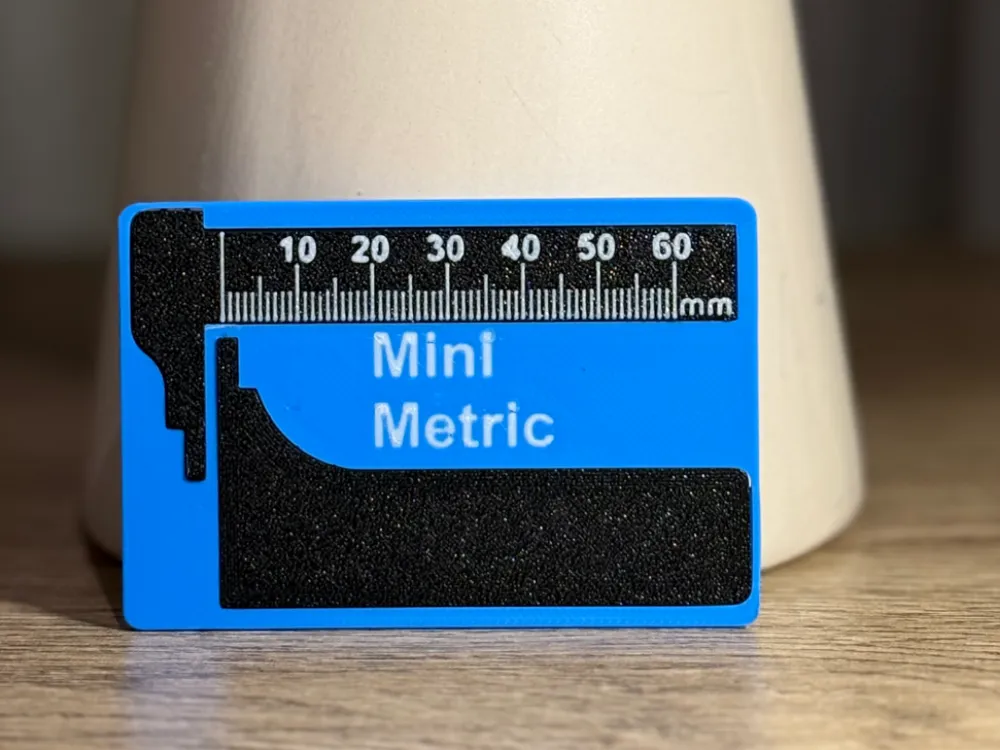

Meet the Mini Metric caliper—a portable, lightweight tool designed to slip into your wallet while delivering precise measurements for both internal and external diameters. Whether you're a student, a professional, or a hobbyist, this is a handy solution for quick and reliable measuring on the go.

Key Features

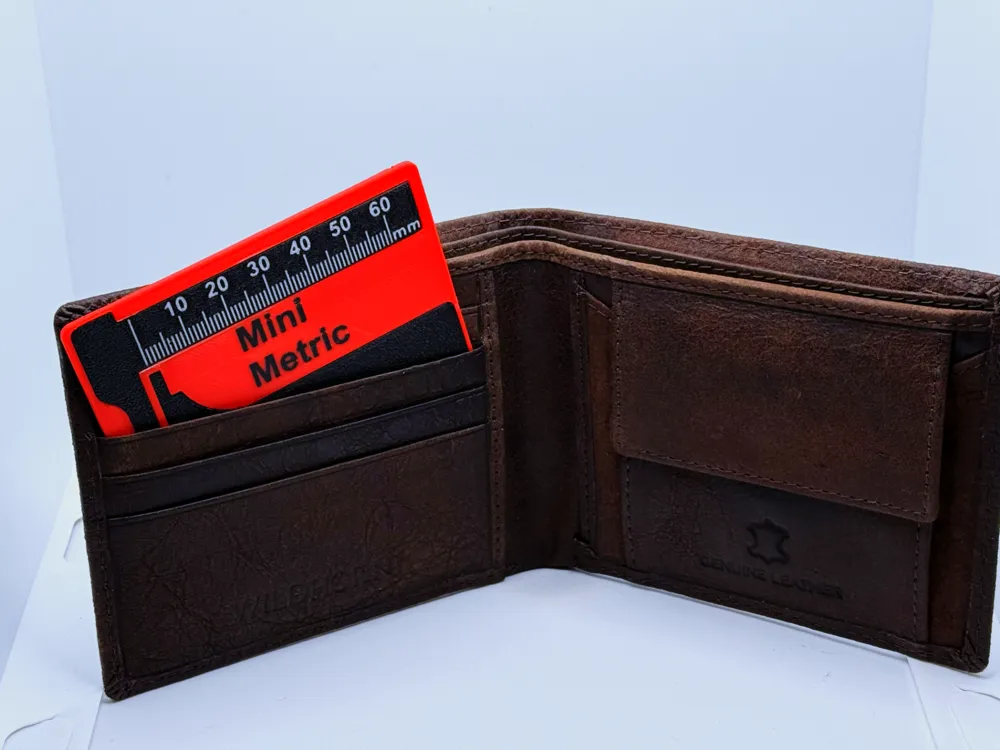

• Compact & Lightweight: Weighs around 15g and fits easily in your wallet or pocket.
• Fast Print Time: Takes just about 1 hour to print all parts.
• Educational & Practical: Perfect for students learning about precision and calibration techniques.
• Tool-Free Assembly: Slides together without the need for screws or glue.
• Dual-Purpose Design: Measure both internal and external diameters with the clearly marked "in" indicator for inner measurements.
• Beginner-Friendly: No supports are required, making it an easy print for those new to 3D printing.

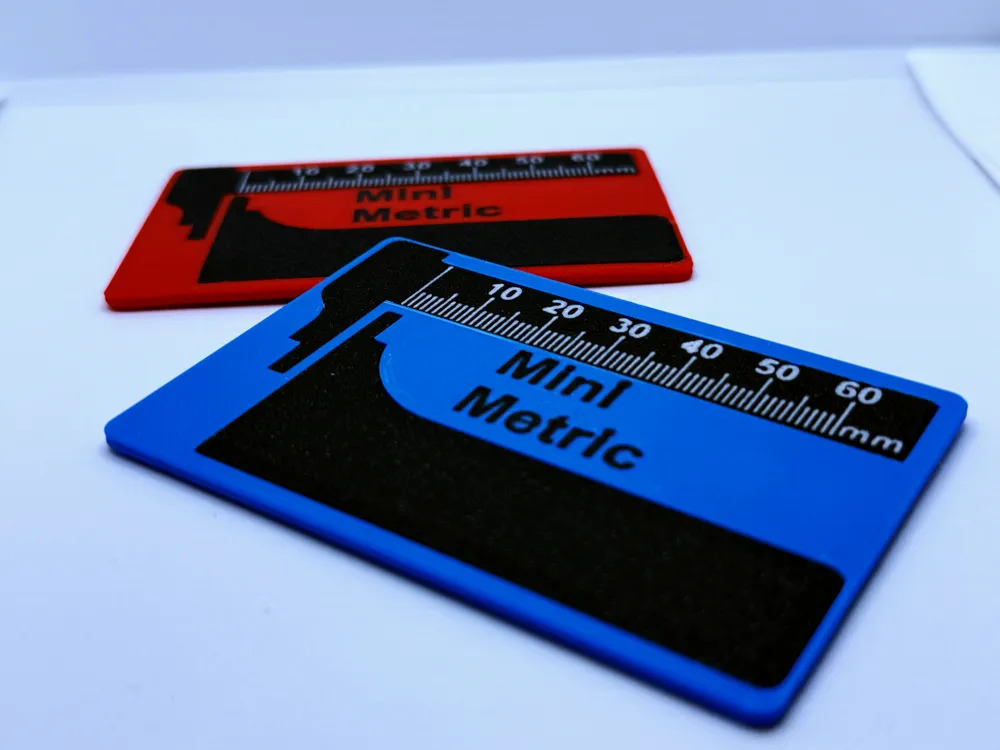

• Customizable: Print it in your favorite colors for a personalized or educational touch.

Getting Ready to Print

1. Clean Your Bed

Give your print bed a good wash with dish soap and warm water to remove any oils or particles. This step is crucial for small details like the text to come out clearly.

Avoid relying solely on isopropyl alcohol—it may not get rid of all the residue.

2. Check Your Nozzle

Make sure the nozzle is clean and free of clogs or partial blockages.

Printing & Post-Processing Tips

1. Let It Cool First

Don’t rush to remove the parts from the bed. Let everything cool completely to avoid bending or damaging the print.

2. Clean Up

After printing, carefully remove any brim ears from the card piece.

3. First Use

The first few times you slide the caliper's parts together, they may feel a bit tight. That’s normal and will ease with use.

How to Use the Caliper

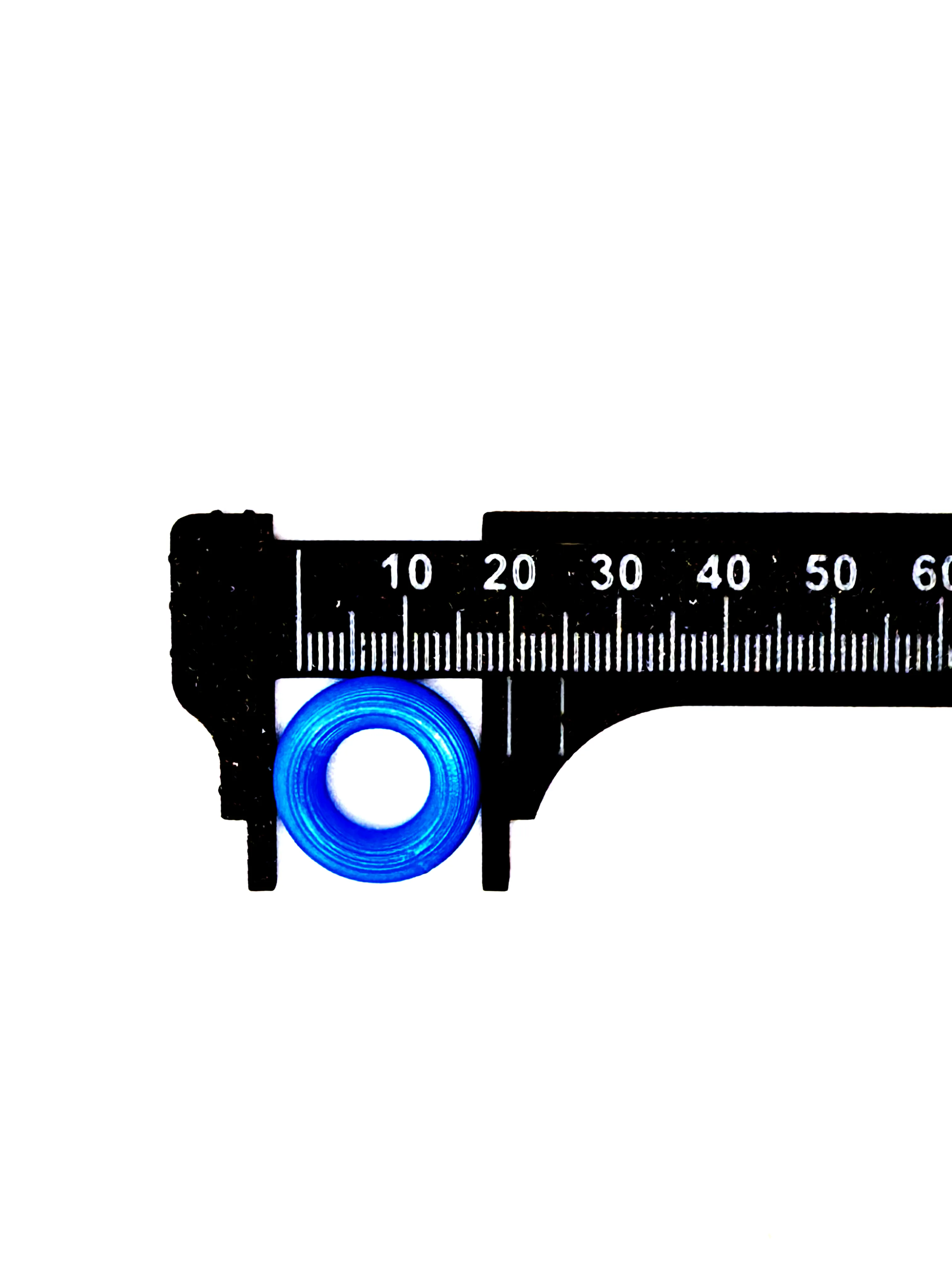

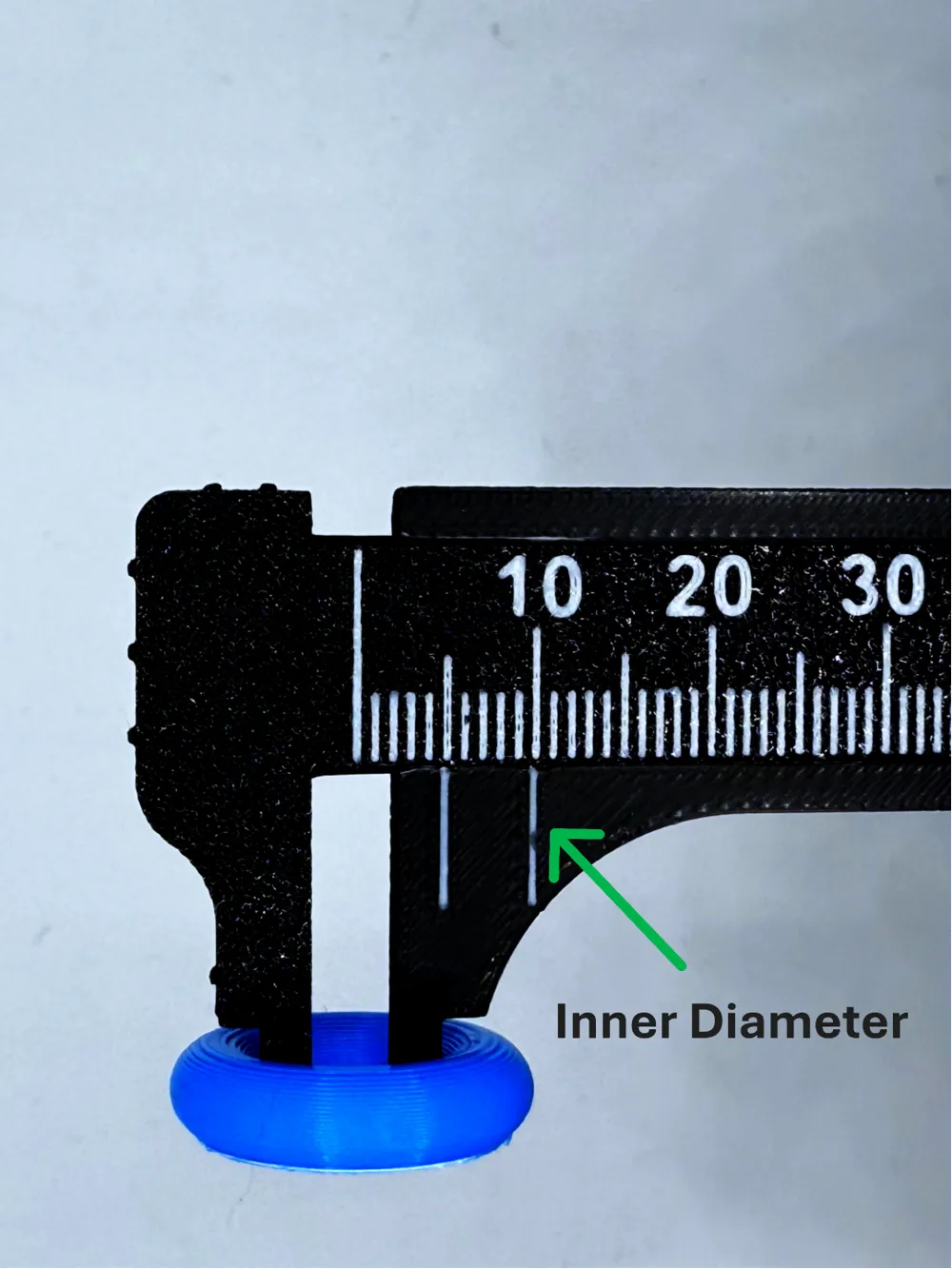

• For internal measurements: Use the jaws marked with "in"

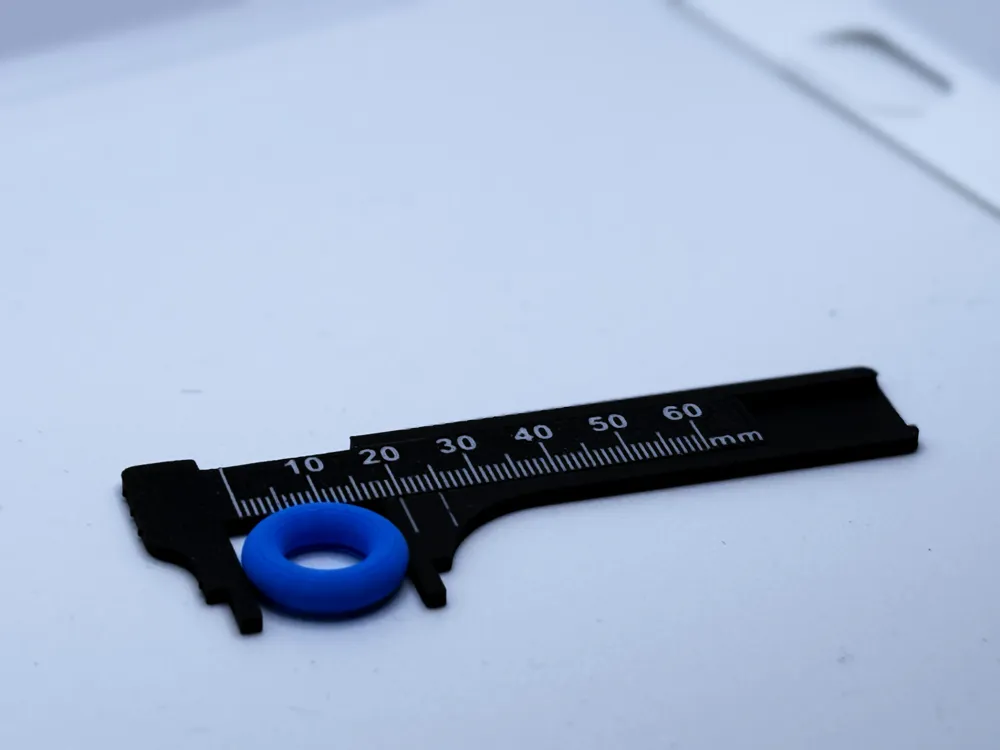

• For external measurements: Use the outer jaws.

• Slide the components into place and start measuring .













Printing Tips for Success

• A clean bed makes all the difference for precise, readable details.

• While the design is fully compatible with a 0.4mm nozzle, you can opt for a 0.2mm nozzle for even sharper text details.


  --------------------------------------------------------------------------------------------------------------



  Update 1 : 13/2/2025  ( No AMS version added )

  Update 2 : 22/2/2025  ( Vernier Scale version added )

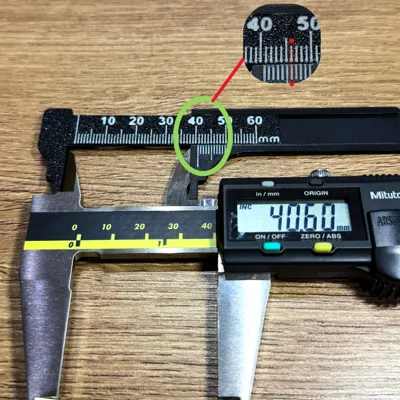

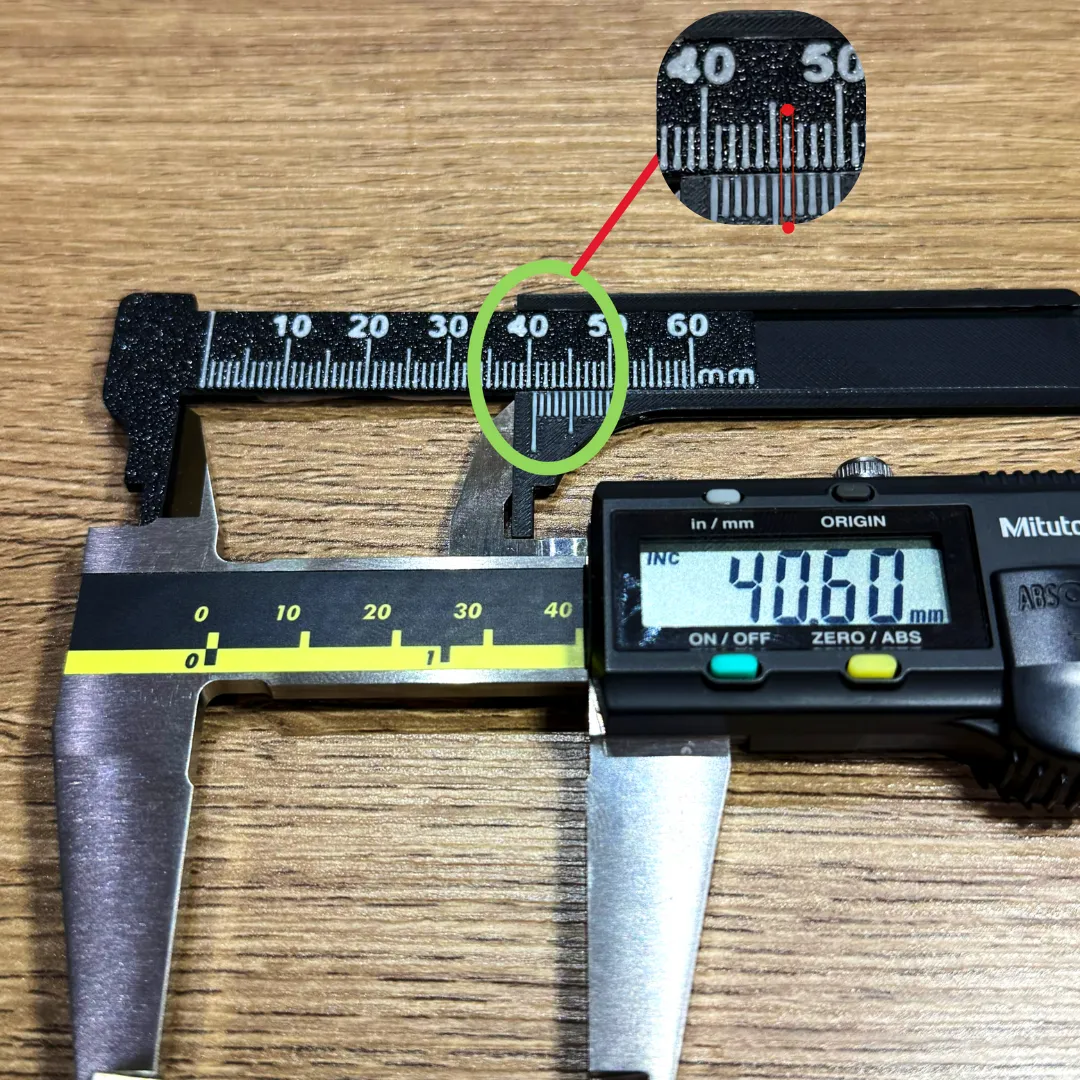

  Vernier scale Version
