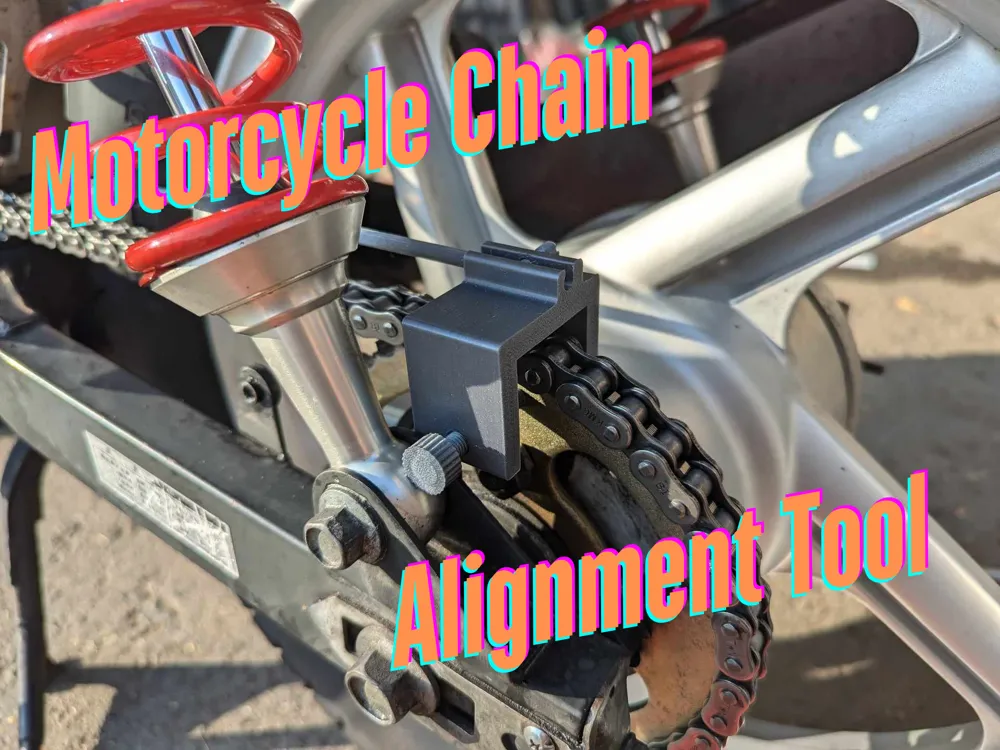

Motorcycle Chain Alignment Tool
IP Report
Print Profile(1)
0.2mm layer, 5 walls, 25% infill
Designer
1.8 h
2 plates
Open in Bambu Studio
Boost
122
399
38
14
531
382
Released
Description

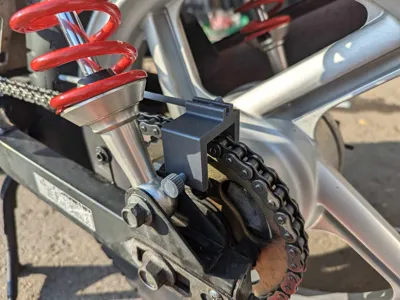

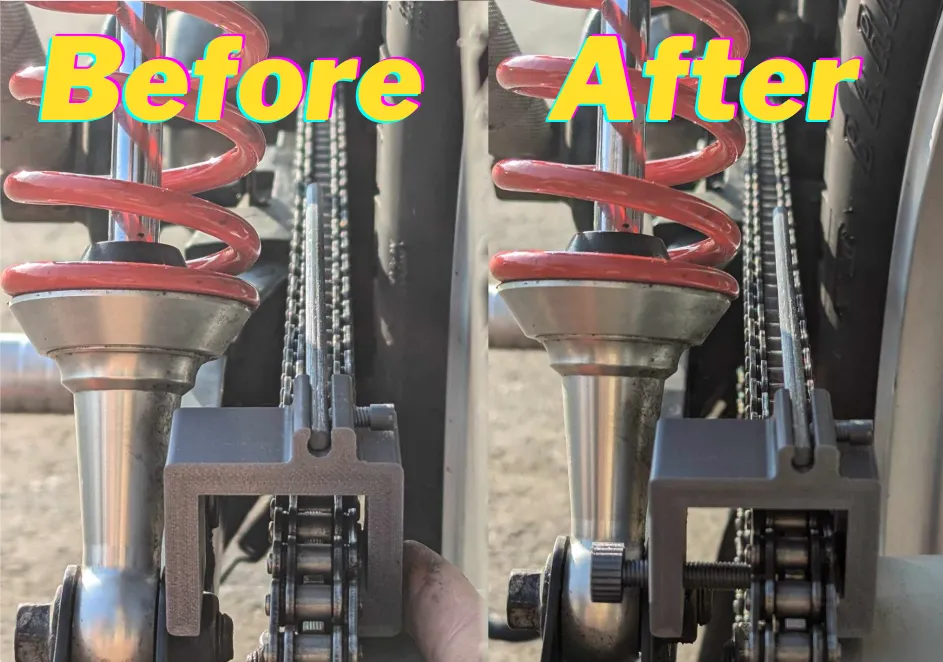

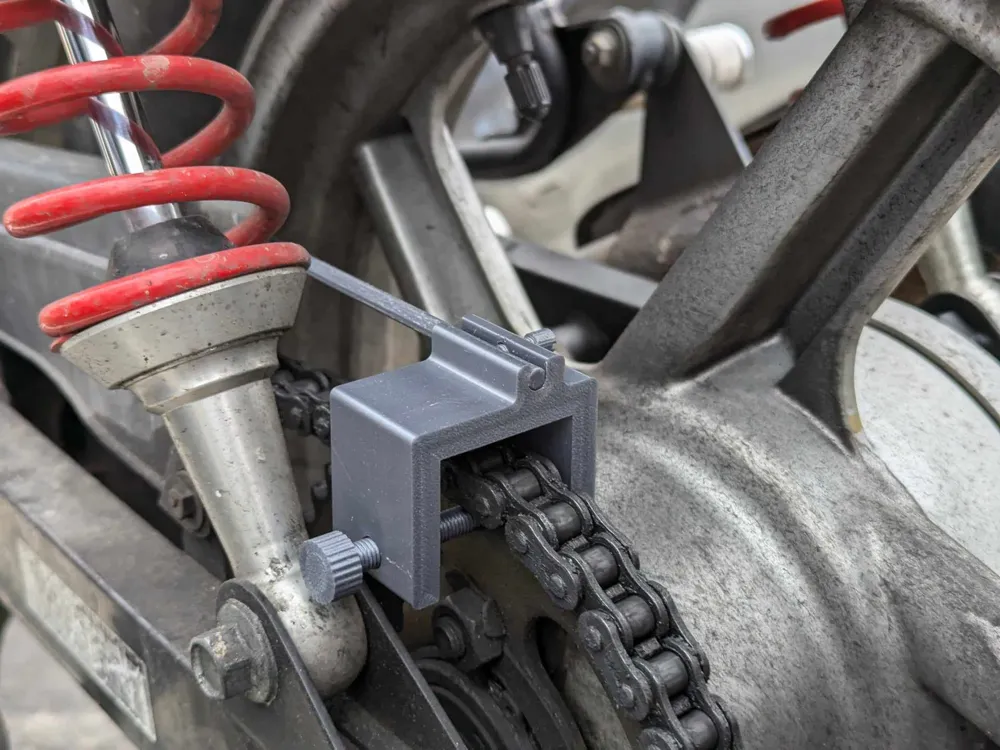

Align and adjust your motor's chain!

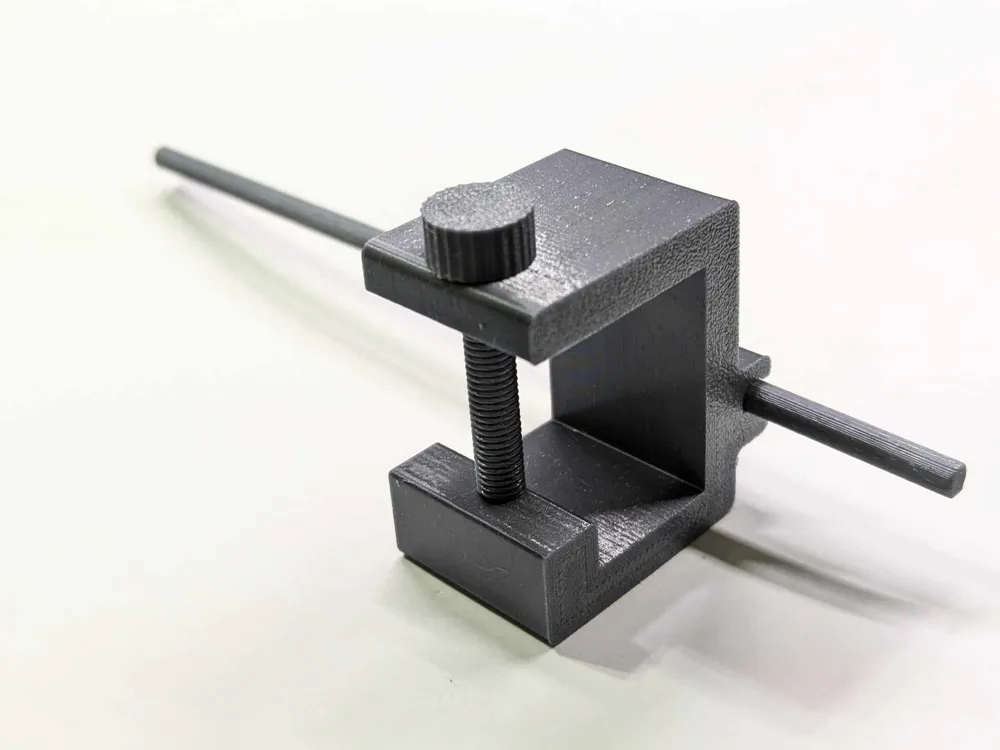

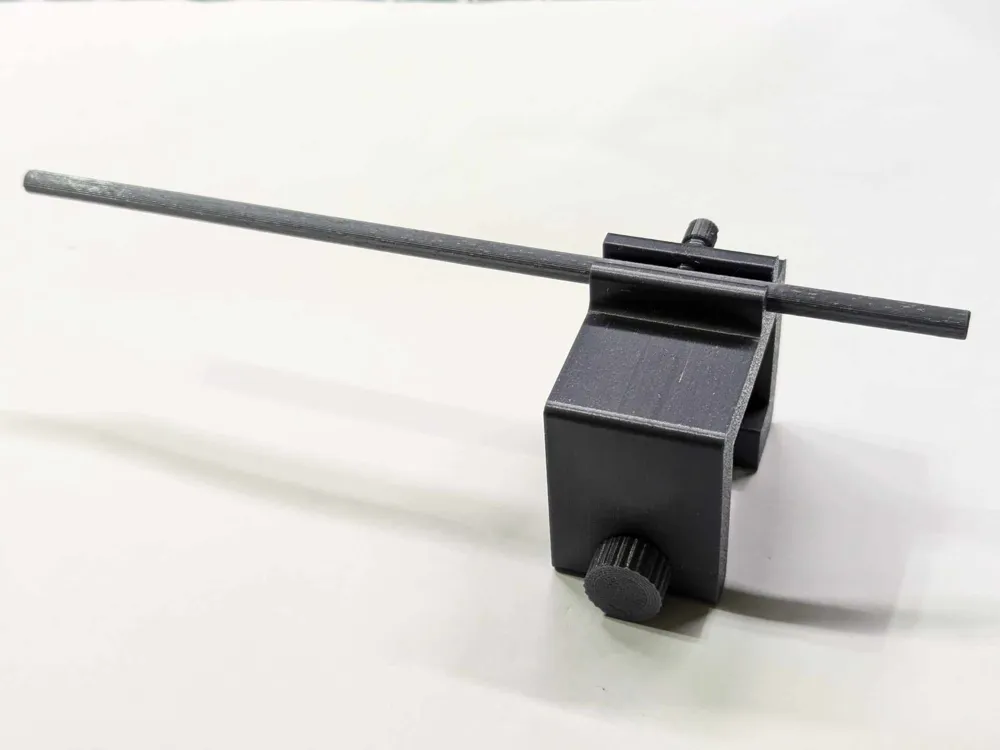

Spec. of the 2 bolts are:
- M7 * 35 mm (or longer than 30 mm)
- M5 * 8 mm (or longer than 5 mm)
Alternatively, metal bolts can also be used with this tool.
(However, I recommend using metal bolts and straight rod if possible.)
I hope it helps you!
New Updated: (2025.11.30)

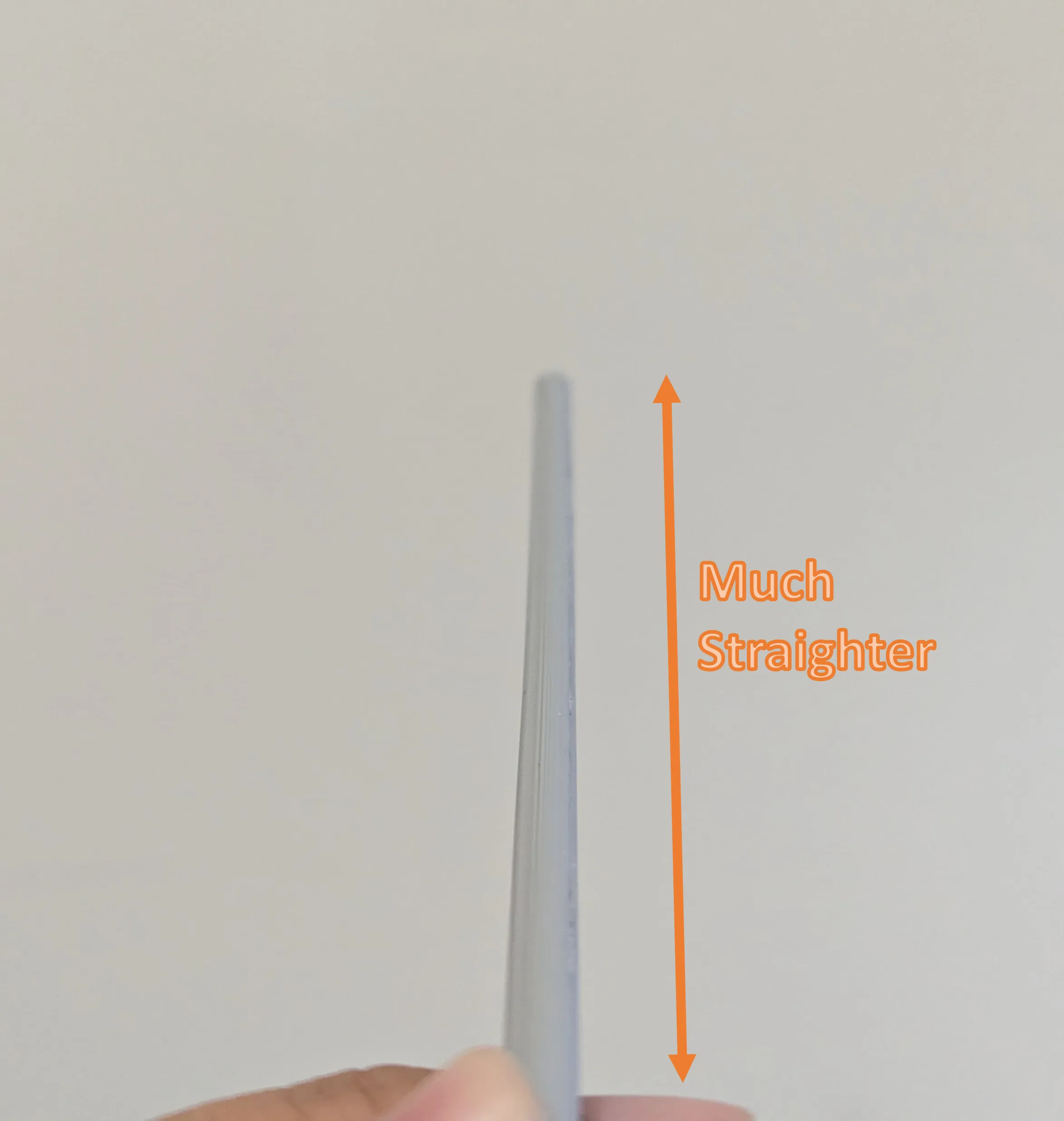

Sometimes, the rod may be not straight after pulling off the plate. So I made another version that should be straighter than the old one.

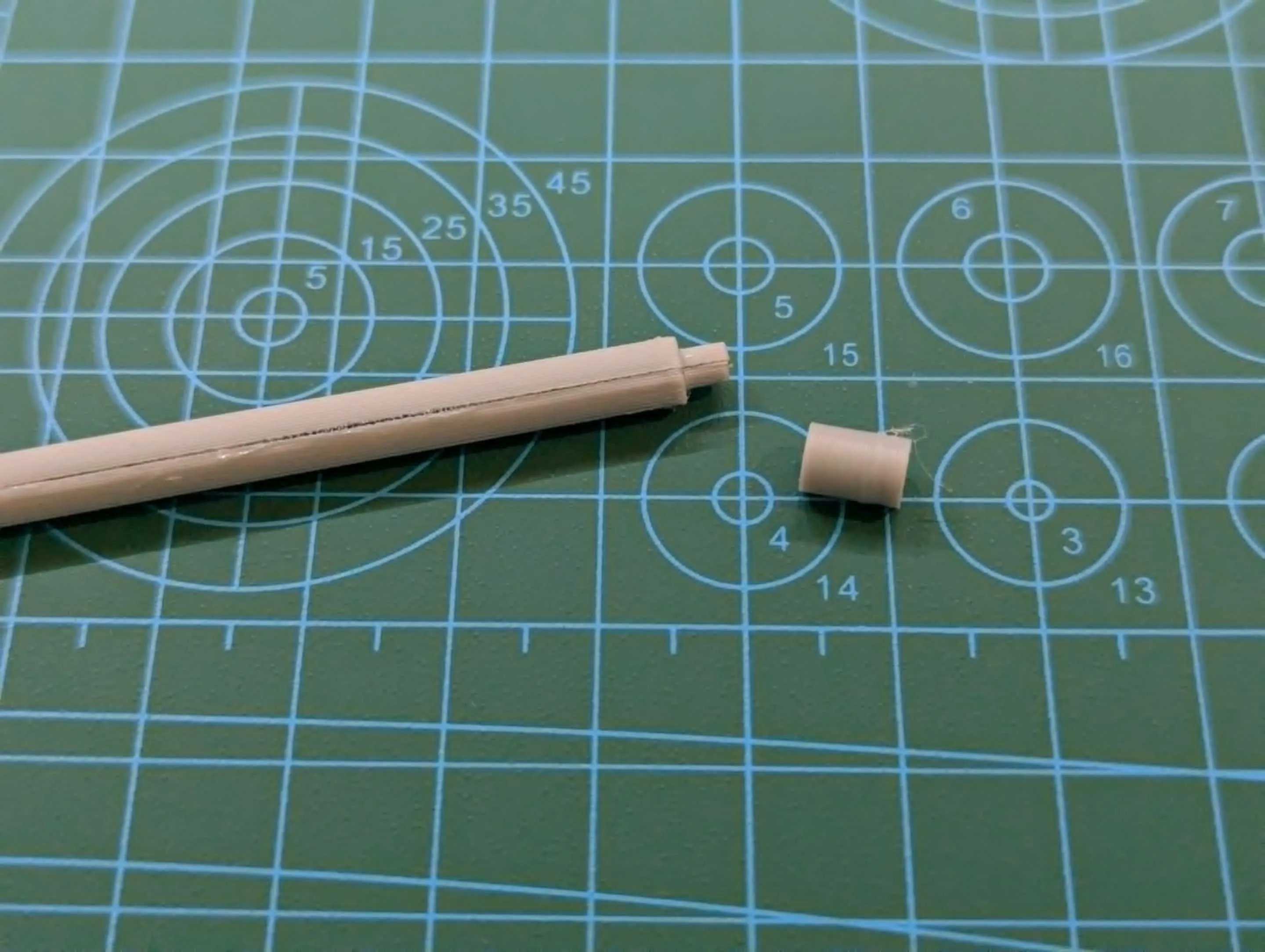

Use a glue one the two halves of the rods and then attach the two caps, you will get a much straighter one!
