Festool MFT Cam Clamp with Adjustable Spacer
IP Report
Print Profile(1)
0.2mm layer, 3 and 5 walls, 15% infill
1.4 h
1 plate
Open in Bambu Studio
Boost
32
130
12
7
101
67
Released
Description
Boost Me (for free)
If this model was helpful to you, I could appreciate some boosts. Thanks!

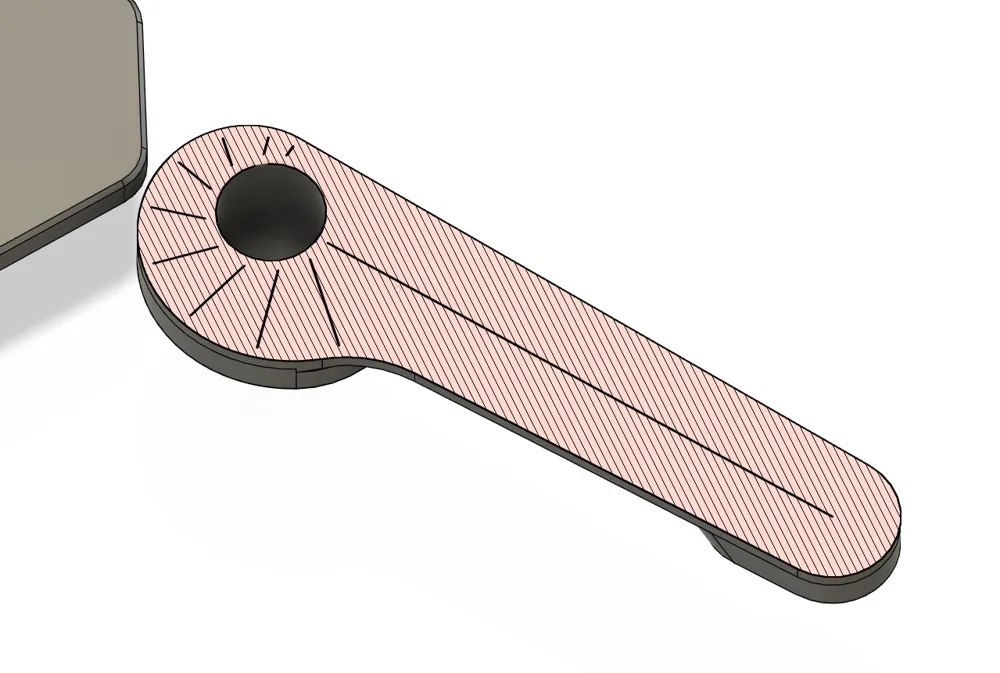

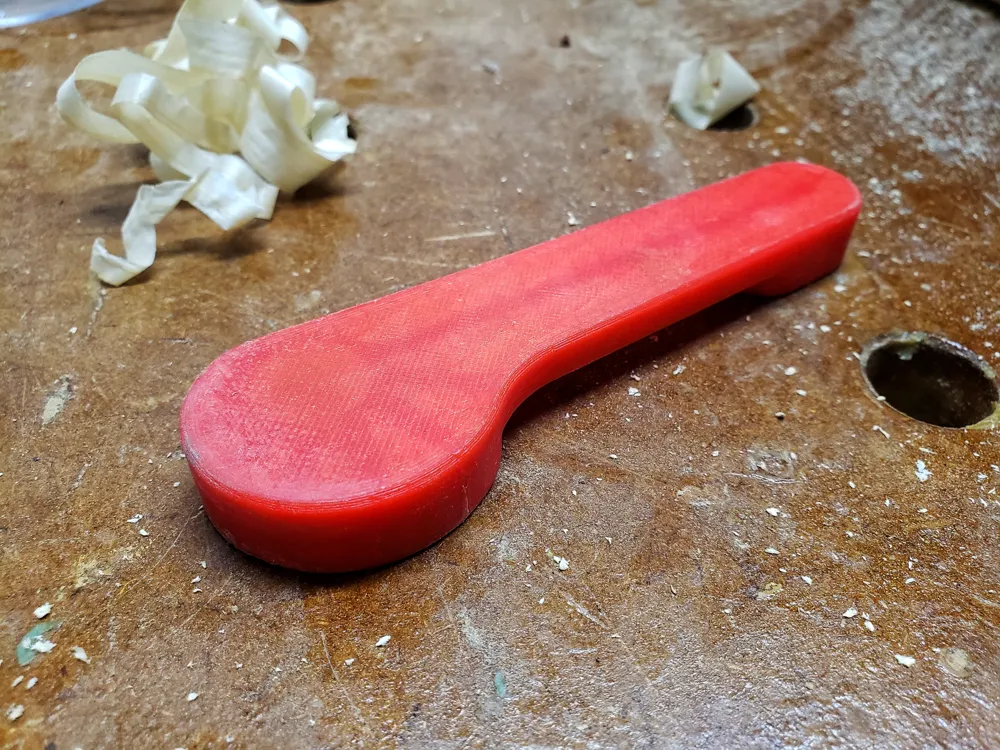

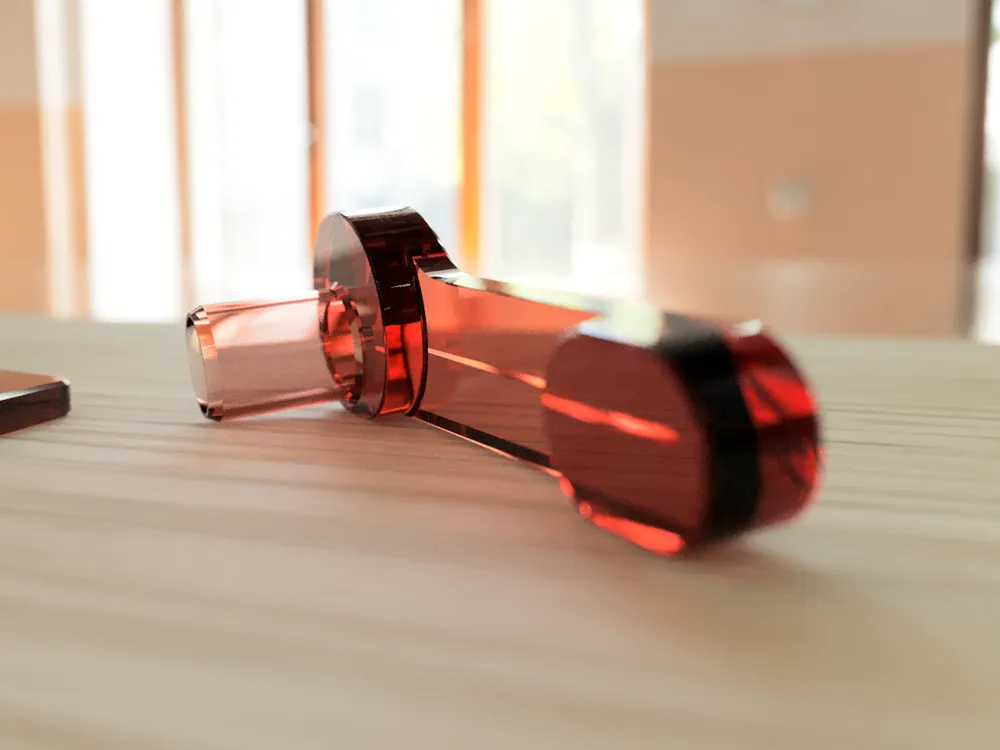

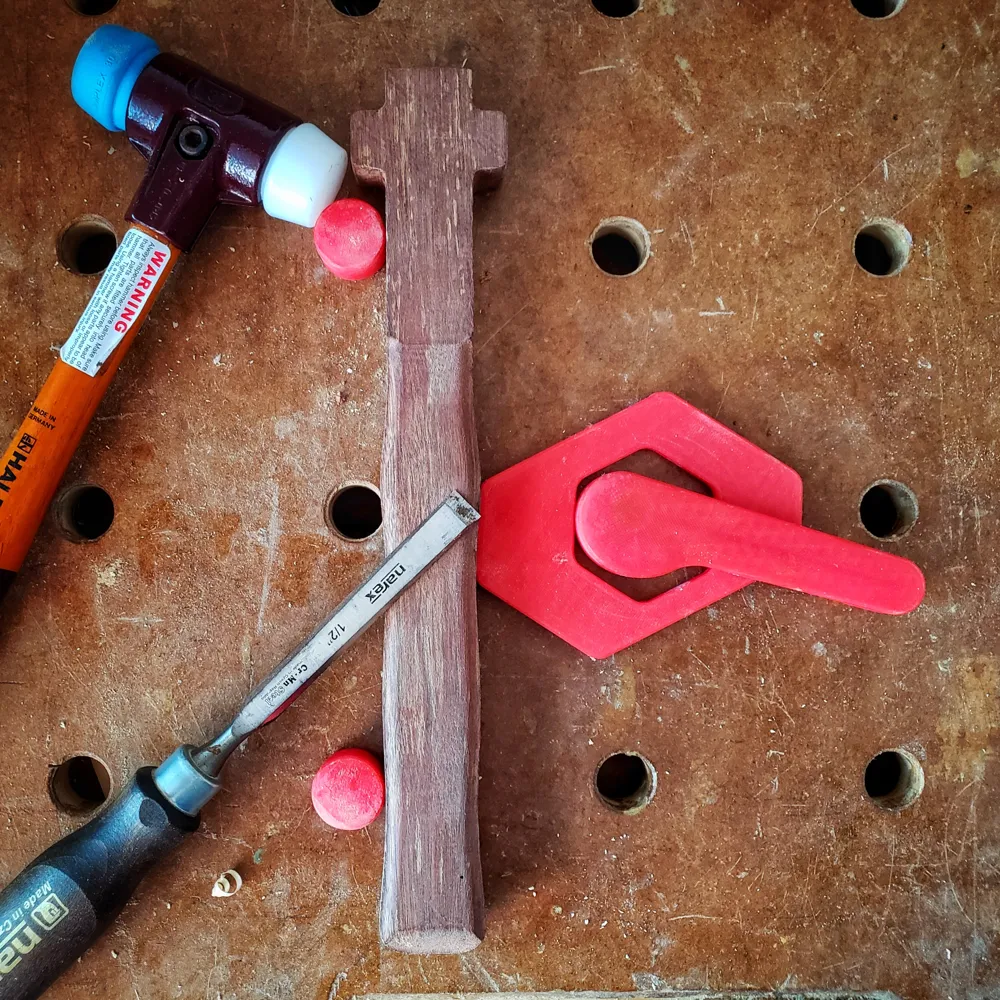

Upgrade your MFT workbench with this reliable, flexible cam clamp. Its circle-based involute profile provides constant tension at any clamping position. With 10mm of cam movement, adjustments are precise and effortless.
Key Features

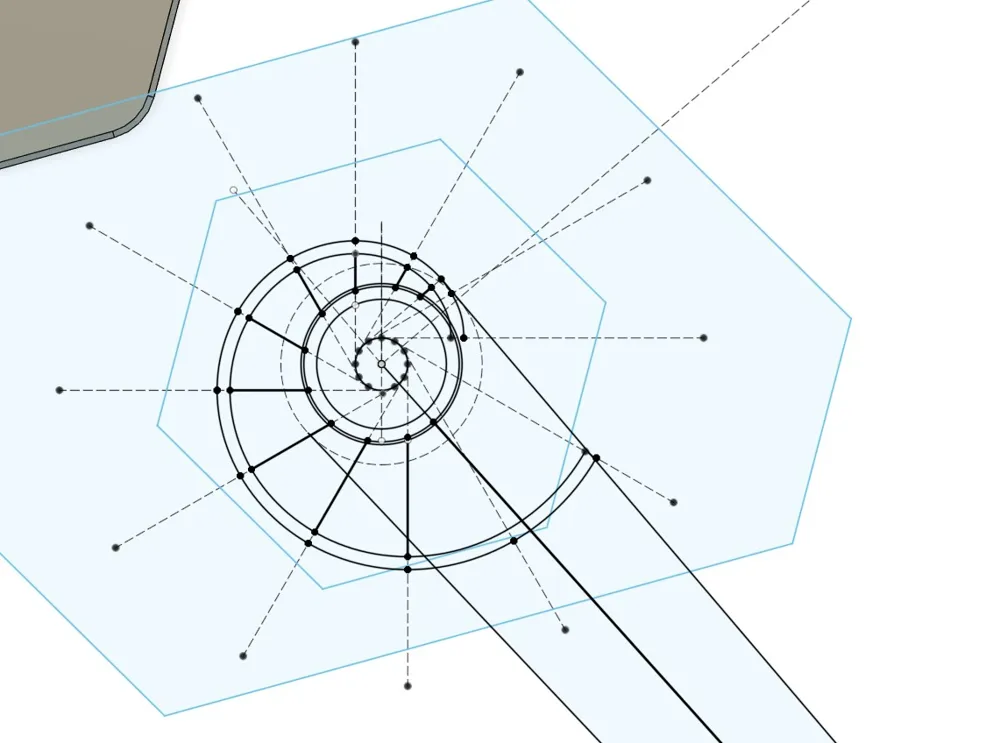

- Involute Profile: Maintains constant tension for secure clamping.

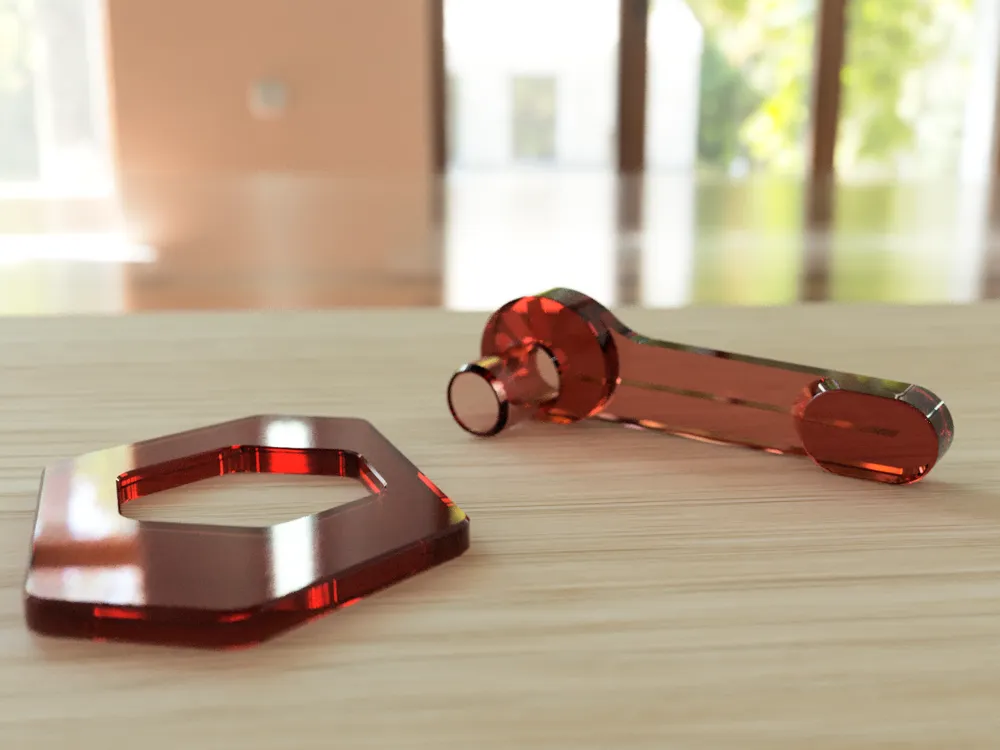

- Optional Spacer: Six-sided spacer with 5mm increments (0, 5, 10, 15, 20, 25) adapts to various material thicknesses.

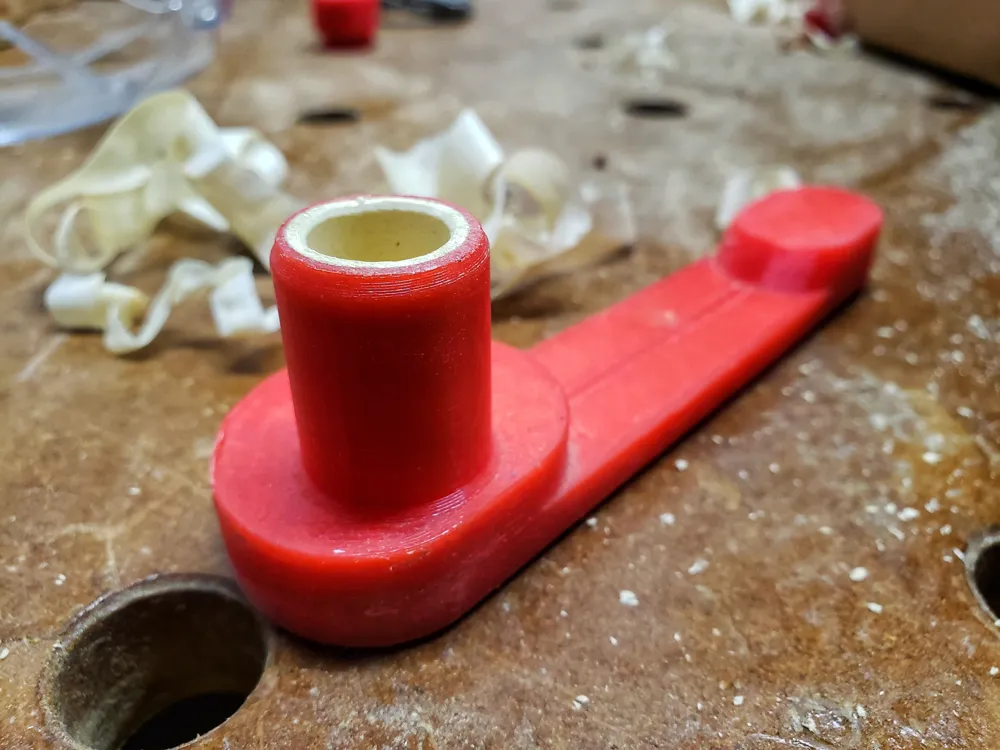

- Reinforced Pivot Point: Accepts a 1/2" CPVC or copper pipe for extra strength. Field-tested for two years with a CPVC core and printed in PETG.
- Internal Reinforcements: Built-in support structures allow for lower infill while maintaining durability.
