Foregrip - Picatinny
Print Profile(1)
Description

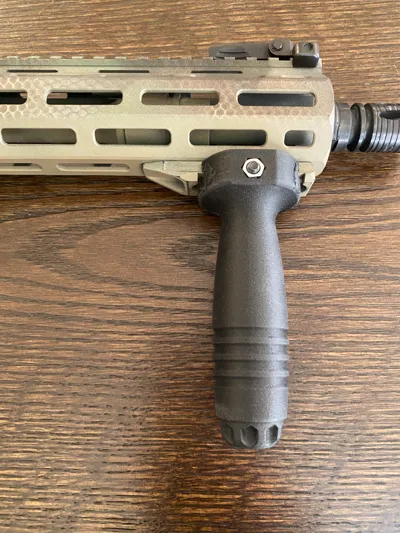

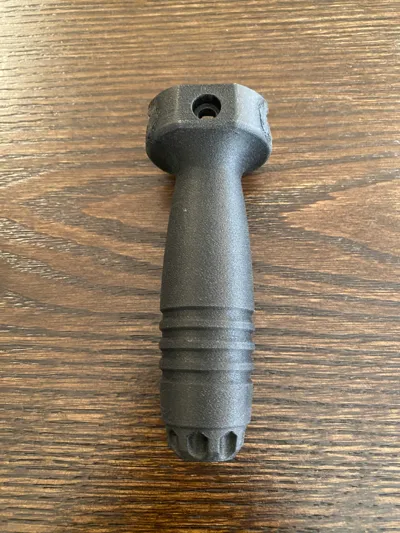

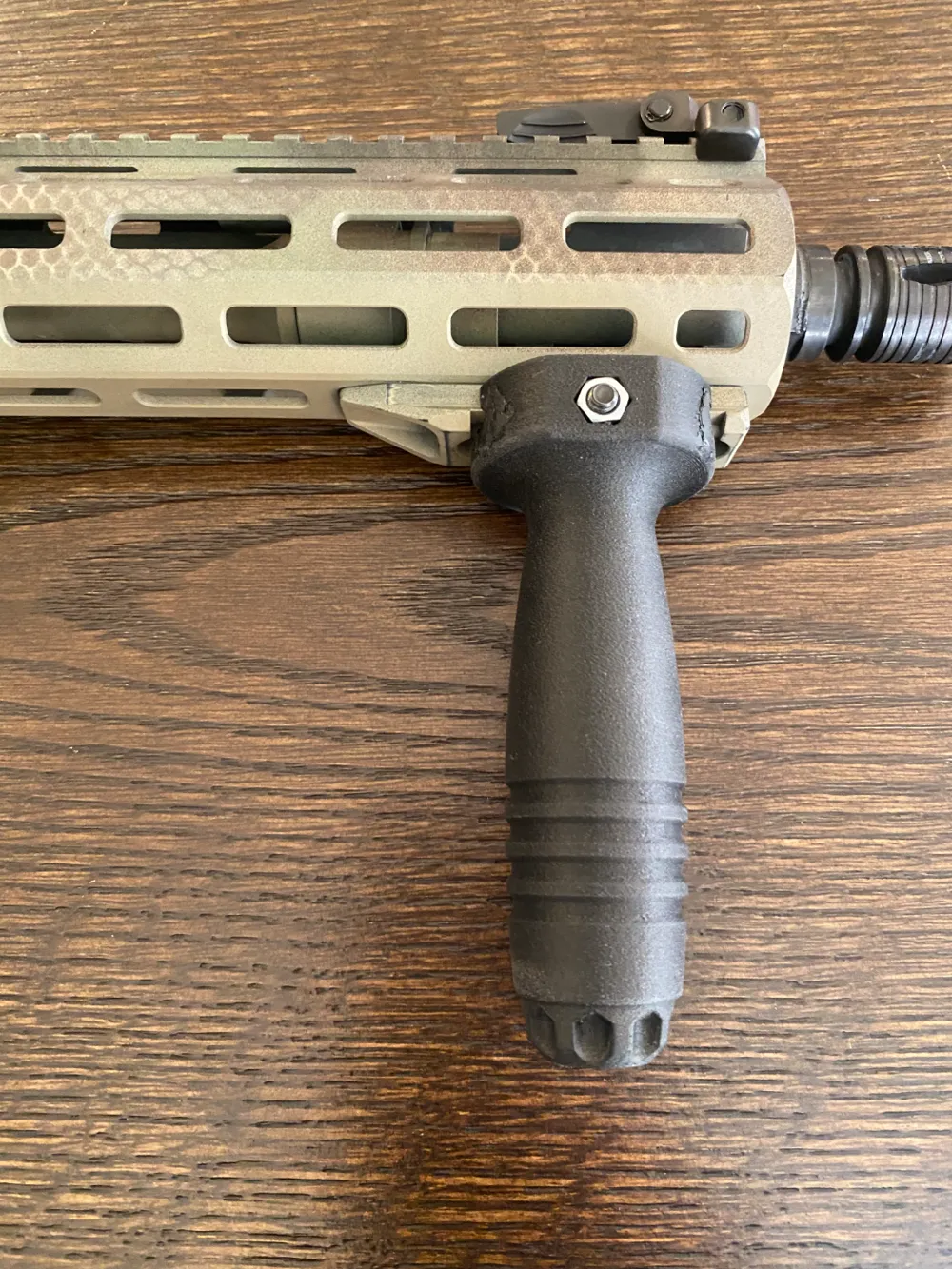

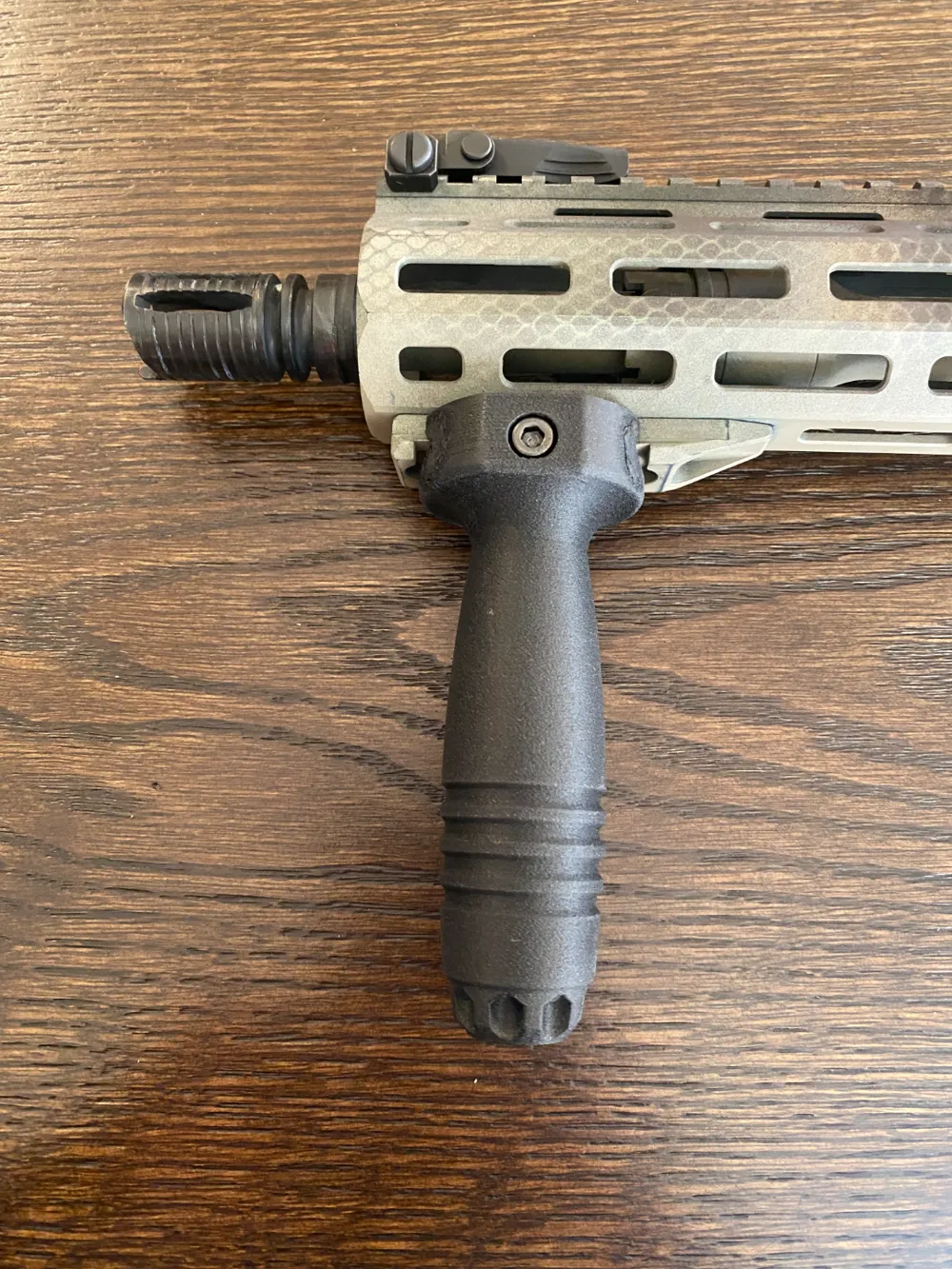

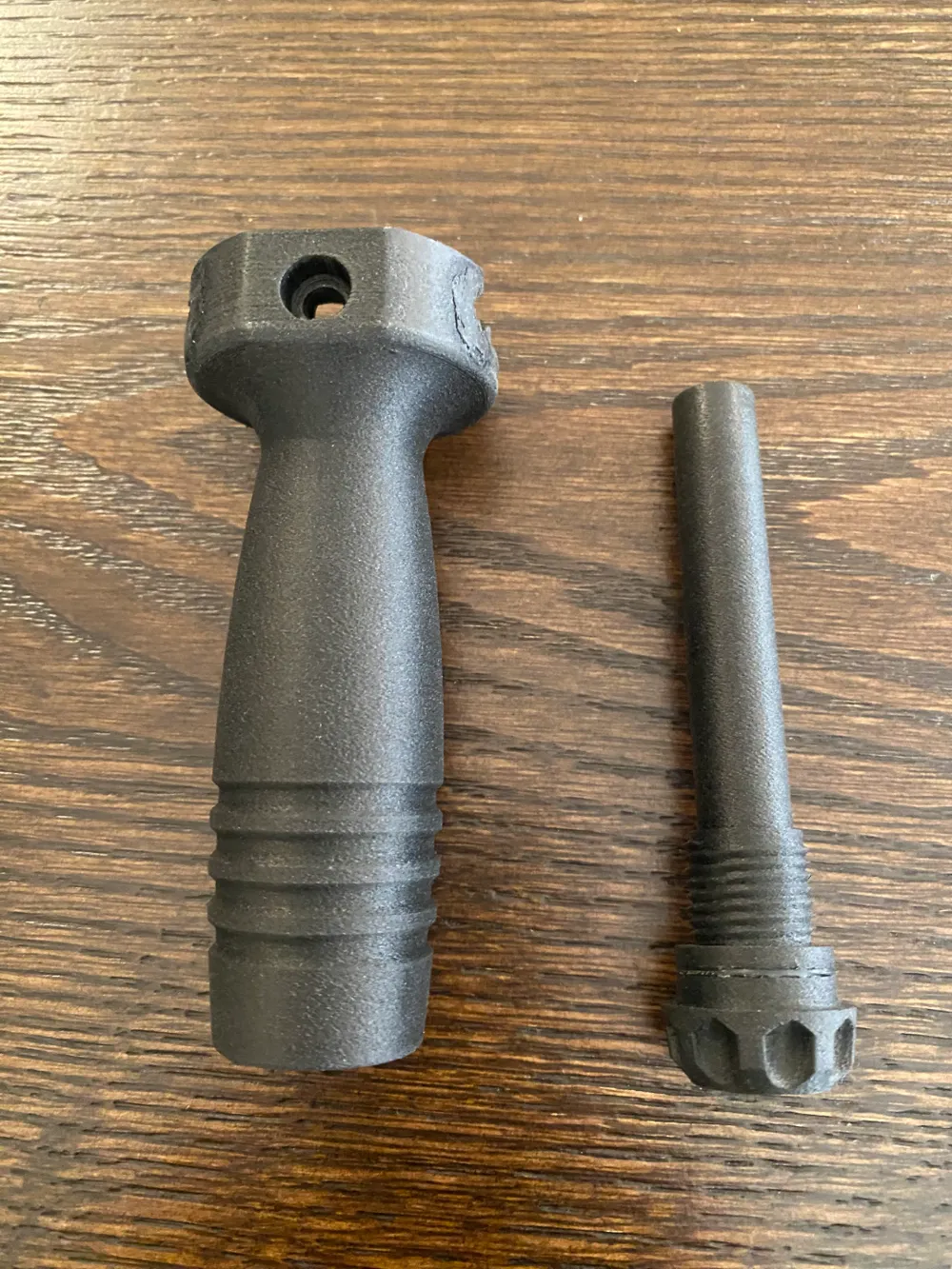

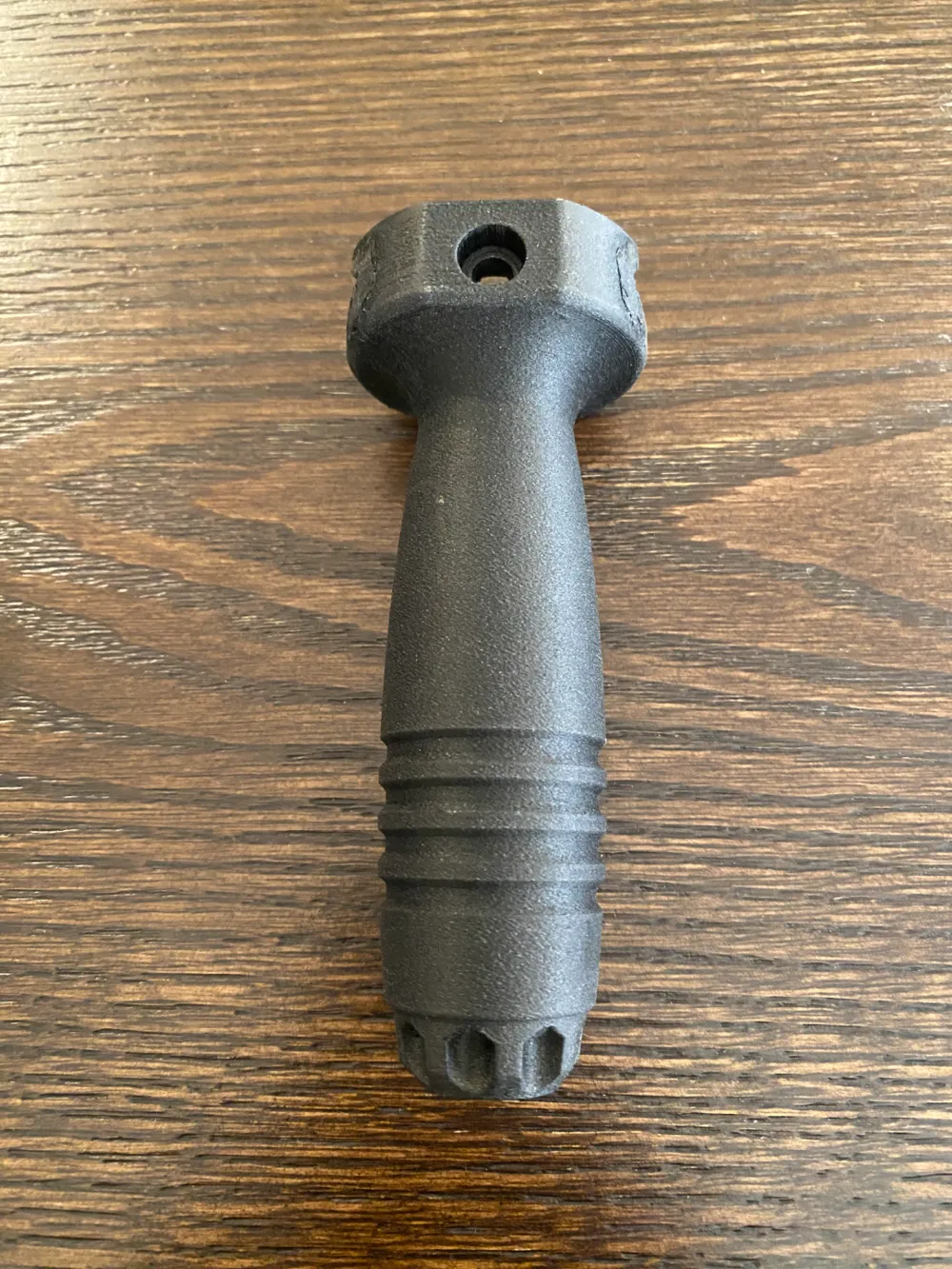

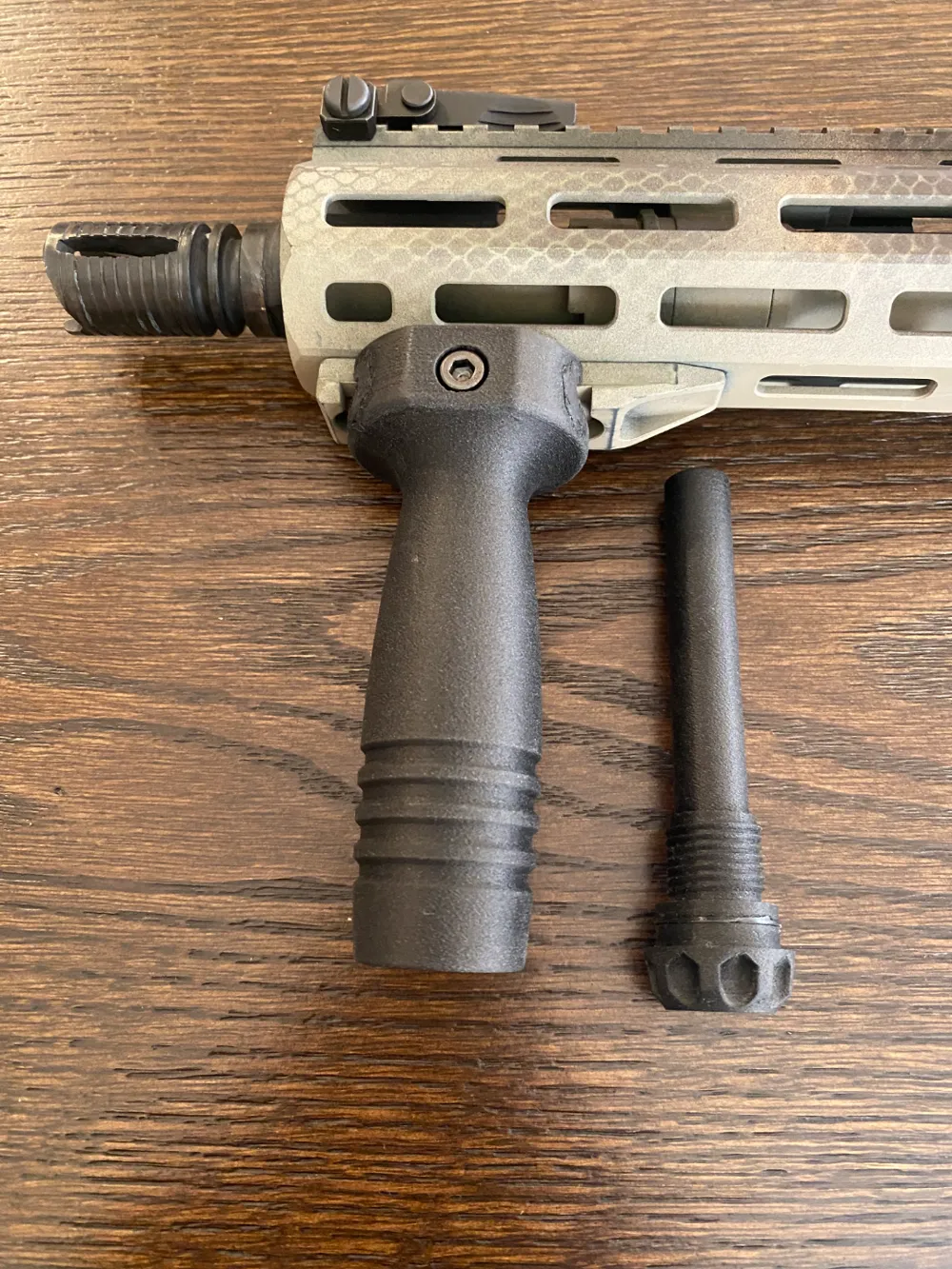

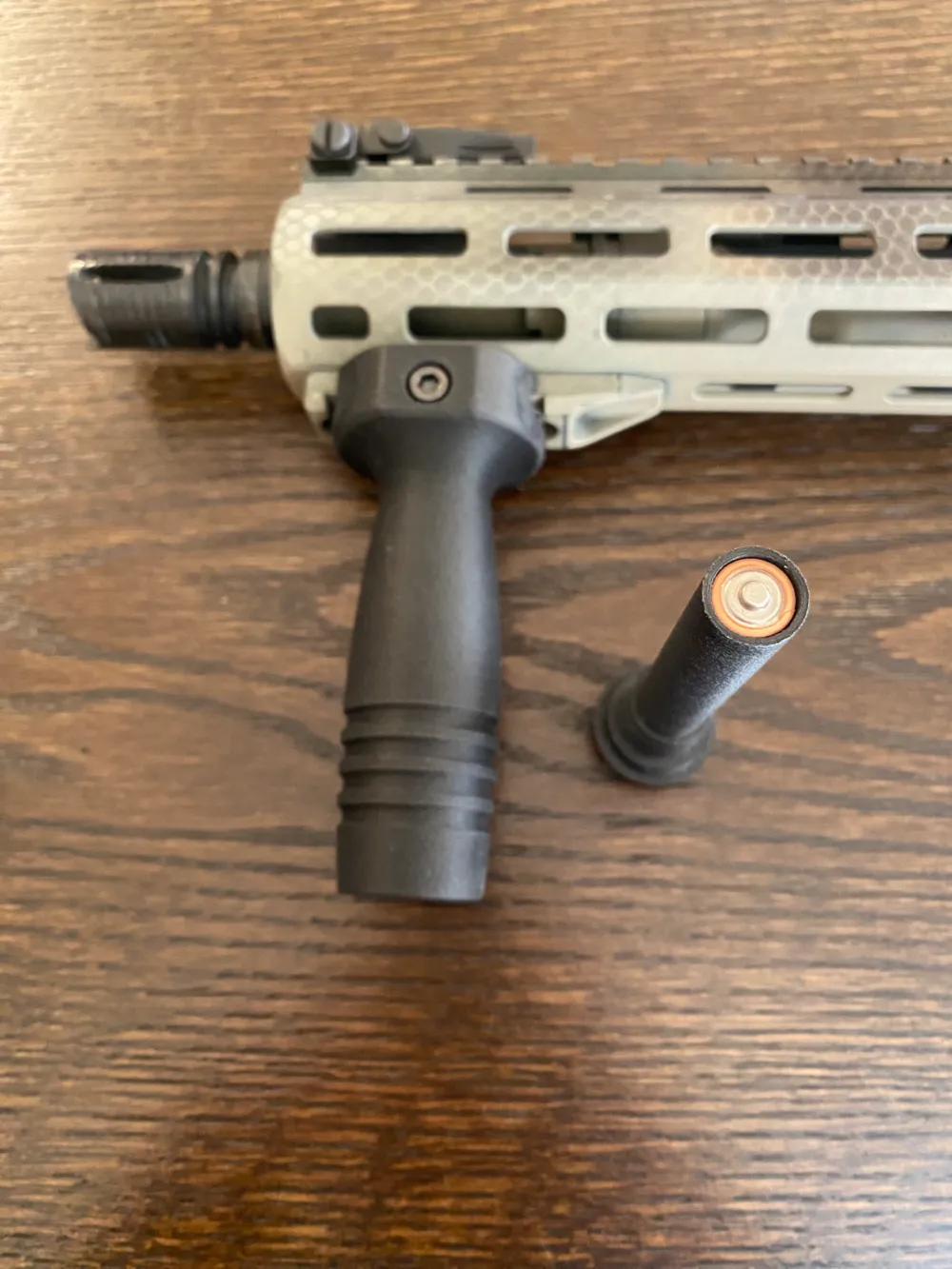

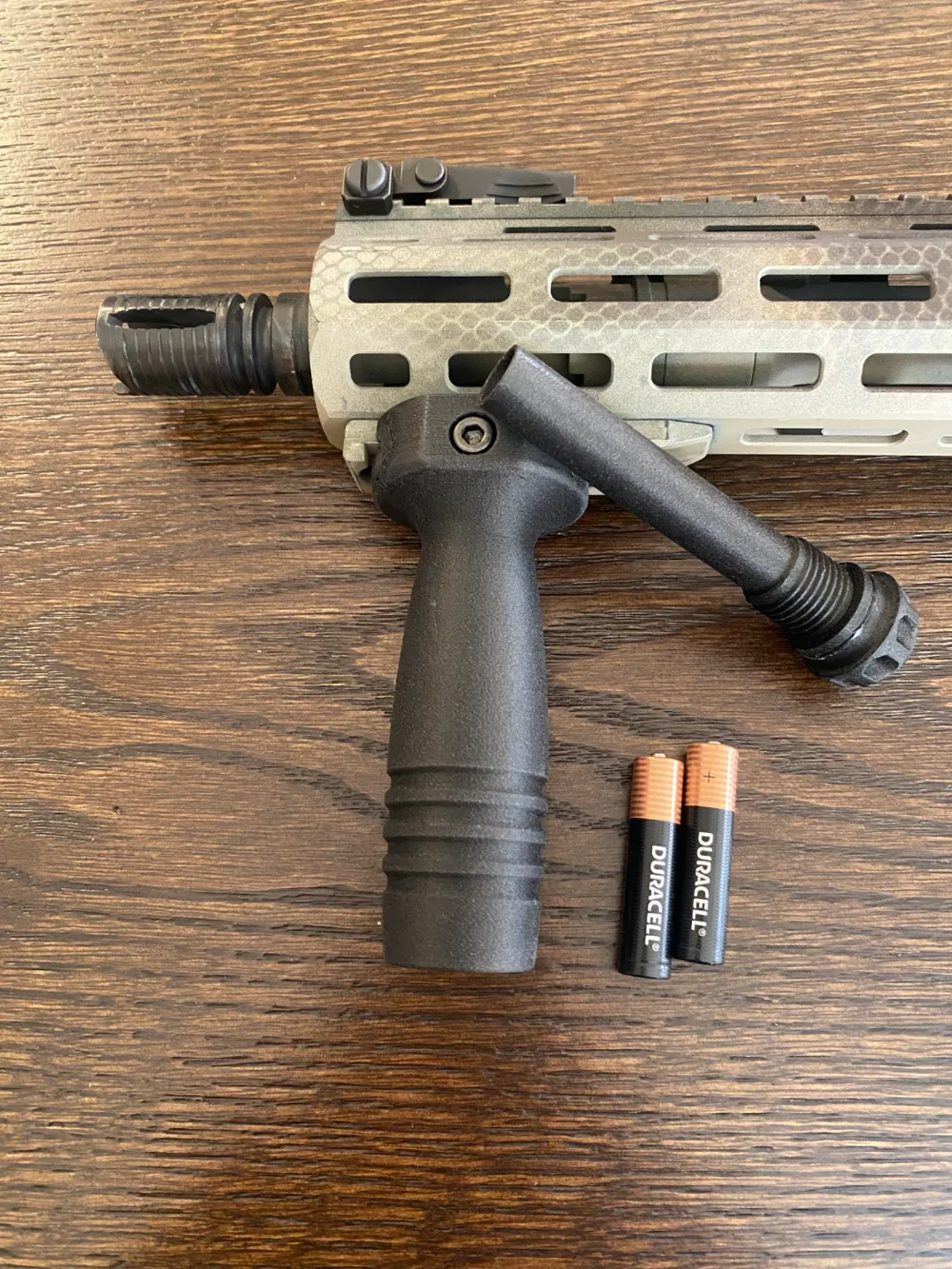

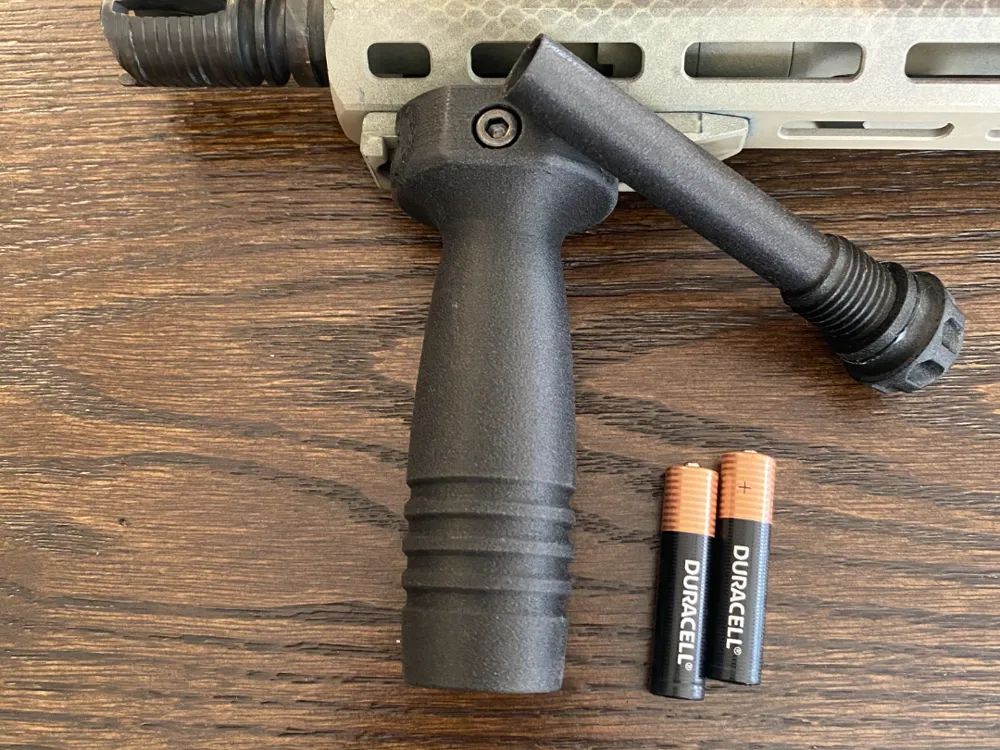

Picatinny Rail Foregrip with Threaded Insert sized for 2x AAA batteries & TPU O-Ring

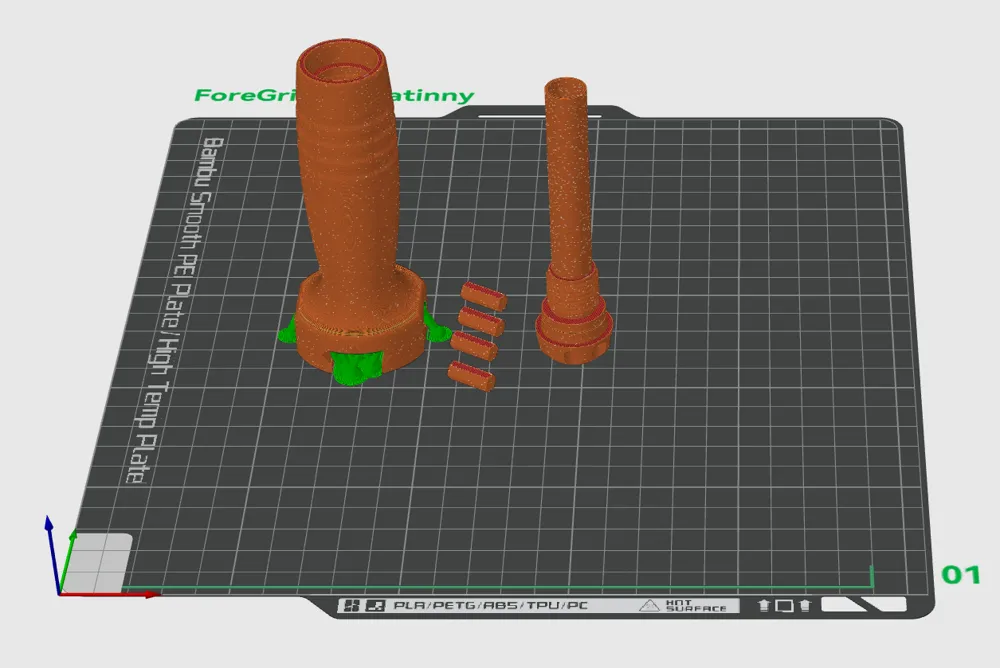

Printed in PA6-CF - 99% Gyroid Infill.
4 Horizontally printed plugs for added strength.

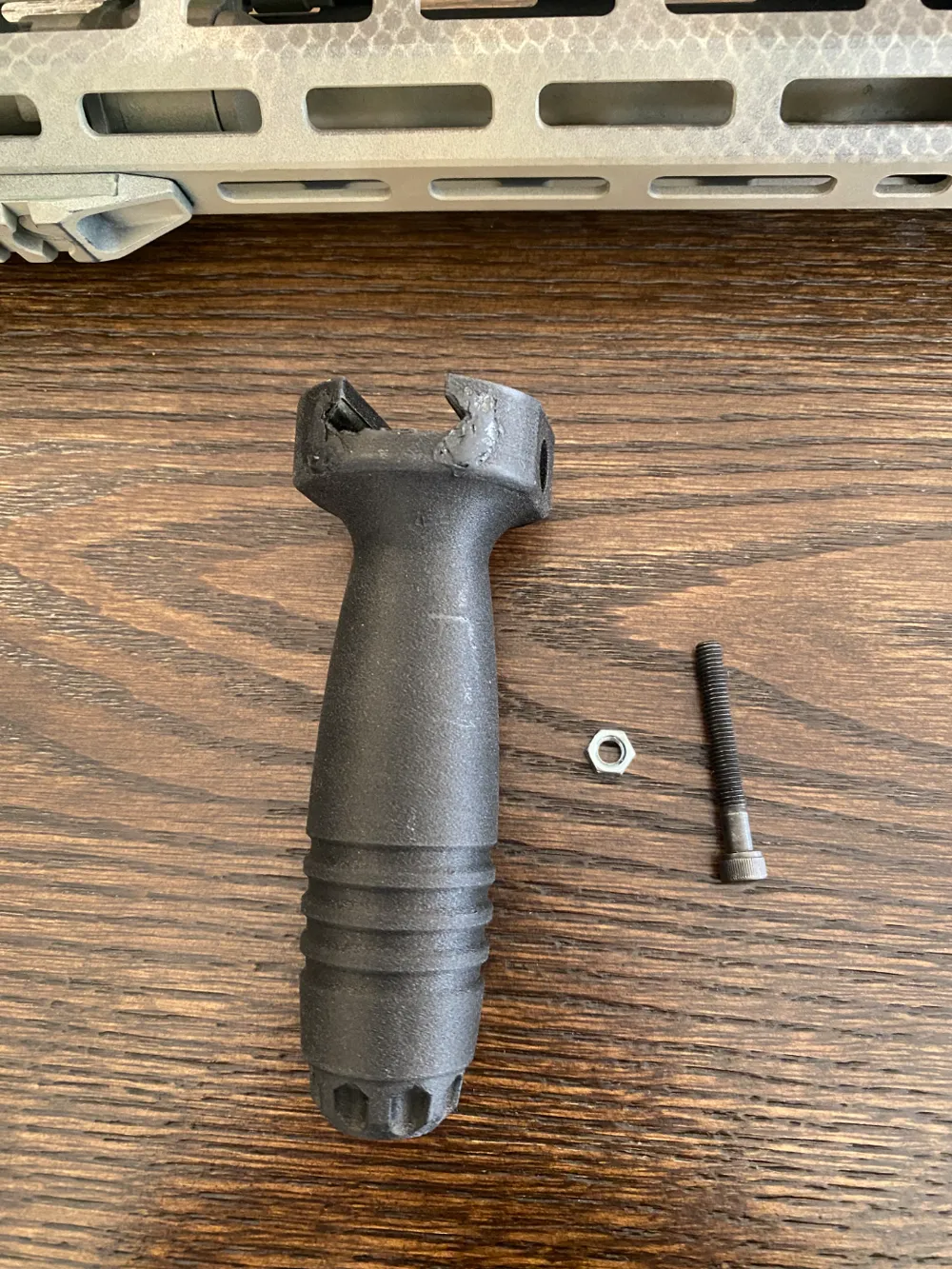

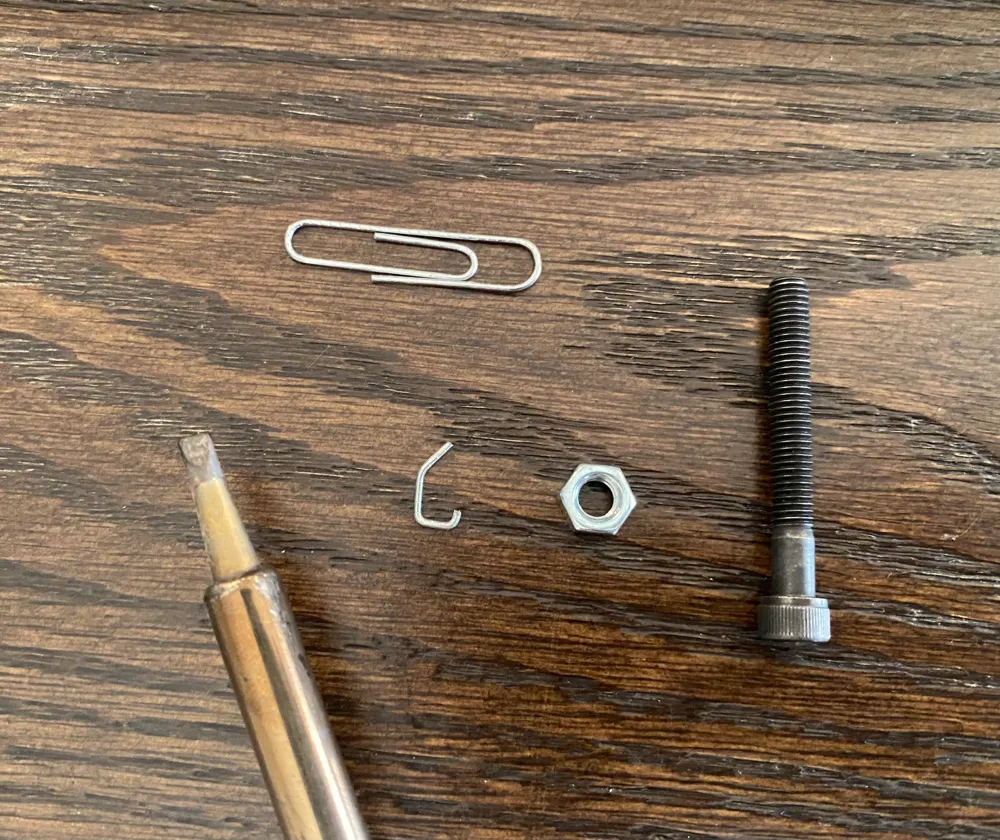

Hardware -

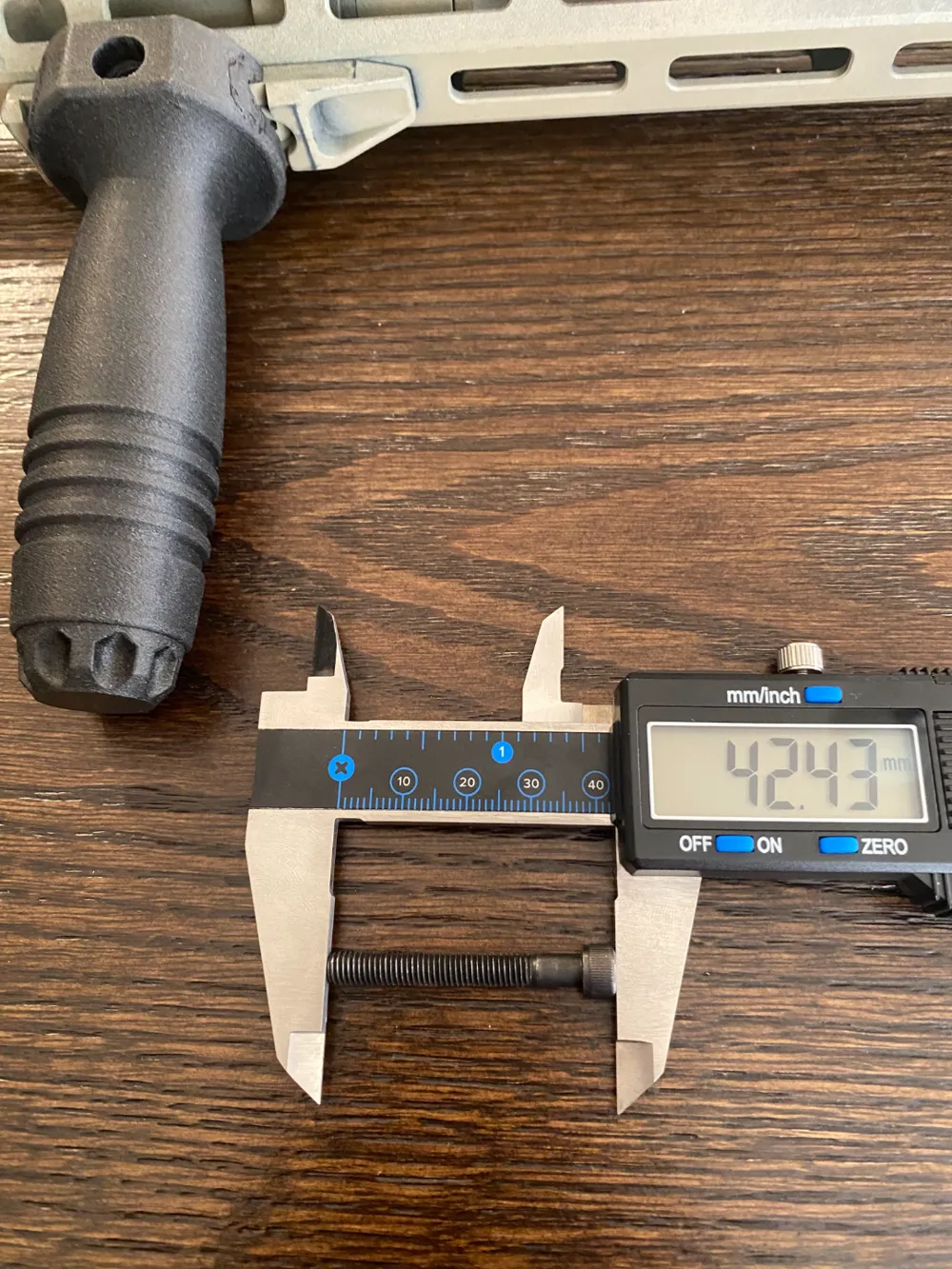

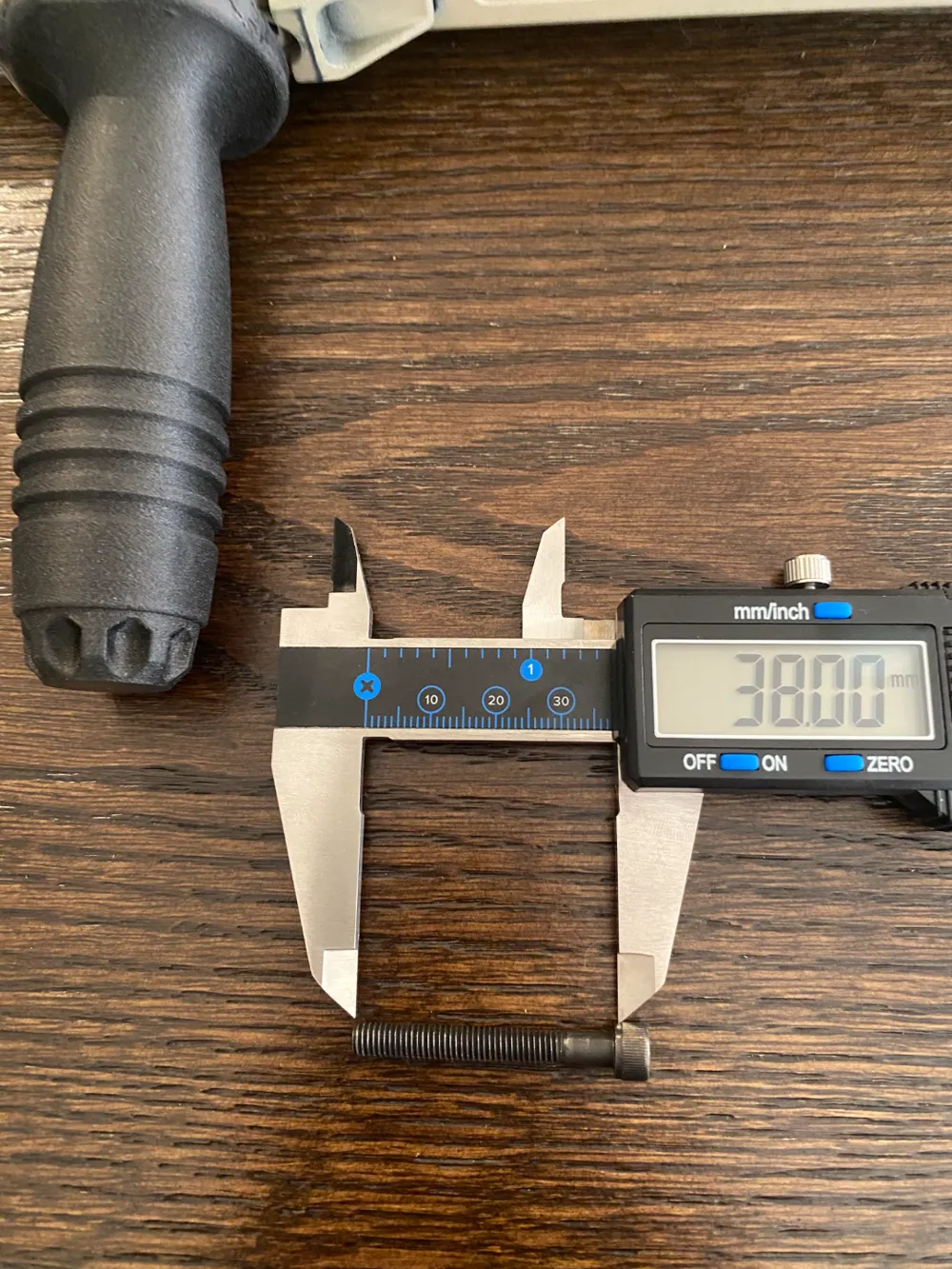

38mm #10 Socket Head Cap Machine Screw (35/36mm would fit best) *38 was what ace hardware had in stock.
#10 Hex Nut with matching thread
M5 hardware will also work for a tight fit.
For added strength (Pictured in photos) *Fumes from soldering plastic are toxic, proceed with caution at your own risk.

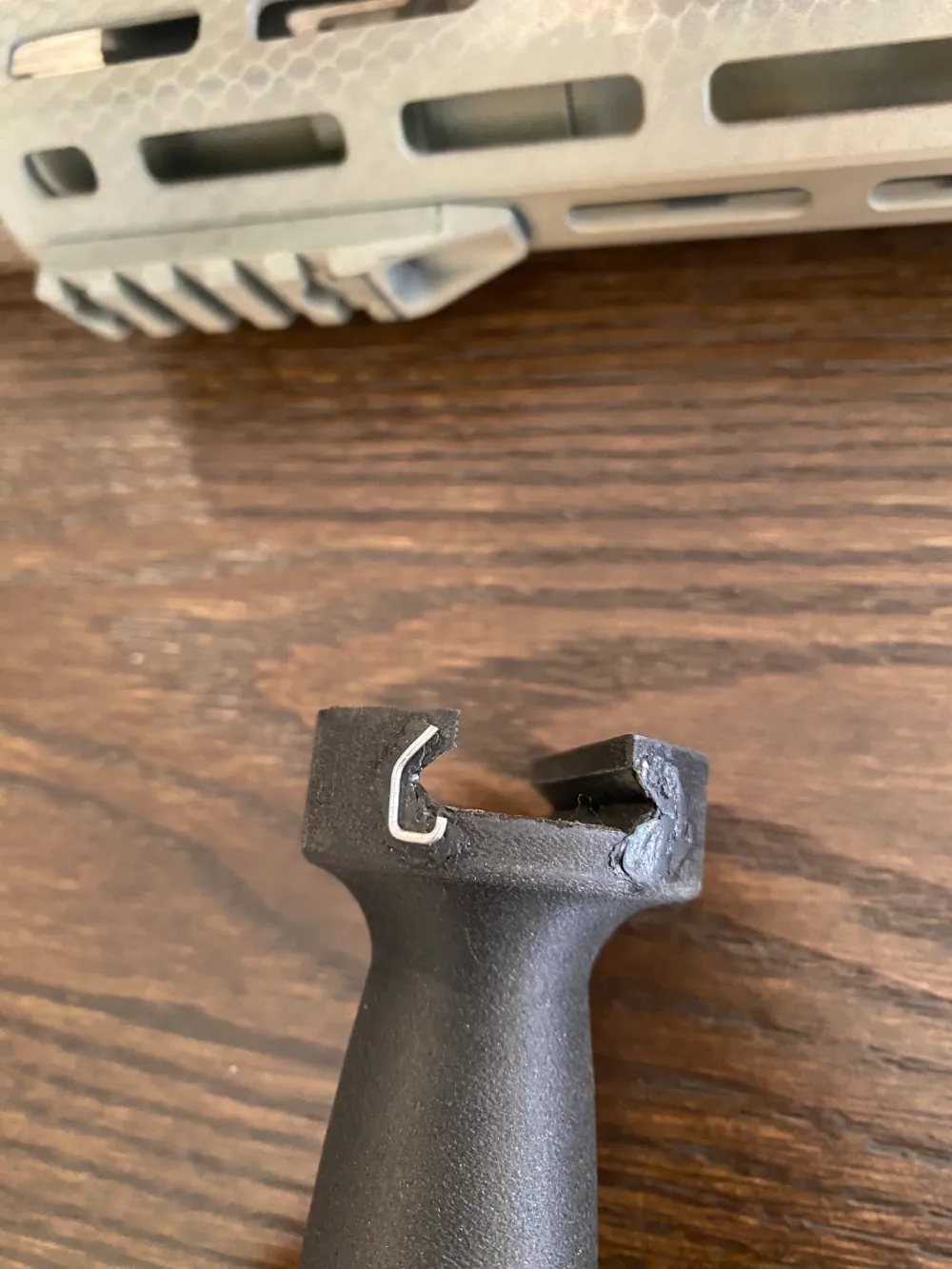

- Bend a paperclip into shape picture x2 and x2 mirrored copies.
- With Soldering Iron (in a well ventilated area, preferably with a vacuum ventilation system) hot press melt into front and back face ~1mm or so in from picatinny mounting < & > (location pictured).

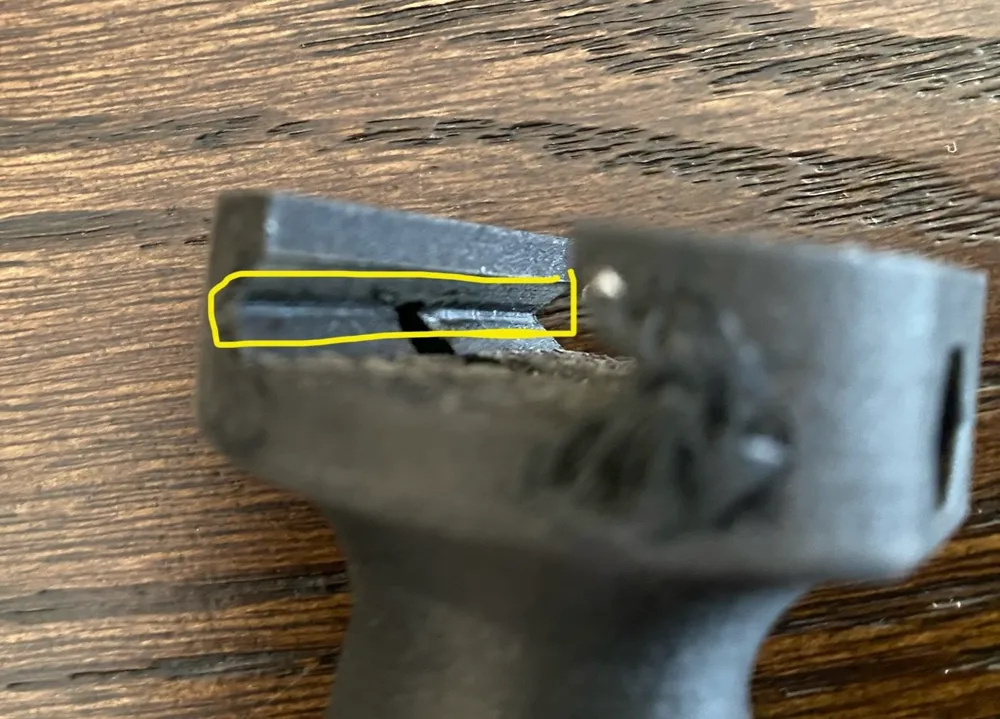

- Ran soldering iron across < & >. (location picture, weakest point of print)

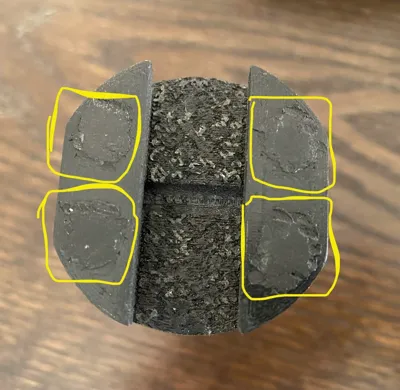

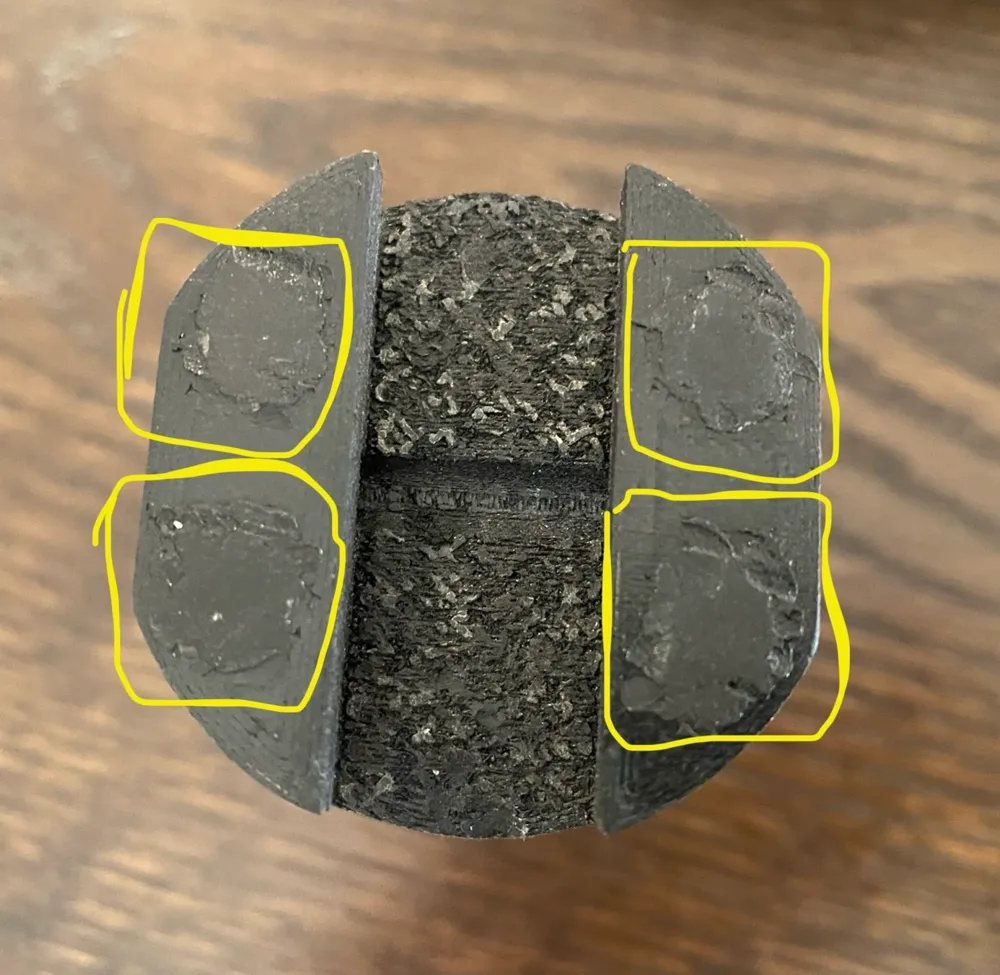

- Break off/cut a 3" or so chunk of PA6-CF filament and melt over the paperclips as well as on top of the 4 Hex plugs pressed into the top.
See MLOK Version -
https://makerworld.com/en/models/1046782#profileId-1032736
