Adjustable Car Handy Mobile / Cell phone Holder
Print Profile(1)
Description
Boost Me (for free)
If you like the model you can boost me for free. Thank you :-)
Adjustable Cell phone Holder with cable support for USB-C and Lightning
- Supports 70-84mm phone width and a thickness of 6-10mm
USB-C / Lightning for charging / Carplay / Android Auto
Boost Me (for free)
If you like my model you can boost me for free. Thank you :-)

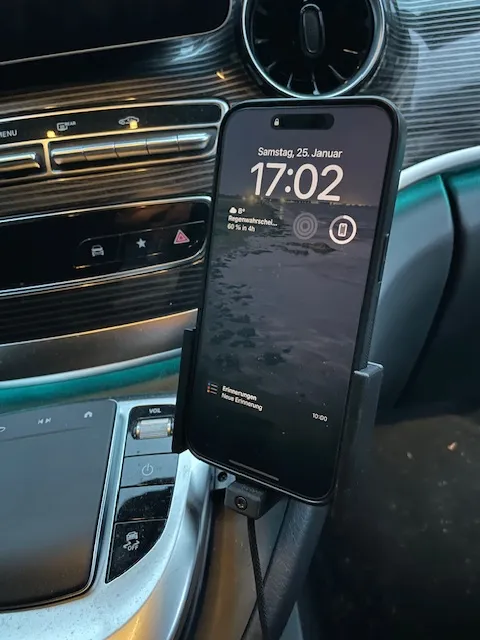

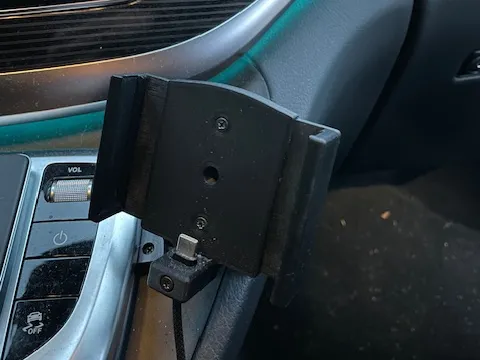

Photo shows iPhone 15 pro max:

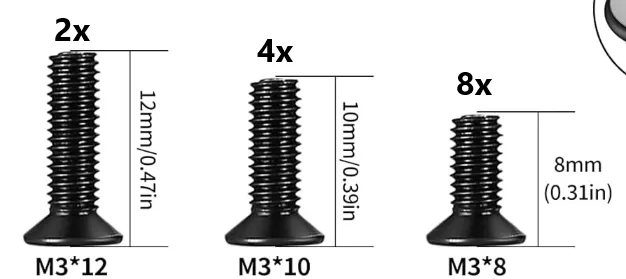

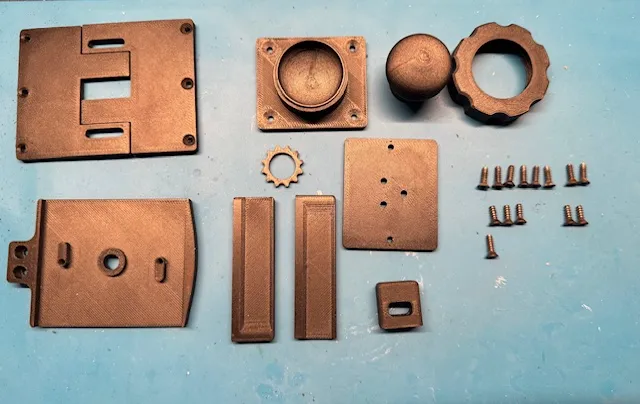

Requires the following screws:

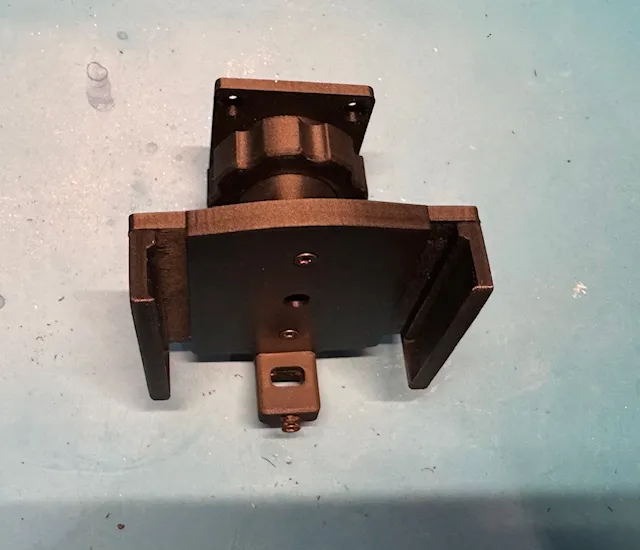

Assembly instructions:

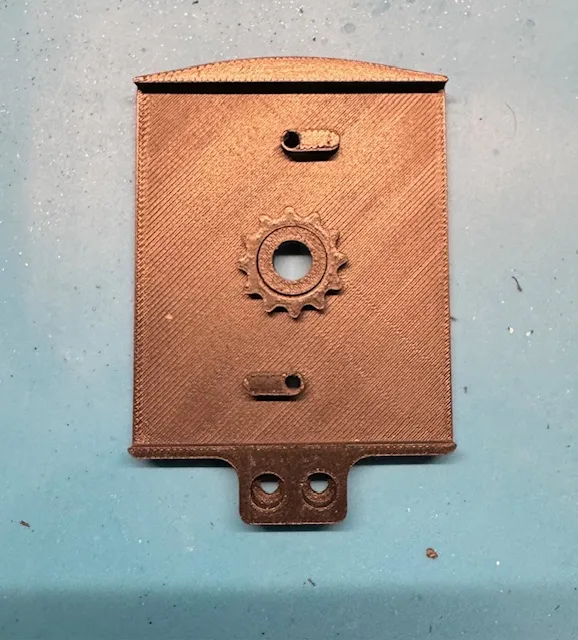

Put the the gear on the base plate

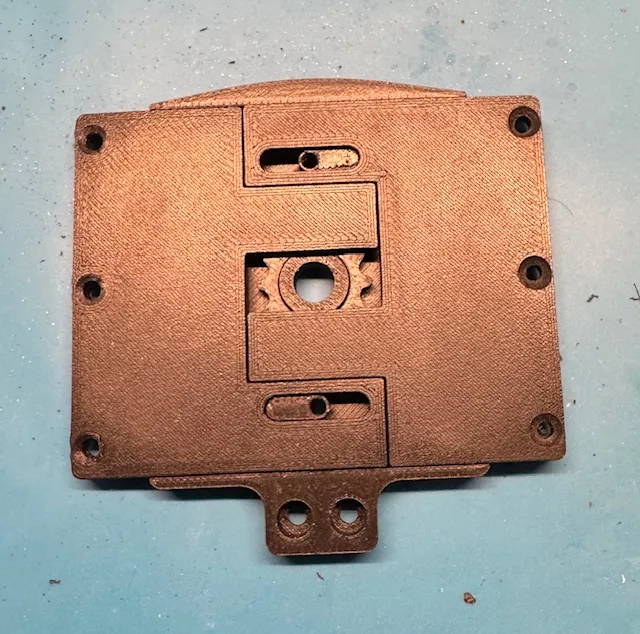

2. Place the left and right sliders

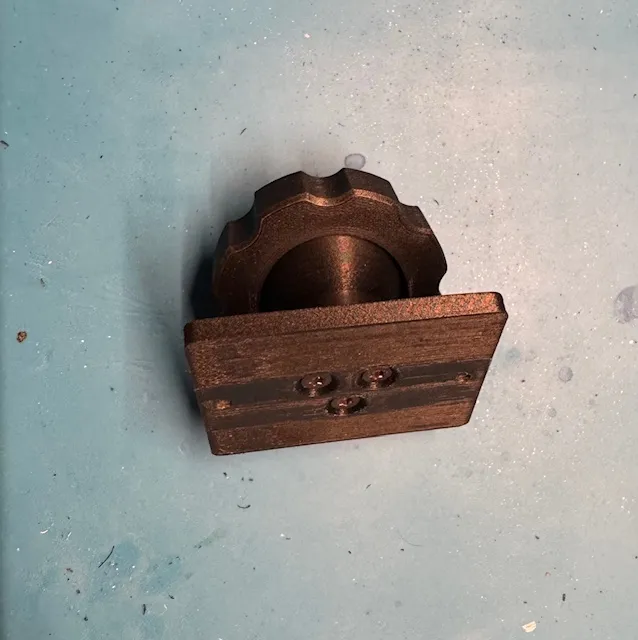

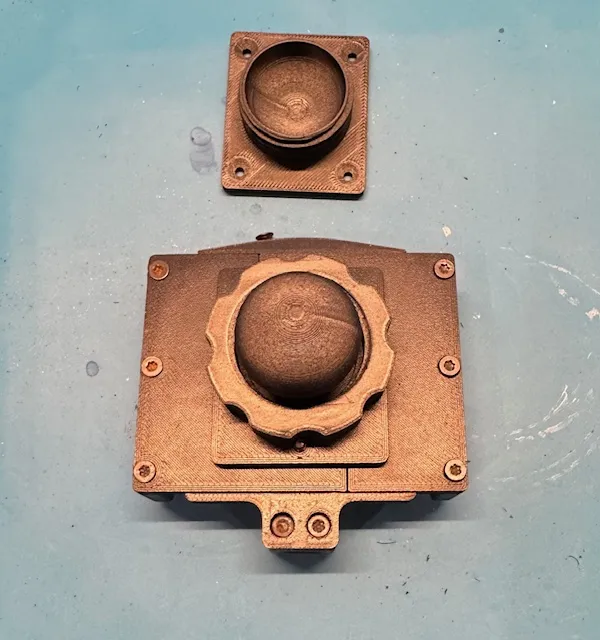

3. Build the backplate with the ball joint (Important printed screw must be placed over the ball) use 3x M3x10mm
4. Fix the backplate with 2x M3x12mm
5. Screw the right left and the cable clamp with 8x M8x3

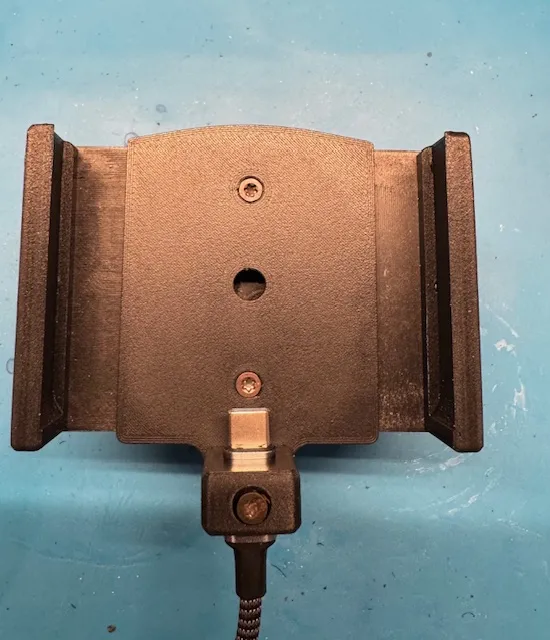

6. Put yout cable and pinch it with a M3x10mm screw
If you are looking for the tablet version, click here:
Boost Me (for free)
If you like my model you can boost me for free. Thank you :-)
Check out my other camping creations here.
Boost Me (for free)
If you like the model you can boost me for free. Thank you :-)
