65mm 14 flutes


Optimal settings with 50% infill for some strength.

0.16mm layer, 2 walls, 50% infill

Skippy

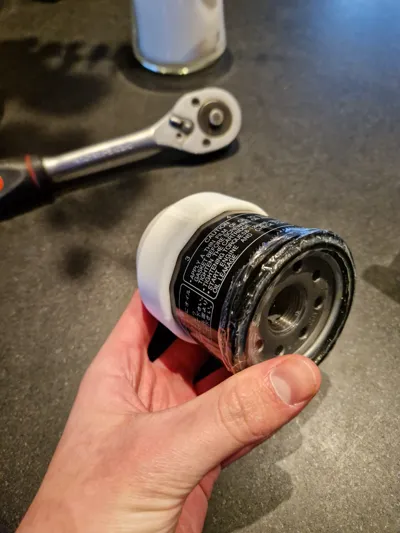

After requesting for a 65mm profile, I realised that the oil filter used in my 2007 Honda Shadow 750 Spirit C2 was actually smaller, despite what the documentation says. So downloaded the original 64mm profile and did some few tweaks in order to add more strength because I don&#39;t have PET-G and currently using PLA Basic filaments.<ul><li>Layer height: 0.2mm from Bambu Studio&#39;s 0.20mm strength preset</li><li>6 walls</li><li>6 bottom and top shell layers</li><li>50% infill in gyroid pattern</li><li>painted the opening end just to add some colour highlight to match the colour of my motorcycle</li><li>added a text that says “64mm / 14” to reflect the size and number of flutes to differentiate from the 65mm one</li></ul>The print turn out nicely and using a <a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/models/1078977">mini fixed torque wrench</a> I specifically designed and printed for this socket, I managed to removed and re-tighten the oil filter from the bike.

64mm 14 flutes socket: 0.2mm layer, 6 walls, 50% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

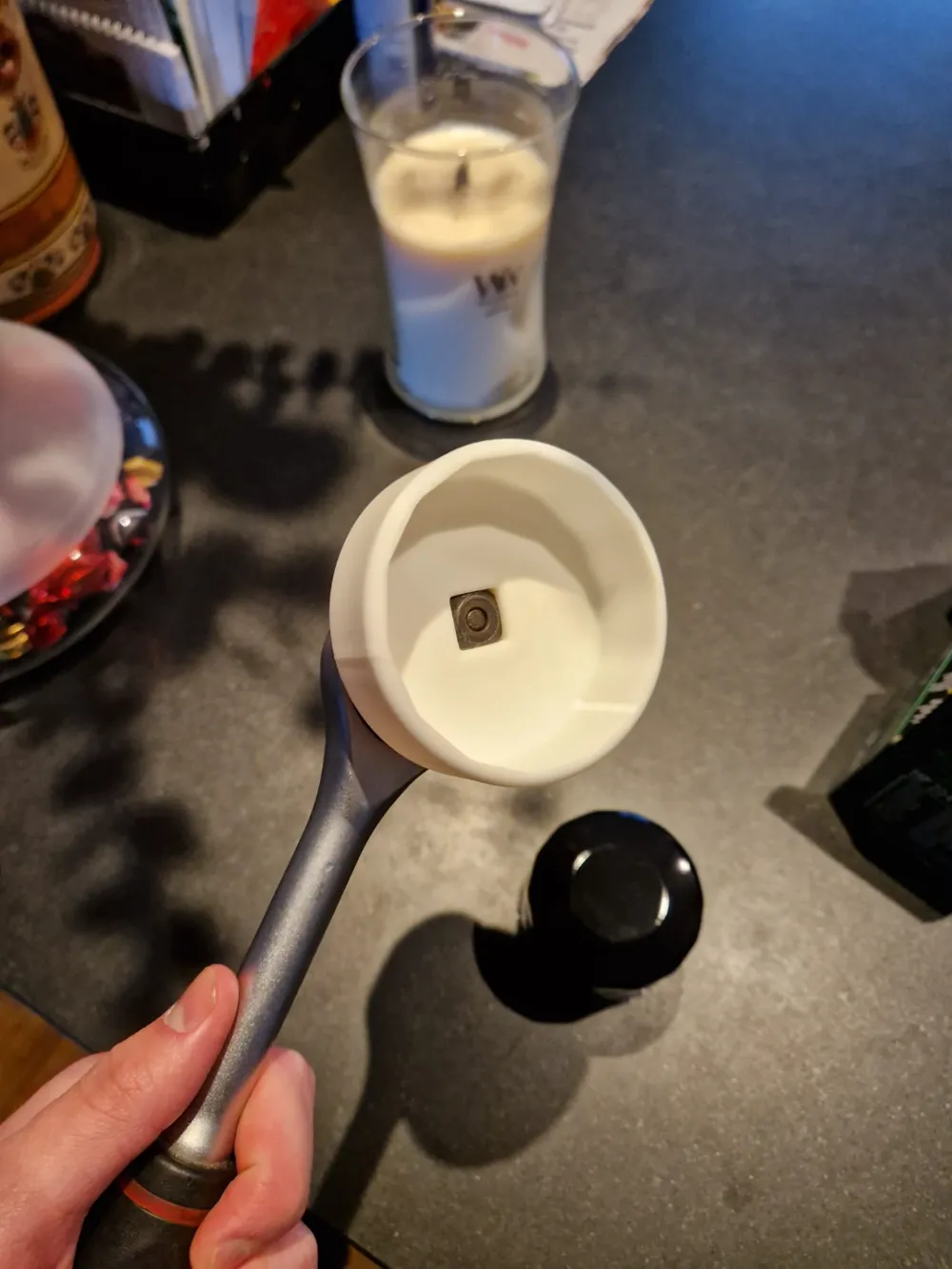

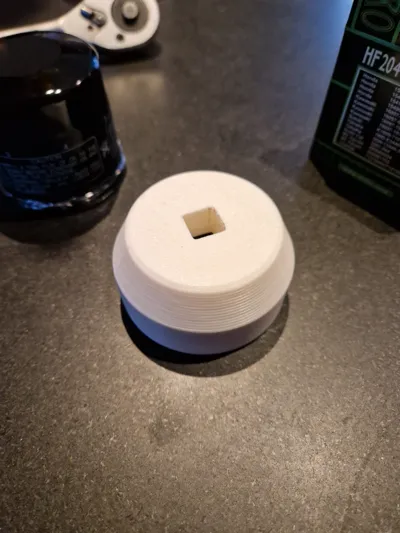

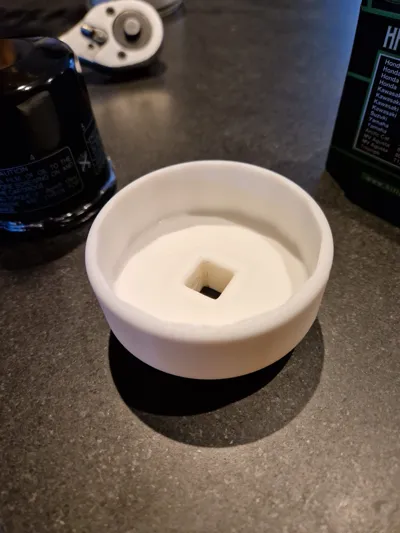

Hey you :) I made this socket to change my oil filter so i wouldn&#39;t have to buy one. Hope it helps you too!!This one is ready for 64mm. If you want a different size shoot me a message and i will upload it as soon as possible :D.Comment and tips are most welcome!!

Oil Filter Socket 64mm
