Heater and LED panel Saturn 4 Ultra

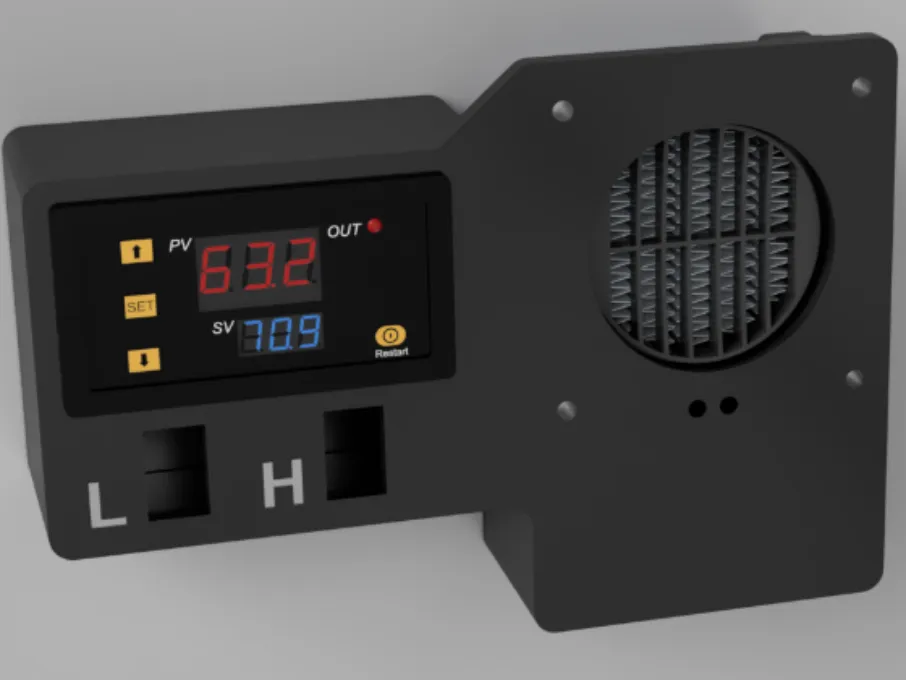

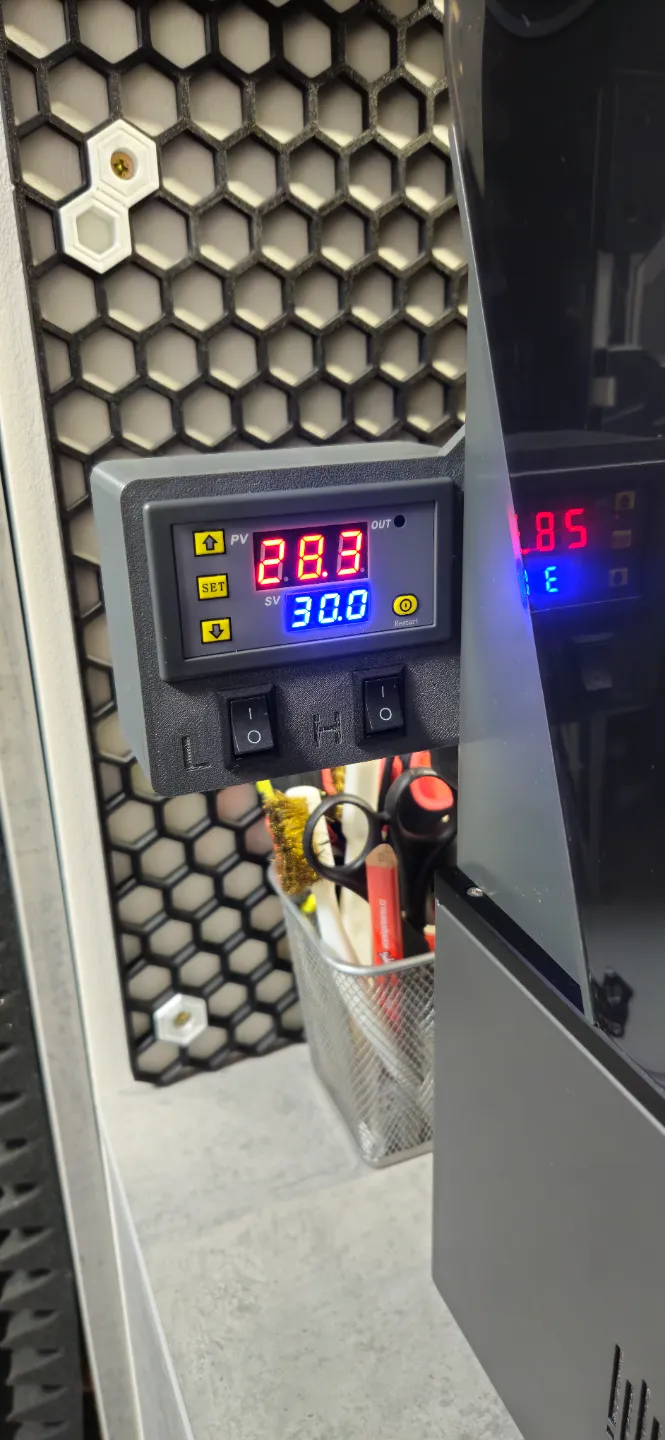

Heater and LED Control Panel for Saturn 4 and Saturn 4 Ultra

This heater and LED control panel is designed for use with the Saturn 4 and Saturn 4 Ultra 3D printers. It provides a simple and efficient way to heat the printer’s chamber and control LED lighting, ensuring optimal conditions for SLA printing. Below, you’ll find details about the components, setup, and recommended wiring.

Key Features:

• PTC Heater: A reliable heating element to maintain stable chamber temperatures.
• W3230 Mini Digital Temperature Controller: Enables precise temperature control with an easy-to-read display.
• LED Strip Control: Includes a dedicated switch for a 12V LED strip, adding convenient lighting inside the chamber.
• Two Switches: One switch powers the thermostat, while the other independently controls the LED strip.
• Compact Design: Streamlined to fit seamlessly into your setup.

Required Components:

1. PTC Heater
   • Link to product
2. W3230 Mini Digital Temperature Controller
   • Link to product
3. Two Switches
   • Link to product
4. 12V 150W Power Supply Unit (PSU)
   • Link to product
5. 12V LED Strip
6. Brass Inserts M3 (OD 4.5mm lenght 4mm) - 6 pc

Recommended Power Supply:

We suggest using a 12V, 150W PSU to ensure reliable performance for both the heater and the LED strip.

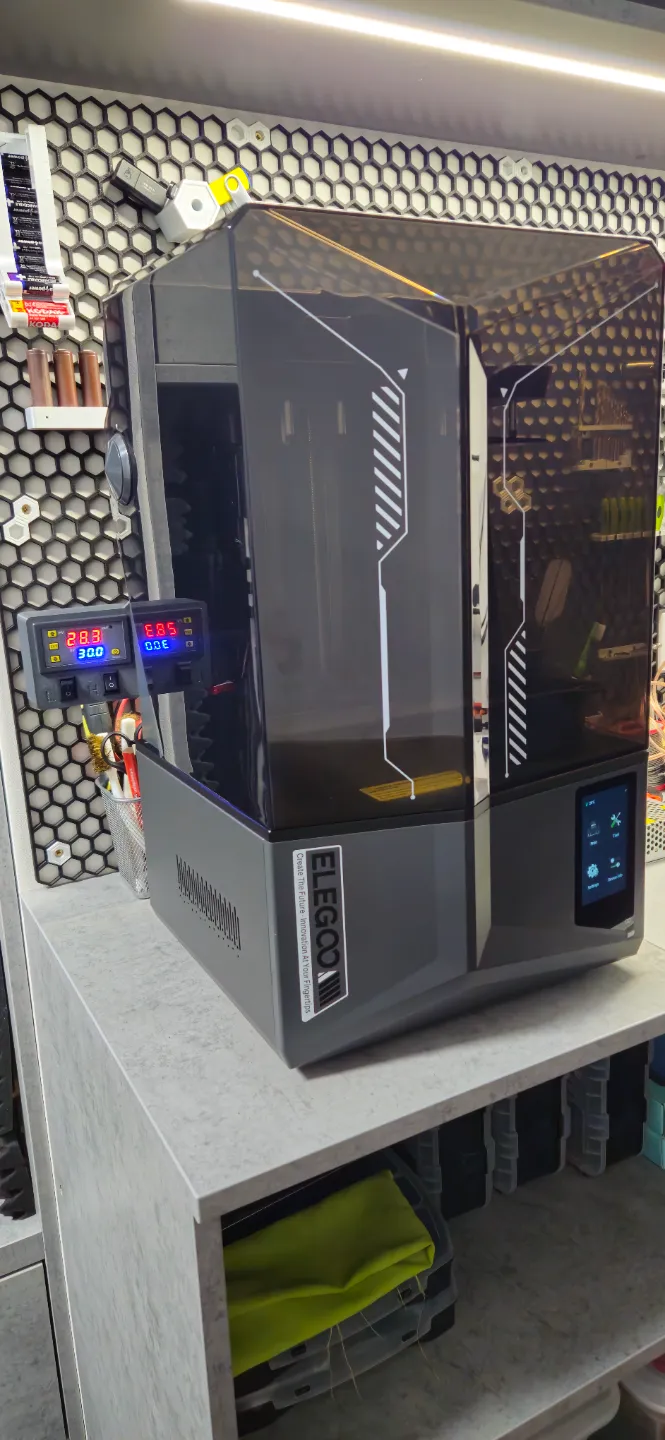

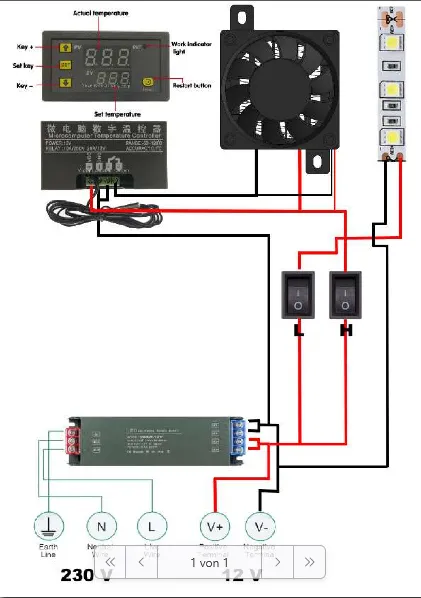

Basic Wiring Instructions:

The wiring is straightforward and can be customized to suit individual preferences. Here’s a basic overview:

1. Switch 1: Connects to the power supply and powers the W3230 thermostat. This allows you to control the heater via the thermostat settings.
2. Switch 2: Connects directly to the LED strip, providing a simple on/off function for lighting.
3. Thermostat Wiring: Refer to the manufacturer’s instructions for connecting the W3230 temperature controller to the heater and power supply.
   • Thermostat Wiring Guide

   •

Installation Notes:

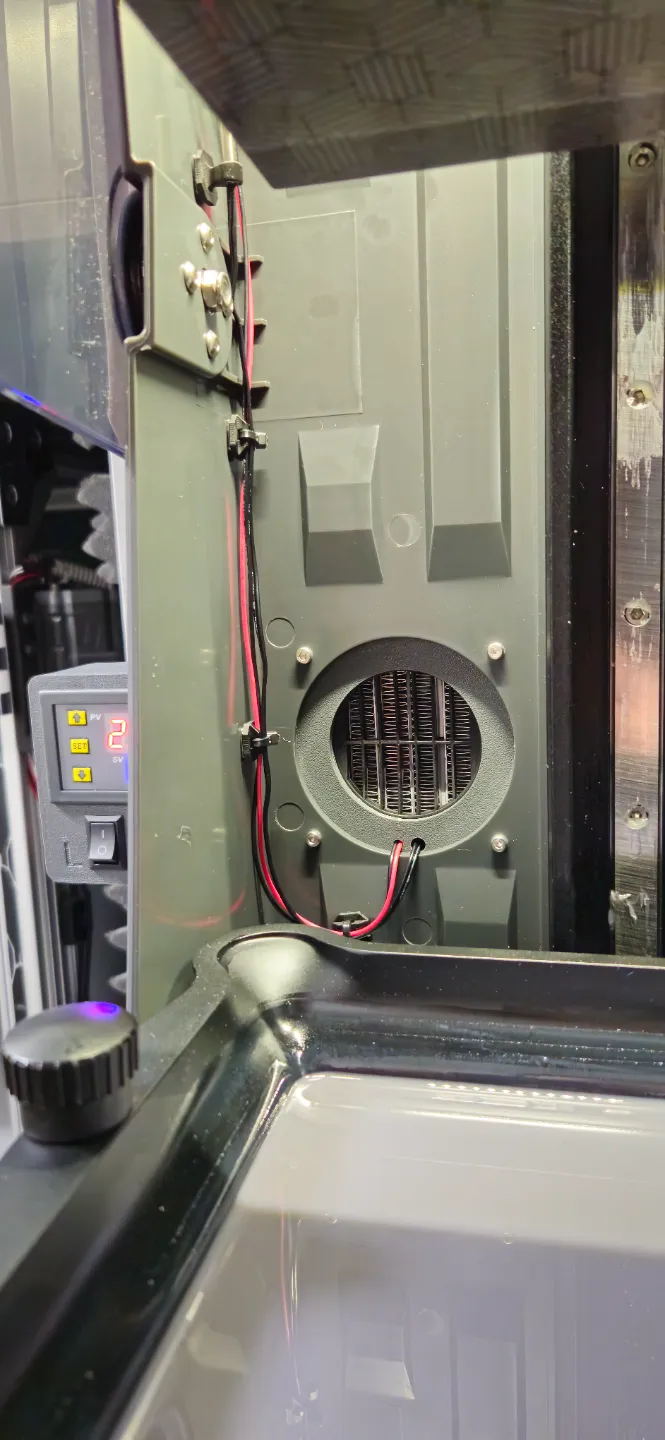

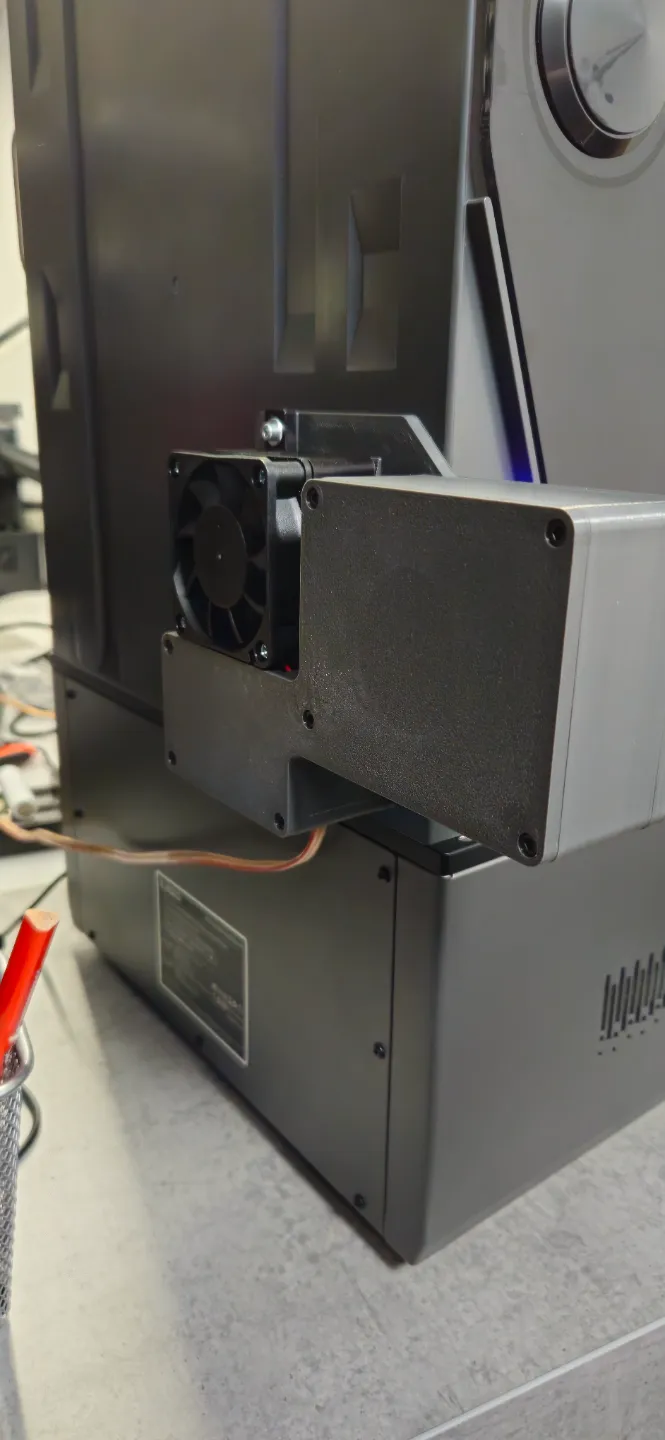

• The PTC heater should be positioned to distribute heat evenly throughout the chamber.
• Ensure all wiring is securely connected and insulated to prevent short circuits.

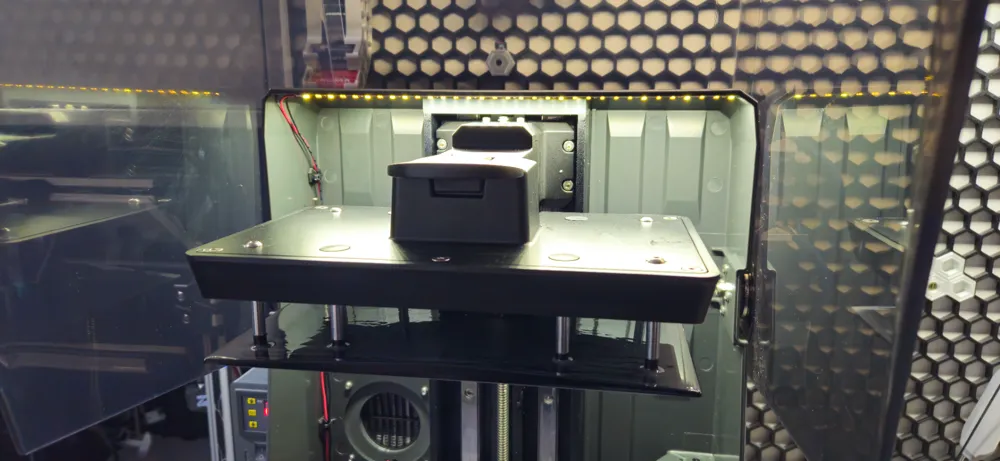

• Mount the LED strip in a location that provides adequate illumination without obstructing other components.

Additional Considerations:

• The wiring diagram will be uploaded soon for visual reference.
• Always double-check connections and follow safety guidelines when working with electrical components.

This heater and LED control panel is a practical upgrade for your Saturn 4 or Saturn 4 Ultra printer, helping you achieve consistent print quality with improved environmental control. Whether you’re printing intricate models or larger batches, this system ensures optimal working conditions for your SLA printer.
