Description

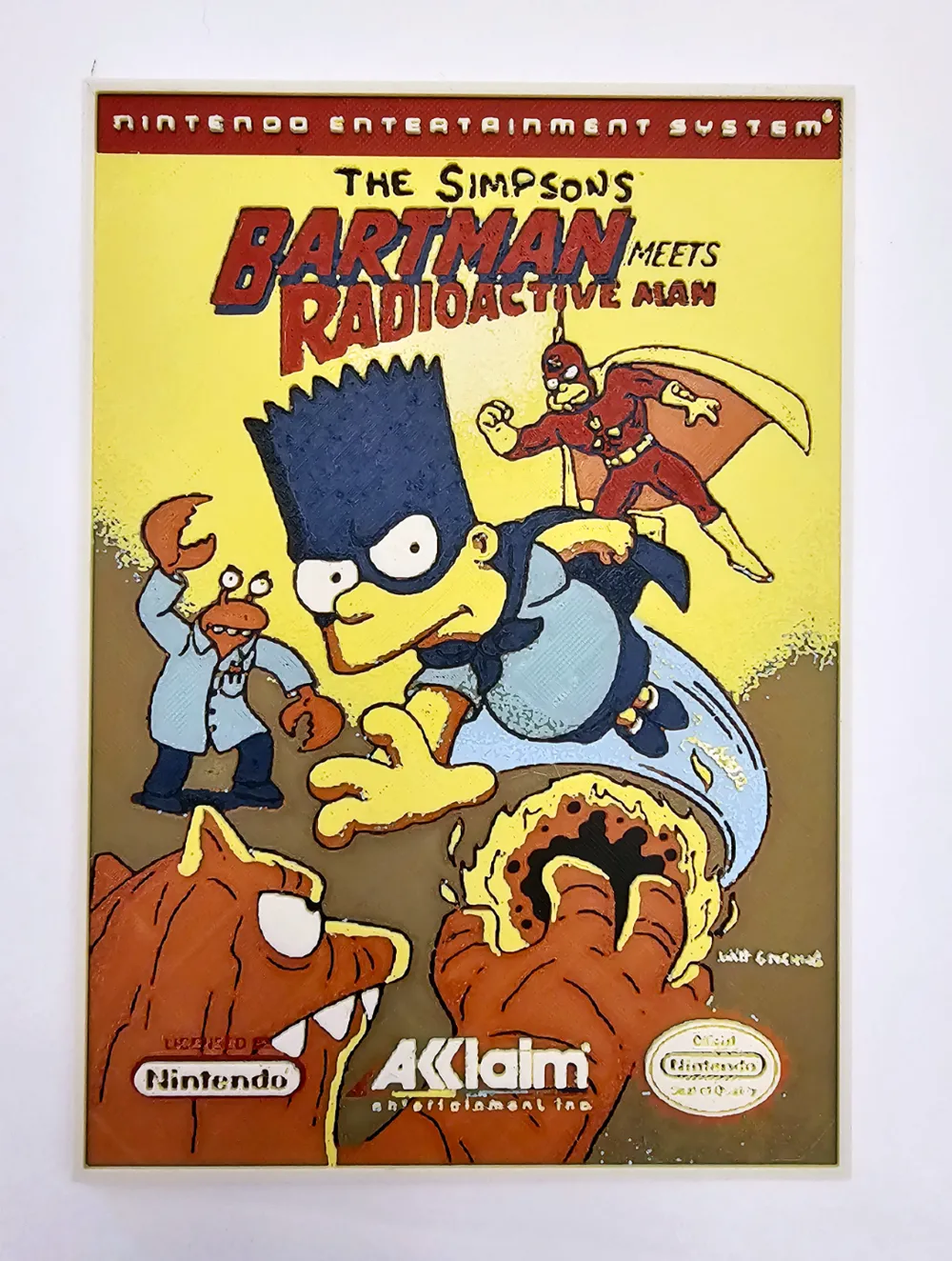

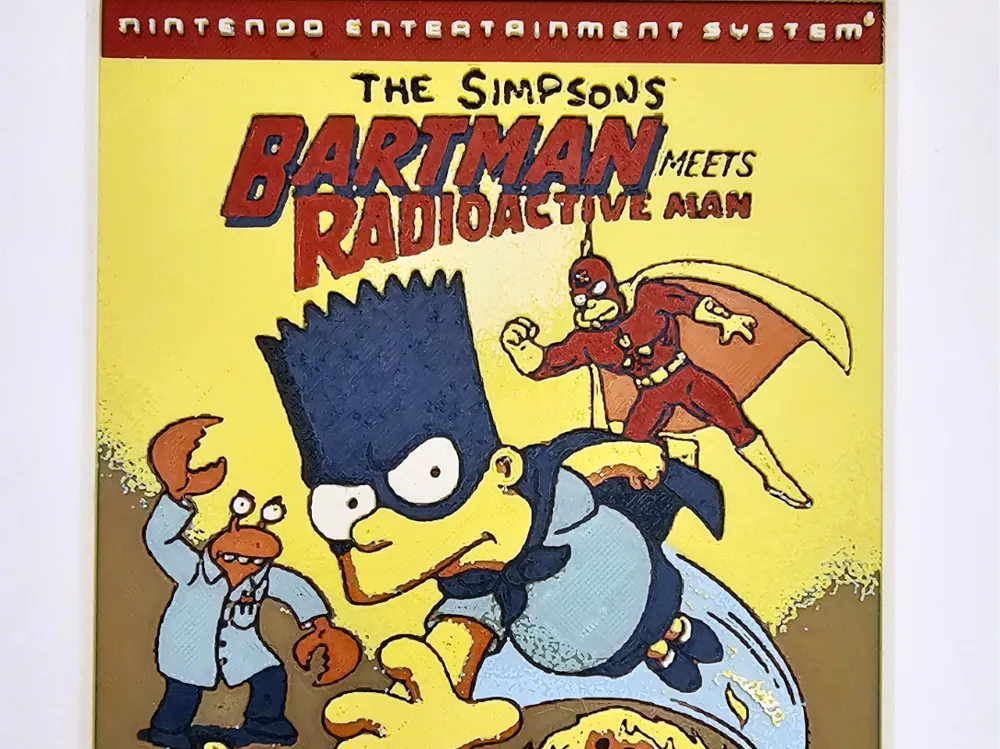

This Bartman Fan Art was made using HueForge. It requires 8 colors, Black, Dark Blue, Red, Orange, Green, Light Blue, Yellow, and White. I used a lot of Matte colors for this print because the colors seem to blend well together. Matte also helps reduce stringing on the print, but you can use normal PLA if that is all you have. Please keep in mind depending on the brand and shade of your PLA your results may vary.

Print at 100% infill with a layer height of 0.08, the first layer needs to be 0.16, and a wall loop of 1.

I did not use a prime tower, it is not needed. This print should take about 4h44m if you use the 3mf settings.

Note: If you only have one AMS you can still print this card.

This is how you do 8 colors on one AMS.

You put the color changes in the side bar where you can see the layers. Now when you go to program your AMS, you pick the 1st 4 colors in bay1 through bay4. The 5th color goes in bay1 once the black in bay1 is done and so on. You just take out the black and put the 5th color in it's place and continue this step again once each of the other colors are done.

Happy Printing!!

The Model is 141.46x200mm in size
You may print at higher layer heights below the Min Depth of 0.24mm
The Max Depth is 2mm and the Actual Depth is 2.1mm

This print uses 8 unique filaments

Filaments Used:
PLA Sunlu Black Transmission Distance: 5
    PLA BambuLab Matte Dark Blue Transmission Distance: 1
    PLA PolyLite Wine Red Transmission Distance: 1
    PLA BambuLab Basic Orange Transmission Distance: 7
    PLA BambuLab Basic BambuLab Green Transmission Distance: 2
    PLA Overture Matte Light Blue Transmission Distance: 1.8
    PLA PolyTerra Savannah Yellow Transmission Distance: 3.5
    PLA Sunlu Matte White Transmission Distance: 5

Swap Instructions:
    Start with Black
    At layer #4 (0.4mm) swap to Dark Blue
    At layer #6 (0.56mm) swap to Wine Red
    At layer #7 (0.64mm) swap to Orange
    At layer #10 (0.88mm) swap to BambuLab Green
    At layer #12 (1.04mm) swap to Light Blue
    At layer #15 (1.28mm) swap to Savannah Yellow
    At layer #21 (1.76mm) swap to White for the rest.
