Description
Content has been automatically translated.
SmallDesktopDisplay (SD2) Mac enclosure. Inspired by Bilibili UP master @云梦泽创意空间, this model is a reference to "Mac Minus" 5 inch CRT TV sized Macintosh Plus Case.
The PCB is made according to wangcaicai's open-source project on JLCPCB SD2 weather clock with added buttons and WS2812. The PCB is 1.2mm thick and the screen is 1.54 inches.

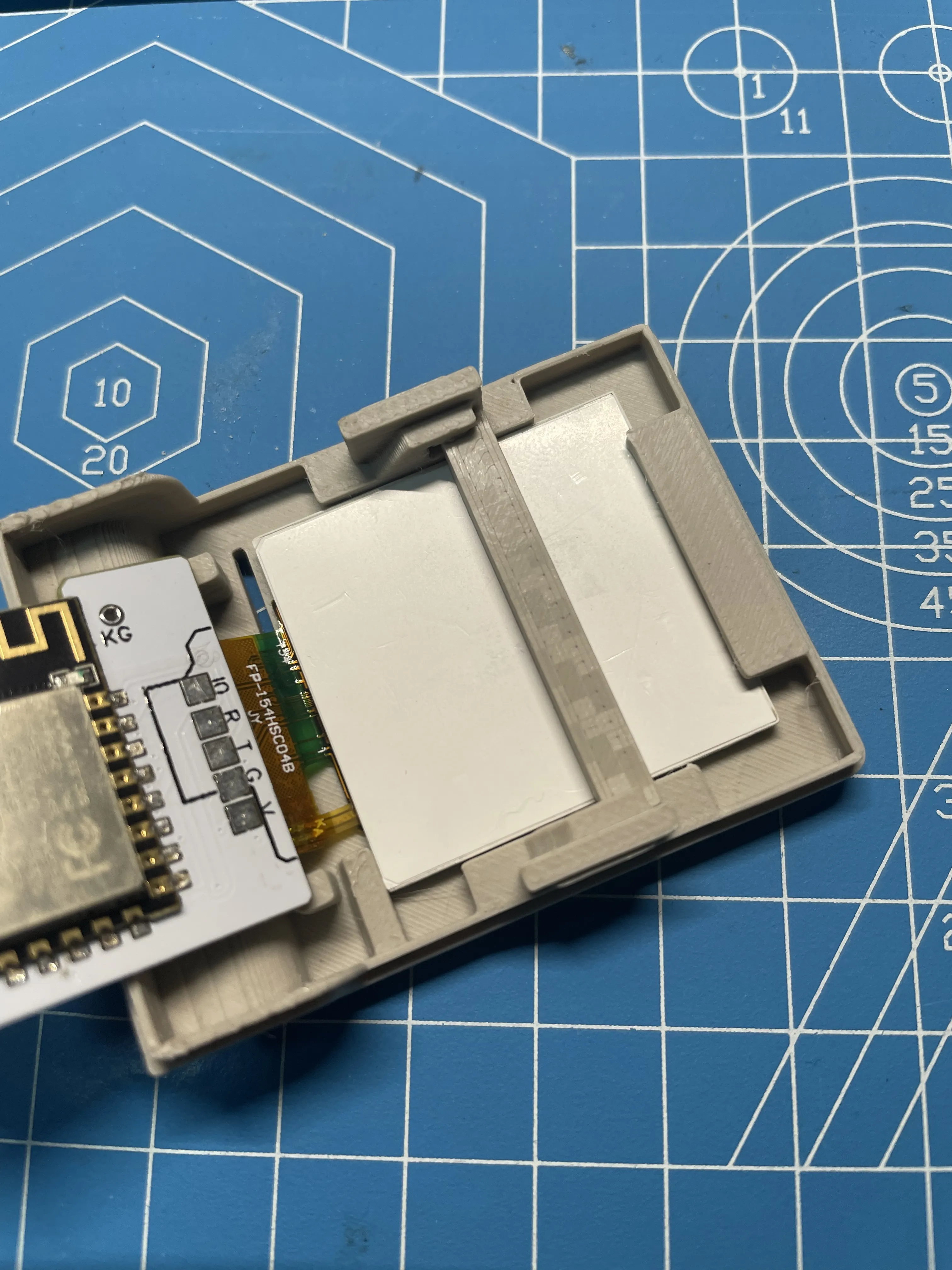

Installation Instructions: The screen needs to be secured with a retaining strip. Then insert the motherboard into the back case. Pay attention to the dimensions of the retaining strip, do not crush the screen. If necessary, use sandpaper or a file to thin it out slightly.
The bottom case is designed with 5mm magnet fixing holes, requiring 4 pieces of 5mm*2mm magnets.
