Mini Ping Pong Table-Foldable-Print in Place
Print Profile(1)
Bill of Materials
Description

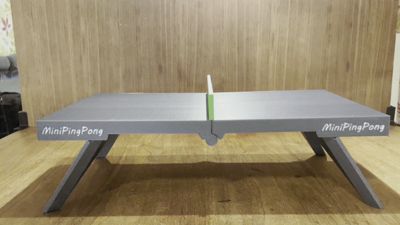

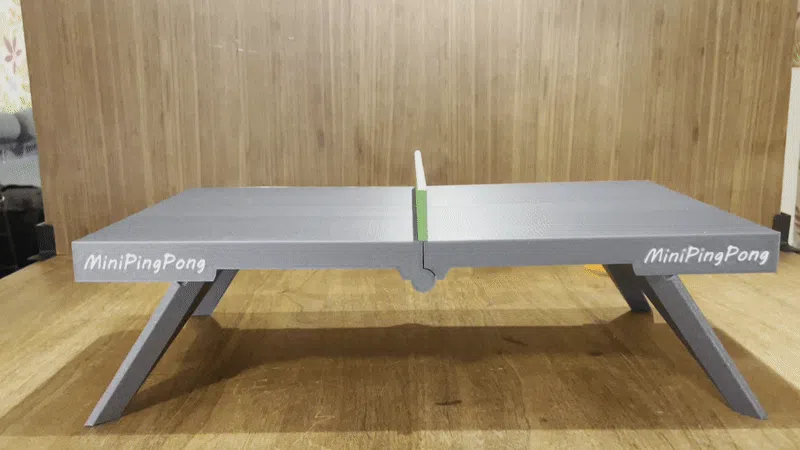

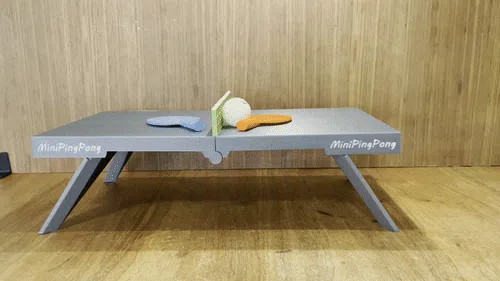

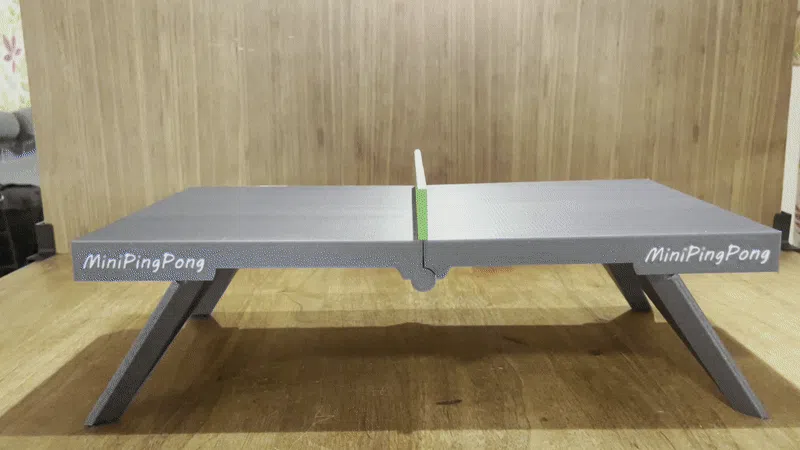

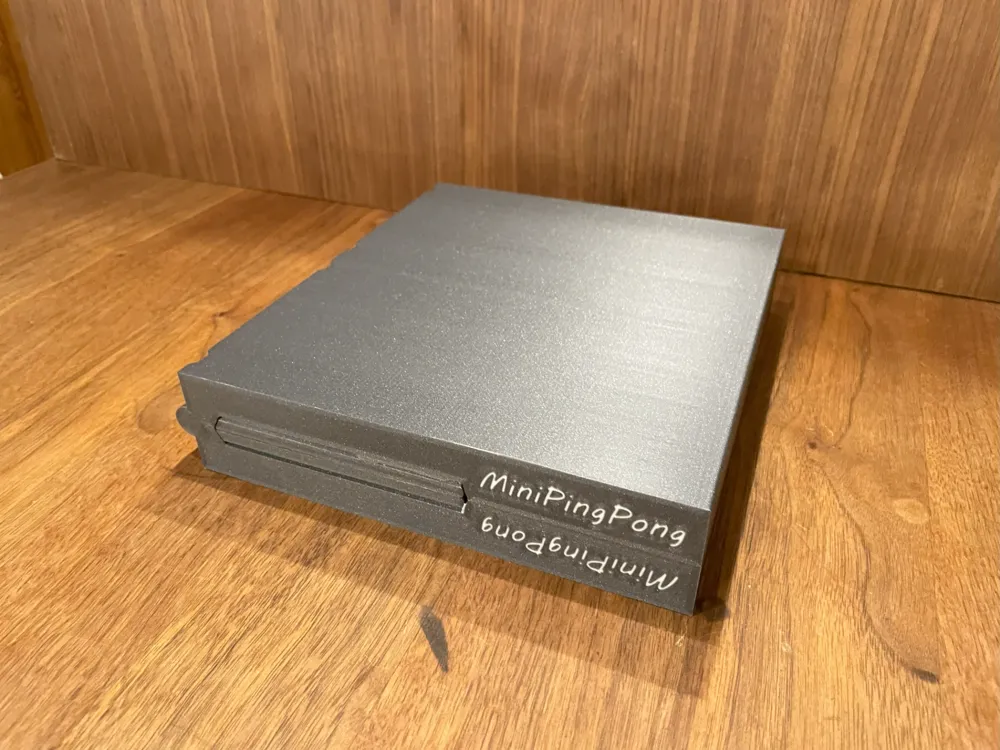

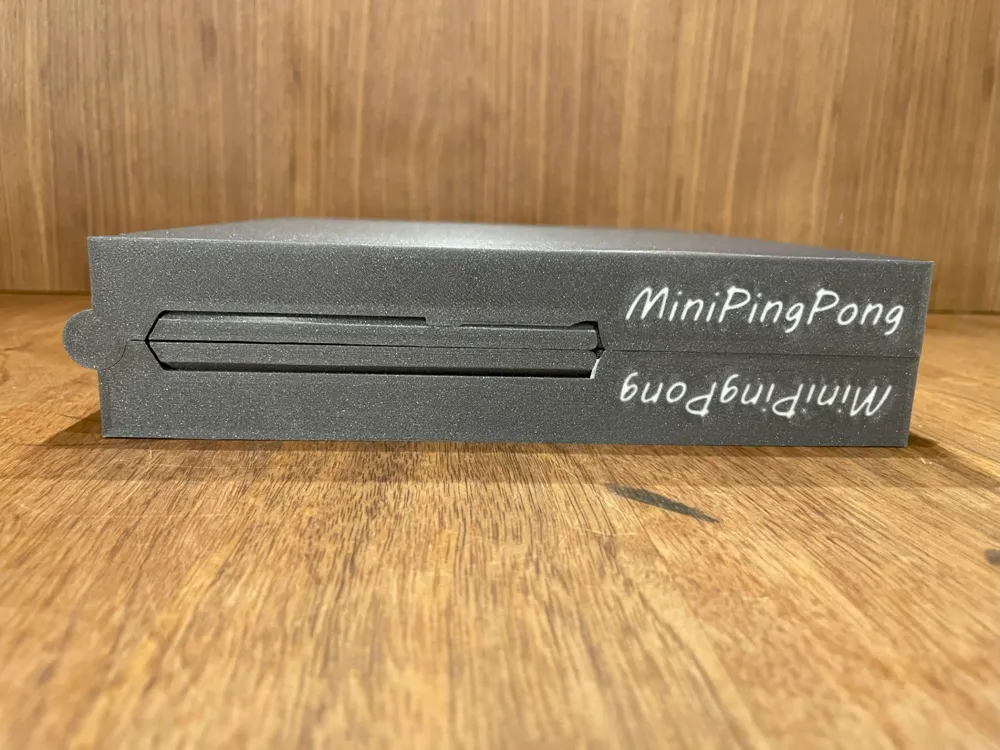

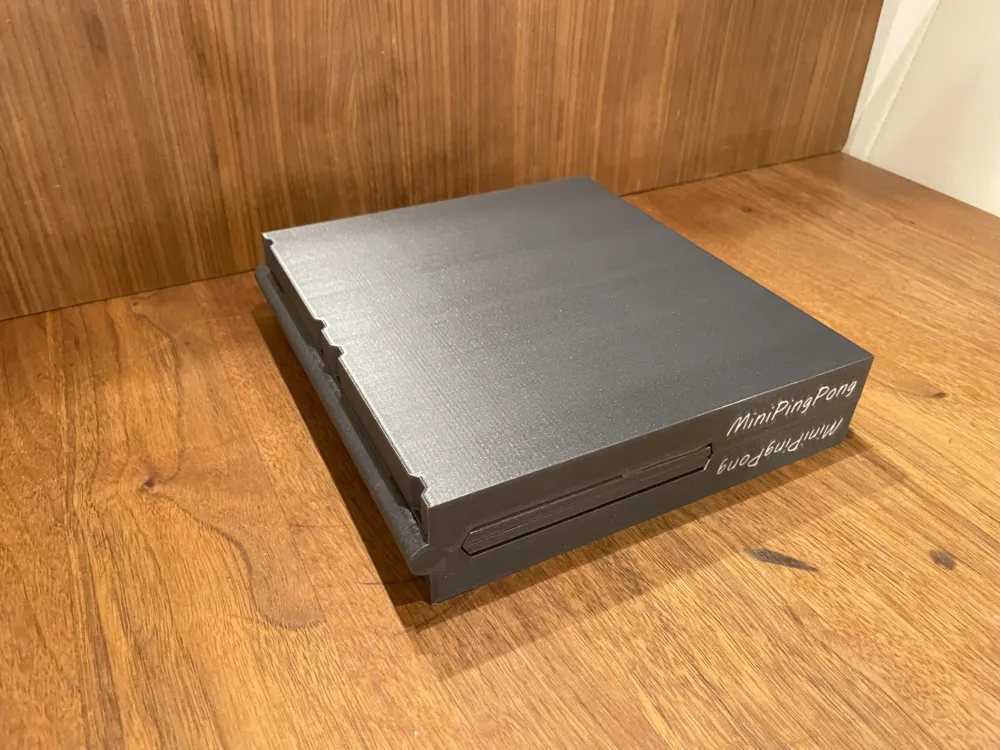

This is a table tennis table that is foldable to be easy to store and to bring with you.
The fact that it´s foldable makes it easy to wrap it as a present too.

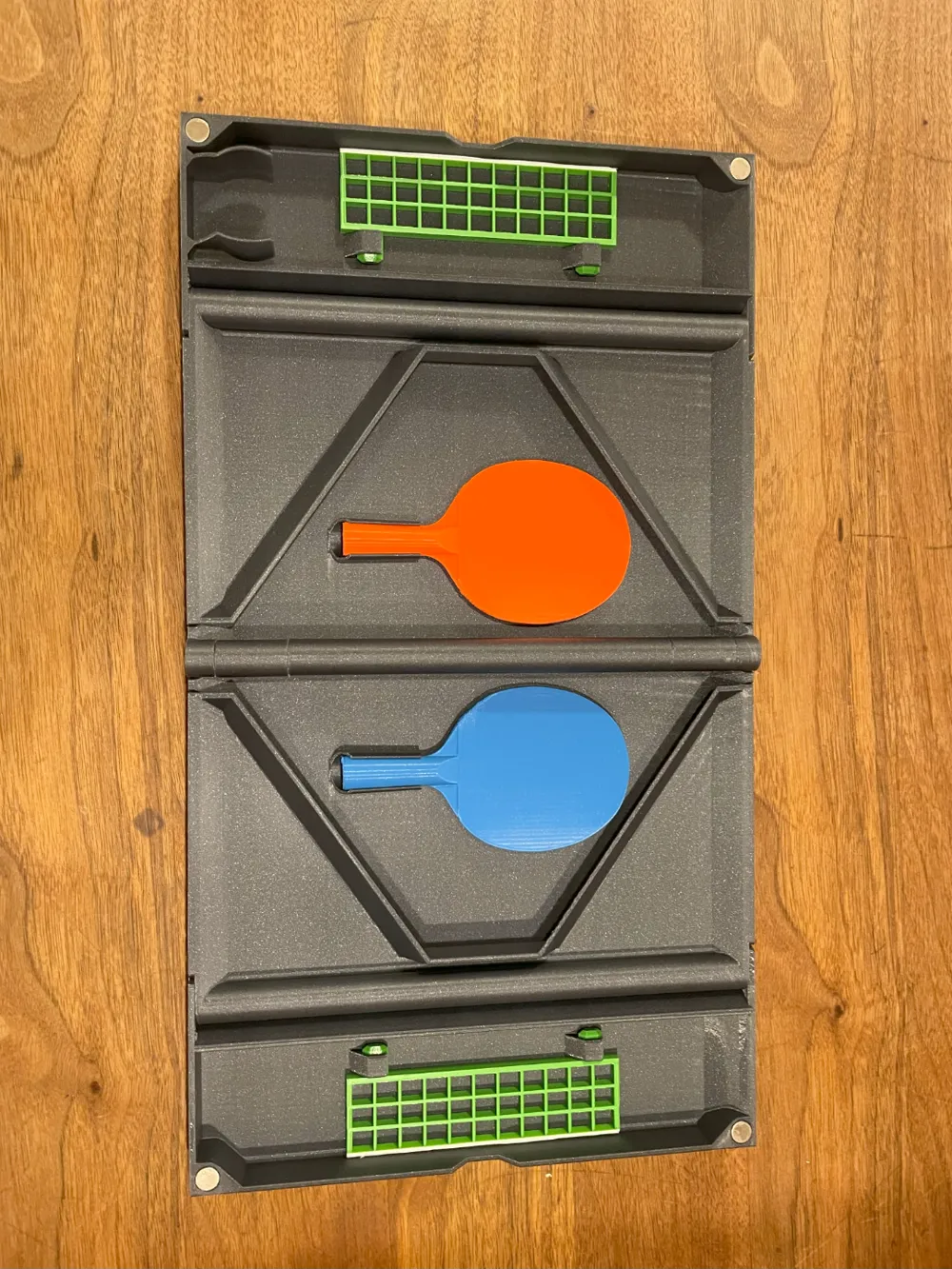

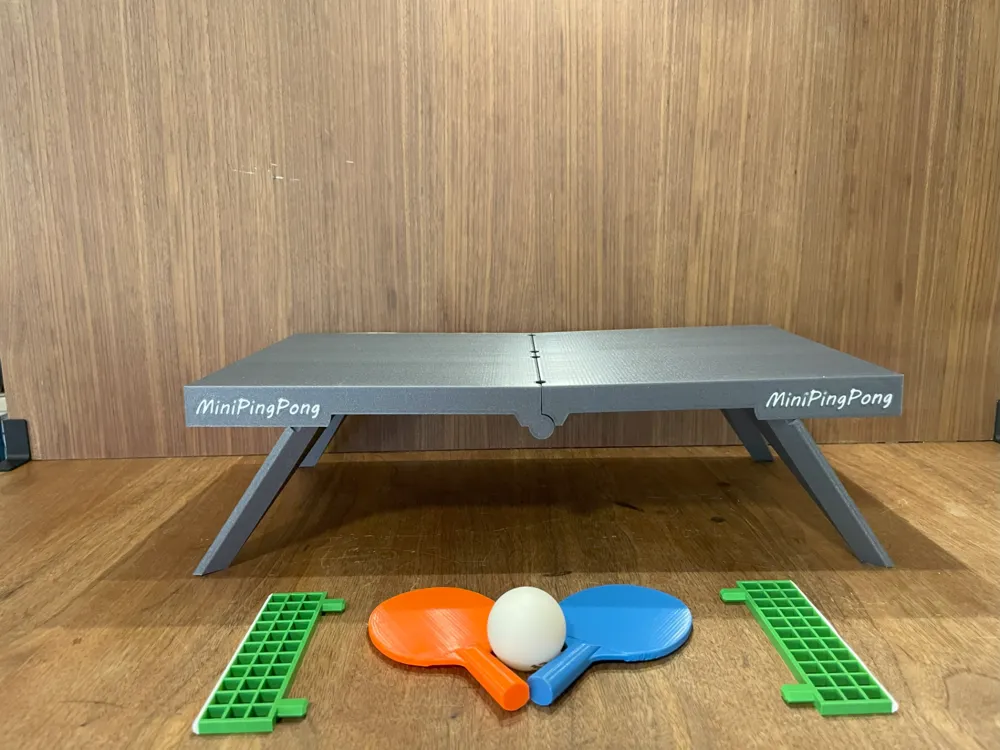

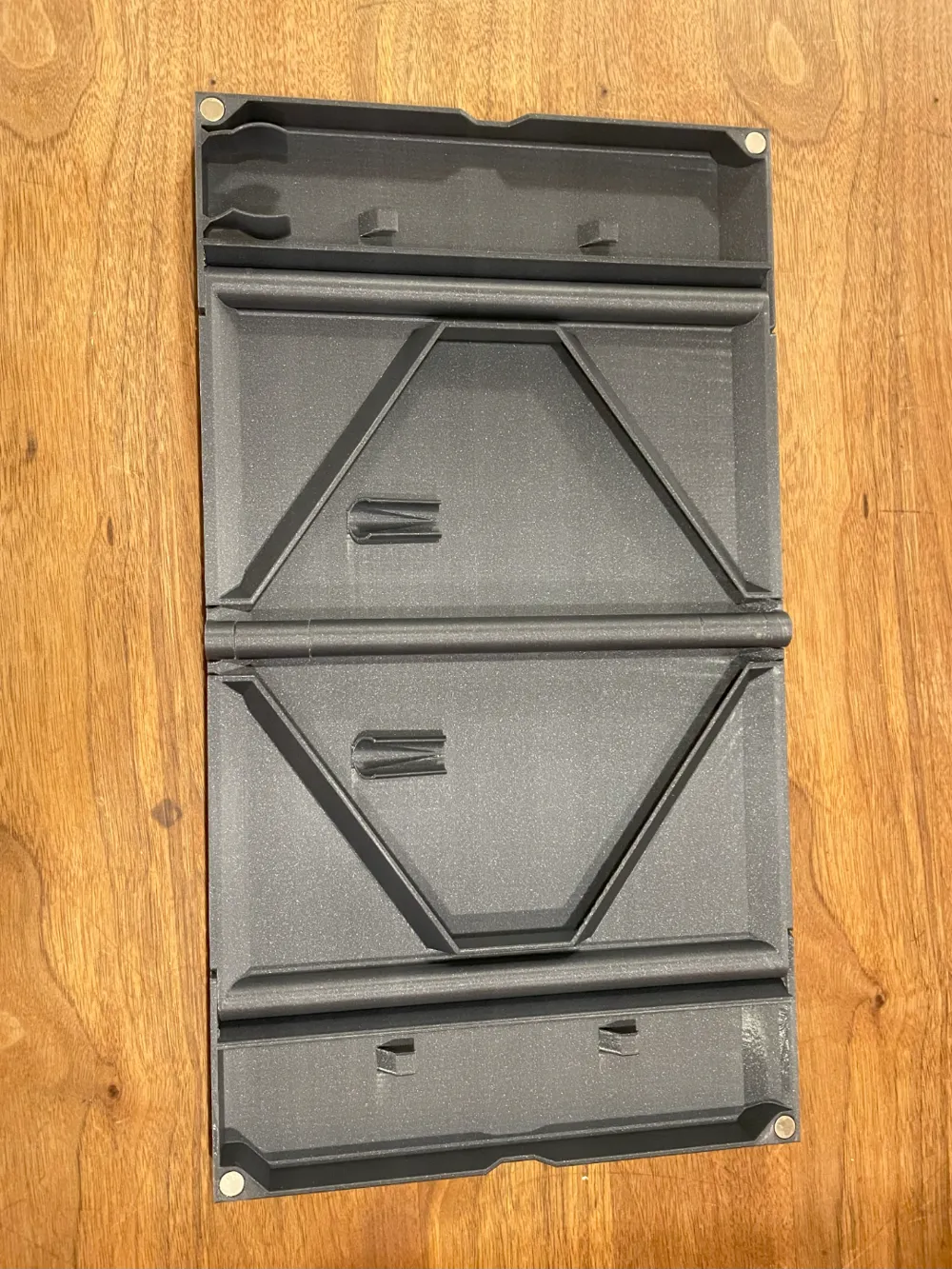

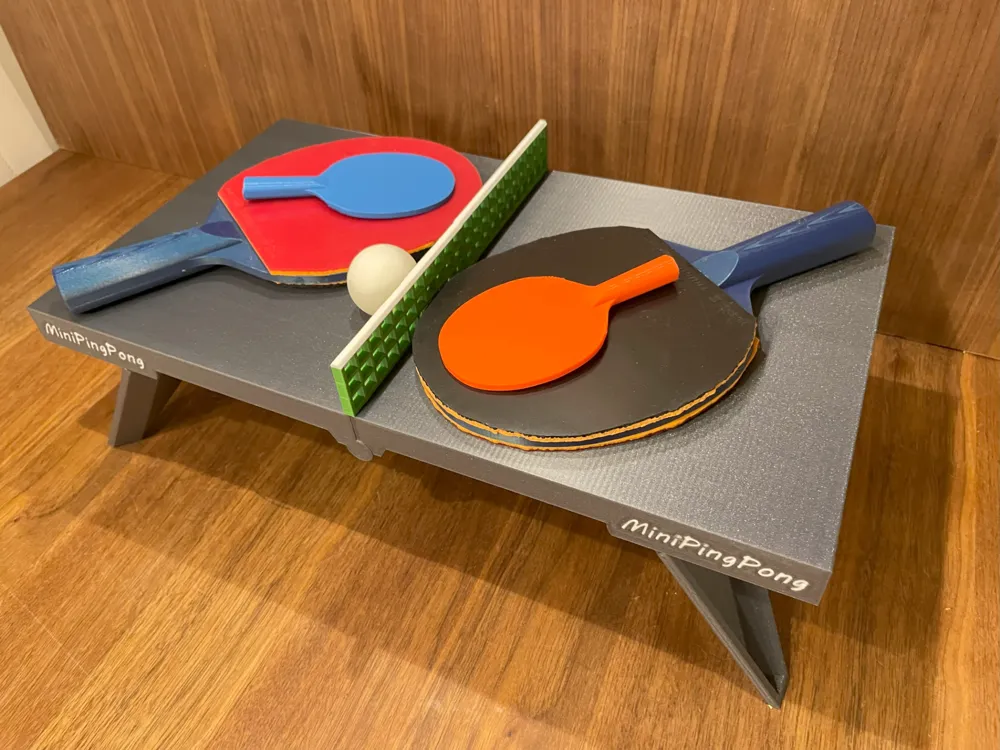

Everything you need to play is in the “box”, neatly clicked in to its brackets….ball, net and rackets.

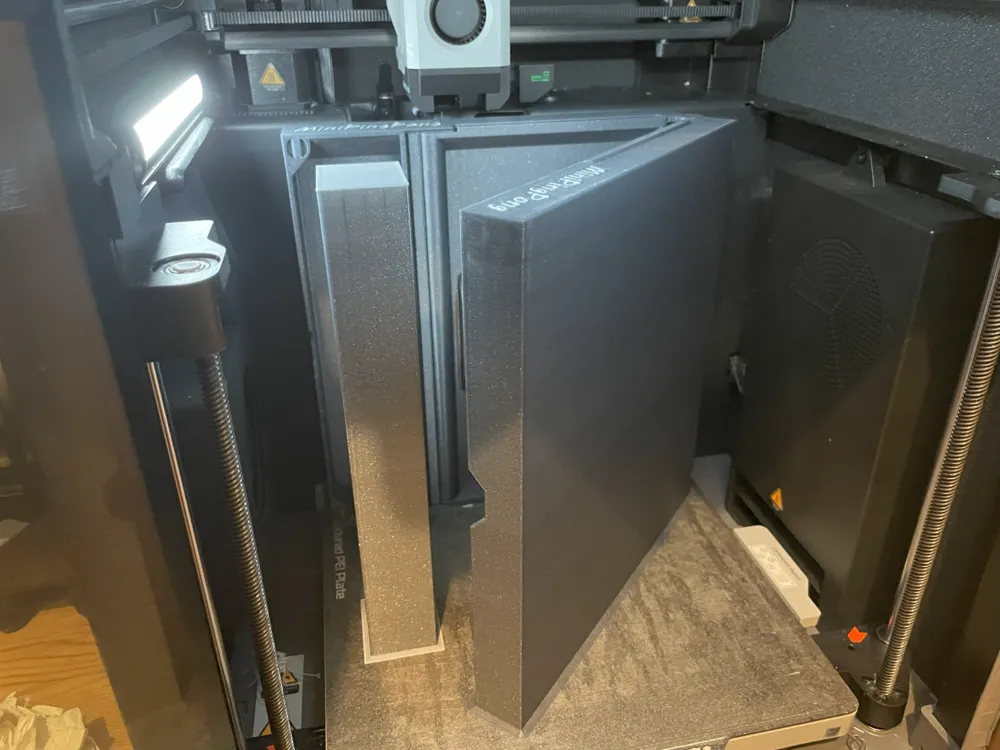

The whole thing prints in place, hinges and all, without any assembly with an absolute minimum of supports.

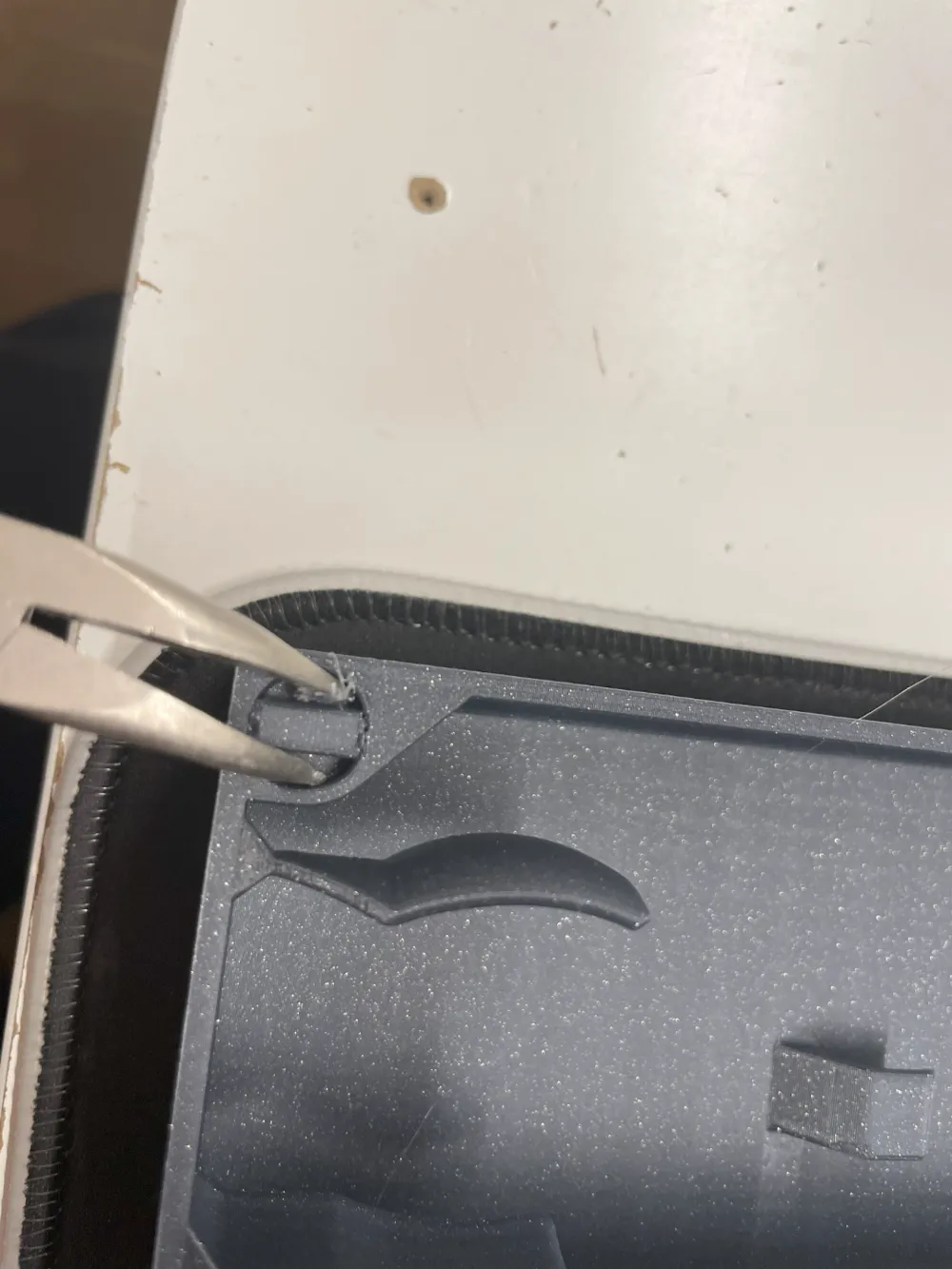

Just print the parts, put in the magnets (diameter 10mm and thickness 2.5 or 3mm) with superglue and you are good to go!
It´s more fun in the beginning to play with full size rackets since it´s easier for obvious reasons.
When skill goes up, it´s fun to try the small ones!
Make sure to print the table surface with 5 walls. Less than that and the bounce is too small.

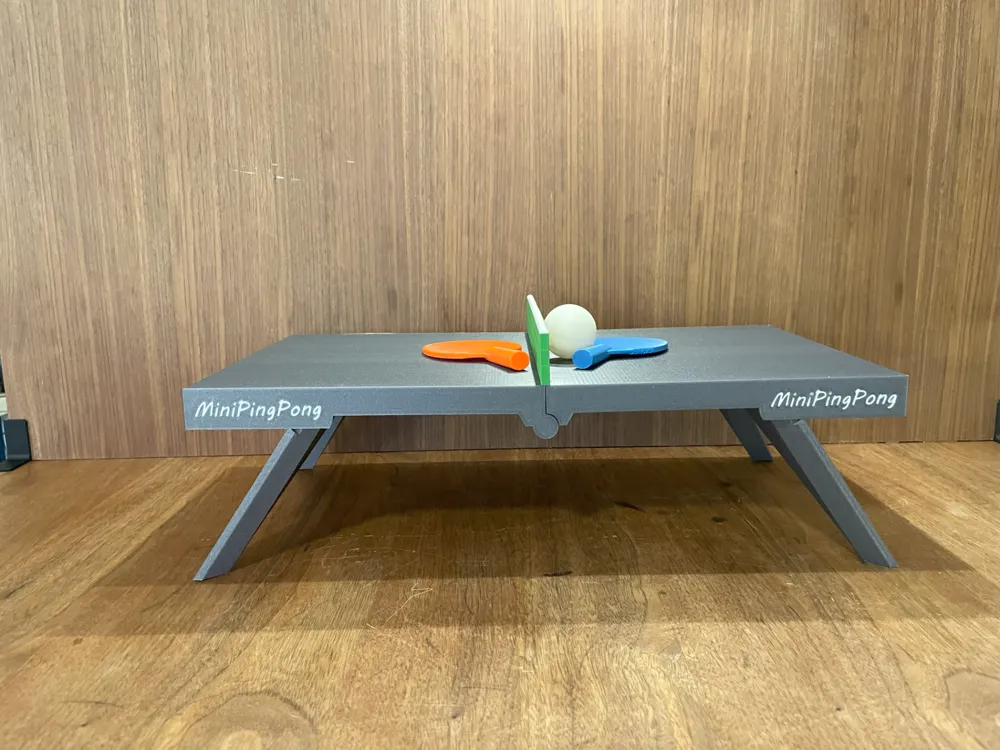

The table on the pics is made out of AddNorth Glitz Grey PLA which prints very slowly.
If you use BambuLab PLA the print time is reduced dramatically.
I recommend to print from the 3mf file or the step files because those are the ones I have tested.
When I had a working 3mf I exported the stl from BambuStudio so it should be perfect, but I have not printed the stl itself….just the file it is derived from.
I also added Table tennis table-Foldable-V3-Alt paddle.3mf where a 4th plate is present, that prints the paddle lying down in pieces made to glue together. This gives a better looking paddle but a little more work than the print in place version on palte 3.
